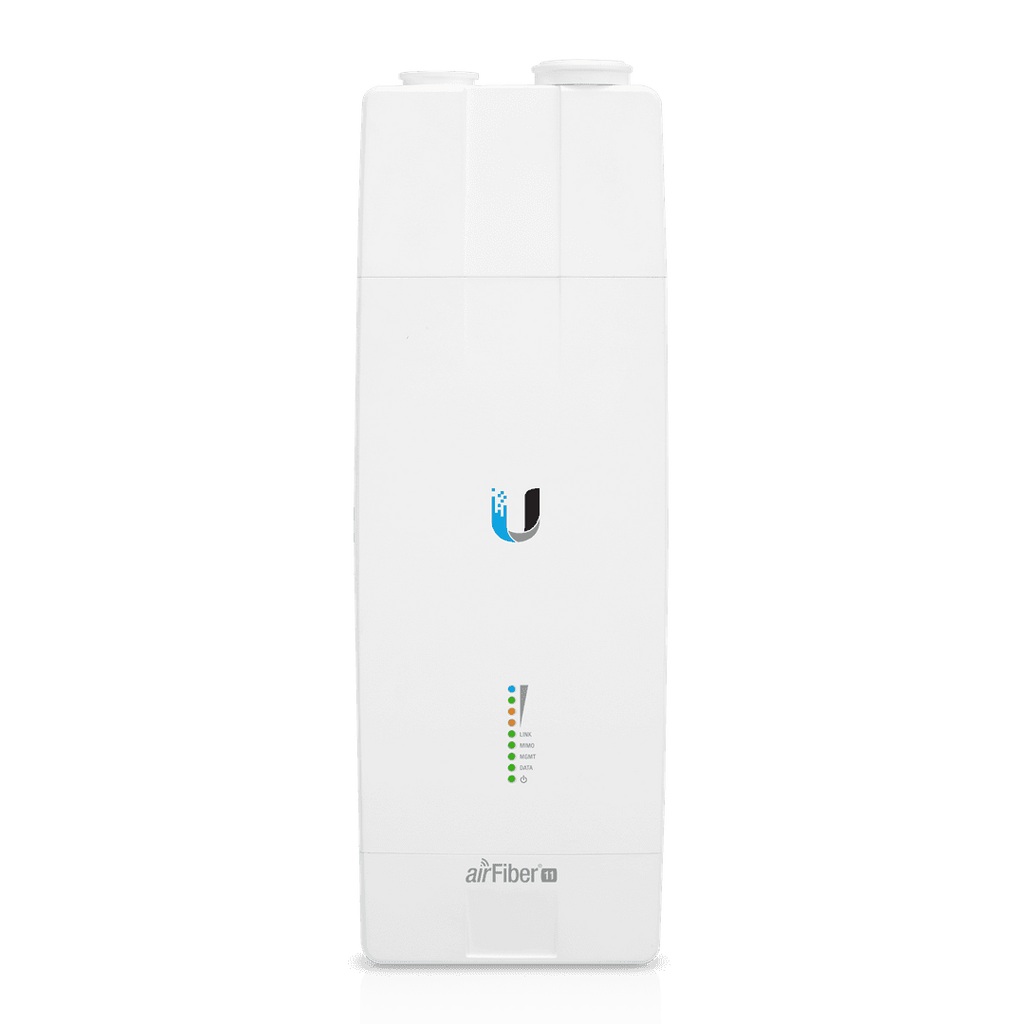

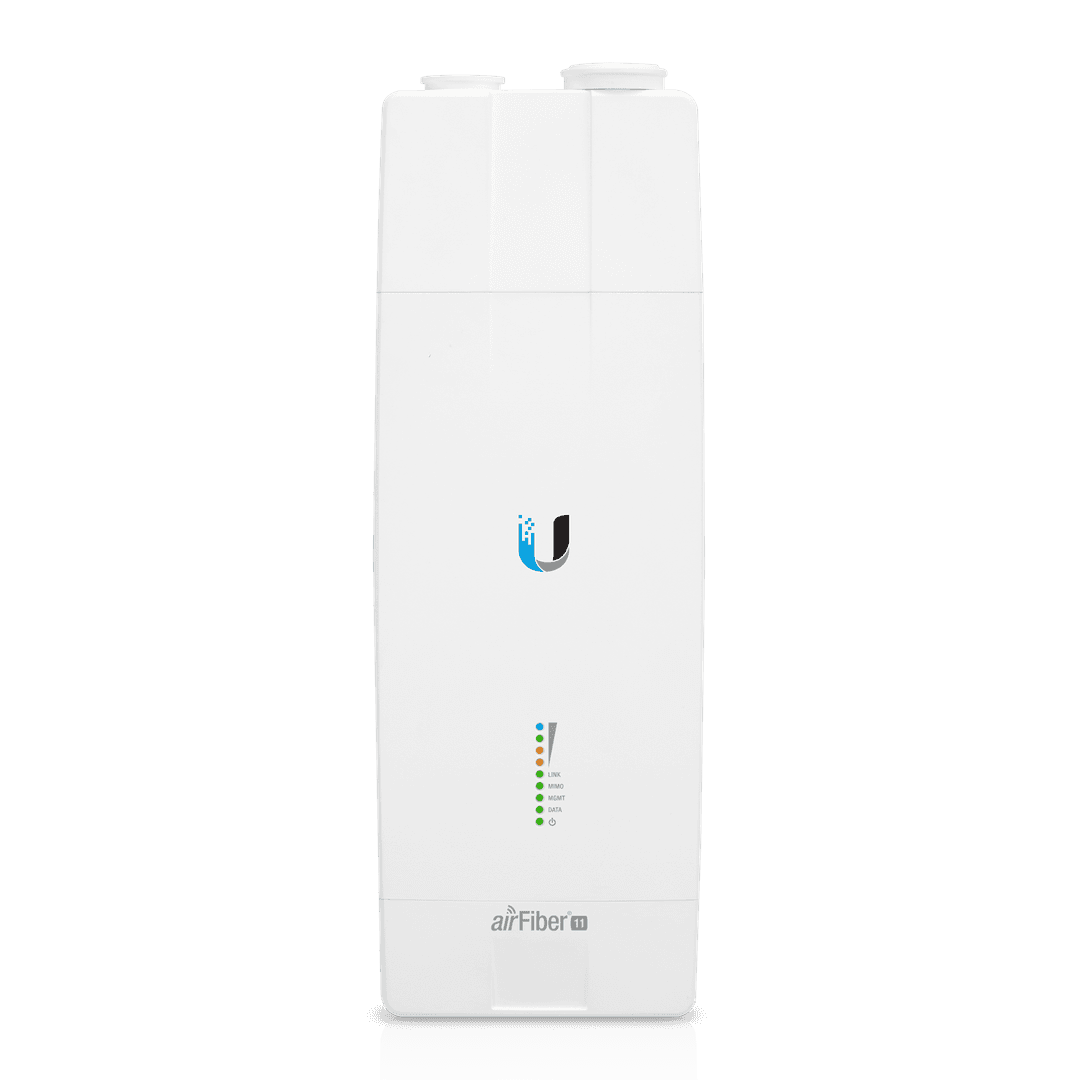

AirFiber 11 Wireless Platform

Fabricant	Ubiquiti
Modèle	AF-11
UPC	810010071613
Catégorie	Networking Wireless SingleBand — APs & Bridges
Poids	6.45 lbs
Dimensions (boîte)	5.9" × 13.6" × 4.8" (L×P×H)

TechnicalIn The BoxFAQ

General

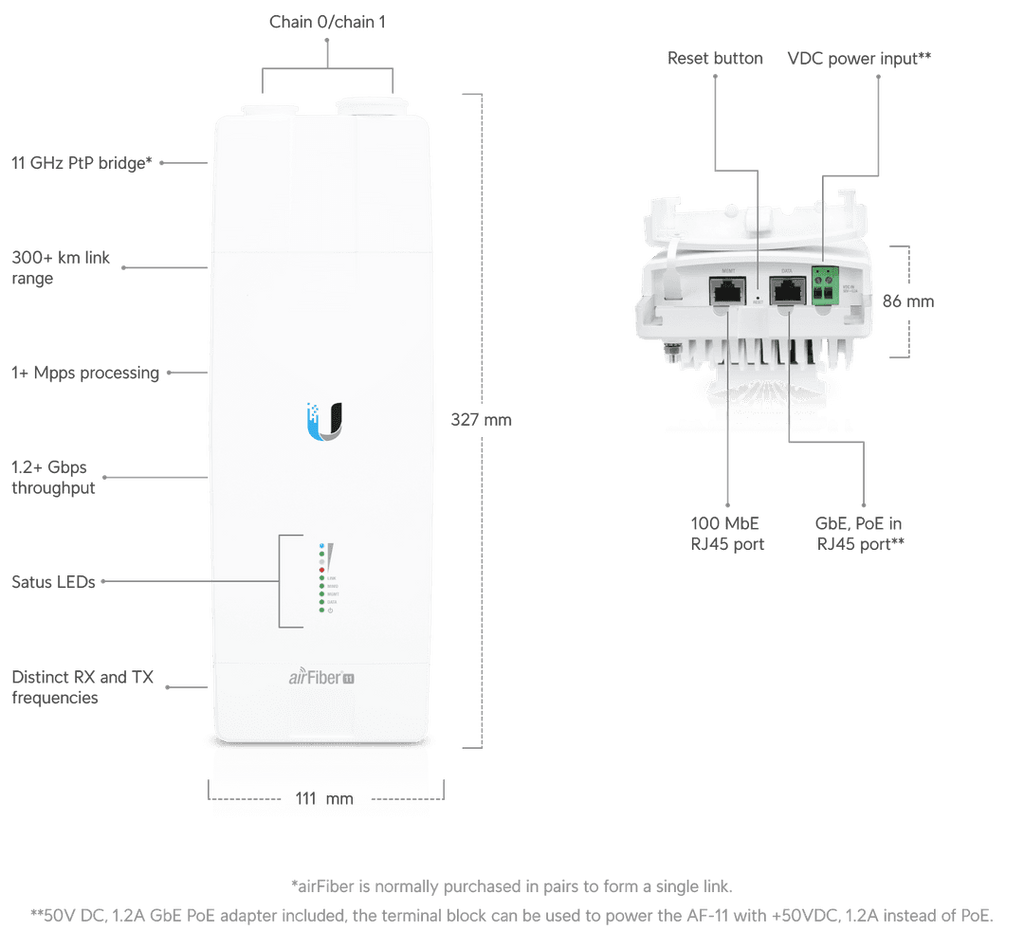

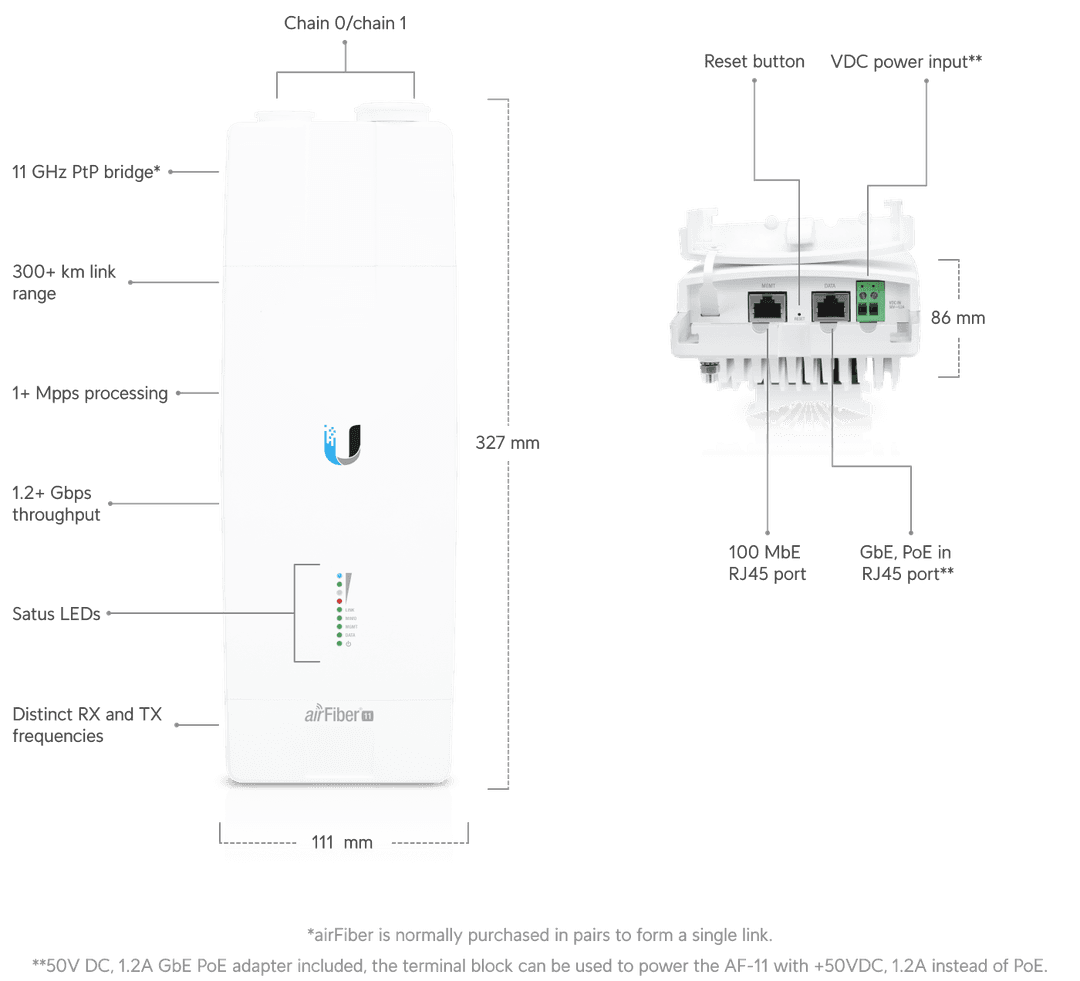

Dimensions	327 x 112 x 86 mm (12.9 x 4.4 x 3.4")
Weight	2.3 kg (5 lb)
Mounting	AF-11G35 mount compatible
Networking interface	(1) GbE RJ45 port(1) 10/100 MbE RJ45 port
Power method	Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)Terminal block direct-wire
Power supply	50V DC, 1.2A gigabit PoE adapter (Included)
Supported voltage range	38-56V DC
Max. power consumption	36W
RF connectors	(4) SMA Weatherproof, Two per Chain: TX 0, RX 0 (Chain 0) and TX 1, RX 1 (Chain 1)(2) N-Type Waterproof, One per Duplexer
Ambient operating temperature	-40 to 55° C (-40 to 131° F)
Certifications	CE, FCC, IC
NDAA Compliant	Yes
Modes	SISO/MIMO
Max. throughput	1.2+ Gbps
Max. range	300+ km
Encryption	128-bit AES
Operating frequency*	10.7-11.7 GHz*Depends on regional regulations.
Max. conducted TX power*	30 dBm*Depends on regional regulations.
Frequency accuracy	± 1 ppm
Channel bandwidth*	3.5/5/7/10/14/20/ 28/30/40/50/56 MHz selectableProgrammable Uplink and Downlink duty cycles* For region-specific details, refer to the Compliance chapter of the airFiber AF-11FX User Guide at ui.com/download/airfiber
