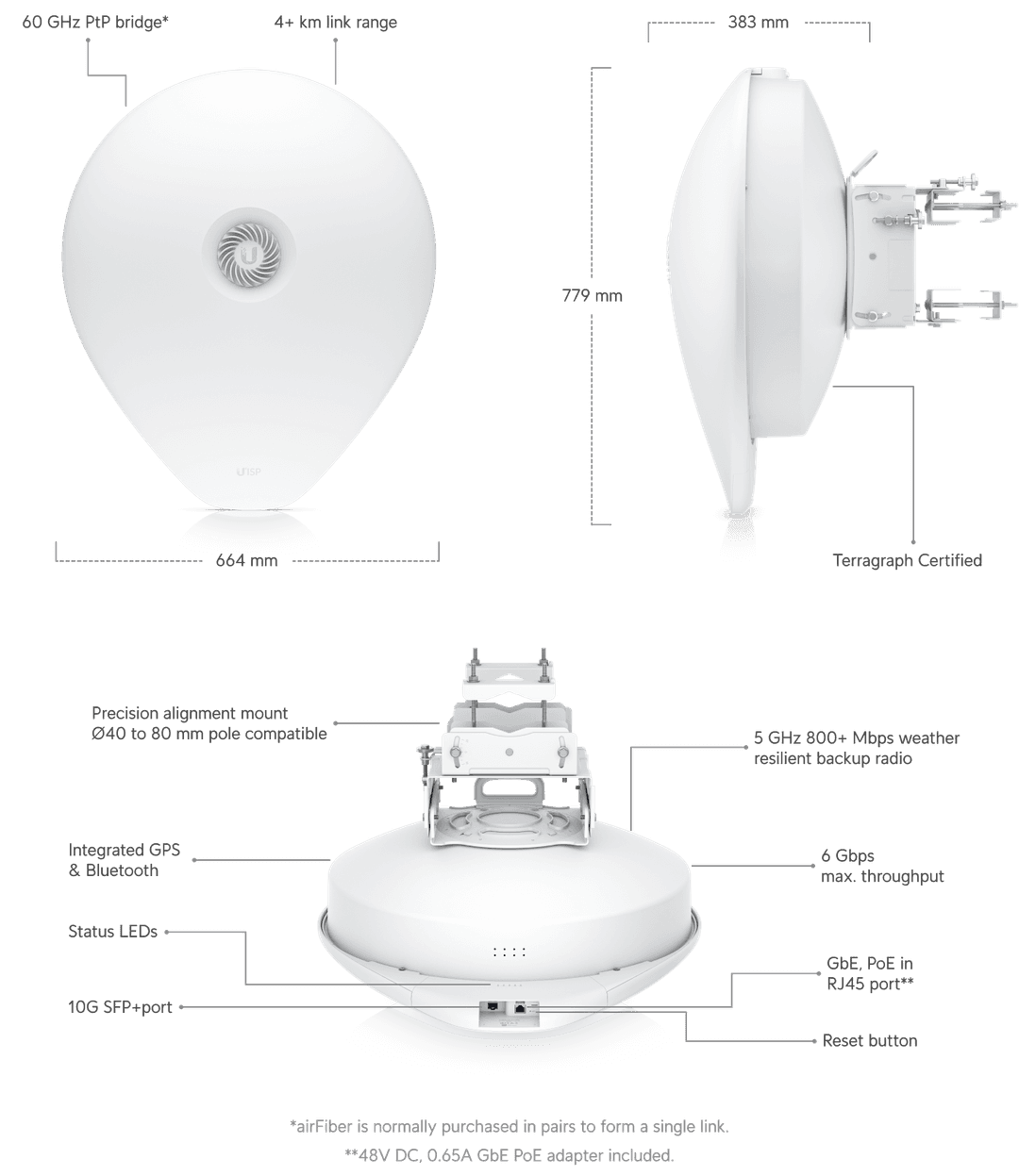

| Dimensions |
779 x 664 x 383 mm (30.68 x 26.14 x 15.06") |
| Weight |
Without mount: 8.6 kg (19 lb)With mount: 13 kg (28.7 lb) |
| Enclosure material |
UV stabilized polycarbonate, steel |
| Mount material |
Galvanized steel |
| Mounting |
Precision alignment kit (included)Pole compatibility: Ø40 to 80 mm (Ø1.5 to 3.15") |
| Wind loading |
422 N at 200 km/h (94.86 lbf at 125 mph) |
| Processor |
Quad-Core ARM® Cortex® A72 at 1.6 GHz |
| Memory |
2 GB DDR4 |
| Networking interface |
(1) GbE RJ45 port(1) 1/10G SFP+ port |
| Max. power consumption |
31.2W |
| Power method |
Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only |
| Power supply |
48V DC, 0.65A Gigabit PoE adapter (Included) |
| Supported voltage range |
44–54V DC22–27V DC |
| GPS |
Blue: receiving at least (4) GPS satellite signals |
| RF connections |
Internal |
| Button |
Factory reset |
| Ambient operating temperature |
-40 to 55° C (-40 to 131° F) |
| Ambient operating humidity |
5 to 95% noncondensing |
| Certifications |
FCC, IC, CE, terragraph |
| NDAA Compliant |
Yes |
| Operating mode |
PtP only |
| Services |
UISP, ping watchdog, NTP client, system log |
| Utilities |
Antenna alignment tool, discovery utility, ping, speed test |
| Management application |
UISP web: Version 1.4.3 and laterUISP iOS™ and Android™: Version 2.19 and later |
| Max. throughput |
5 GHz: 866.6 Mbps60 GHz: 3.8 Gbps/6 Gbps (with channel bonding enabled) |
| Max. range |
4 km |
| Encryption |
WPA2-PSK (AES) |
| Operating frequency* |
57–66 GHz* Depends on regulatory region. |
| Channel bandwidth |
20/40/80 MHz |
| Operating channels |
58320, 59400, 60480, 61560, 62640, 63720, 64800 MHz**Depends on the channel bandwidth. |
| Polarization |
Dual-linear |
| Beamwidth |
Azimuth: 3 dB 5°Elevation: 3 dB 5° |
| Operating frequency*US/CA |
U-NII-1 5150 - 5250 MHzU-NII-3 5725 - 5850 MHz |
| Worldwide |
5150–5875 MHz*Depends on regulatory region. |
| Power |
Flashing white: bootup in progressWhite: not connected to UISP™ consoleBlue: connected to UISP console |
| Ethernet |
Flashing blue: ethernet activity |
| 60G |
Blue: active connection |
| 5G |
Blue: active connection |
