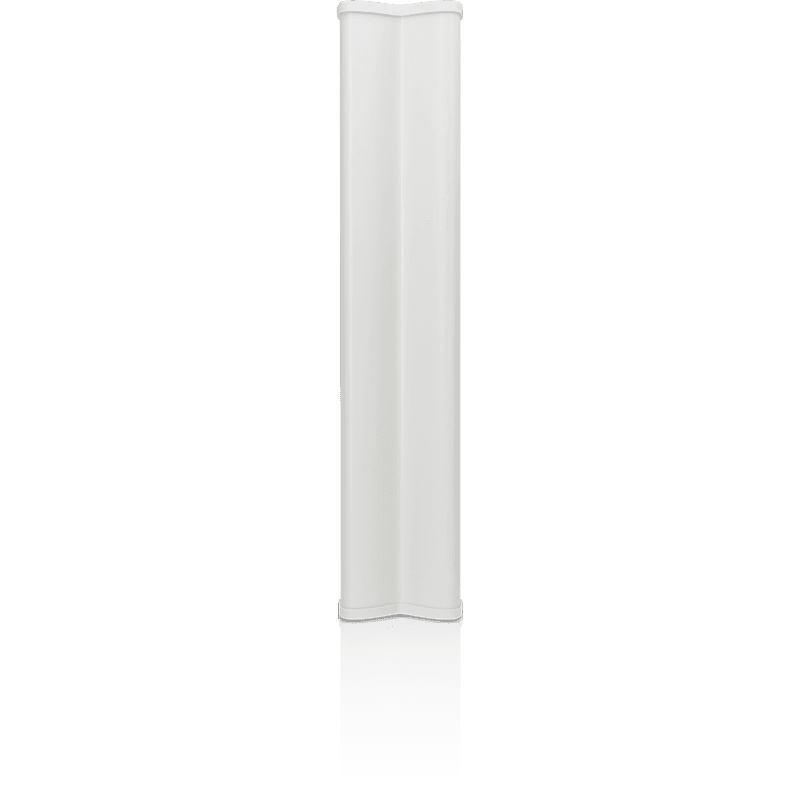

AM-2G15-120

Name: AM-2G15-120
Brand: Ubiquiti
SKU: AM2G15120CA
Price: 157.99 CAD
Availability: OutOfStock

$157.99 $192.99

AirMax BaseStation 15dBi

2GHz AirMax BasteStation 15dBi 120 deg, Rocket Kit

1 $157.99/ea

2-4 $157.43/ea

5-9 $156.87/ea

10-19 $156.12/ea

20+ $155.37/ea

AirMax BaseStation 15dBi

Fabricant	Ubiquiti
Modèle	AM-2G15-120
UPC	810354020865
Catégorie	Networking Wireless Dual Band — Antennas & Cables
Poids	10.65 lbs
Dimensions (boîte)	7.1" × 8.1" × 35.2" (L×P×H)

TechnicalIn The BoxFAQ

Mechanical

Dimensions	700 x 145 x 93 mm (27.6 x 5.7 3.7")
Weight	4 kg (8.8 lb)
Wind Survivability	200 km/h (125 mph)
Wind Loading	107 N at 160 km/h (24 lbf at 100 mph)
Mounting	Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
HPOL Beamwidth	123° (6 dB)
Frequency Range	2.3—2.7 GHz
Antenna Gain	15—16 dBi
Electrical Downtilt	4°
Electrical Beamwidth	9°
VPOL Beamwidth	118° (6 dB)
Max. VSWR	1.5:1
Polarization	Dual-Linear
Cross-Pol Isolation	28 dB Min.
ETSI Specification	EN 302 326 DN2
NDAA Compliant	✓

Specs

Dimensions	700 x 145 x 93 mm (27.6 x 5.7 3.7")
Weight	4 kg (8.8 lb)
Wind Survivability	200 km/h (125 mph)
Wind Loading	107 N at 160 km/h (24 lbf at 100 mph)
Mounting	Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
HPOL Beamwidth	123° (6 dB)
Frequency Range	2.3—2.7 GHz
Antenna Gain	15—16 dBi
Electrical Downtilt	4°
Electrical Beamwidth	9°
VPOL Beamwidth	118° (6 dB)
Max. VSWR	1.5:1
Polarization	Dual-Linear
Cross-Pol Isolation	28 dB Min.
ETSI Specification	EN 302 326 DN2
NDAA Compliant	✓
