am-2g16-90

Name: am-2g16-90
Brand: Ubiquiti
SKU: AM2G1690CA
Price: 166.99 CAD
Availability: OutOfStock

$166.99 $192.99

2GHz AirMax BseStation 16dBi

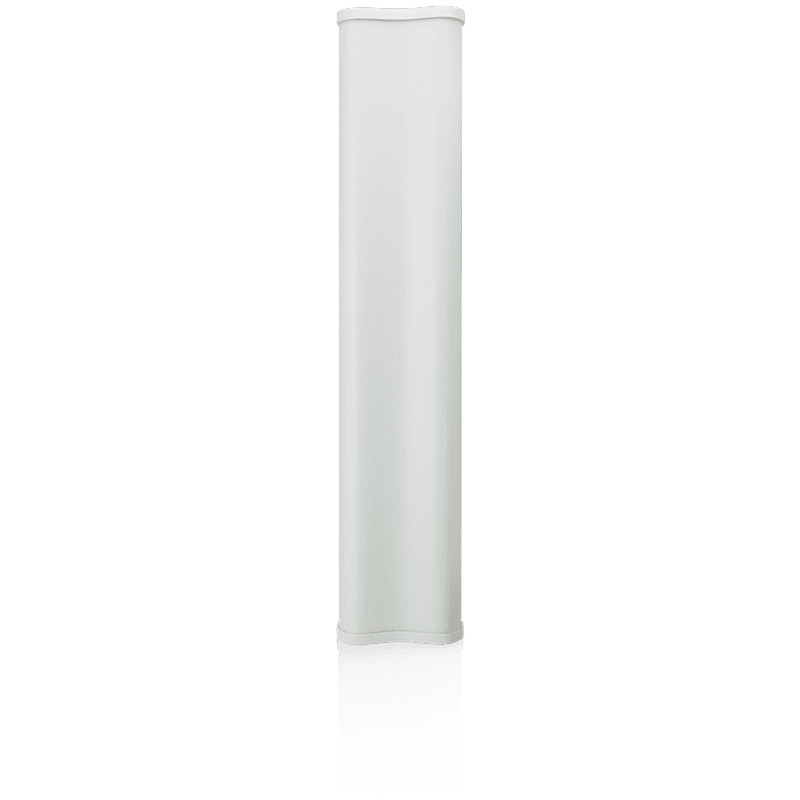

Ubiquiti AM-2G16-90 AirMax Sector 2.4 GHz 2x2 MIMO BaseStation Sector Antenna

1 $166.99/ea

2-4 $165.08/ea

5-9 $163.17/ea

10-19 $160.62/ea

20+ $158.07/ea

2GHz AirMax BseStation 16dBi

Fabricant	Ubiquiti
Modèle	am-2g16-90
UPC	810354020872
Catégorie	Networking Wireless SingleBand — Antennas & Cables
Poids	10.1 lbs
Dimensions (boîte)	6.6" × 7.7" × 35.2" (L×P×H)

TechnicalIn The BoxFAQ

Mechanical

Dimensions	700 x 145 x 79 mm (27.6 x 5.7 3.1")
Weight	3.9 kg (8.6 lb)
Wind Survivability	200 km/h (125 mph)
Wind Loading	85 N at 160 km/h (19 lbf at 100 mph)
Mounting	Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
HPOL Beamwidth	91° (6 dB)
Frequency Range	2.3—2.7 GHz
Antenna Gain	16—17 dBi
Electrical Downtilt	4°
Electrical Beamwidth	9°
VPOL Beamwidth	90° (6 dB)
Max. VSWR	1.5:1
Polarization	Dual-Linear
Cross-Pol Isolation	28 dB Min.
ETSI Specification	EN 302 326 DN2
NDAA Compliant	✓

Specs

Dimensions	700 x 145 x 79 mm (27.6 x 5.7 3.1")
Weight	3.9 kg (8.6 lb)
Wind Survivability	200 km/h (125 mph)
Wind Loading	85 N at 160 km/h (19 lbf at 100 mph)
Mounting	Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
HPOL Beamwidth	91° (6 dB)
Frequency Range	2.3—2.7 GHz
Antenna Gain	16—17 dBi
Electrical Downtilt	4°
Electrical Beamwidth	9°
VPOL Beamwidth	90° (6 dB)
Max. VSWR	1.5:1
Polarization	Dual-Linear
Cross-Pol Isolation	28 dB Min.
ETSI Specification	EN 302 326 DN2
NDAA Compliant	✓
