AM-5AC21-60

Name: AM-5AC21-60
Brand: Ubiquiti
SKU: AM5AC2160CA
Price: 243.99 CAD
Availability: OutOfStock

$243.99 $275.99

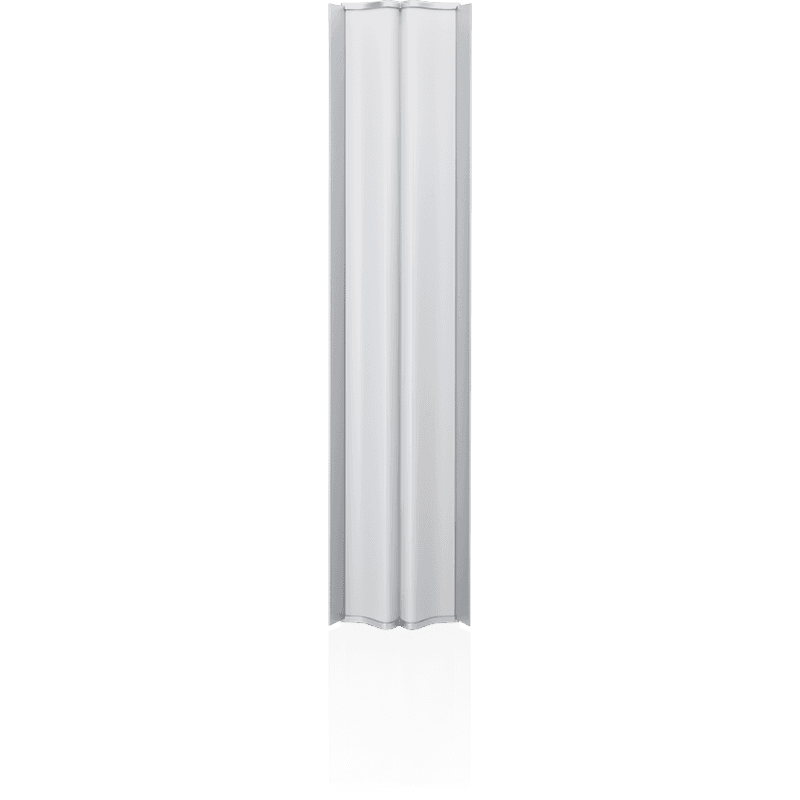

5 GHz airMAX AC Sector Antenna

Ubiquiti AM-M521-60-AC 5GHz AirMax ac 2x2 BaseStation Sector Antenna with 21 dBi Gain (AM-5AC21-60)

1 $243.99/ea

2-4 $241.28/ea

5-9 $238.57/ea

10-19 $234.95/ea

20+ $231.33/ea

5 GHz airMAX AC Sector Antenna

Fabricant	Ubiquiti
Modèle	AM-5AC21-60
UPC	810354021428
Catégorie	Networking Wireless SingleBand — Antennas & Cables
Poids	12.6 lbs
Dimensions (boîte)	6.9" × 8.8" × 35.5" (L×P×H)

TechnicalIn The BoxFAQ

General

Dimensions	750 x 173 x 78 mm (29.5 x 6.8 x 3")
Weight	4.8 kg (10.6 lb)
Frequency Range	5.10 - 5.85 GHz
Gain	21 dBi
HPOL Beamwidth	60° (6 dBi)
VPOL Beamwidth	60° (6 dBi)
Electrical Beamwidth	4°
Electrical Downtilt	2°
Max. VSWR	1.5:1
Wind Survivability	200 km/h (125 mph)
Wind Loading	391 N @ 200 km/h (88 lbf @ 125 mph)
Polarization	Dual-Linear
Cross-pol Isolation	25 dB Min.
ETSI Specification	EN 302 326 DN2
Mounting	Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
NDAA Compliant	Yes
