AM-5AC22-45

Name: AM-5AC22-45
Brand: Ubiquiti
SKU: AM5AC2245CA
Price: 230.99 CAD
Availability: InStock

$230.99 $275.99

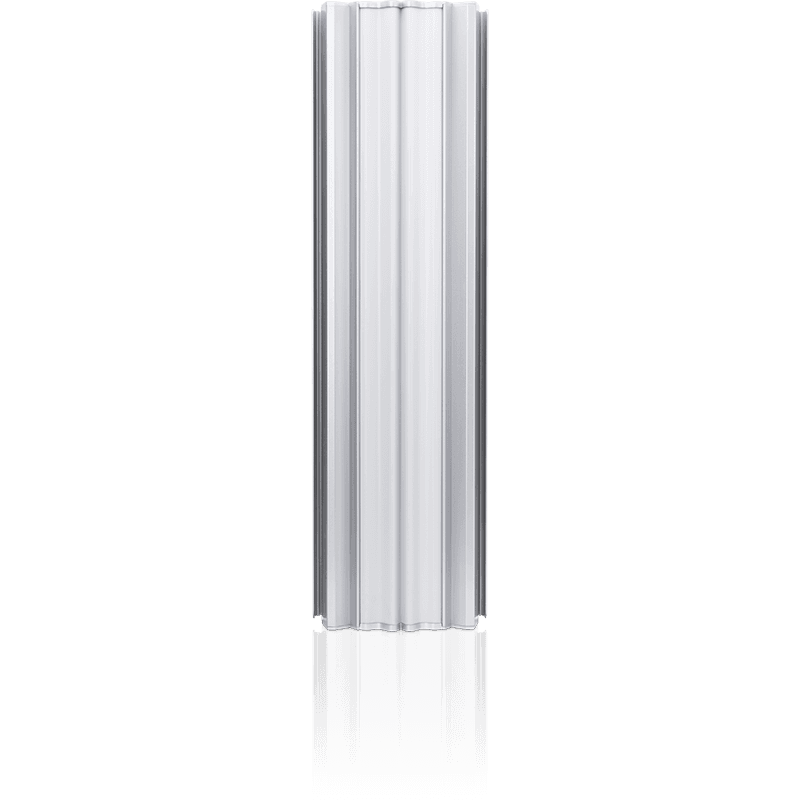

5GHz AirMax BaseStation 22dBi

airMAX ac 2x2 BaseStation Sector Antenna The airMAX ac Sector Antennas feature significant advances in scalability, noise isolation, and beam performance to complement the Rocket 5ac radios in Point-to-MultiPoint (PtMP) networks. They are compatible with RocketM5 models; however, optimal performance requires the Rocket5ac.

1 $230.99/ea

2-4 $230.23/ea

5-9 $229.47/ea

10-19 $228.45/ea

20+ $227.43/ea

5GHz AirMax BaseStation 22dBi

Fabricant	Ubiquiti
Modèle	AM-5AC22-45
UPC	810354021404
Catégorie	Networking Wireless Dual Band — Antennas & Cables
Poids	15.5 lbs
Dimensions (boîte)	35" × 10.2" × 7.5" (L×P×H)

TechnicalIn The BoxFAQ

Mechanical

Dimensions	750 x 215 x 94 mm (29.5 x 8.5 x 3.7")
Weight	6 kg (13.2 lb)
Wind Survivability	200 km/h (125 mph)
Wind Loading	347 N at 200 km/h (78 lbf at 125 mph)
Mounting	Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
HPOL Beamwidth	45° (6 dBi)
Frequency Range	5.10—5.85 GHz
Antenna Gain	22 dBi
Electrical Downtilt	2°
Electrical Beamwidth	4°
VPOL Beamwidth	45° (6 dBi)
Max. VSWR	1.5:1
Polarization	Dual-Linear
Cross-Pol Isolation	30 dB Min.
ETSI Specification	EN 302 326 DN2
NDAA Compliant	✓

Specs

Dimensions	750 x 215 x 94 mm (29.5 x 8.5 x 3.7")
Weight	6 kg (13.2 lb)
Wind Survivability	200 km/h (125 mph)
Wind Loading	347 N at 200 km/h (78 lbf at 125 mph)
Mounting	Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
HPOL Beamwidth	45° (6 dBi)
Frequency Range	5.10—5.85 GHz
Antenna Gain	22 dBi
Electrical Downtilt	2°
Electrical Beamwidth	4°
VPOL Beamwidth	45° (6 dBi)
Max. VSWR	1.5:1
Polarization	Dual-Linear
Cross-Pol Isolation	30 dB Min.
ETSI Specification	EN 302 326 DN2
NDAA Compliant	✓
