| Dimensions |

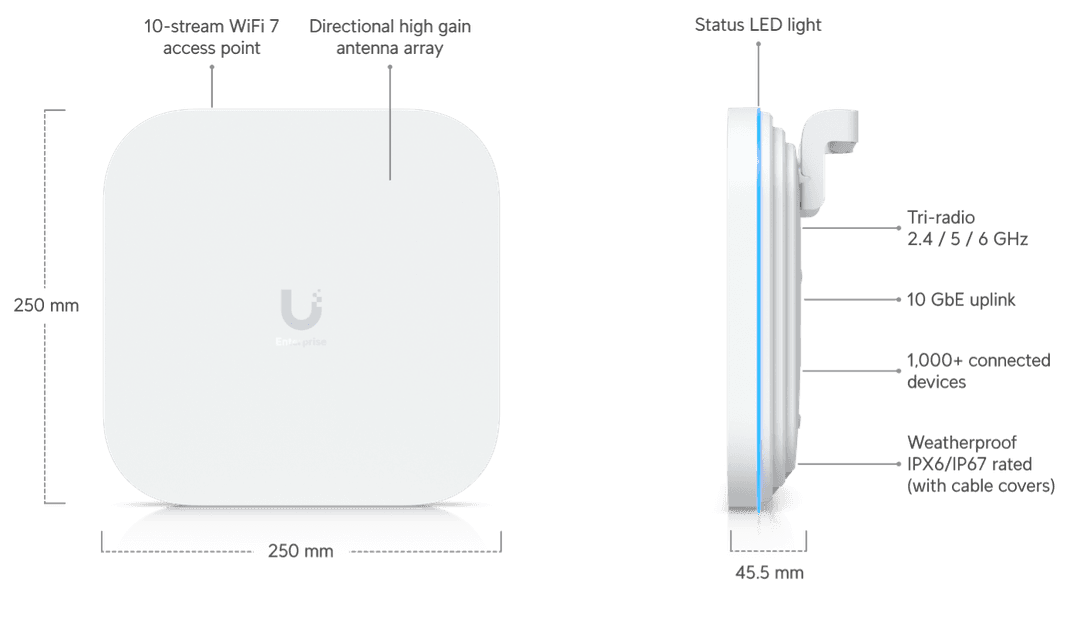

Device: 250 x 250 x 45.5 mm
(9.8 x 9.8 x 1.8")
Articulating mount: ⌀104 x 149.4
(⌀4.1 x 5.9") |
| WiFi Standard |
WiFi 7 |
| Spatial Streams |
10 |
| Coverage Area |
465 m² (5,000 ft²) |
| Max. Client Count |
1000+ |
| Uplink |
10 GbE
1 GbE |
| Mounting |
Wall, Pole (Mounts Included)
VESA (Optional) |
| Weatherproofing |
IPX6
IP67 with Waterproof Door Kit (Included) |
| Power Method |
PoE++ |
| MIMO |
4 x 4 (DL/UL MU-MIMO) |
| 6 GHz |
90° x 50° |
| 5 GHz |
100° x 55° |
| 2.4 GHz |
90° x 80° |
| Max. BSSIDs |
8 per Radio |
| 802.11be (WiFi 7) |
7.3 Mbps to 11.4 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240/320) |
| 802.11ax (WiFi 6) |
7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
| 802.11ac (WiFi 5) |
6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
| 802.11n |
6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) |
| Wireless Meshing |
✓ |
| Band Steering |
✓ |
| 802.11v BSS Transition Management |
✓ |
| 802.11r Fast Roaming |
✓ |
| 802.11k Radio Resource Management (RRM) |
✓ |
| Zero-Wait DFS |
✓ |
| Advanced Radio Management |
✓ |
| Real-Time Spectral Analysis |
✓ |
| Passpoint (Hotspot 2.0) |
✓ |
| Custom Branding Landing Page |
✓ |
| Voucher Authentication |
✓ |
| Payment-Based Authentication |
✓ |
| External Portal Server Support |
✓ |
| Password Authentication |
✓ |
| Guest Network Isolation |
✓ |
| Private Pre-Shared Key (PPSK) |
✓ |
| WiFi Speed Limiting |
✓ |
| Client Device Isolation |
✓ |
| WiFi Schedules |
✓ |
| RADIUS over TLS (RadSec) |
✓ |
| Dynamic RADIUS-assigned VLAN |
✓ |
| Max. Power Consumption |
44W |
| Supported Voltage Range |
42.5–57V DC |
| Networking Interface |
(1) 10 GbE RJ45 port
(1) GbE RJ45 port |
| PRISM™ RF Filtering |
✓ |
| Weight |
Device: 2.2 kg (4.9 lb)
With articulating mount: 3.1 kg (6.8 lb) |
| Wind Loading |
164.75 N at 200 km/h (37 lbf at 125 mph) |
| Pole Mount Diameter |
1–2.5" (25–63.5 mm) |
| Antennas |
(1) Internal with directional patterns |
| Management |
Ethernet |
| Enclosure Material |
UV-stabilized polycarbonate, aluminum alloy |
| Mount Material |
Stainless steel, aluminum alloy |
| System |
R/G/B |
| NDAA Compliant |
✓ |
| Certifications |
FCC, IC |
| Operating Frequency |
US/CA:
2400 - 2472 MHz
U-NII-1: 5150 - 5250 MHz
U-NII-2A: 5250 - 5350 MHz
U-NII-2C: 5470 - 5725 MHz
U-NII-3: 5725 - 5850 MHz
U-NII-5 and U-NII-7: 5925 - 6425 MHz, 6525 - 6875 MHz
Worldwide:
2400 - 2483.5 MHz
5150 - 5850 MHz
5925 - 7125 MHz |
| Ambient Operating Temperature |
-30 to 60° C (-22 to 140° F) |
| Ambient Operating Humidity |
5 to 95% noncondensing |
| Application Requirements |
Version 9.0.114 and later |
| UniFi Network |
Version 9.0.114 and later |
| Mobile App |
iOS™ version 10.20.0 and later
Android™ version 10.21.3 and later |
