Name: ECS-Aggregation
Brand: Ubiquiti
SKU: ECSAGGREGATIONC
Price: 5599.99 CAD
Availability: OutOfStock

ECS-Aggregation

$5,599.99

ECS-Aggregation

$5,599.99

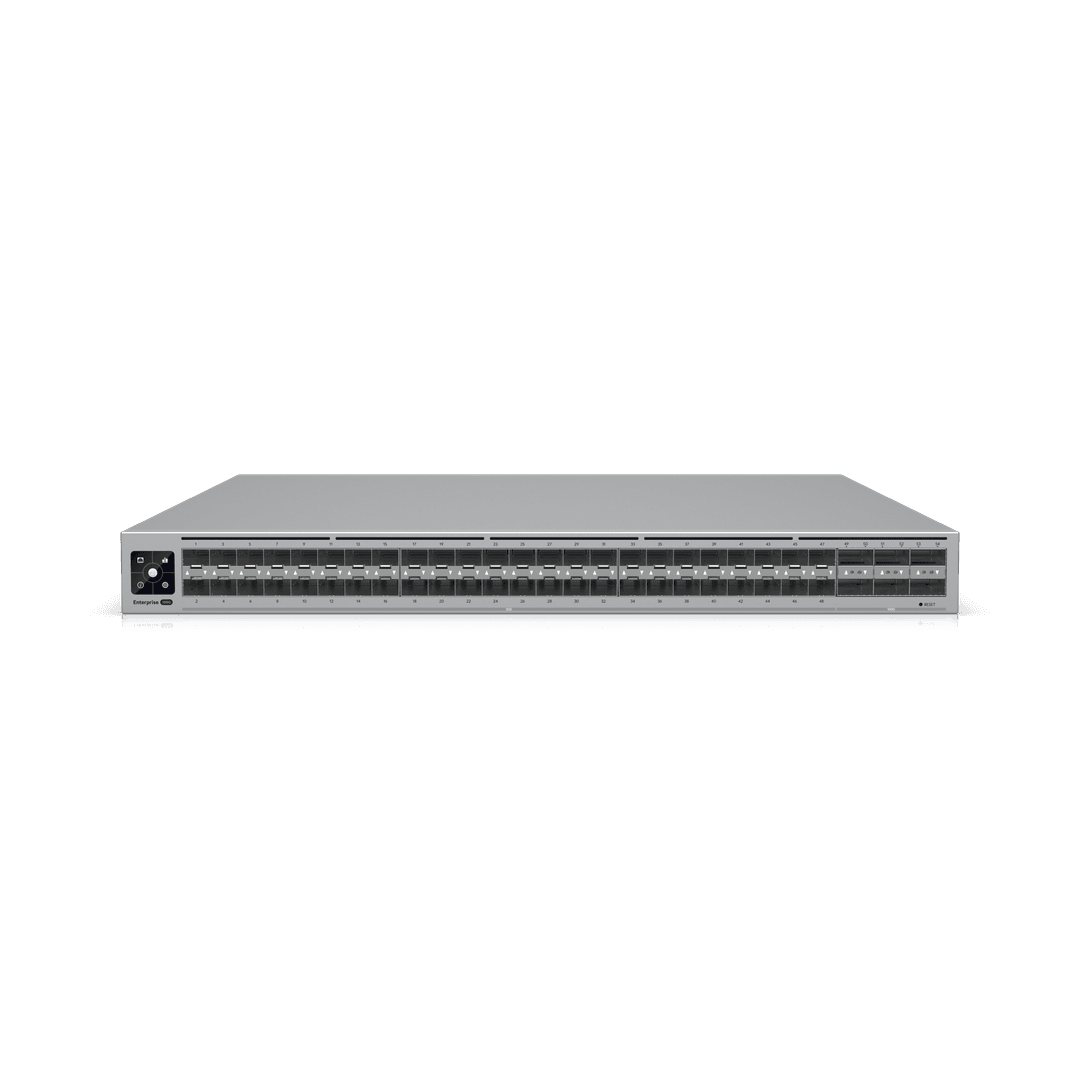

Enterprise Campus Aggregation

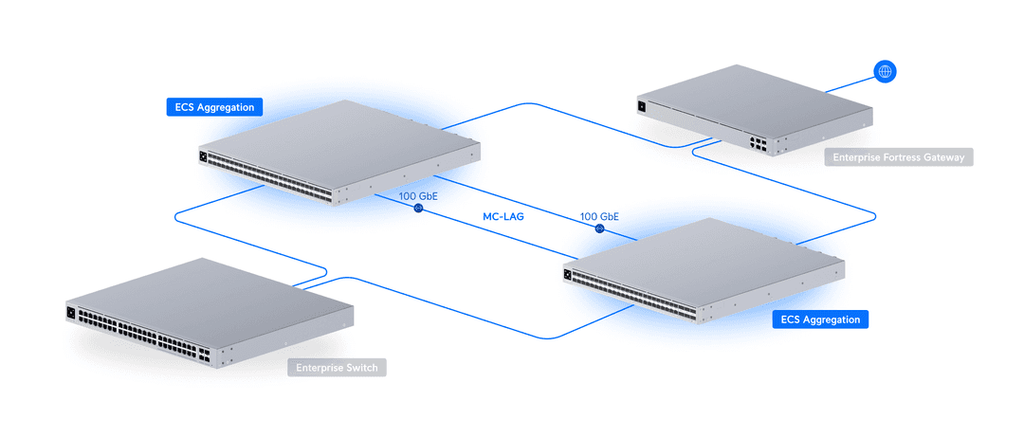

1.8 Tbps high-density 100G/25G Layer 3 Etherlighting aggregation switch with MC-LAG support for high availability system design.

Enterprise Campus Aggregation

1.8 Tbps high-density 100G/25G Layer 3 Etherlighting aggregation switch with MC-LAG support for high availability system design.

Fabricant	Ubiquiti
Modèle	ECS-Aggregation
UPC	810084697160
Catégorie	Networking Wireless Dual Band — APs & Bridges
Poids	38.15 lbs
Dimensions (boîte)	10.7" × 23.6" × 30.1" (L×P×H)

TechnicalIn The BoxDocumentsFAQ

Overview

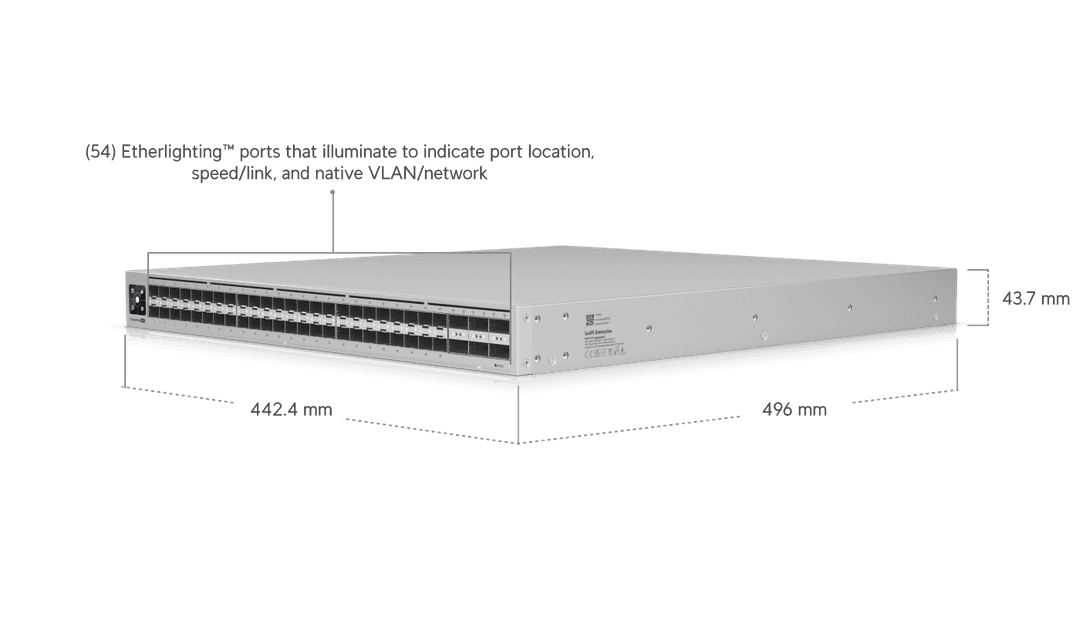

Dimensions	442.4 x 43.7 x 496 mm (17.4 x 1.7 x 19.5")

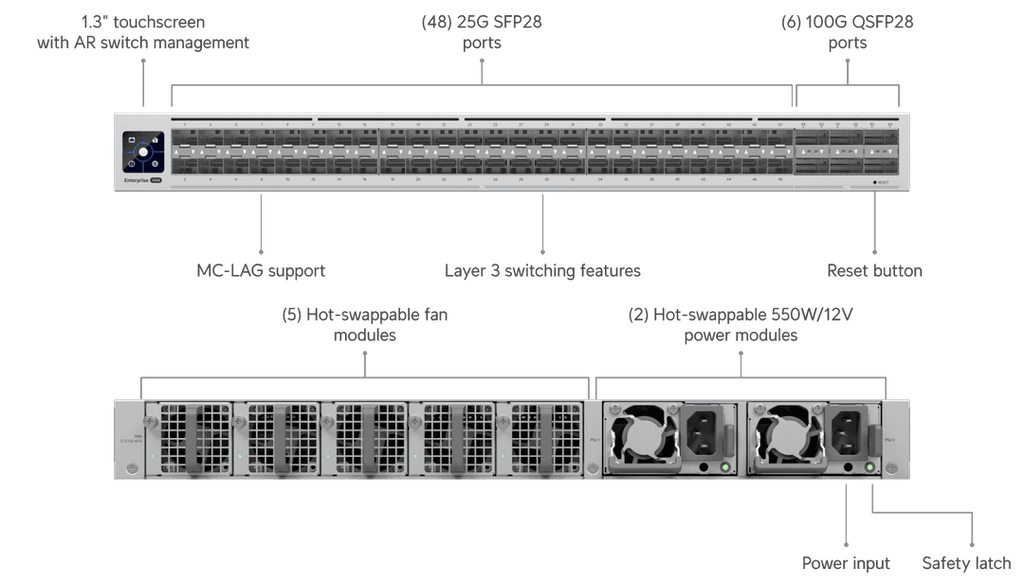

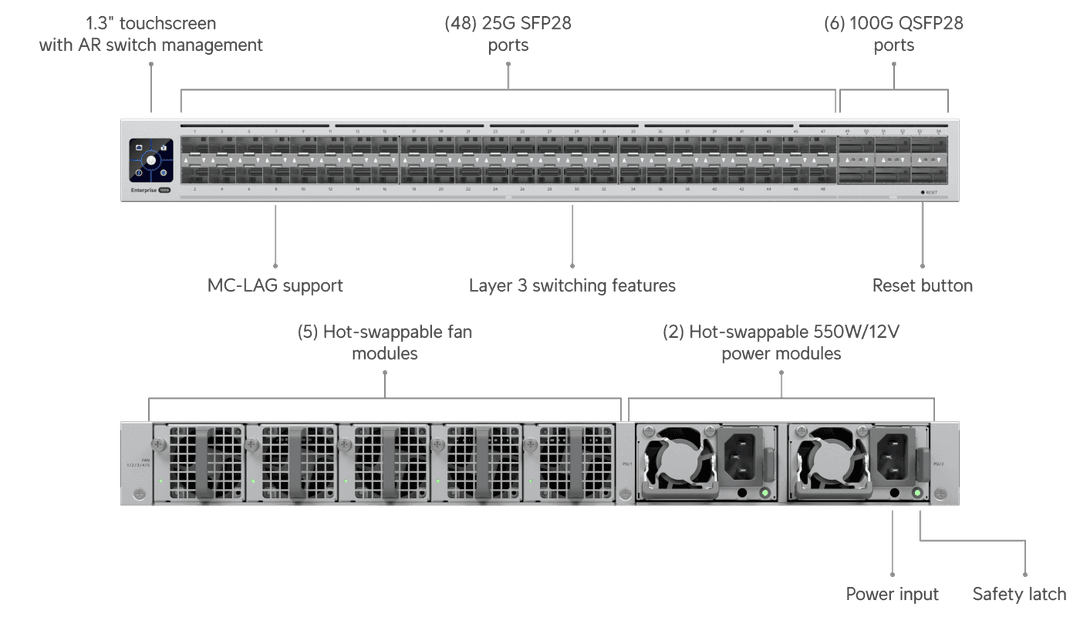

25G SFP28	48 (25G/10G)
100G QSFP28	6 (100G/40G)
Redundancy	Multi-Chassis Link Aggregation (MC-LAG) (2) Hot-Swappable PSUs (5) Hot-Swappable Fans
Layer 3	✓
Form Factor	Rack mount (1U, Full-Depth)
Etherlighting™	✓
Switching Capacity	3.6 Tbps
Total Non-Blocking Throughput	1.8 Tbps
Forwarding Rate	2.4 Bpps
Supported VLANs	1,000
MAC Address Table Size	128,000
ARP Entries	96,000
IPv4 Routes	288,000
IPv4 Static Routes	256
Packet Buffer Size	24 MB
IPv4	512
MAC	512
DHCP Server (Local Networks)	✓
DHCP Relay	✓
Inter-VLAN Routing (Local Networks)	✓
Static Routing (Local Networks)	✓
LACP Port Aggregation	✓
MC-LAG	✓
STP & RSTP	✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)	✓
IGMP Snooping	✓
MAC-Based ACLs & Device Isolation	✓
DHCP Snooping & Guarding	✓
Egress Rate Limit	✓
Flow Control	✓
MAC Address Blocking	✓
IP-Based ACLs & Network Isolation	✓
MAC-Based Port Restriction	✓
Port Isolation	✓
Port Mirroring	✓
Jumbo Frames	✓
LLDP-MED	✓
Voice VLAN	✓
Loop Protection	✓
Max. Power Consumption	340W
Power Method	(2) Universal input, 100–240V AC, 50/60 Hz
Power Input Method	(2) AC input, Hot-swappable power modules
Power Supply	(2) Hot-swappable AC/DC 550W power modules
Supported Voltage Range	100–240V AC
Management	Ethernet AR
Heat Dissipation	1160 BTU/hr
Weight	Without mounting brackets: 9.9 kg (21.8 lb) With mounting brackets: 10 kg (22 lb)
Enclosure Material	SGCC steel
Mount Material	SGCC steel

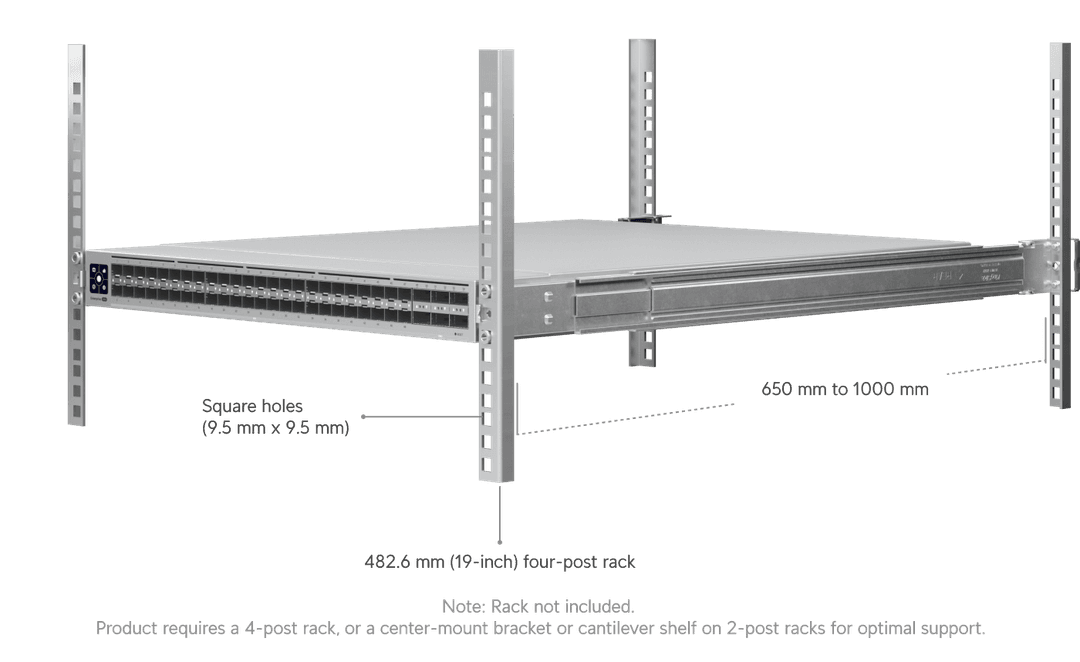

Supported Rack Depth	482.6 mm (19") four-post racks Posts depths ranging from 650 to 1,000 mm (25.6–39.4”)
LCM Display	1.3" touchscreen
ESD Protection	Air: ± 12kV, contact: ± 8kV
Ambient Operating Temperature	-5 to 40° C (23 to 104° F)
Ambient Operating Humidity	10 to 95% noncondensing
SFP28	✓
QSFP28	✓
NDAA Compliant	✓
Certifications	CE, FCC, IC, Anatel: 01327-25-08356
Application Requirements	Version 8.5.6 and later
UniFi Network	Version 8.5.6 and later

Specs

Dimensions	442.4 x 43.7 x 496 mm (17.4 x 1.7 x 19.5")
25G SFP28	48 (25G/10G)
100G QSFP28	6 (100G/40G)
Redundancy	Multi-Chassis Link Aggregation (MC-LAG) (2) Hot-Swappable PSUs (5) Hot-Swappable Fans
Layer 3	✓
Form Factor	Rack mount (1U, Full-Depth)
Etherlighting™	✓
Switching Capacity	3.6 Tbps
Total Non-Blocking Throughput	1.8 Tbps
Forwarding Rate	2.4 Bpps
Supported VLANs	1,000
MAC Address Table Size	128,000
ARP Entries	96,000
IPv4 Routes	288,000
IPv4 Static Routes	256
Packet Buffer Size	24 MB
IPv4	512
MAC	512
DHCP Server (Local Networks)	✓
DHCP Relay	✓
Inter-VLAN Routing (Local Networks)	✓
Static Routing (Local Networks)	✓
LACP Port Aggregation	✓
MC-LAG	✓
STP & RSTP	✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)	✓
IGMP Snooping	✓
MAC-Based ACLs & Device Isolation	✓
DHCP Snooping & Guarding	✓
Egress Rate Limit	✓
Flow Control	✓
MAC Address Blocking	✓
IP-Based ACLs & Network Isolation	✓
MAC-Based Port Restriction	✓
Port Isolation	✓
Port Mirroring	✓
Jumbo Frames	✓
LLDP-MED	✓
Voice VLAN	✓
Loop Protection	✓
Max. Power Consumption	340W
Power Method	(2) Universal input, 100–240V AC, 50/60 Hz
Power Input Method	(2) AC input, Hot-swappable power modules
Power Supply	(2) Hot-swappable AC/DC 550W power modules
Supported Voltage Range	100–240V AC
Management	Ethernet AR
Heat Dissipation	1160 BTU/hr
Weight	Without mounting brackets: 9.9 kg (21.8 lb) With mounting brackets: 10 kg (22 lb)
Enclosure Material	SGCC steel
Mount Material	SGCC steel
Supported Rack Depth	482.6 mm (19") four-post racks Posts depths ranging from 650 to 1,000 mm (25.6–39.4”)
LCM Display	1.3" touchscreen
ESD Protection	Air: ± 12kV, contact: ± 8kV
Ambient Operating Temperature	-5 to 40° C (23 to 104° F)
Ambient Operating Humidity	10 to 95% noncondensing
SFP28	✓
QSFP28	✓
NDAA Compliant	✓
Certifications	CE, FCC, IC, Anatel: 01327-25-08356
UniFi Network	Version 8.5.6 and later
