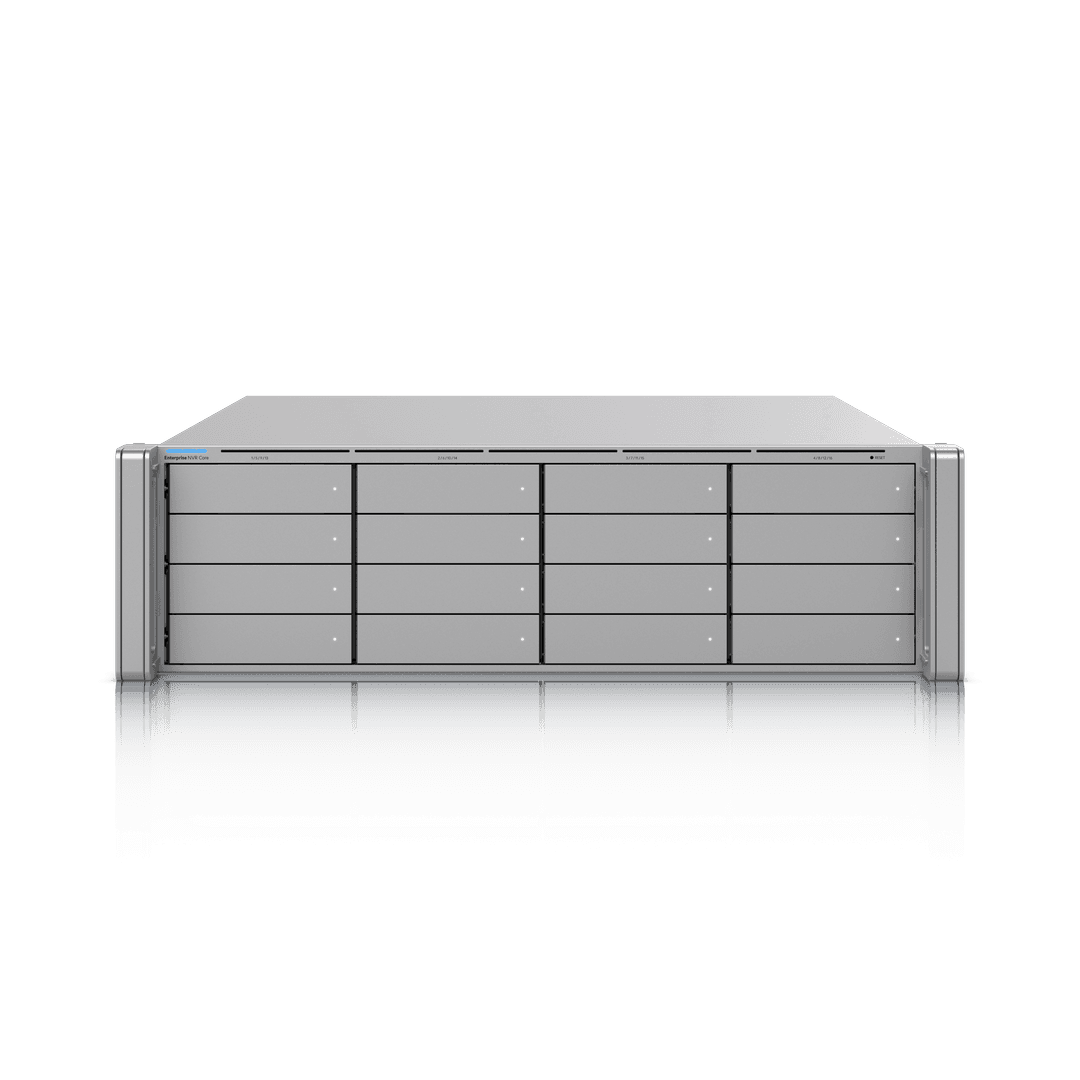

Enterprise NVR Core

ENVRCore, 3U UniFi Protect NVR with 16bay support for 2.5/3.5 HDDs/SSDs, up to 300 4K or 500 Full HD cameras, hotswappable power supplies and optional 16bay storage expansion units.

Enterprise NVR Core

ENVRCore, 3U UniFi Protect NVR with 16bay support for 2.5/3.5 HDDs/SSDs, up to 300 4K or 500 Full HD cameras, hotswappable power supplies and optional 16bay storage expansion units.
Fabricant Ubiquiti
Modèle ENVR-CORE
UPC 810177165163
Catégorie Networking Wireless Dual Band — APs & Bridges
Poids 1 lbs
Dimensions (boîte) 1" × 1" × 1" (L×P×H)
ProductProductProductProduct
Overview

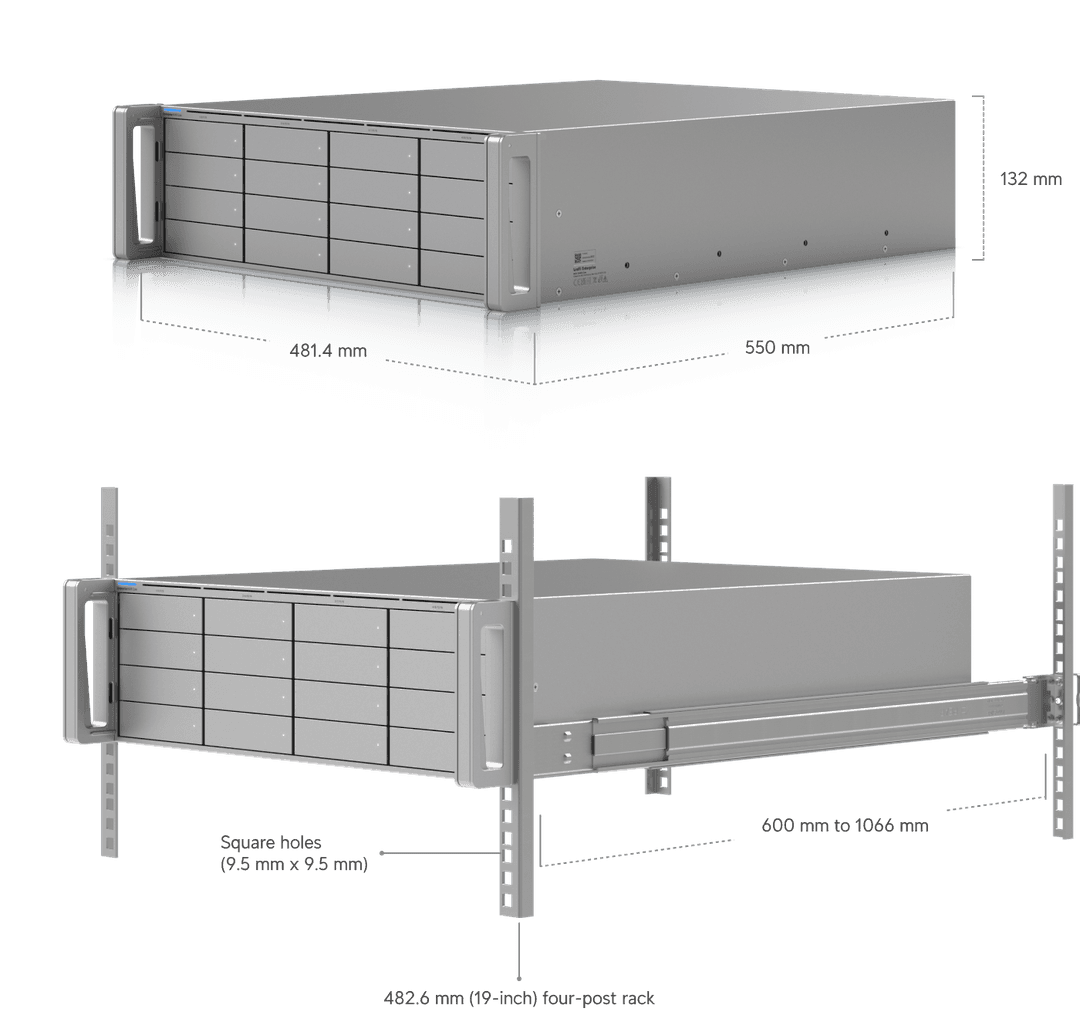

Dimensions 481.4 x 550 x 132 mm (19 x 21.7 x 5.2")
Managed Cameras (500) HD (400) 2K (300) 4K
Managed Access Hubs 300+
Storage Capacity (16) 3.5" drive bays
Data Protection ✓
Vantage Point ✓

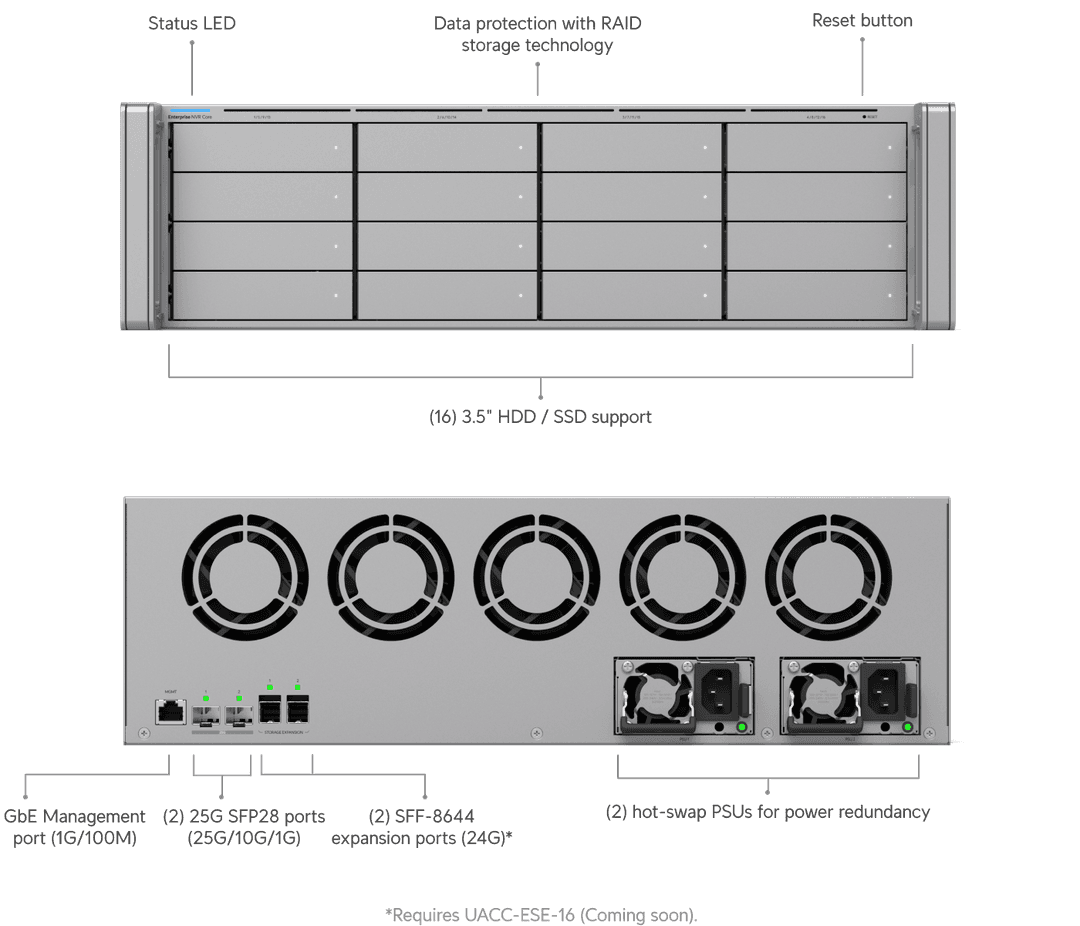

Networking Interface (2) 25G SFP28 ports (25G/10G/1G) (1) GbE MGMT RJ45 port (1G/100M)
Expansion Port ✓
Power Redundancy ✓
Form Factor Rack Mount (3U)
Door Access Support ✓
Management Application UniFi Protect UniFi Access
Hard Drive Capacity (16) 2.5/3.5" HDD / SSD support (2) Expansion ports, support up to 48 total HDD/SSD
Max. Power Budget for Drives 313W
Max. Power Consumption 237W
Power Method (2) AC input, 100–240V, 7A Max., 50/60Hz (Redundant, hot-swappable)
Power Supply Hot-swappable 550W CRPS
Processor 128-core Arm® v8.2 at 2.6 GHz
Memory 64 GB
Management Ethernet Bluetooth
Weight Without rails: 20.5 kg (45.2 lb) With rails: 23.4 kg (51.6 lb)
Enclosure Material SGCC steel
Mount Material Aluminum
Slide Rails The rails support 482.6 mm (19") four-post racks with square holes (9.5 x 9.5 mm) and posts depths ranging from 600–1066 mm (23.6–42")
Faceplate Support UACC-3U-Bezel-Lite (Included)
SFP28 ✓
HDD ✓
System ✓
CRPS ✓
Ambient Operating Temperature 10 to 35° C (50 to 95° F)
Ambient Operating Humidity 20 to 90% noncondensing
NDAA Compliant ✓
Certifications CE, FCC, IC
Application Requirements UniFi Protect iOS™ version 3.3.0 and later UniFi Protect Android™ version 3.2.0 and later
Mobile App UniFi Protect iOS™ version 3.3.0 and later UniFi Protect Android™ version 3.2.0 and later
Specs
Dimensions 481.4 x 550 x 132 mm (19 x 21.7 x 5.2")
Managed Cameras (500) HD (400) 2K (300) 4K
Managed Access Hubs 300+
Storage Capacity (16) 3.5" drive bays
Data Protection ✓
Vantage Point ✓
Networking Interface (2) 25G SFP28 ports (25G/10G/1G) (1) GbE MGMT RJ45 port (1G/100M)
Expansion Port ✓
Power Redundancy ✓
Form Factor Rack Mount (3U)
Door Access Support ✓
Management Application UniFi Protect UniFi Access
Hard Drive Capacity (16) 2.5/3.5" HDD / SSD support (2) Expansion ports, support up to 48 total HDD/SSD
Max. Power Budget for Drives 313W
Max. Power Consumption 237W
Power Method (2) AC input, 100–240V, 7A Max., 50/60Hz (Redundant, hot-swappable)
Power Supply Hot-swappable 550W CRPS
Processor 128-core Arm® v8.2 at 2.6 GHz
Memory 64 GB
Management Ethernet Bluetooth
Weight Without rails: 20.5 kg (45.2 lb) With rails: 23.4 kg (51.6 lb)
Enclosure Material SGCC steel
Mount Material Aluminum
Slide Rails The rails support 482.6 mm (19") four-post racks with square holes (9.5 x 9.5 mm) and posts depths ranging from 600–1066 mm (23.6–42")
Faceplate Support UACC-3U-Bezel-Lite (Included)
SFP28 ✓
HDD ✓
System ✓
CRPS ✓
Ambient Operating Temperature 10 to 35° C (50 to 95° F)
Ambient Operating Humidity 20 to 90% noncondensing
NDAA Compliant ✓
Certifications CE, FCC, IC
Mobile App UniFi Protect iOS™ version 3.3.0 and later UniFi Protect Android™ version 3.2.0 and later

Contents not available.

📘 Installation Guide
