Name: U6-EXTENDER
Brand: Ubiquiti
SKU: U6EXTENDERCA
Price: 216.99 CAD
Availability: InStock

U6-EXTENDER

$216.99

U6-EXTENDER

$216.99

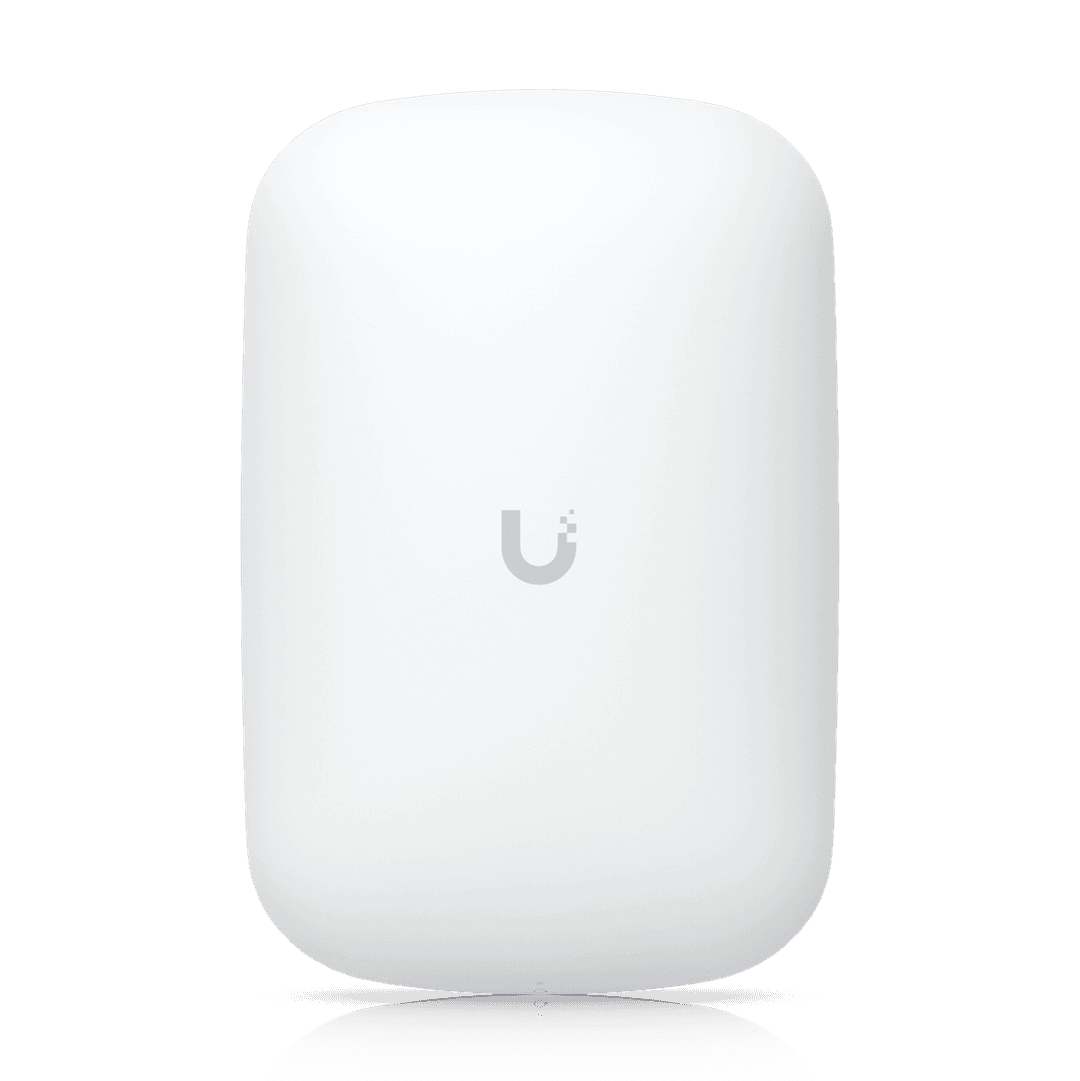

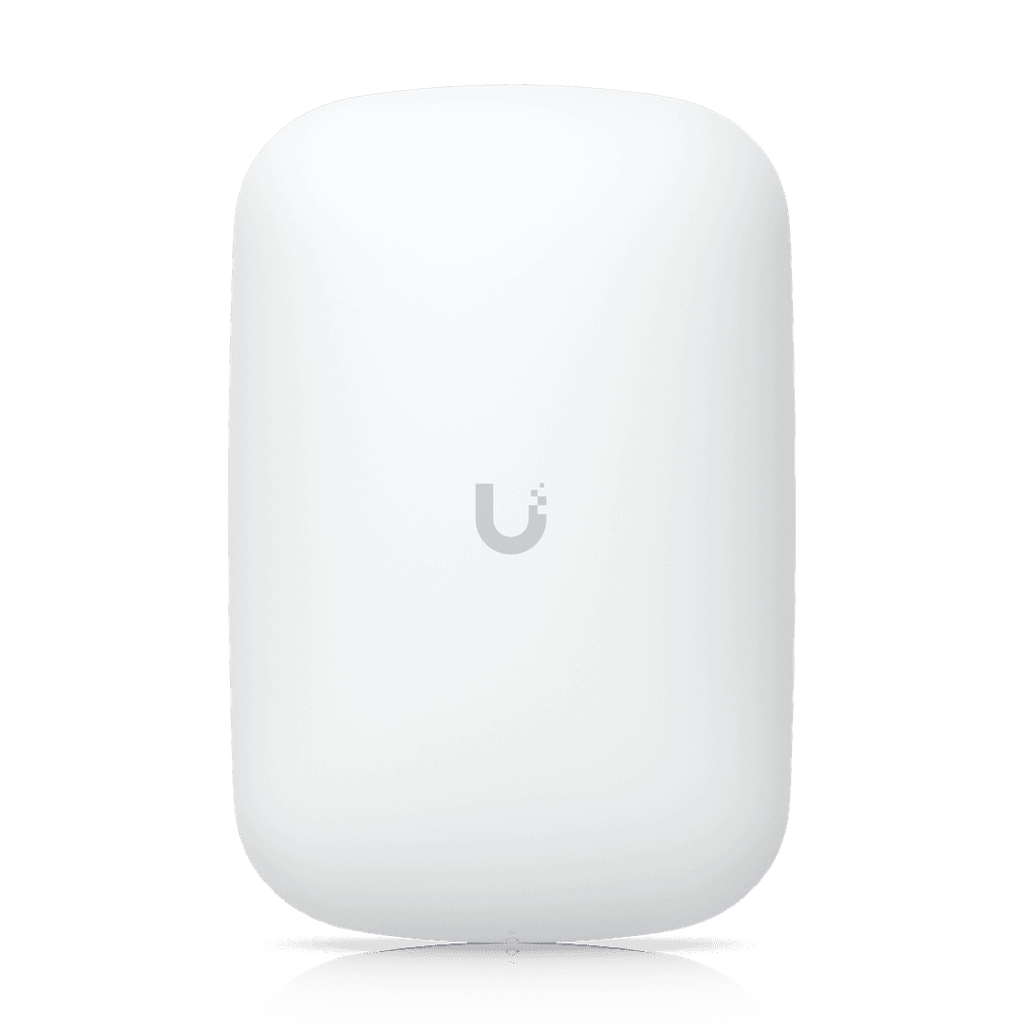

Access Point U6 Extender

Easytodeploy WiFi 6 coverage extender that fits standard US duplex outlets.

1 $216.99/ea

2-4 $214.79/ea

5-9 $212.59/ea

10-19 $209.66/ea

20+ $206.72/ea

Access Point U6 Extender

Fabricant	Ubiquiti
Modèle	U6-EXTENDER
UPC	810010077639
Catégorie	Networking Wireless Dual Band — APs & Bridges
Poids	1.1 lbs
Dimensions (boîte)	5.6" × 8.3" × 2.4" (L×P×H)

TechnicalIn The BoxDocumentsFAQ

Overview

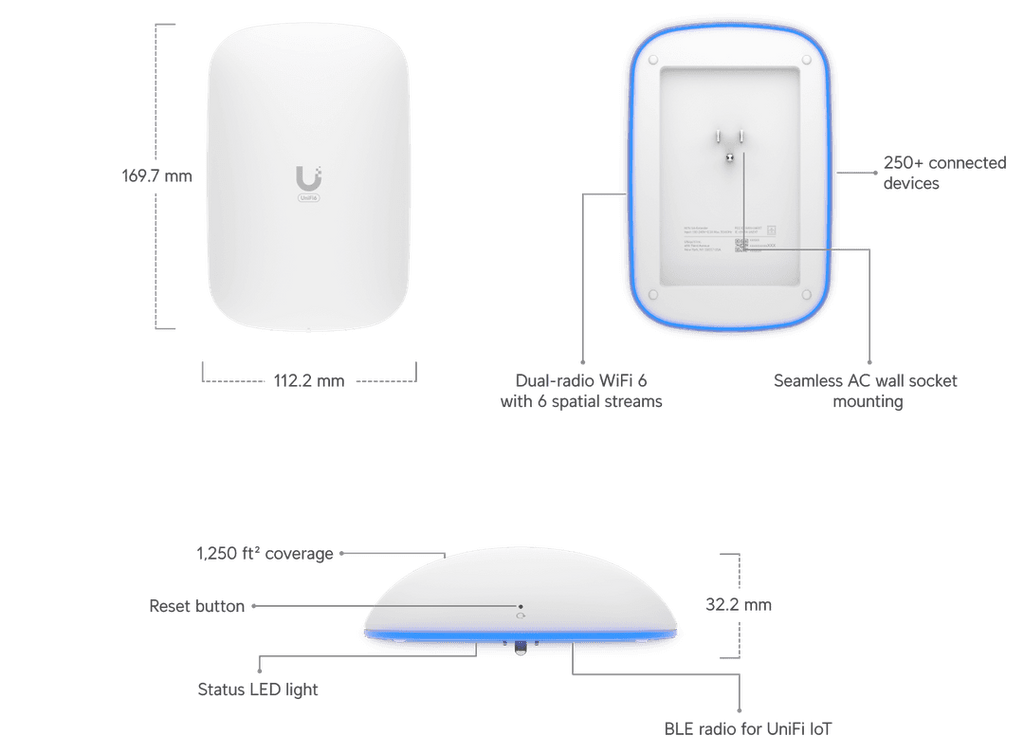

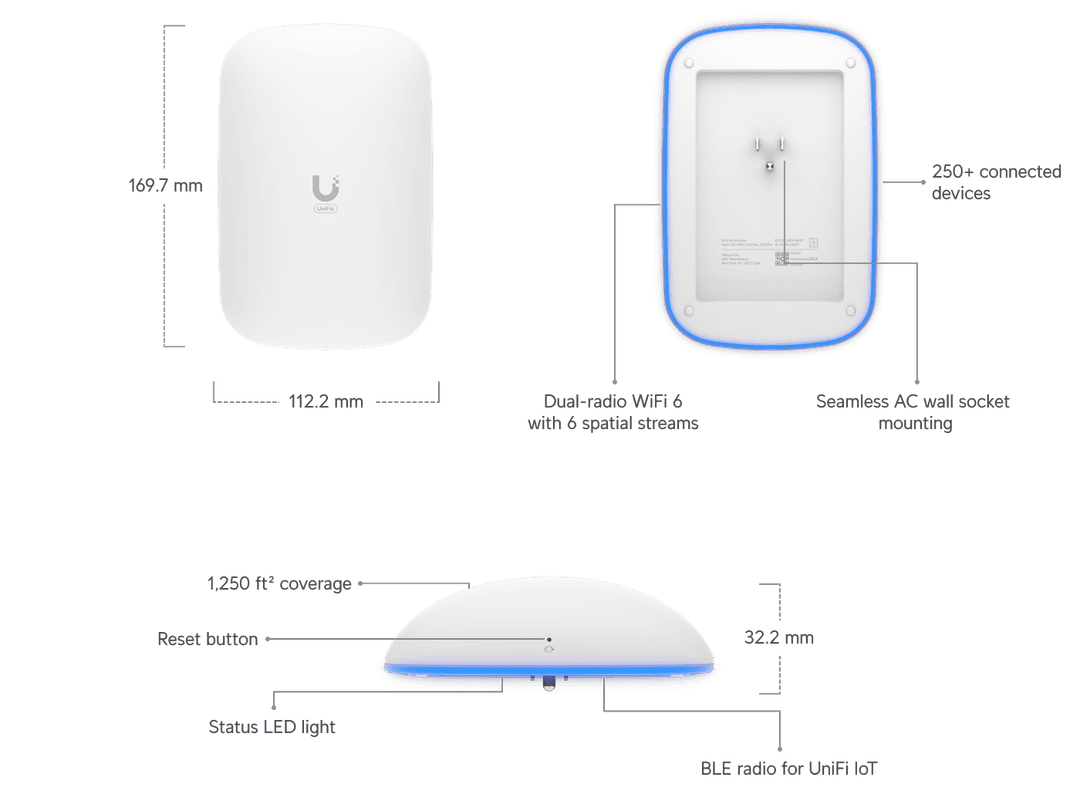

Dimensions	US: 169.7 x 112.2 x 32.2 mm (6.7 x 4.4 x 1.3") EU: 169.7 x 112.2 x 77.6 mm (6.7 x 4.4 x 3.1")
WiFi Standard	WiFi 6
Spatial Streams	6
Coverage Area	115 m² (1,250 ft²)
Max. Client Count	250+
Mounting	Wall (Wall Power Socket Included)
Power Method	Universal AC input, 100–240V AC, 0.3A Max., 50/60 Hz
MIMO	4 x 4 (DL/UL MU-MIMO)
5 GHz	26 dBm
2.4 GHz	22 dBm
Max. BSSIDs	8 per Radio
802.11ax (WiFi 6)	7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
802.11ac (WiFi 5)	6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11n	6.5 Mbps to 600 Mbps (MCS0 - MCS31 , HT 20/40)

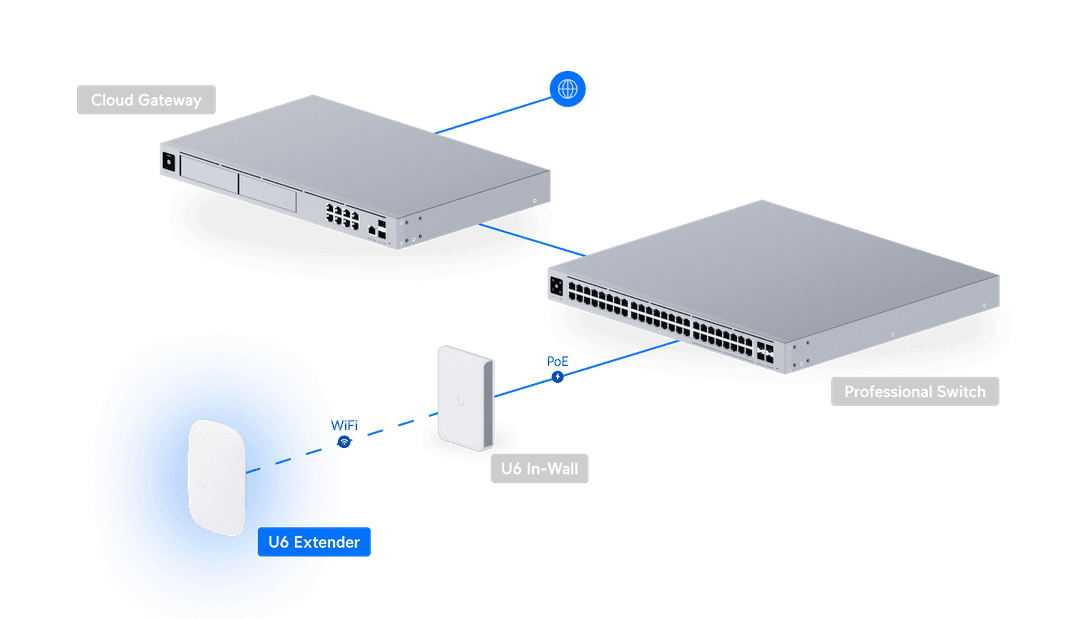

Wireless Meshing	✓
Band Steering	✓
802.11v BSS Transition Management	✓
802.11r Fast Roaming	✓
802.11k Radio Resource Management (RRM)	✓
Advanced Radio Management	✓
Passpoint (Hotspot 2.0)	✓
Custom Branding Landing Page	✓
Voucher Authentication	✓
Payment-Based Authentication	✓
External Portal Server Support	✓
Password Authentication	✓
Guest Network Isolation	✓
Private Pre-Shared Key (PPSK)	✓
WiFi Speed Limiting	✓
Client Device Isolation	✓
WiFi Schedules	✓
RADIUS over TLS (RadSec)	✓
Dynamic RADIUS-assigned VLAN	✓
Max. Power Consumption	11W
Supported Voltage Range	110—240V AC
Weight	US: 290 g (10.2 oz) EU: 340 g (12 oz)
Management	Bluetooth
Enclosure Material	Polycarbonate
System	White/Blue
Channel Bandwidth	HT 20/40, VHT 20/40/80/160, HE 20/40/80/160 (MHz)
NDAA Compliant	✓
Certifications	CE, FCC, IC
Operating Frequency	US/CA: 2400 - 2472 MHz U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz Worldwide: 2400 - 2483.5 MHz 5150 - 5850 MHz
Ambient Operating Temperature	-10 to 50° C (14 to 122° F)
Ambient Operating Humidity	5 to 95% noncondensing
Application Requirements	Version 6.0.45 and later
UniFi Network	Version 6.0.45 and later

Specs

Dimensions	US: 169.7 x 112.2 x 32.2 mm (6.7 x 4.4 x 1.3") EU: 169.7 x 112.2 x 77.6 mm (6.7 x 4.4 x 3.1")
WiFi Standard	WiFi 6
Spatial Streams	6
Coverage Area	115 m² (1,250 ft²)
Max. Client Count	250+
Mounting	Wall (Wall Power Socket Included)
Power Method	Universal AC input, 100–240V AC, 0.3A Max., 50/60 Hz
5 GHz	26 dBm
2.4 GHz	22 dBm
Max. BSSIDs	8 per Radio
802.11ax (WiFi 6)	7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
802.11ac (WiFi 5)	6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11n	6.5 Mbps to 600 Mbps (MCS0 - MCS31 , HT 20/40)
Wireless Meshing	✓
Band Steering	✓
802.11v BSS Transition Management	✓
802.11r Fast Roaming	✓
802.11k Radio Resource Management (RRM)	✓
Advanced Radio Management	✓
Passpoint (Hotspot 2.0)	✓
Custom Branding Landing Page	✓
Voucher Authentication	✓
Payment-Based Authentication	✓
External Portal Server Support	✓
Password Authentication	✓
Guest Network Isolation	✓
Private Pre-Shared Key (PPSK)	✓
WiFi Speed Limiting	✓
Client Device Isolation	✓
WiFi Schedules	✓
RADIUS over TLS (RadSec)	✓
Dynamic RADIUS-assigned VLAN	✓
Max. Power Consumption	11W
Supported Voltage Range	110—240V AC
Weight	US: 290 g (10.2 oz) EU: 340 g (12 oz)
Management	Bluetooth
Enclosure Material	Polycarbonate
System	White/Blue
Channel Bandwidth	HT 20/40, VHT 20/40/80/160, HE 20/40/80/160 (MHz)
NDAA Compliant	✓
Certifications	CE, FCC, IC
Operating Frequency	US/CA: 2400 - 2472 MHz U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz Worldwide: 2400 - 2483.5 MHz 5150 - 5850 MHz
Ambient Operating Temperature	-10 to 50° C (14 to 122° F)
Ambient Operating Humidity	5 to 95% noncondensing
UniFi Network	Version 6.0.45 and later
