Name: USW-PRO-MAX-48
Brand: Ubiquiti
SKU: USWPROMAX48CA
Price: 888.99 CAD
Availability: InStock

USW-PRO-MAX-48

$888.99 $896.99

USW-PRO-MAX-48

$888.99 $896.99

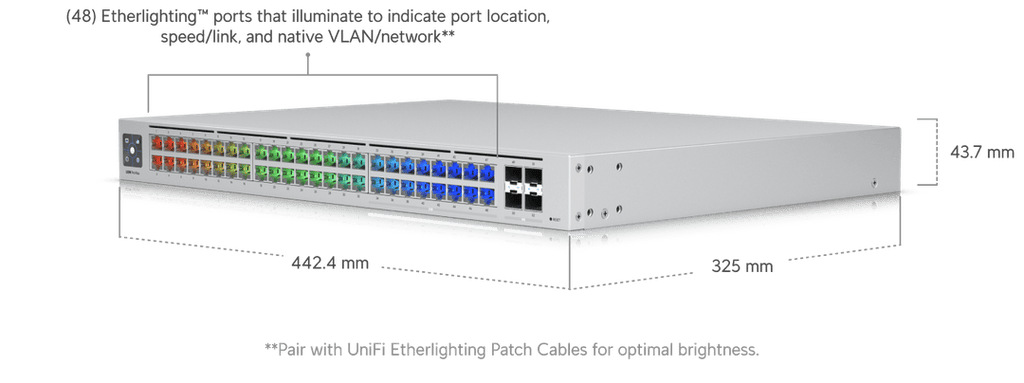

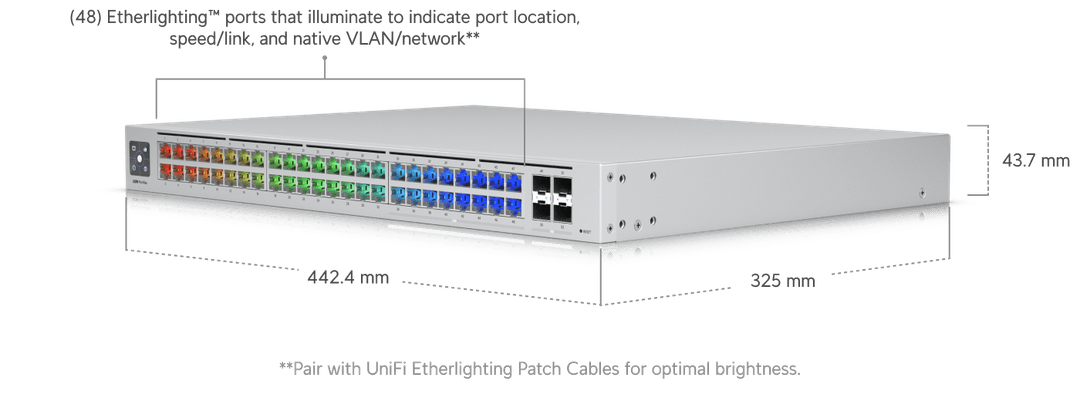

48-port, Layer 3 Etherlighting

A 48-port, Layer 3 Etherlighting switch with 2.5 GbE.

1 $888.99/ea

2-4 $878.93/ea

5-9 $868.87/ea

10-19 $855.46/ea

20+ $842.05/ea

48-port, Layer 3 Etherlighting

Fabricant	Ubiquiti
Modèle	USW-PRO-MAX-48
UPC	810084692639
Catégorie	Networking — Switches Over 24 Ports
Poids	13.25 lbs
Dimensions (boîte)	20.5" × 17.1" × 4.8" (L×P×H)

TechnicalIn The BoxDocumentsFAQ

Overview

Dimensions	442 x 325 x 44 mm (17.4 x 12.8 x 1.7")

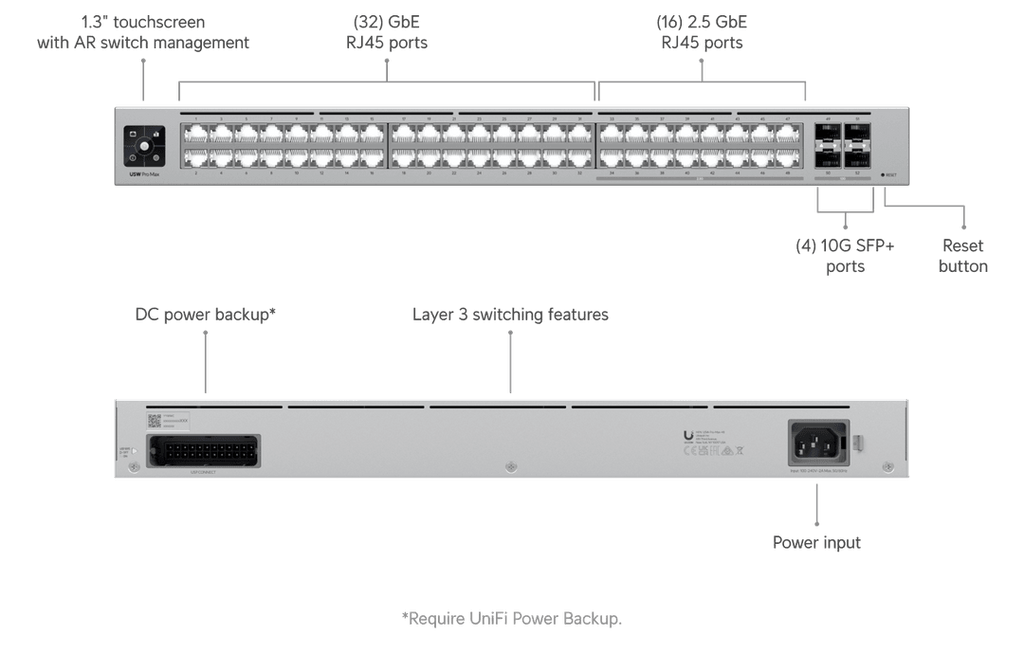

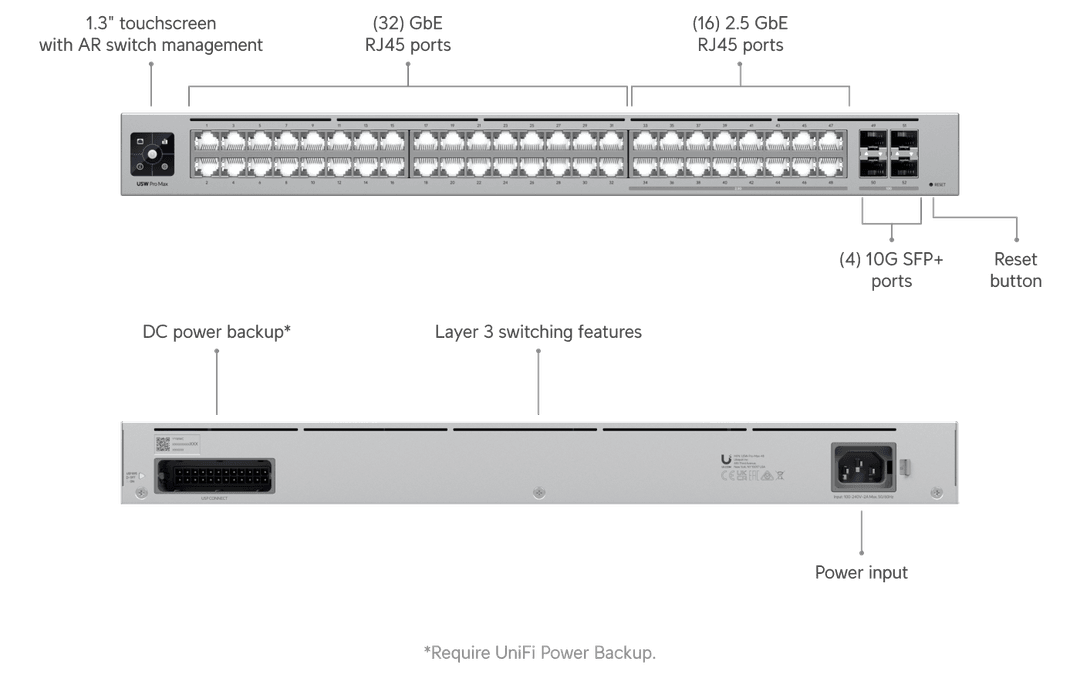

1 GbE RJ45	32 (1G/100M/10M)
2.5 GbE RJ45	16 (2.5G/1G/100M/10M)
10G SFP+	4 (10G/1G)
Redundancy	DC Power Backup
Layer 3	✓
Form Factor	Rack mount (1U)
Etherlighting™	✓
Switching Capacity	224 Gbps
Total Non-Blocking Throughput	112 Gbps
Forwarding Rate	167 Mpps
Supported VLANs	1,000
MAC Address Table Size	32,000
ARP Entries	12,000
IPv4 Routes	12,000
IPv4 Static Routes	256
Packet Buffer Size	2 MB
IPv4	128
MAC	128
DHCP Server (Local Networks)	✓
DHCP Relay	✓
Inter-VLAN Routing (Local Networks)	✓
Static Routing (Local Networks)	✓
LACP Port Aggregation	✓
STP & RSTP	✓
QoS (DSCP)	✓
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)	✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)	✓
IGMP Snooping	✓
802.1X Control	✓
MAC-Based ACLs & Device Isolation	✓
DHCP Snooping & Guarding	✓
Egress Rate Limit	✓
Flow Control	✓
Storm Control	✓
Multicast & Broadcast Rate Limiting	✓
MAC Address Blocking	✓
IP-Based ACLs & Network Isolation	✓
MAC-Based Port Restriction	✓
Port Isolation	✓
Port Mirroring	✓
Jumbo Frames	✓
LLDP-MED	✓
Voice VLAN	✓
Loop Protection	✓
Virtual Network Override	✓
Max. Power Consumption	100W
Power Method	(1) Universal input, 100–240V AC, 50/60 Hz (1) USP RPS DC input
Power Input Method	AC input
Power Supply	AC/DC, internal, 100W
Supported Voltage Range	100–240V AC
Management	Ethernet AR
Heat Dissipation	341.2 BTU/hr
Weight	Without mounting brackets: 4.8 kg (10.6 lb) With mounting brackets: 4.9 kg (10.8 lb)
Enclosure Material	SGCC steel
Mount Material	SGCC steel
Supported Rack Depth	400~1200 mm (15.7-47.2")
LCM Display	1.3" touchscreen
Ambient Operating Temperature	-5 to 40° C (23 to 104° F)
Ambient Operating Humidity	10 to 90% noncondensing
Ethernet	✓
SFP+	✓
NDAA Compliant	✓
Certifications	CE, FCC, IC, Anatel: 06373-24-08356
Application Requirements	Version 8.0.24 and later
UniFi Network	Version 8.0.24 and later
