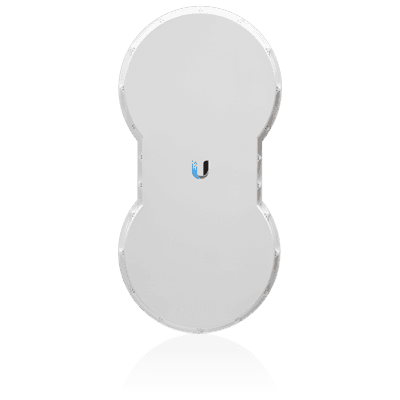

Ubiquiti AirFiber 5 Wireless Bridge (AF-5). The high-isolation, dual-antenna design is ideal for robust performance in the harshest RF noise environments. The air Fiber 5 is purpose-built for outdoor, PtP bridging and carrier-class network backhauls.
Get notified when AF-5 is back in stock.
No spam. One single email when the product is available.
You're all set! You'll receive an email as soon as the product is back in stock.
Volume Discounts
1
$1,379.99/ea
2-4
$1,367.93/ea
5-9
$1,355.88/ea
10-19
$1,339.81/ea
20+
$1,323.73/ea
Votre prix :
AirFiber 5 Wireless Bridge
Fabricant
Ubiquiti
Modèle
AF-5
UPC
810354024863
Catégorie
Networking Wireless SingleBand — APs & Bridges
Poids
58.3 lbs
Dimensions (boîte)
22" × 41" × 20" (L×P×H)
General

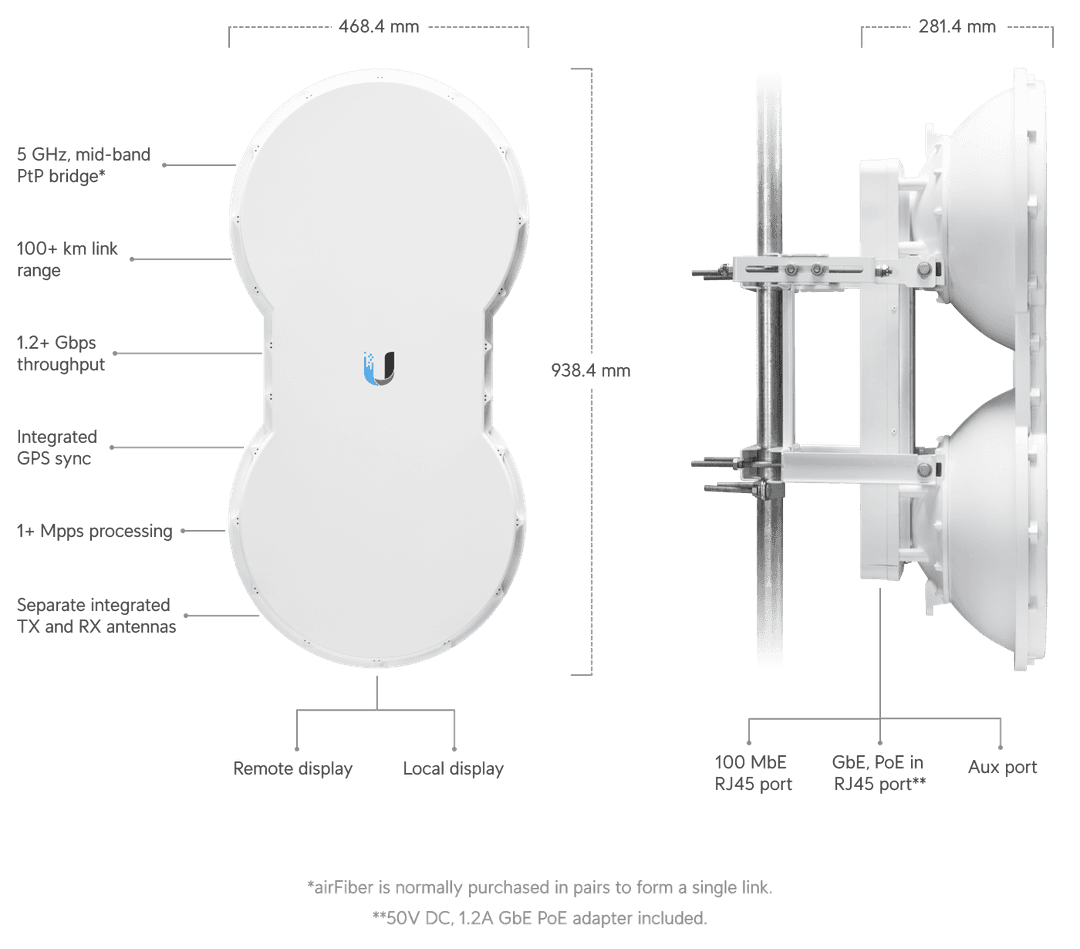

Dimensions
938.4 x 468.4 x 281.4 mm (36.9 x 18.4 x 11.1")
Weight
16 kg (35.3 lb)
Mounting
Pole mount kit (Included)
Wind loading
863 N @ 200 km/h (194 lbf @ 125 mph)
Wind survivability
200 km/h (125 mph)
Networking interface
(1) GbE RJ45 port(1) 10/100 MbE RJ45 port
Auxiliary port
(1) RJ-12, alignment tone port
Power method
Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)
Power supply
50V, 1.2A gigabit PoE adapter (Included)
Supported voltage range
42–58V DC
Max. power consumption
40W
Ambient operating temperature
-40 to 55°C (-40 to 131° F)
Certifications
CE, FCC, IC
NDAA Compliant
Yes
Max. throughput
1.2+ Gbps
Max. range*
100+ km*Dependent on regulatory region.
Packets per second
1+ million
Encryption
128-Bit AES
Uplink/downlink ratio
Programmable in Half Duplex mode
Radio frame synchronization
GPS
Operating frequency
5470 - 5600 MHz, 5650 - 5850 MHz (FCC 15.247, 15.407, IC RSS 210)5470 - 5875 MHz (ETSI EN 301 893, EN 302 502)5470 - 5950 MHz (Other regions)
GPS
GPS clock synchronization
EIRP
~50 dBm*Dependent on regulatory region and frequency band.
Frequency accuracy
±2.5 ppm without GPS synchronization±0.2 ppm with GPS synchronization
(12) Status LEDs: Data port pink/activityData port speedManagement port link/activityManagement port speedGPS synchronizationMaster/slaveLink statusModulation mode 0.25x to 4x, 6x, 8x, 10x (unlabelled), overloadRemote and local displays (Calibrated signal strength)
Contents not available.
