EP Ntwrk Video Record

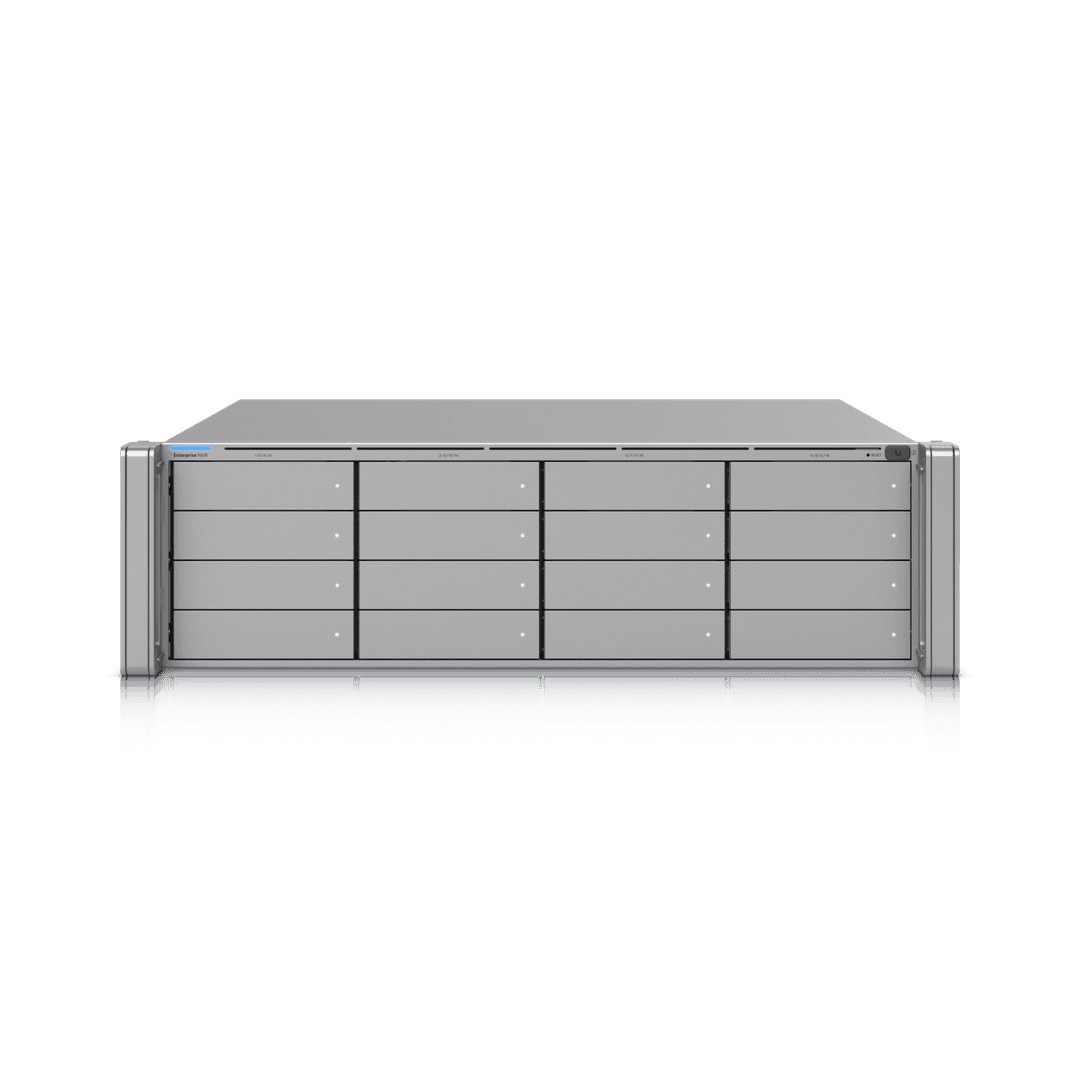

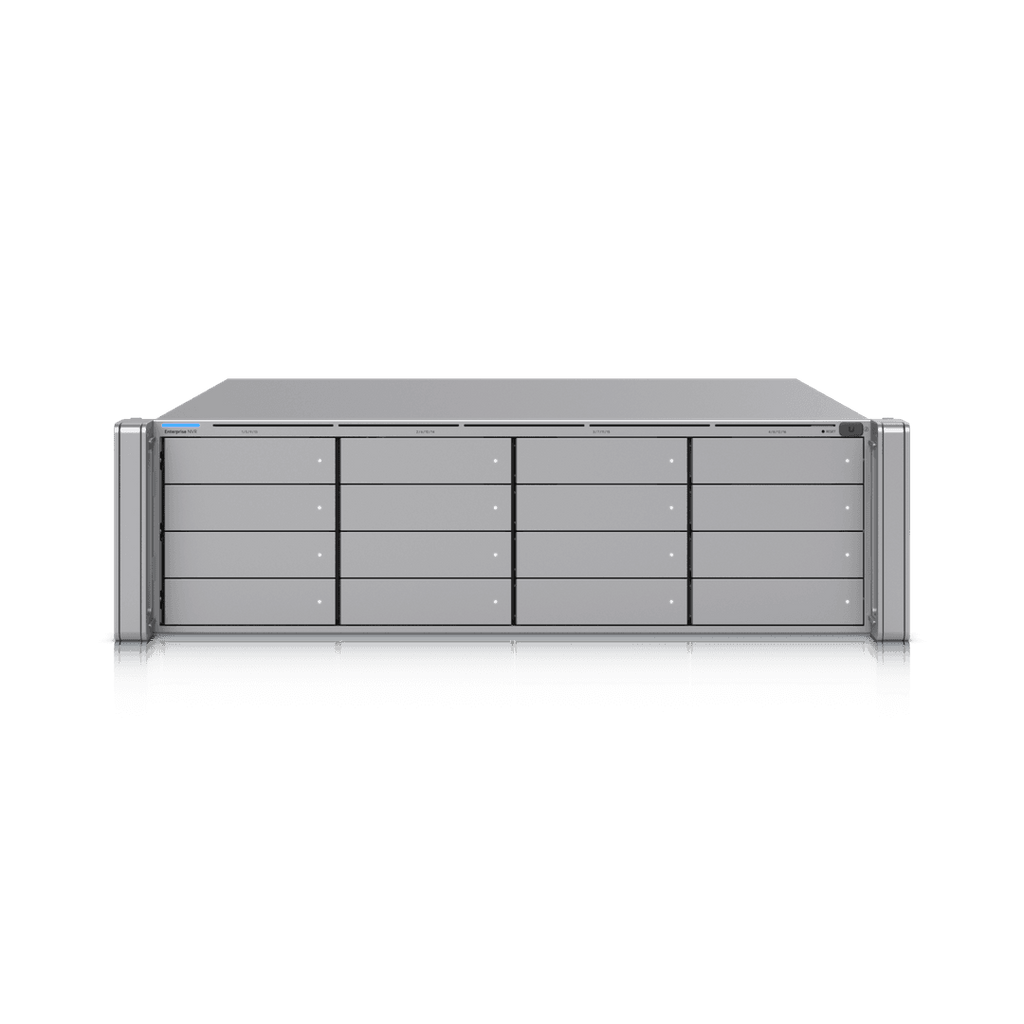

3U NVR with 16 2.5/3.5 drive bays, supporting up to 70 4K cameras or 210 Full HD cameras.
Volume Discounts
1 $2,498.99/ea
2-4 $2,432.37/ea
5-9 $2,365.74/ea
10-19 $2,276.91/ea
20+ $2,188.08/ea

EP Ntwrk Video Record

3U NVR with 16 2.5/3.5 drive bays, supporting up to 70 4K cameras or 210 Full HD cameras.
Fabricant Ubiquiti
Modèle ENVR
UPC 810084696576
Catégorie Networking Wireless Dual Band — APs & Bridges
Poids 56 lbs
Dimensions (boîte) 29.5" × 12.5" × 23.5" (L×P×H)
ProductProductProduct
Overview

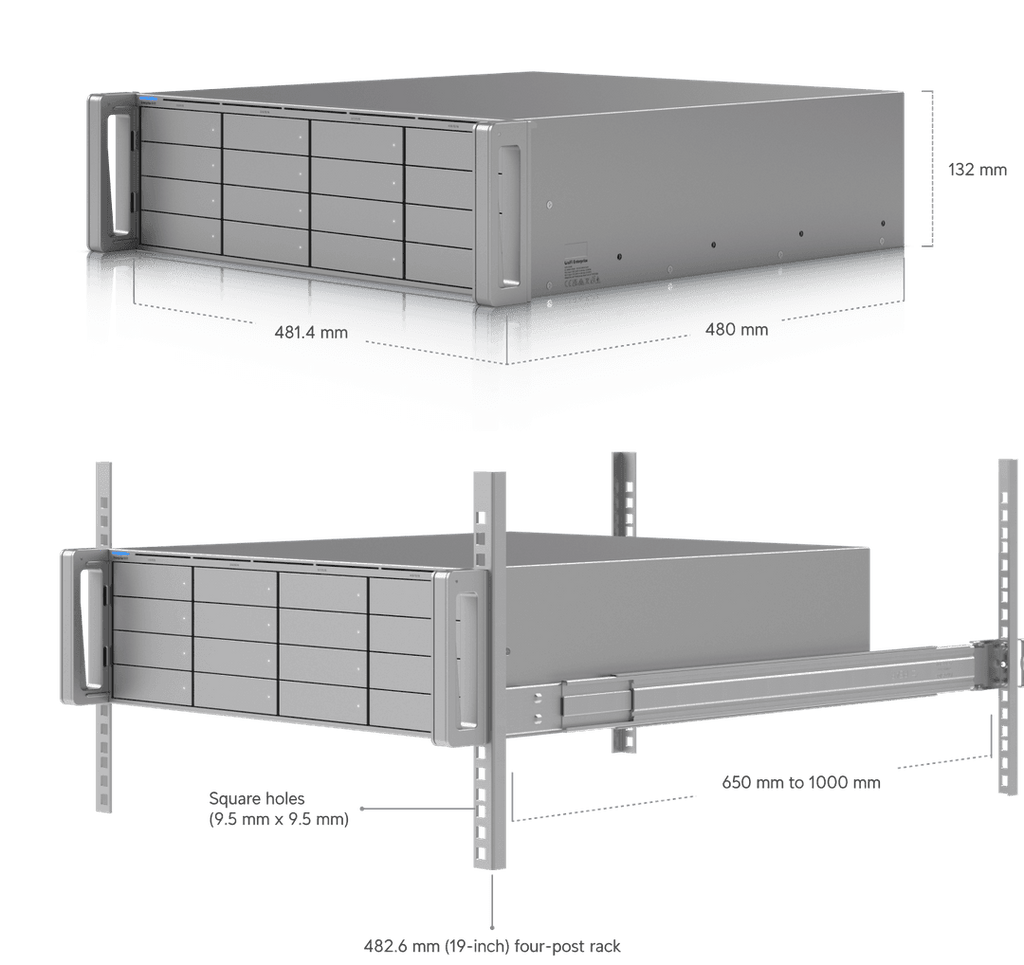

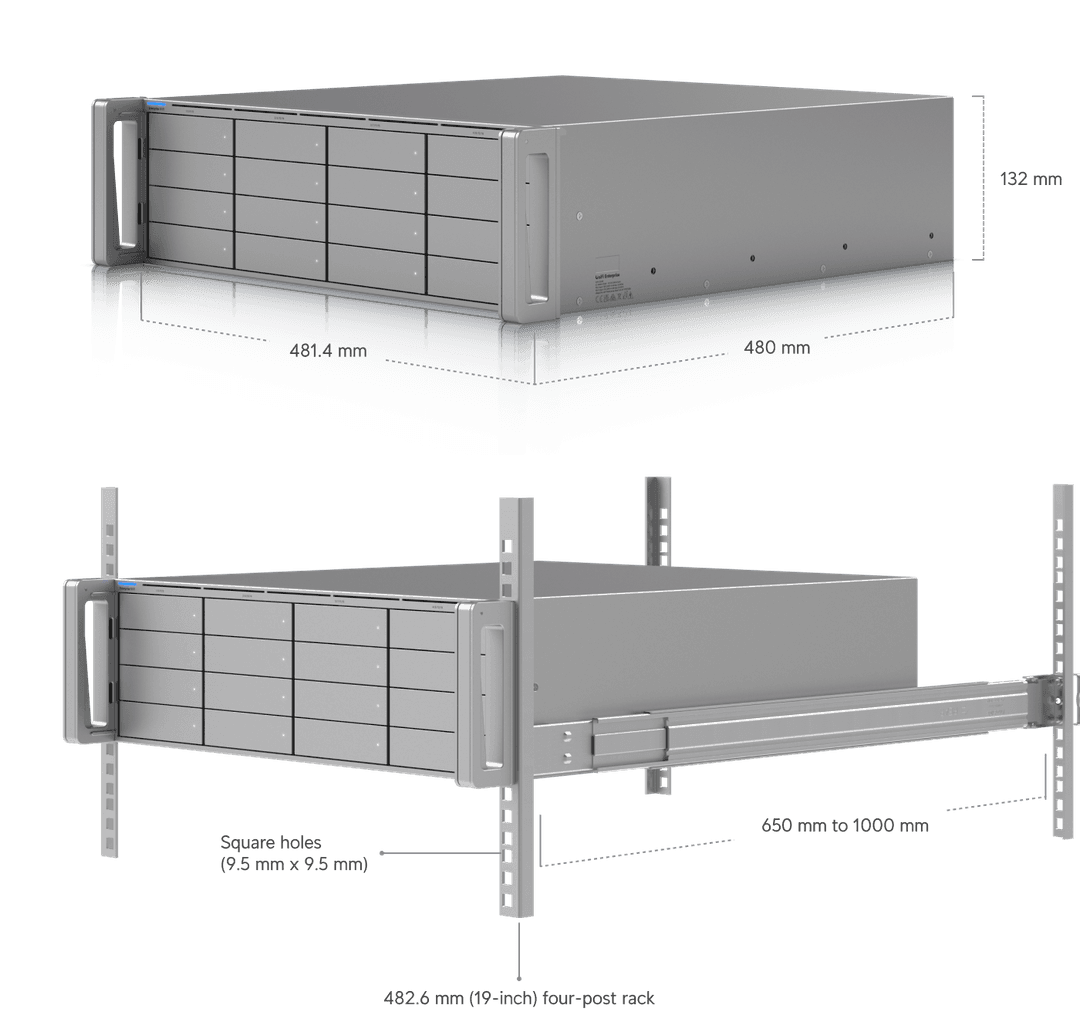

Dimensions 481.4 x 480 x 132 mm (19 x 18.9 x 5.2")
Managed Cameras (210) HD (140) 2K (70) 4K
Managed Access Hubs 300
Storage Capacity (16) 3.5" drive bays
Data Protection ✓
Vantage Point ✓

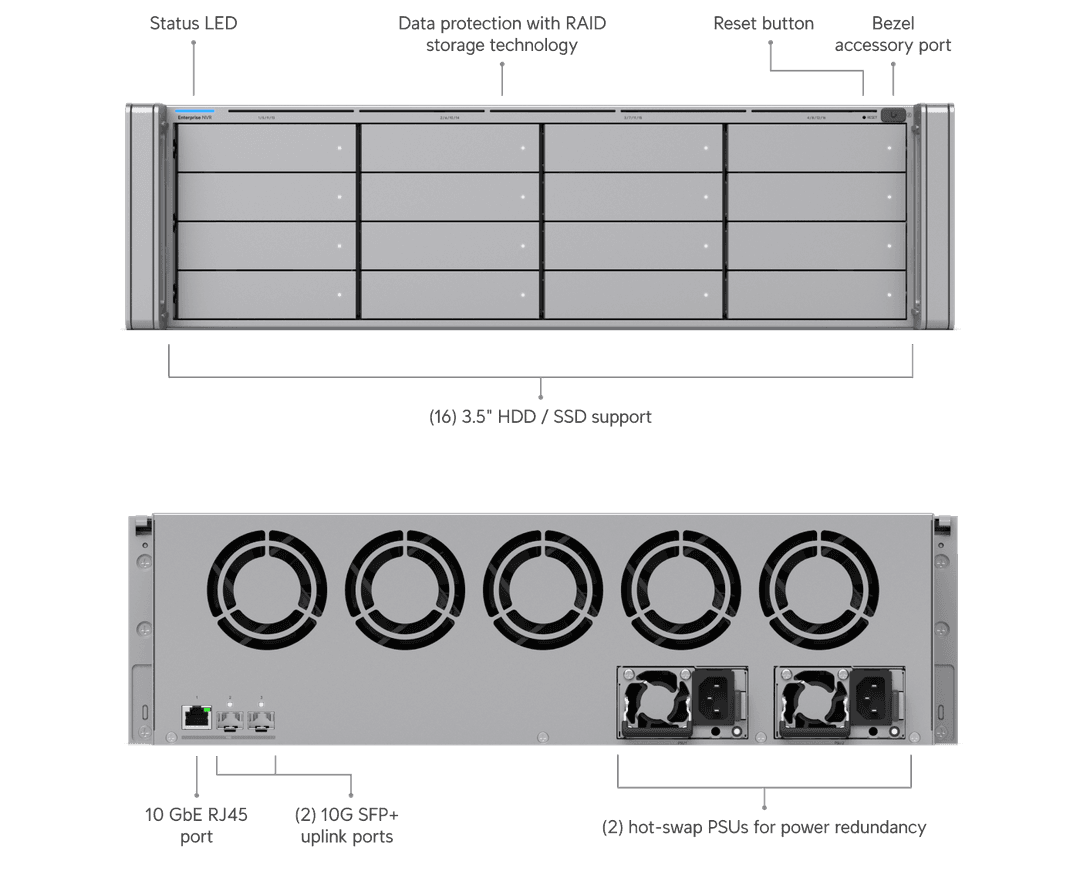

Networking Interface (2) 10G SFP+ ports (1) 10 GbE RJ45 port
Power Redundancy ✓
Form Factor Rack Mount (3U)
Door Access Support ✓
Management Application UniFi Protect UniFi Access
Hard Drive Capacity (16) 2.5/3.5" HDD / SSD support
Max. Power Budget for Drives 310W
Max. Power Consumption 410W
Power Method (2) AC input, 100–240V, 7A Max., 50/60Hz (Redundant, hot-swappable)
Power Supply Hot-swappable 550W CRPS
Processor 8-core ARM® at 2.5 GHz
Memory 32 GB
Management Ethernet
Display Bezel (Optional)
Weight Without rails: 16.6 kg (36.6 lb) With rails: 19.5 kg (43.0 lb)
Enclosure Material SGCC steel
Mount Material Aluminum
Slide Rails 482.6 mm (19") four-post racks Posts depths ranging from 650 to 1,000 mm (25.6–39.4”)
Ambient Operating Temperature -5 to 40° C (23 to 104° F)
Ambient Operating Humidity 5 to 95% noncondensing
NDAA Compliant ✓
Certifications CE, FCC, IC
Specs
Dimensions 481.4 x 480 x 132 mm (19 x 18.9 x 5.2")
Managed Cameras (210) HD (140) 2K (70) 4K
Managed Access Hubs 300
Storage Capacity (16) 3.5" drive bays
Data Protection ✓
Vantage Point ✓
Networking Interface (2) 10G SFP+ ports (1) 10 GbE RJ45 port
Power Redundancy ✓
Form Factor Rack Mount (3U)
Door Access Support ✓
Management Application UniFi Protect UniFi Access
Hard Drive Capacity (16) 2.5/3.5" HDD / SSD support
Max. Power Budget for Drives 310W
Max. Power Consumption 410W
Power Method (2) AC input, 100–240V, 7A Max., 50/60Hz (Redundant, hot-swappable)
Power Supply Hot-swappable 550W CRPS
Processor 8-core ARM® at 2.5 GHz
Memory 32 GB
Management Ethernet
Display Bezel (Optional)
Weight Without rails: 16.6 kg (36.6 lb) With rails: 19.5 kg (43.0 lb)
Enclosure Material SGCC steel
Mount Material Aluminum
Slide Rails 482.6 mm (19") four-post racks Posts depths ranging from 650 to 1,000 mm (25.6–39.4”)
Ambient Operating Temperature -5 to 40° C (23 to 104° F)
Ambient Operating Humidity 5 to 95% noncondensing
NDAA Compliant ✓
Certifications CE, FCC, IC

Contents not available.

📘 Installation Guide
