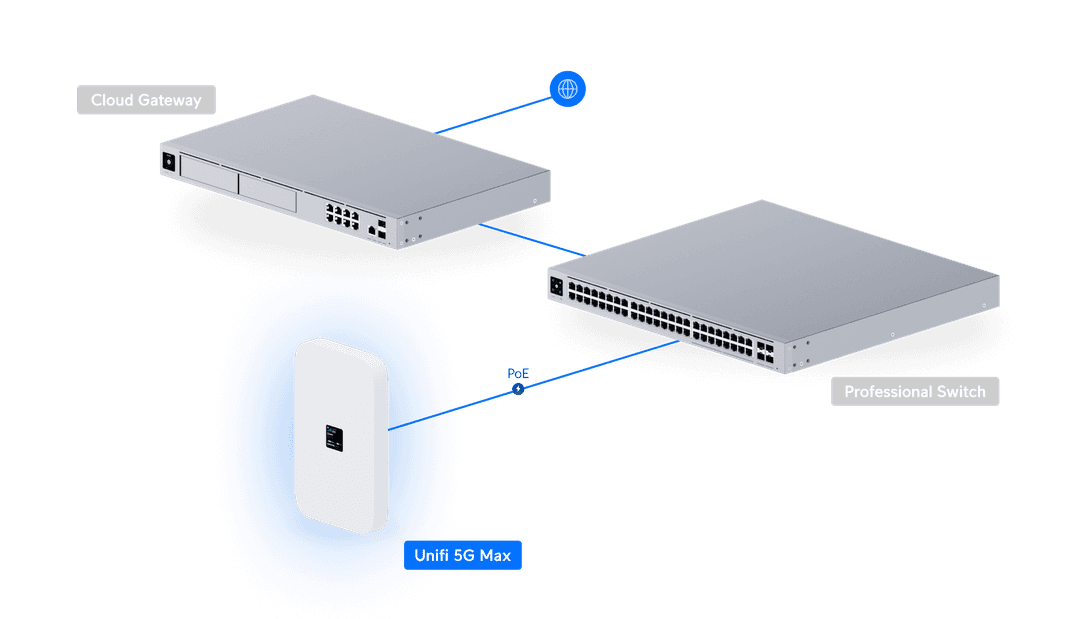

A highperformance 5G 3.4 Gbps modem for any Unifi deployment. Instantly adopt through any UniFi PoE port, it delivers automatic setup, dual SIM/eSIM, and seamless failover.
Get notified when U5G-Max is back in stock.
No spam. One single email when the product is available.
You're all set! You'll receive an email as soon as the product is back in stock.
Volume Discounts
1
$570.99/ea
2-4
$566.24/ea
5-9
$561.49/ea
10-19
$556.74/ea
20+
$551.98/ea
Votre prix :
A highperformance 5G modem
Fabricant
Ubiquiti
Modèle
U5G-Max
UPC
810177161905
Catégorie
Cables Computer & AV — Legacy Computer Cables
Poids
1 lbs
Dimensions (boîte)
1" × 1" × 1" (L×P×H)
Overview

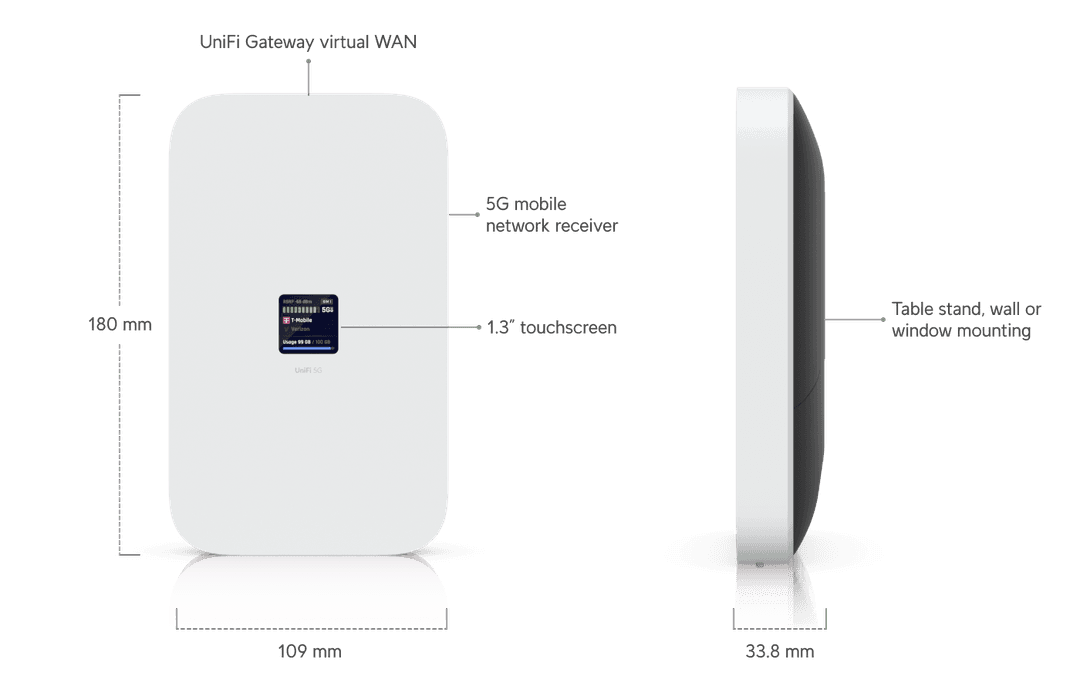

Dimensions
180 x 109 x 33.8 mm
(7.1 x 4.3 x 1.3")

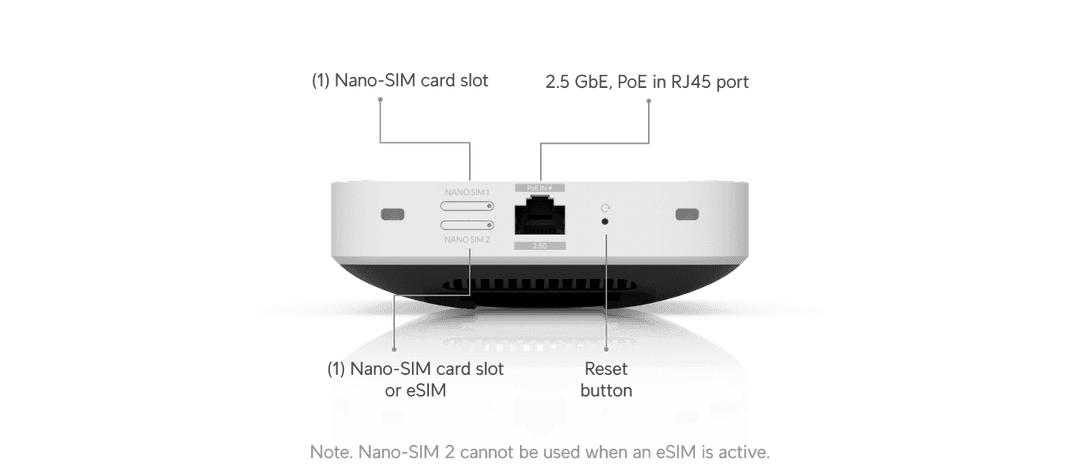

Networking Interface
(1) 2.5 GbE RJ45 port
5G NR and LTE radio
SIM
(1) Nano SIM
(1) Nano-SIM or eSIM
PoE Interface
(1) PoE input
Mounting
Desktop stand, wall, window mount (Included)
Tamper Resistance
IK04
Weight
Device: 410 g (14.5 oz)
Stand: 215 g (7.6 oz)
Wall mount: 7.6 g (0.3 oz)
Window mount: 20 g (0.7 oz)
Enclosure Material
Polycarbonate, aluminum alloy
Mount Material
Polycarbonate, silicone rubber
Management
Ethernet
Category
5G NR
Frequency Bands
B1, B2, B4, B5, B8, B19
Max. TX Power
HPUE power class 2: 25 dBm
5G NSA
Downlink 3.4 Gbps
Uplink 560 Mbps
5G SA
Downlink 1.8 Gbps
Uplink 650 Mbps
4G LTE
Downlink 1.6 Gbps
Uplink 210 Mbps
Type
(4) Embedded cellular antennas
Max. Power Consumption
14.5W
Power Method
PoE
Display
1.3" touchscreen
Buttons
(1) Factory reset
Ambient Operating Temperature
0 to 40 °C (32 to 104 °F)
Ambient Operating Humidity
5 to 95% noncondensing
NDAA Compliant
✓
Certifications
FCC, IC, CE, PTCRB, GCF, AT&T, T-Mobile, Verizon
Application Requirements
Version 10.0.162 and later
UniFi Network
Version 10.0.162 and later
Specs
Dimensions
180 x 109 x 33.8 mm
(7.1 x 4.3 x 1.3")

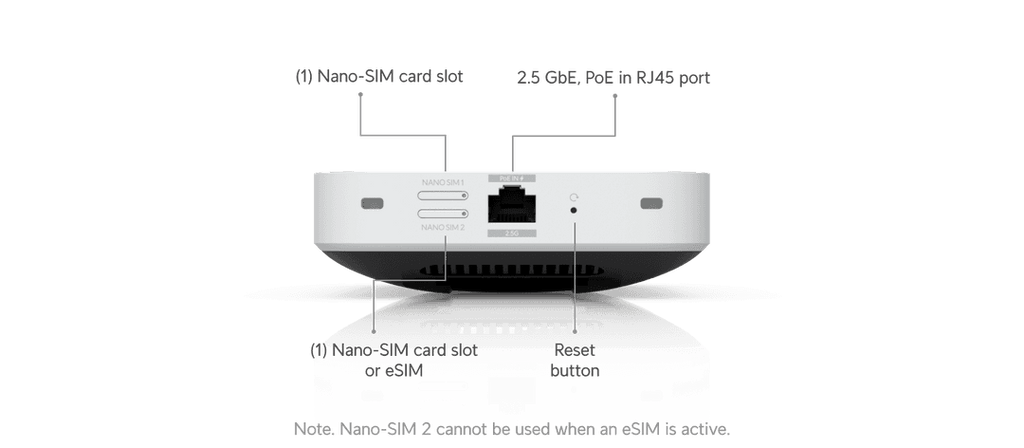

Networking Interface
(1) 2.5 GbE RJ45 port
5G NR and LTE radio
SIM
(1) Nano SIM
(1) Nano-SIM or eSIM
PoE Interface
(1) PoE input
Mounting
Desktop stand, wall, window mount (Included)
Tamper Resistance
IK04
Weight
Device: 410 g (14.5 oz)
Stand: 215 g (7.6 oz)
Wall mount: 7.6 g (0.3 oz)
Window mount: 20 g (0.7 oz)
