U7-Pro-5

U7-Pro-5

$1,152.99 $1,204.99
Skip to product information
U7-Pro-5
  • U7-Pro-5
  • U7-Pro-5
  • U7-Pro-5
  • U7-Pro-5
  • U7-Pro-5
U7-Pro-5

U7-Pro-5

$1,152.99 $1,204.99

U7 Pro
Volume Discounts
1 $1,152.99/ea
2-4 $1,143.40/ea
5-9 $1,133.82/ea
10-19 $1,121.04/ea
20+ $1,108.25/ea

U7 Pro

Fabricant Ubiquiti
Modèle U7-Pro-5
UPC 000000000000
Catégorie Networking Wireless Dual Band — APs & Bridges
Poids 1.5 lbs
Dimensions (boîte) 1.8" × 1.8" × 8.1" (L×P×H)
ProductProductProductProductProduct
Overview

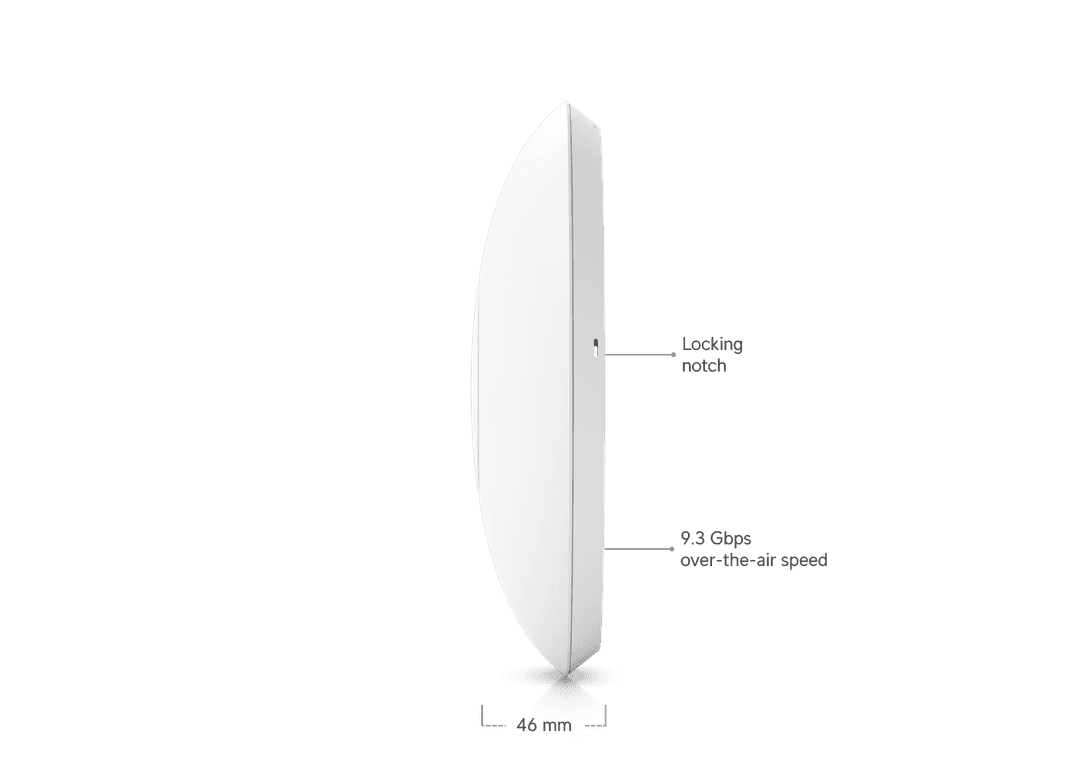

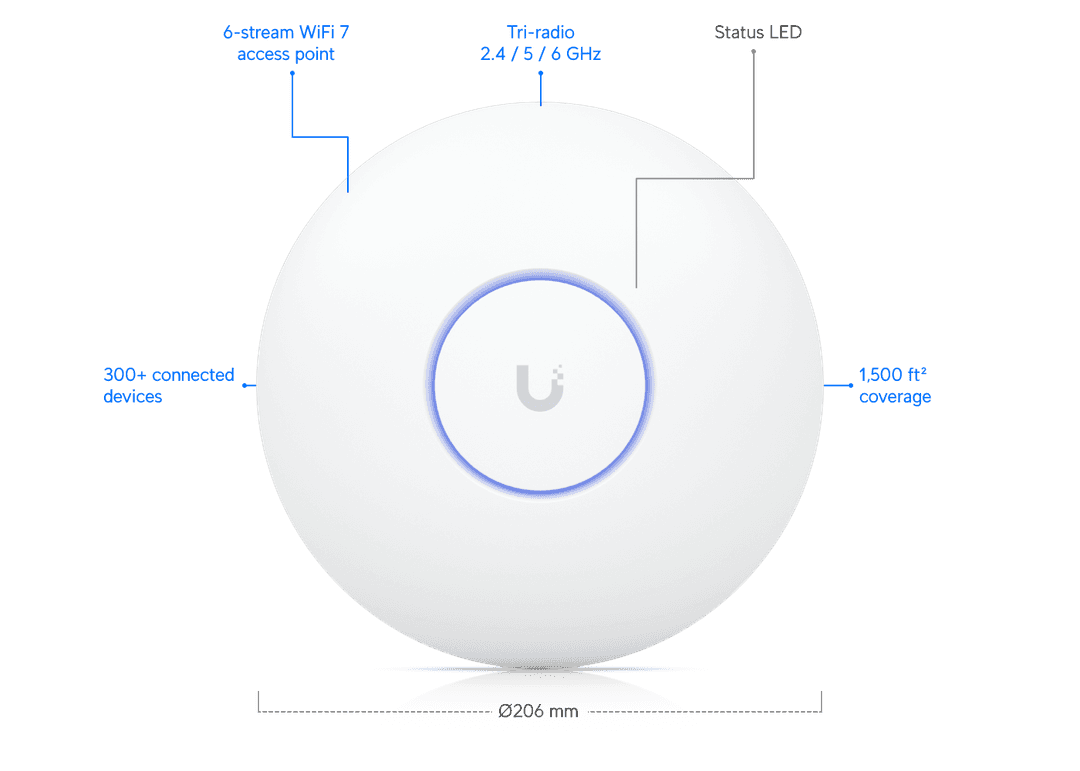

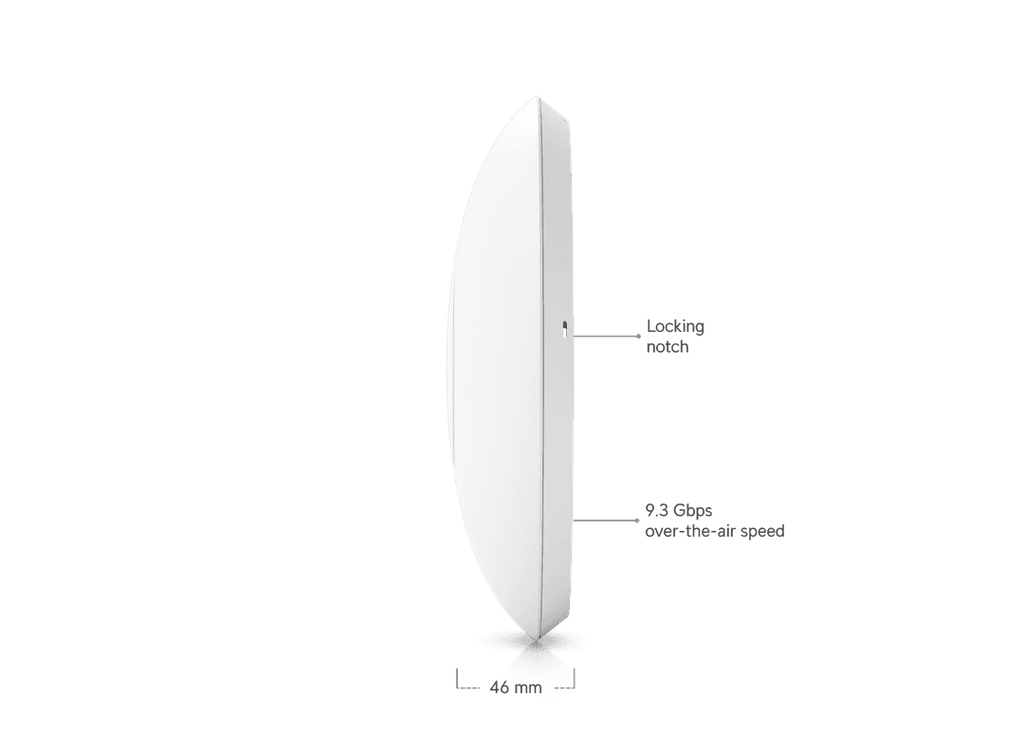

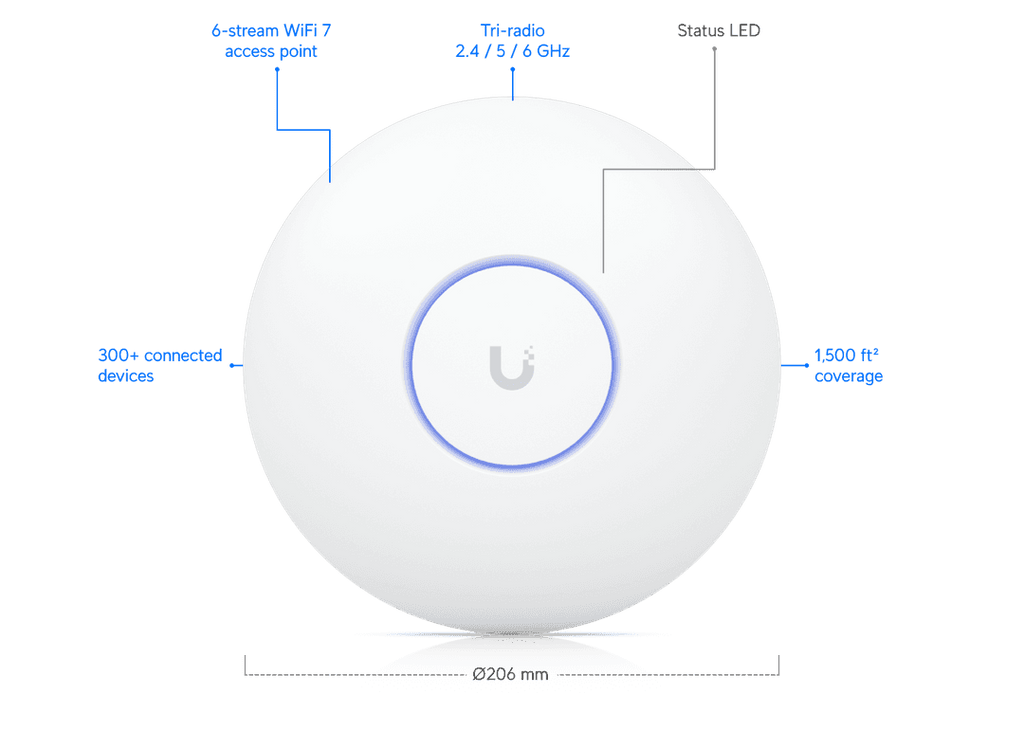

Dimensions ⌀206 x 46 mm (⌀8.1 x 1.8")
WiFi Standard WiFi 7
Spatial Streams 6
Coverage Area 140 m² (1,500 ft²)
Max. Client Count 300+
Uplink 2.5 GbE
Mounting Ceiling, Wall (Pro Mount Included)
Power Method PoE+
MIMO 2 x 2 (DL/UL MU-MIMO)
6 GHz 23 dBm
5 GHz 26 dBm
2.4 GHz 23 dBm
Max. BSSIDs 8 per Radio
802.11be (WiFi 7) 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
802.11ax (WiFi 6/6E) 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5) 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
Wireless Meshing ✓
Band Steering ✓
802.11v BSS Transition Management ✓
802.11r Fast Roaming ✓
802.11k Radio Resource Management (RRM) ✓
Advanced Radio Management ✓
Passpoint (Hotspot 2.0) ✓
Custom Branding Landing Page ✓
Voucher Authentication ✓
Payment-Based Authentication ✓
External Portal Server Support ✓
Password Authentication ✓
Guest Network Isolation ✓
Private Pre-Shared Key (PPSK) ✓
WiFi Speed Limiting ✓
Client Device Isolation ✓
WiFi Schedules ✓
RADIUS over TLS (RadSec) ✓
Dynamic RADIUS-assigned VLAN ✓
Max. Power Consumption 21W
Supported Voltage Range 44–57V DC

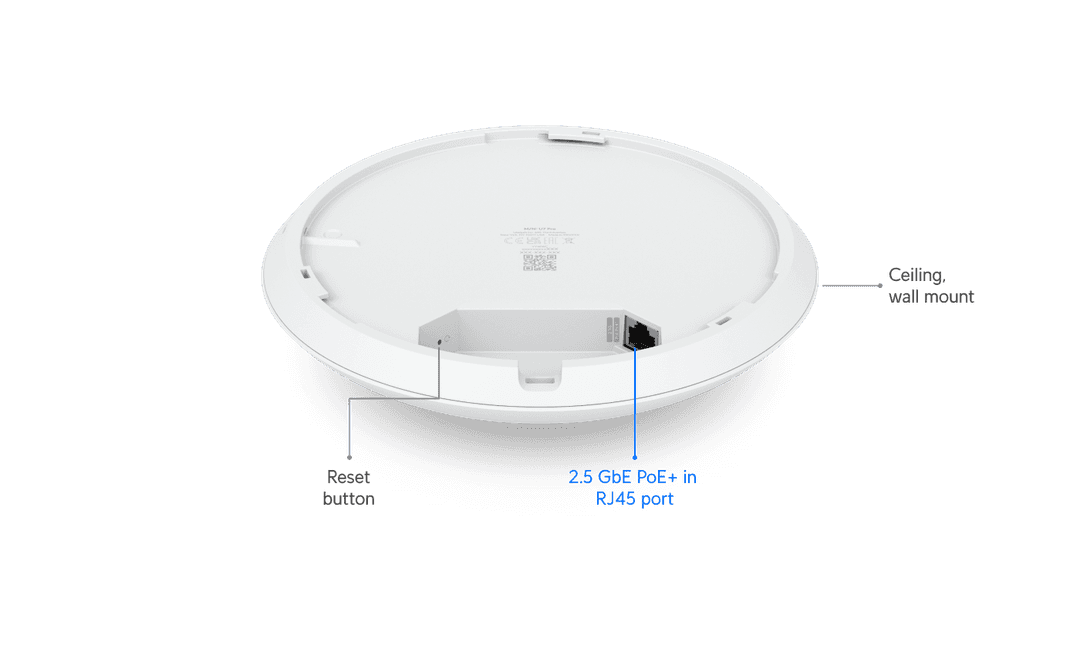

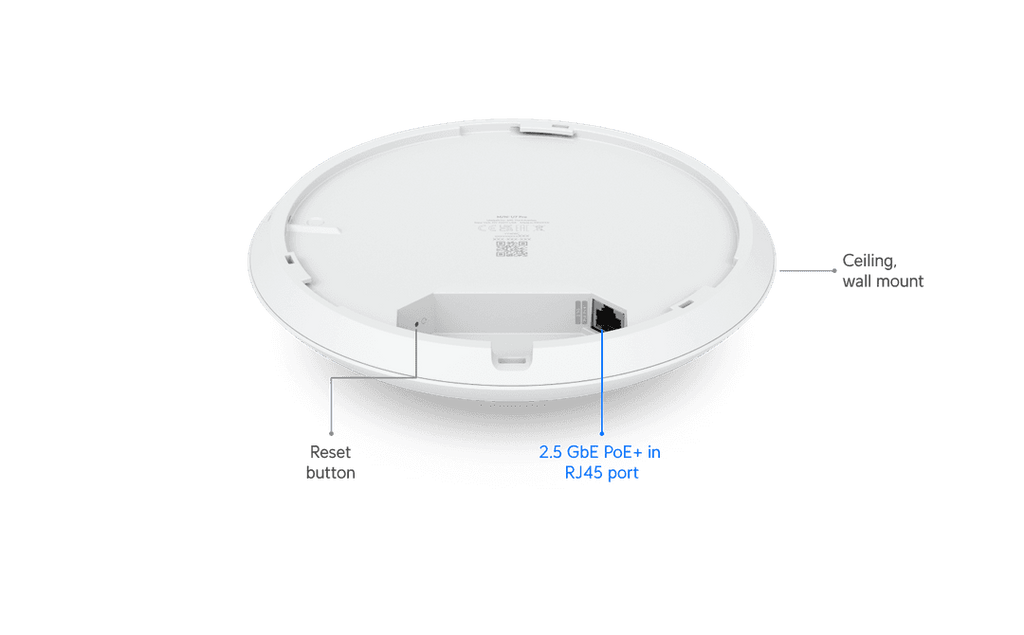

Networking Interface (1) 1/2.5 GbE RJ45 port
Weight 680 g (1.5 lb)
Management Ethernet
Enclosure Material Polycarbonate, metal
Mount Material Stainless steel (SUS304), galvanized steel (SGCC)
System White/Blue
Channel Bandwidth HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
NDAA Compliant ✓
Certifications CE, FCC, IC, Anatel: 06370-24-08356
Operating Frequency US/CA: 2400 - 2472 MHz U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz U-NII-5 to U-NII-8: 5925 - 7125 MHz Worldwide: 2400 - 2483.5 MHz 5150 - 5850 MHz 5925 - 7125 MHz
Ambient Operating Temperature -30 to 40° C (-22 to 104° F)
Ambient Operating Humidity 5 to 95% noncondensing
Application Requirements Version 8.0.28 and later
UniFi Network Version 8.0.28 and later
Specs
Dimensions ⌀206 x 46 mm (⌀8.1 x 1.8")
WiFi Standard WiFi 7
Spatial Streams 6
Coverage Area 140 m² (1,500 ft²)
Max. Client Count 300+
Uplink 2.5 GbE
Mounting Ceiling, Wall (Pro Mount Included)
Power Method PoE+
6 GHz 23 dBm
5 GHz 26 dBm
2.4 GHz 23 dBm
Max. BSSIDs 8 per Radio
802.11be (WiFi 7) 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
802.11ax (WiFi 6/6E) 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5) 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
Wireless Meshing ✓
Band Steering ✓
802.11v BSS Transition Management ✓
802.11r Fast Roaming ✓
802.11k Radio Resource Management (RRM) ✓
Advanced Radio Management ✓
Passpoint (Hotspot 2.0) ✓
Custom Branding Landing Page ✓
Voucher Authentication ✓
Payment-Based Authentication ✓
External Portal Server Support ✓
Password Authentication ✓
Guest Network Isolation ✓
Private Pre-Shared Key (PPSK) ✓
WiFi Speed Limiting ✓
Client Device Isolation ✓
WiFi Schedules ✓
RADIUS over TLS (RadSec) ✓
Dynamic RADIUS-assigned VLAN ✓
Max. Power Consumption 21W
Supported Voltage Range 44–57V DC
Networking Interface (1) 1/2.5 GbE RJ45 port
Weight 680 g (1.5 lb)
Management Ethernet
Enclosure Material Polycarbonate, metal
Mount Material Stainless steel (SUS304), galvanized steel (SGCC)
System White/Blue
Channel Bandwidth HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
NDAA Compliant ✓
Certifications CE, FCC, IC, Anatel: 06370-24-08356
Operating Frequency US/CA: 2400 - 2472 MHz U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz U-NII-5 to U-NII-8: 5925 - 7125 MHz Worldwide: 2400 - 2483.5 MHz 5150 - 5850 MHz 5925 - 7125 MHz
Ambient Operating Temperature -30 to 40° C (-22 to 104° F)
Ambient Operating Humidity 5 to 95% noncondensing
UniFi Network Version 8.0.28 and later

Contents not available.

📘 Installation Guide

Pour les questions fréquentes, consultez le centre d'aide Ubiquiti :

❓ Centre d'aide Ubiquiti
