Name: UA-G2
Brand: Ubiquiti
SKU: UAG2CA
Price: 192.99 CAD
Availability: OutOfStock

UA-G2

$192.99

UA-G2

$192.99

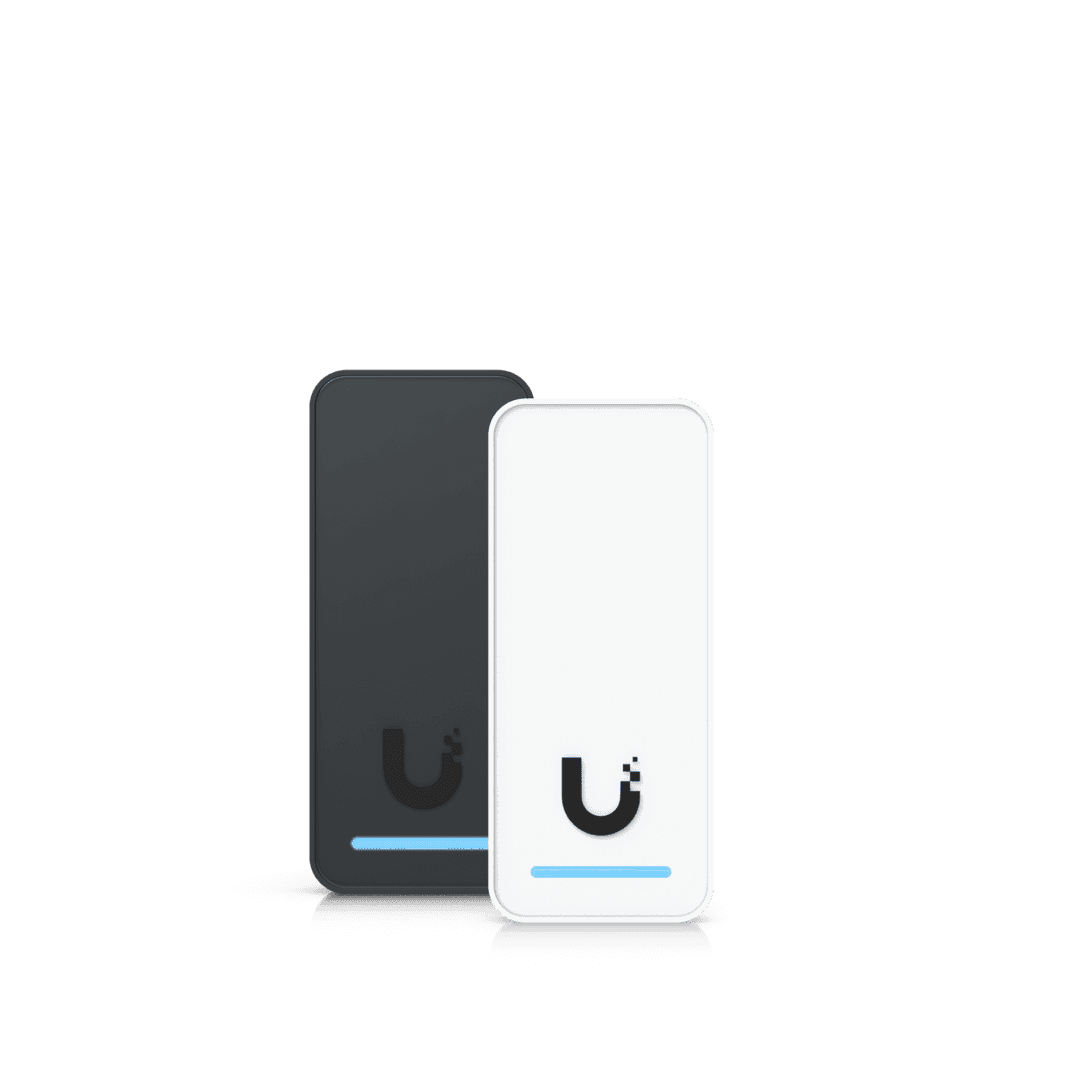

Access Reader G2

Access Reader G2 1 PoE input powered by an Access Hub, Improved outdoor operation with IP55 weather resistance 30 to 45 C, Unlock using NFC cards, the UniFi Identity App, or a handwave, Improved audio performance with added greeting messages

1 $192.99/ea

2-4 $190.85/ea

5-9 $188.70/ea

10-19 $185.85/ea

20+ $182.99/ea

Access Reader G2

Fabricant	Ubiquiti
Modèle	UA-G2
UPC	810084691663
Catégorie	Surveillance & Security — Accessories
Poids	0.9 lbs
Dimensions (boîte)	3.7" × 6.4" × 2.7" (L×P×H)

TechnicalIn The BoxDocumentsFAQ

Overview

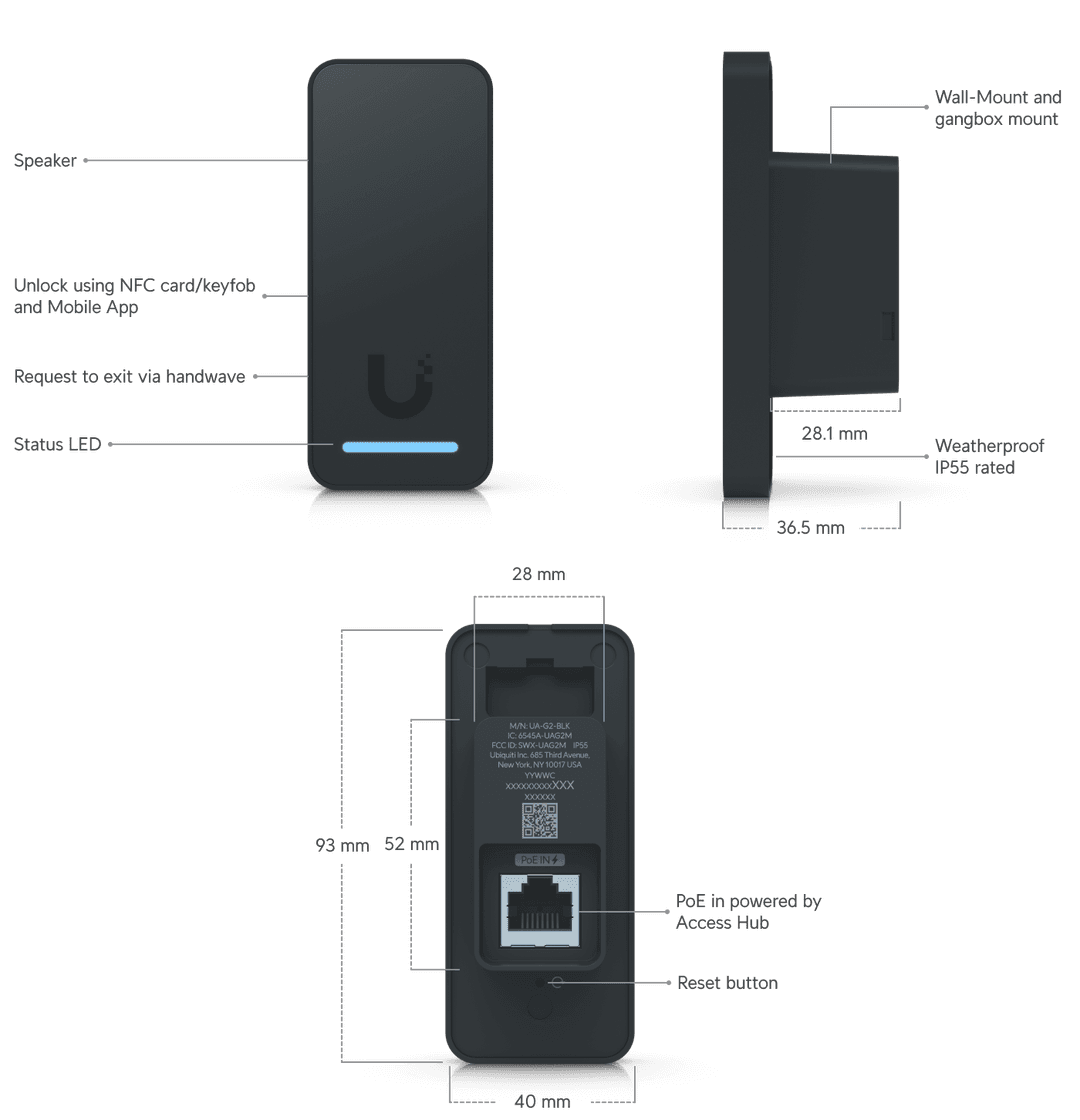

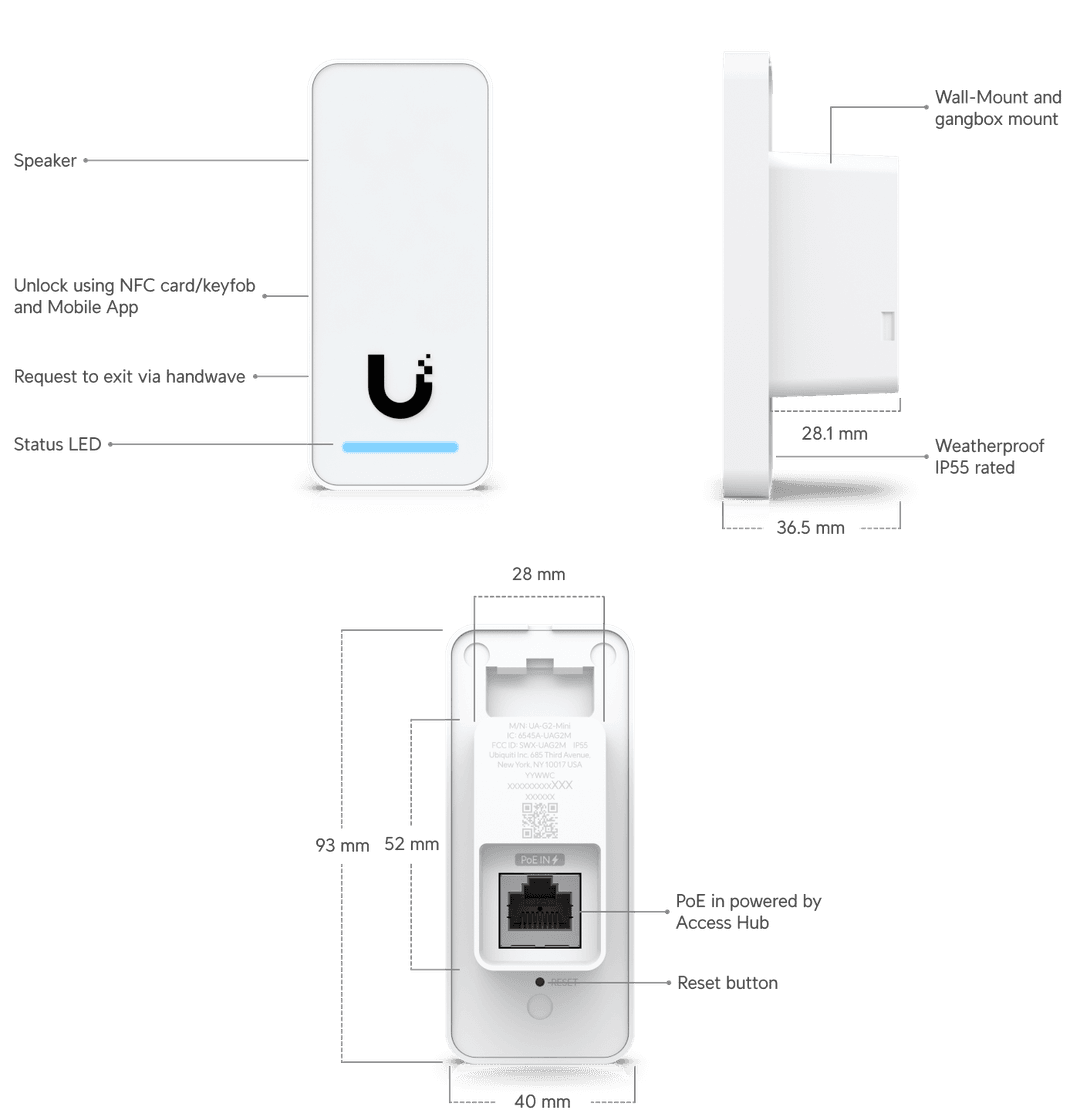

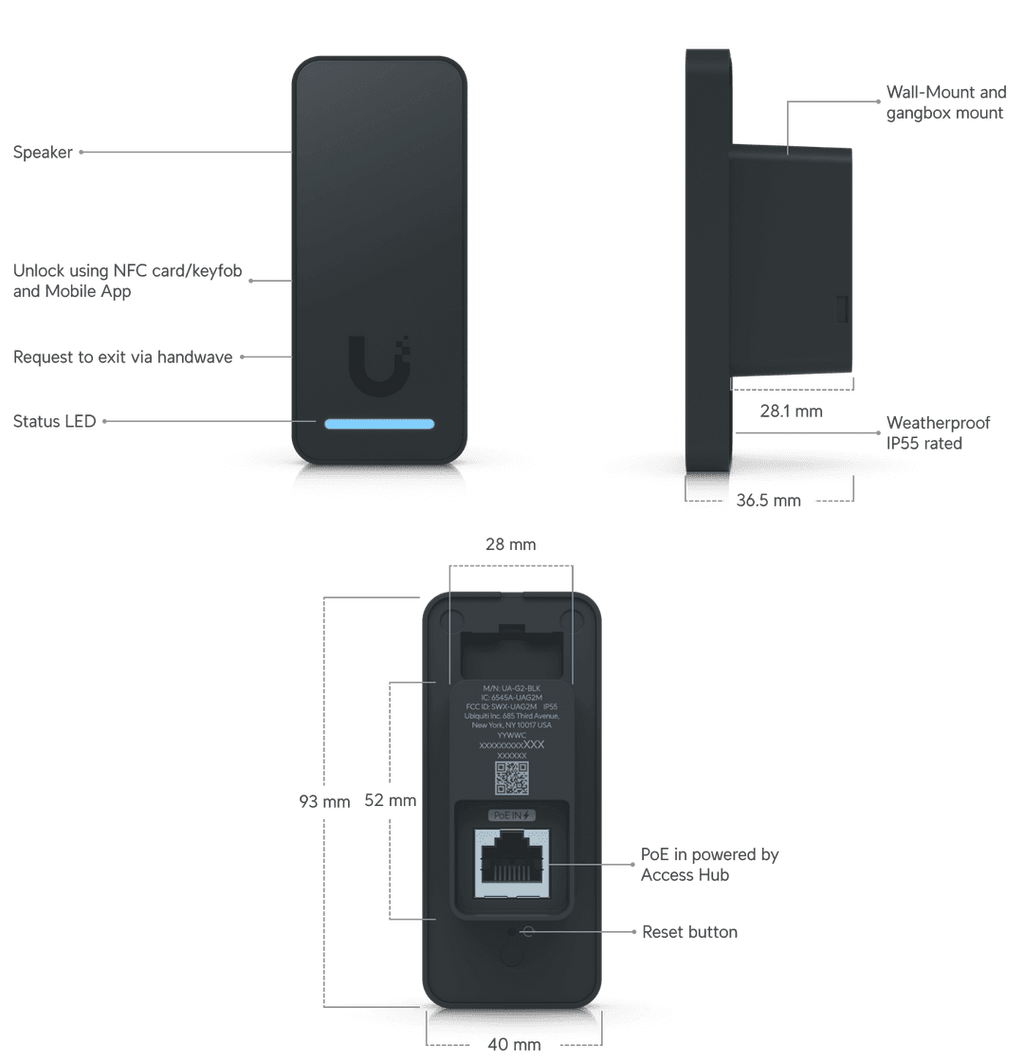

Dimensions	93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4")
NFC Card & Keyfob Access	✓
Mobile Unlock	✓
Handwave Request to Exit	✓
NDAA Compliant	✓
UL 294 Level	Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I
Weatherproofing	IP55
Weight	82 g (2.9 oz)
Enclosure Material	Polycarbonate, glass
Mount Material	Aluminum alloy
Mounting	In-wall, gang box (Included) Junction box (Optional)
Indoor and Outdoor Use	Yes
Networking Interface	(1) 10/100 MbE RJ45 port
Connectivity	BLE 4.1 NFC
Power Method	PoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU
Max. Power Consumption	5W
Supported Voltage Range	48V DC
ESD/EMP Protection	Air: ± 15kV, contact: ± 8kV
Sensors	Proximity sensor
Speaker	✓
LEDs	R/G/B/W Learn More
Button	(1) Factory reset
NFC Frequency	13.56 MHz
NFC Read Range	< 30 mm (1.18'')
NFC Technology	ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T, T2T, T3T, T4T and T5T
PoE Cabling Requirements	Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
UL 294 Statement	Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 Grade	Grade assignment: I
Certifications	CE, FCC, IC, SRRC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision level	UA-G2/UA-G2-Black, V02
Ambient Operating Temperature	-30 to 45° C (-22 to 113° F)
Ambient Operating Humidity	5 to 90% noncondensing
Management Application	Access
Software Information	The software version can be checked at https://unifi.ui.com
