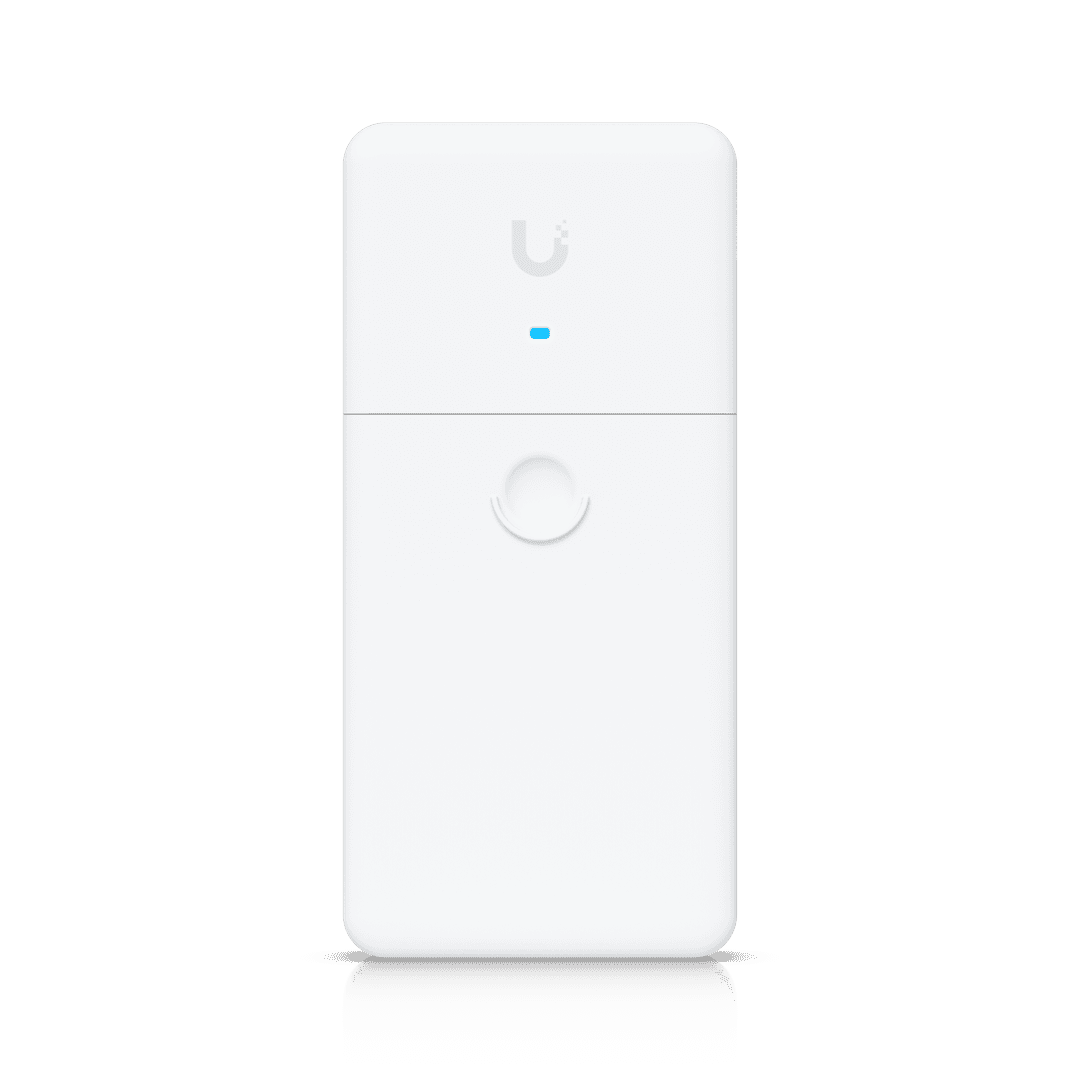

Name: UACC-LRE
Brand: Ubiquiti
SKU: UACCLRECA
Price: 40.99 CAD
Availability: OutOfStock

UACC-LRE

$40.99 $41.99

UACC-LRE

$40.99 $41.99

Long Range Ethernet Reperater

The Long-range Indoor/Outdoor Repeater (UACC LRE) is Gigabit adapter that allows you to easily and inexpensively expand your Ethernet network's range. With its (2) GbE RJ45 ports, the UACC LRE can receive 802.3af/at PoE/PoE+ while providing passthrough PoE output. You can also chain multiple UACC LRE adapters together to connect access points and cameras that are far away from your PoE switch. The UACC LRE also offers 10kA+ surge protection and works reliably in extreme temperatures (-40 to 80 C) to protect your deployment from weather and electrical damage.

1 $40.99/ea

2-4 $40.45/ea

5-9 $39.91/ea

10-19 $39.19/ea

20+ $38.48/ea

Long Range Ethernet Reperater

Fabricant	Ubiquiti
Modèle	UACC-LRE
UPC	810010078780
Catégorie	Networking — Power over Ethernet
Poids	1.1 lbs
Dimensions (boîte)	5.2" × 9.4" × 3.1" (L×P×H)

TechnicalIn The BoxDocumentsFAQ

Overview

Dimensions	196.5 x 93.5 x 39 mm (7.7 x 3.7 x 1.5")
Weight	350 g (12.3 oz)
Enclosure Material	UV stabilized polycarbonate
Mounting Material	Stainless steel
Weatherproofing	IPX5
Power Method	PoE/PoE+ 2-pairs (Pins 1, 2+; 3, 6-)
Max. Power Consumption	1.5W (Excluding PoE output)
Networking Interface	(2) GbE RJ45 ports
PoE Interface	(1) Passthrough PoE output 2-pairs (pins 1,2+; 3,6-)
Total Non-Blocking Line Rate	2 Gbps
Switching Capacity	4 Gbps
Forwarding Rate	1.488 Mpps
Total Available PoE	22.5W
Voltage Range PoE Mode	37—57V DC
ESD/EMP Protection	Air/contact: ± 30kV
DC Sparkover Voltage	90V at 100V/s
Max. Impulse Sparkover Voltage	700V at 1kV/μs
Discharge Current	10kA+
Max. MTU	1,500 bytes
System	Blue: power ON
Ethernet	Green: 1 Gbps Amber: 10/100 Mbps
PoE	Amber: passthrough PoE out
Ambient Operating Temperature	-40 to 80° C (-40 to 176° F)
Ambient Operating Humidity	10 to 95% noncondensing

Specs

Dimensions	196.5 x 93.5 x 39 mm (7.7 x 3.7 x 1.5")
Weight	350 g (12.3 oz)
Enclosure Material	UV stabilized polycarbonate
Mounting Material	Stainless steel
Weatherproofing	IPX5
Power Method	PoE/PoE+ 2-pairs (Pins 1, 2+; 3, 6-)
Max. Power Consumption	1.5W (Excluding PoE output)
Networking Interface	(2) GbE RJ45 ports
PoE Interface	(1) Passthrough PoE output 2-pairs (pins 1,2+; 3,6-)
Total Non-Blocking Line Rate	2 Gbps
Switching Capacity	4 Gbps
Forwarding Rate	1.488 Mpps
Total Available PoE	22.5W
Voltage Range PoE Mode	37—57V DC
ESD/EMP Protection	Air/contact: ± 30kV
DC Sparkover Voltage	90V at 100V/s
Max. Impulse Sparkover Voltage	700V at 1kV/μs
Discharge Current	10kA+
Max. MTU	1,500 bytes
System	Blue: power ON
Ethernet	Green: 1 Gbps Amber: 10/100 Mbps
PoE	Amber: passthrough PoE out
Ambient Operating Temperature	-40 to 80° C (-40 to 176° F)
Ambient Operating Humidity	10 to 95% noncondensing
