UCG-Max

UCG-Max

$373.99
Skip to product information
UCG-Max
  • UCG-Max
  • UCG-Max
  • UCG-Max
  • UCG-Max
UCG-Max

UCG-Max

$373.99

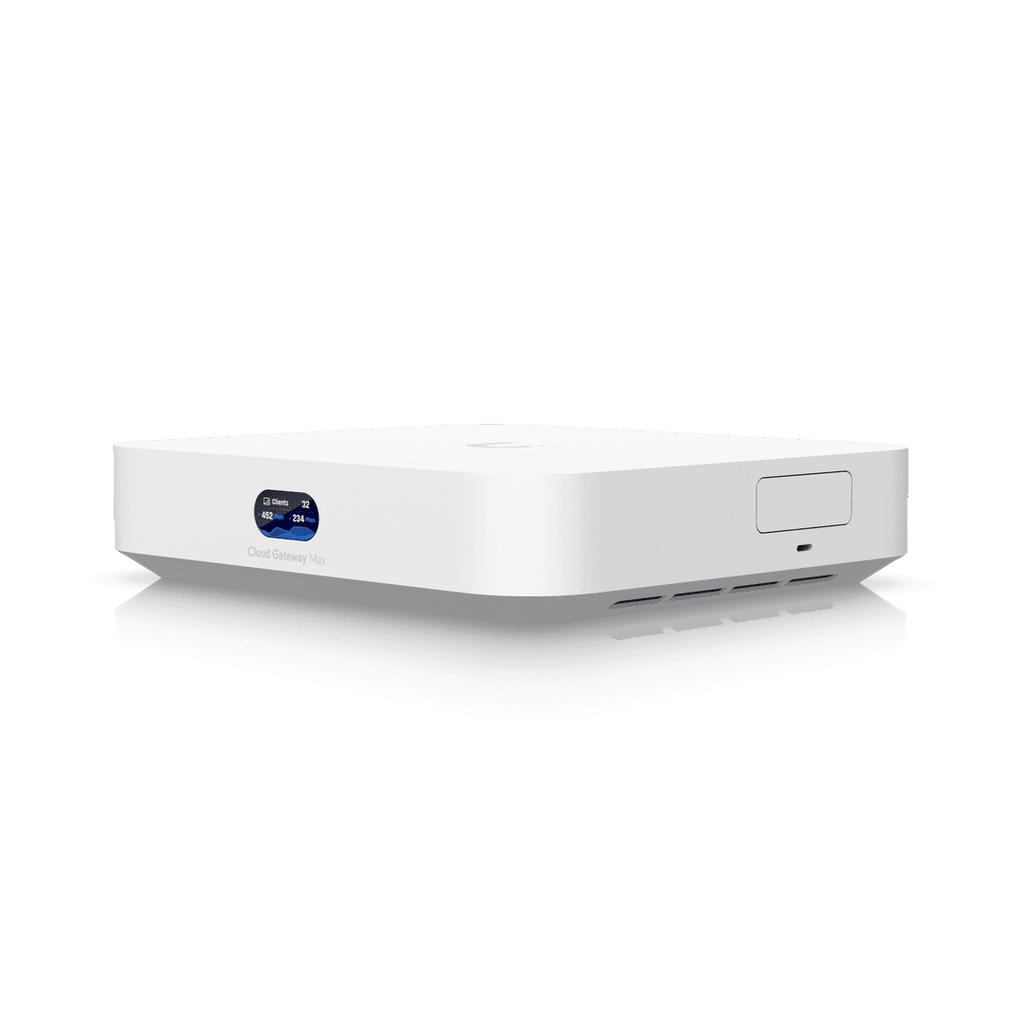

Cloud Gateway Max

Compact 2.5G Cloud Gateway with 30+ UniFi device / 300+ client support, 1.5 Gbps IPS routing, and selectable NVR storage.
Volume Discounts
1 $373.99/ea
2-4 $371.30/ea
5-9 $368.61/ea
10-19 $365.02/ea
20+ $361.43/ea

Cloud Gateway Max

Fabricant Ubiquiti
Modèle UCG-Max
UPC 810084697153
Catégorie Network Security — Firewalls/UTM/VPN
Poids 2.4 lbs
Dimensions (boîte) 7.2" × 8.8" × 3.2" (L×P×H)
ProductProductProductProduct
Overview

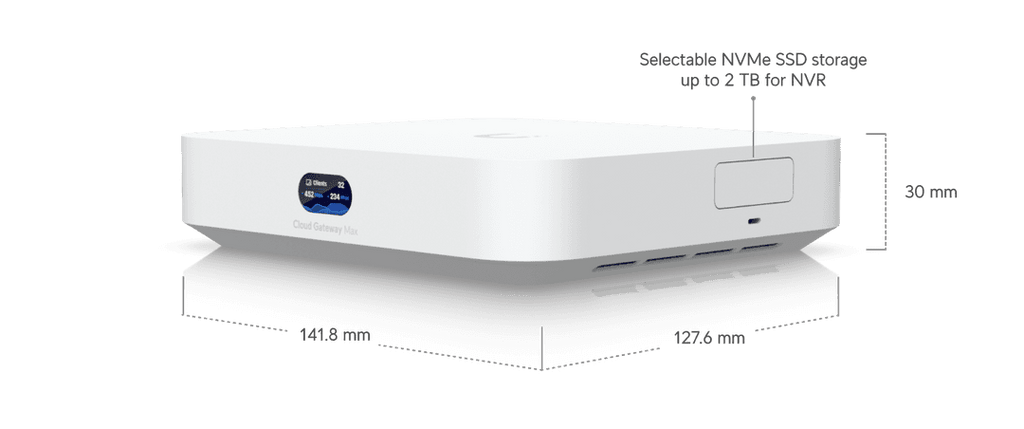

Dimensions 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2")
Network ✓
Protect ✓
Access ✓
Talk ✓
Connect ✓
Managed UniFi Devices 30+
Managed Cameras (15) HD (8) 2K (5) 4K
Managed Access Hubs 50
Simultaneous Users Connected 300+
Max. WAN Port Count 4

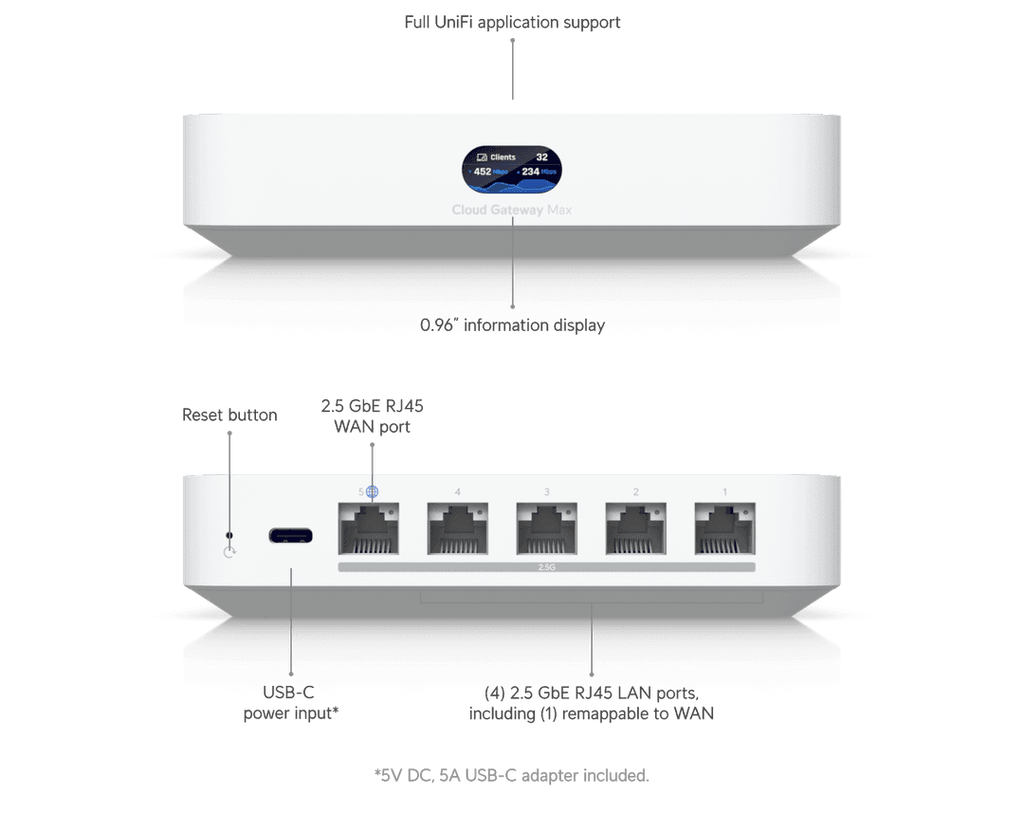

Default WAN Ports (1) 2.5 GbE RJ45
2.5 GbE RJ45 5 (2.5G/1G/100M/10M)
IDS/IPS Throughput 2.3 Gbps
Form Factor Compact desktop
Stateful Firewall ✓
Application-Aware Layer 7 Firewall ✓
DPI & Traffic Identification ✓
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) ✓
Content Filtering ✓
Intrusion Prevention (IPS/IDS) ✓
Ad Blocking ✓
IDS/IPS Signatures 55,000+ with CyberSecure
VLAN/Subnet-based Traffic Segmentation ✓
License-Free SD-WAN ✓
Site Magic ✓
IPsec ✓
OpenVPN ✓
Identity Endpoint One-Click VPN ✓
Teleport Zero-Configuration VPN ✓
WireGuard ✓
L2TP ✓
Multi-WAN Load Balancing ✓
OSPF ✓
Advanced QoS ✓
Multicast DNS (mDNS) ✓
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) ✓
Integrated RADIUS Server ✓
RADIUS over TLS (RadSec) ✓
Additional Internet Failover with UniFi LTE Backup ✓
Internet Quality and Outage Reporting ✓
MAC Address Table Size 2,000
Policy-based WAN and VPN Routing ✓
Customizable DHCP Server ✓
IPv6 ISP Support ✓
IGMP Proxy ✓
Virtual Network Override ✓
All Traffic Flows ✓
NVR Storage Selectable NVMe SSD up to 2 TB
Max. Power Consumption 16.1W
Power Method USB type C (5V DC/5A)
Power Supply USB type C (5V DC/5A) (Adapter included)
Supported Voltage Range 100–240V AC
Heat Dissipation 55 BTU/hr
Processor Quad-core ARM® Cortex®-A53 at 1.5 GHz
System Memory 3 GB
Weight Without SSD: 460 g (1 lb) With SSD: 519 g (1.1 lb)
Enclosure Material Polycarbonate
LCM Display 0.96" status display
Management Ethernet Bluetooth
Ethernet ✓
Button (1) Factory reset
ESD/EMP Protection Air: ± 8kV, contact: ± 4kV
Ambient Operating Temperature -10 to 40° C (14 to 104° F)
Ambient Operating Humidity 5 to 95% noncondensing
NDAA Compliant ✓
Certifications CE, FCC, IC, Anatel: 09004-24-08356, SRRC
Application Requirements UniFi iOS™ and Android™: Version 10.17.2 and later
Mobile App UniFi iOS™ and Android™: Version 10.17.2 and later
Specs
Dimensions 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2")
Network ✓
Protect ✓
Access ✓
Talk ✓
Connect ✓
Managed UniFi Devices 30+
Managed Cameras (15) HD (8) 2K (5) 4K
Managed Access Hubs 50
Simultaneous Users Connected 300+
Max. WAN Port Count 4
Default WAN Ports (1) 2.5 GbE RJ45
2.5 GbE RJ45 5 (2.5G/1G/100M/10M)
IDS/IPS Throughput 2.3 Gbps
Form Factor Compact desktop
Stateful Firewall ✓
Application-Aware Layer 7 Firewall ✓
DPI & Traffic Identification ✓
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) ✓
Content Filtering ✓
Intrusion Prevention (IPS/IDS) ✓
Ad Blocking ✓
IDS/IPS Signatures 55,000+ with CyberSecure
VLAN/Subnet-based Traffic Segmentation ✓
License-Free SD-WAN ✓
Site Magic ✓
IPsec ✓
OpenVPN ✓
Identity Endpoint One-Click VPN ✓
Teleport Zero-Configuration VPN ✓
WireGuard ✓
L2TP ✓
Multi-WAN Load Balancing ✓
OSPF ✓
Advanced QoS ✓
Multicast DNS (mDNS) ✓
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) ✓
Integrated RADIUS Server ✓
RADIUS over TLS (RadSec) ✓
Additional Internet Failover with UniFi LTE Backup ✓
Internet Quality and Outage Reporting ✓
MAC Address Table Size 2,000
Policy-based WAN and VPN Routing ✓
Customizable DHCP Server ✓
IPv6 ISP Support ✓
IGMP Proxy ✓
Virtual Network Override ✓
All Traffic Flows ✓
NVR Storage Selectable NVMe SSD up to 2 TB
Max. Power Consumption 16.1W
Power Method USB type C (5V DC/5A)
Power Supply USB type C (5V DC/5A) (Adapter included)
Supported Voltage Range 100–240V AC
Heat Dissipation 55 BTU/hr
Processor Quad-core ARM® Cortex®-A53 at 1.5 GHz
System Memory 3 GB
Weight Without SSD: 460 g (1 lb) With SSD: 519 g (1.1 lb)
Enclosure Material Polycarbonate
LCM Display 0.96" status display
Management Ethernet Bluetooth
Ethernet ✓
Button (1) Factory reset
ESD/EMP Protection Air: ± 8kV, contact: ± 4kV
Ambient Operating Temperature -10 to 40° C (14 to 104° F)
Ambient Operating Humidity 5 to 95% noncondensing
NDAA Compliant ✓
Certifications CE, FCC, IC, Anatel: 09004-24-08356, SRRC
Mobile App UniFi iOS™ and Android™: Version 10.17.2 and later

Contents not available.

📘 Installation Guide

Pour les questions fréquentes, consultez le centre d'aide Ubiquiti :

❓ Centre d'aide Ubiquiti
