USP-PDU-HD

Name: USP-PDU-HD
Brand: Ubiquiti
SKU: USPPDUHDCA
Price: 1329.99 CAD
Availability: InStock

$1,329.99 $1,379.99

Power Distribution Hi-Density

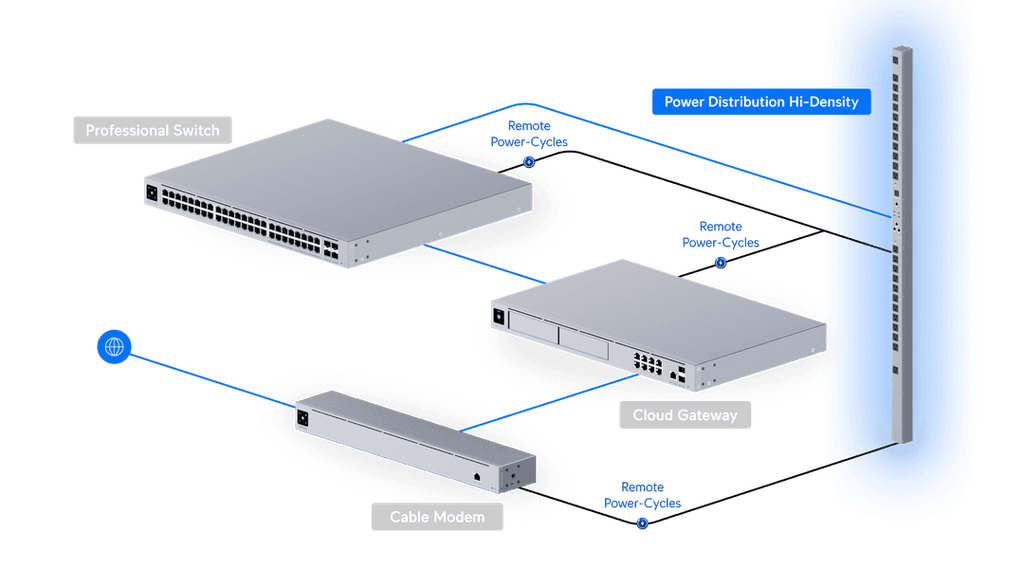

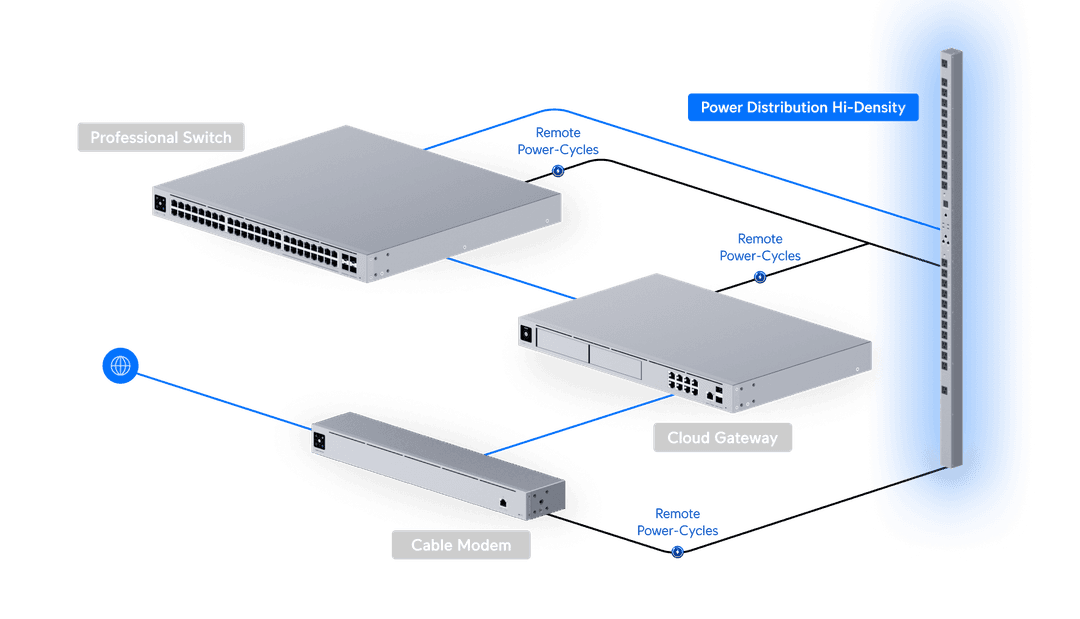

Power distribution unit designed to support large, rack-mounted UniFi hardware deployments.

1 $1,329.99/ea

2-4 $1,317.46/ea

5-9 $1,304.93/ea

10-19 $1,288.22/ea

20+ $1,271.52/ea

Power Distribution Hi-Density

TechnicalIn The BoxDocumentsFAQ

Mechanical

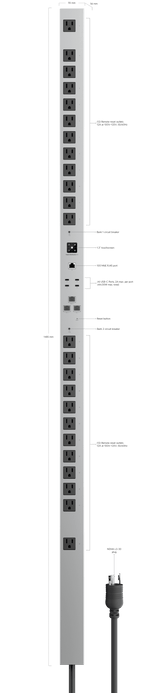

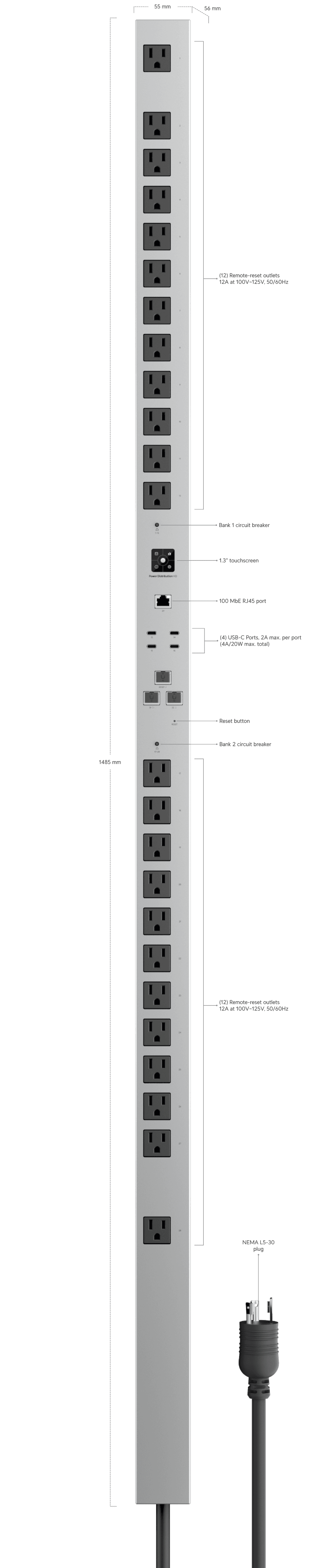

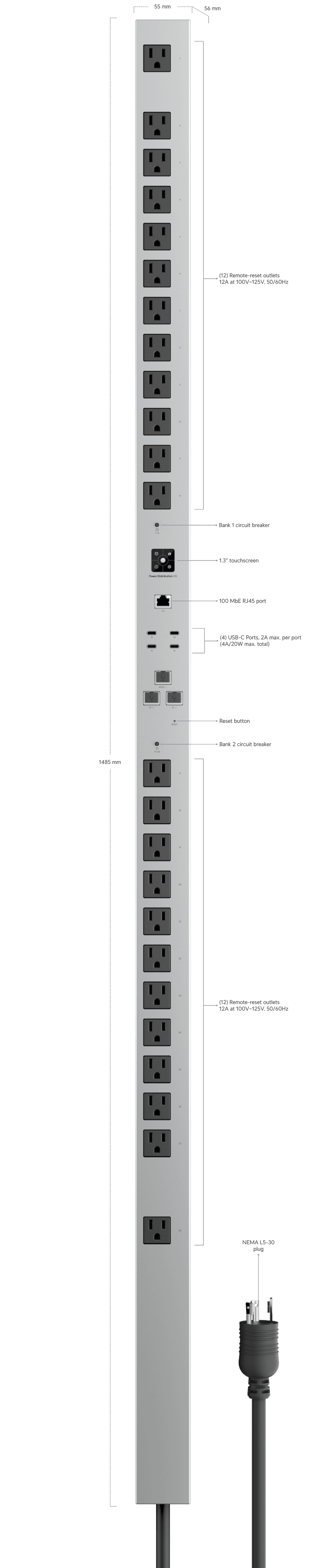

Dimensions	1485 x 55 x 56 mm (58.5 x 2.17 x 2.2")
Weight	6.3 kg (13.9 lb)
Enclosure Material	SGCC steel
Management	Ethernet

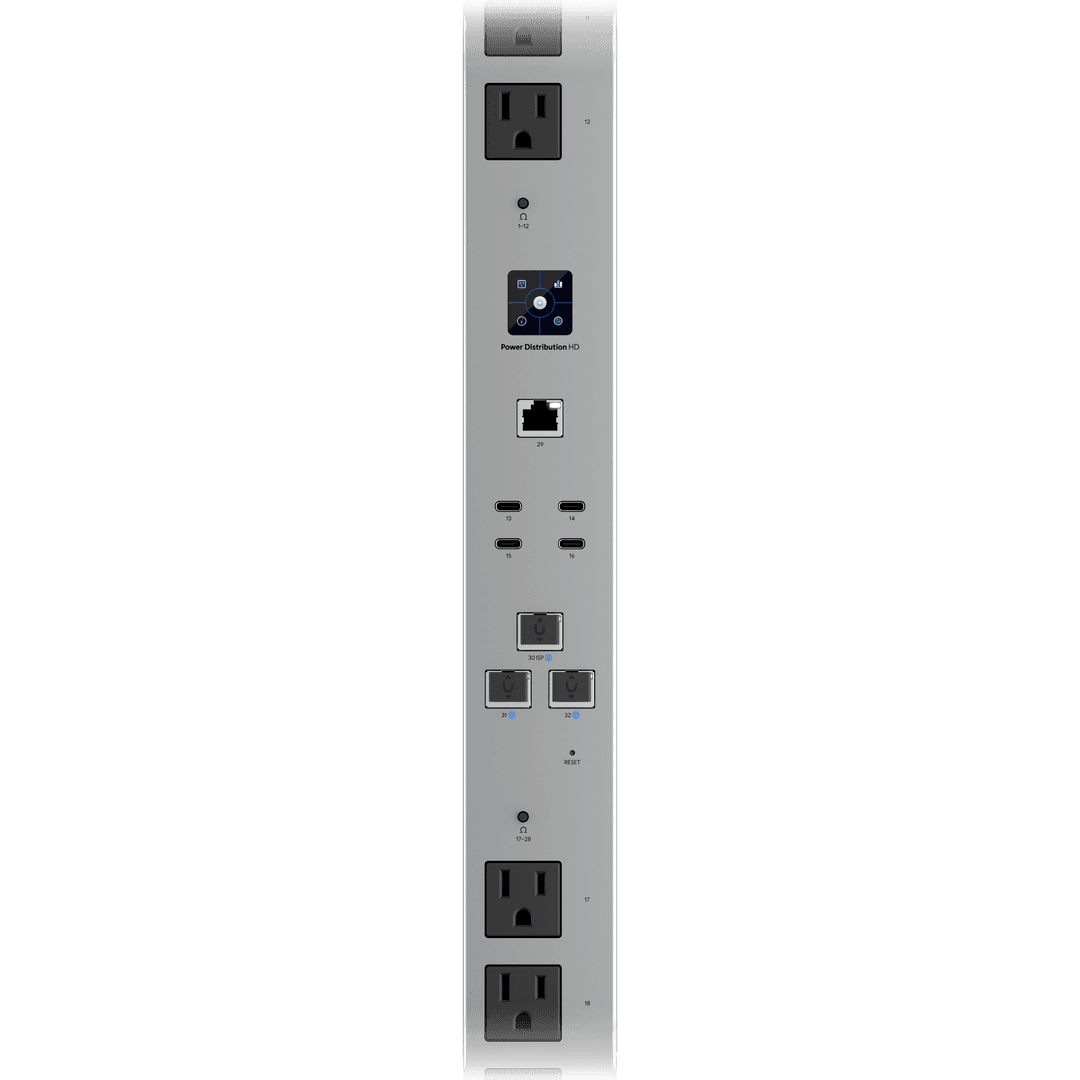

Networking Interface	(1) 10/100 MbE RJ45 port (3) GbE RJ45 ports for network redundancy
Power Method	100–125V AC, 30A Max. (Derated to 24A), 50/60 Hz (NEMA L5-30P)
Power Output	(24) Power control outlets: Per Bank (Bank1: port 1 to 12, Bank2: port 17 to 28): Rating output current: 12A at 125V AC (1500W) Max. output current: 15A at 125V AC (1875W) Total: Rating output current: 24A at 125V AC (3000W) Max. output current: 30A at 125V AC (3750W) (4) USB type C ports: 5VDC 2A per port, total 20W Max. power
ESD/EMP Protection	Air: ± 8kV, contact: ± 4kV
Display	1.3" touchscreen
Buttons	(1) Factory reset (1) Circuit breaker
Ambient Operating Temperature	0 to 40° C (32 to 104° F)
Ambient Operating Humidity	10 to 90% noncondensing
NDAA Compliant	✓
Certifications	FCC, IC
Application Requirements	UniFi iOS™ and 10.11.0 and later Android™ 10.11.0 and later
Mobile Apps	UniFi iOS™ and 10.11.0 and later Android™ 10.11.0 and later
UniFi Network	Version 8.0.24 and later

Specs

Dimensions	1485 x 55 x 56 mm (58.5 x 2.17 x 2.2")
Weight	6.3 kg (13.9 lb)
Enclosure Material	SGCC steel
Management	Ethernet
Networking Interface	(1) 10/100 MbE RJ45 port (3) GbE RJ45 ports for network redundancy
Power Method	100–125V AC, 30A Max. (Derated to 24A), 50/60 Hz (NEMA L5-30P)
Power Output	(24) Power control outlets: Per Bank (Bank1: port 1 to 12, Bank2: port 17 to 28): Rating output current: 12A at 125V AC (1500W) Max. output current: 15A at 125V AC (1875W) Total: Rating output current: 24A at 125V AC (3000W) Max. output current: 30A at 125V AC (3750W) (4) USB type C ports: 5VDC 2A per port, total 20W Max. power
ESD/EMP Protection	Air: ± 8kV, contact: ± 4kV
Display	1.3" touchscreen
Buttons	(1) Factory reset (1) Circuit breaker
Ambient Operating Temperature	0 to 40° C (32 to 104° F)
Ambient Operating Humidity	10 to 90% noncondensing
NDAA Compliant	✓
Certifications	FCC, IC
Mobile Apps	UniFi iOS™ and 10.11.0 and later Android™ 10.11.0 and later
UniFi Network	Version 8.0.24 and later
