USW-Pro-XG-8-PoE

Name: USW-Pro-XG-8-PoE
Brand: Ubiquiti
SKU: USWPROXG8POECA
Price: 664.99 CAD
Availability: OutOfStock

$664.99 $689.99

Pro XG 8 PoE

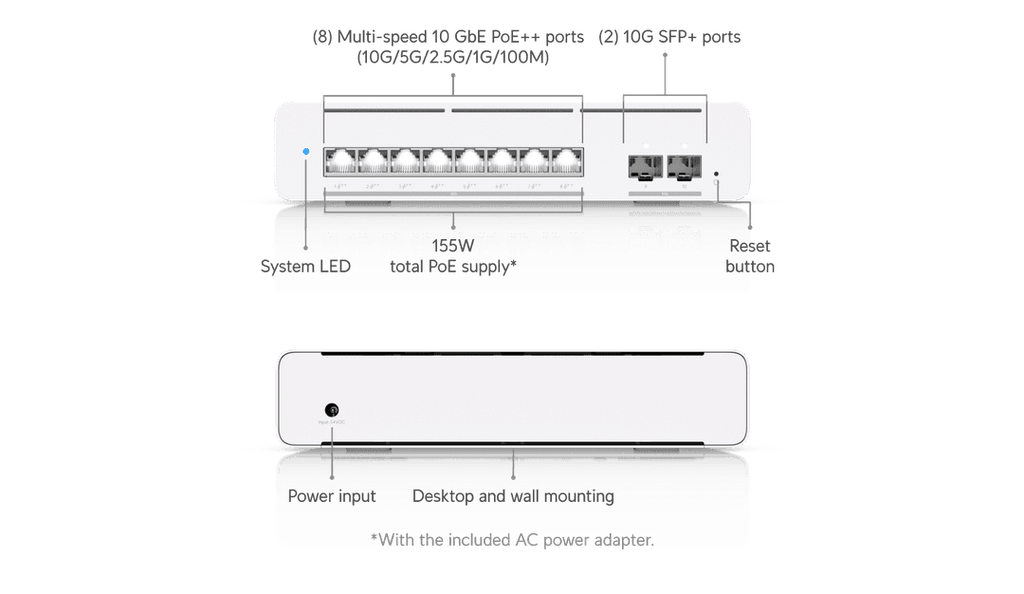

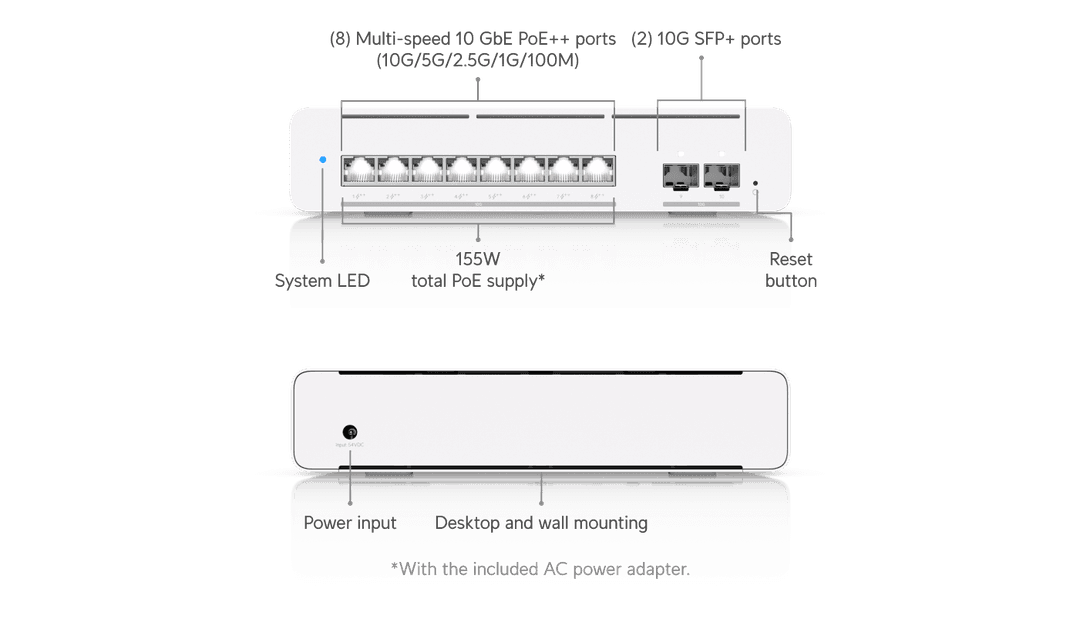

Compact desktop/wallmountable, professionalgrade 8port, Layer 3 Etherlighting PoE++ switch with 8 10 GbE and 2 10G SFP+ ports.

1 $664.99/ea

2-4 $660.83/ea

5-9 $656.67/ea

10-19 $651.12/ea

20+ $645.57/ea

Pro XG 8 PoE

Fabricant	Ubiquiti
Modèle	USW-Pro-XG-8-PoE
UPC	810084699959
Catégorie	Networking — Switches 4 to 10 Ports
Poids	6.55 lbs
Dimensions (boîte)	14.3" × 9.8" × 4.3" (L×P×H)

TechnicalIn The BoxDocumentsFAQ

Overview

Dimensions	210.4 x 173.8 x 43.7 mm (8.28 x 6.84 x 1.7")
10 GbE RJ45	8 (All PoE++) (10G/5G/2.5G/1G/100M)
10G SFP+	2 (10G/1G)
Max. PoE Output	Up to PoE++
Total PoE Availability	155W
Layer 3	✓
Form Factor	Compact desktop, wall

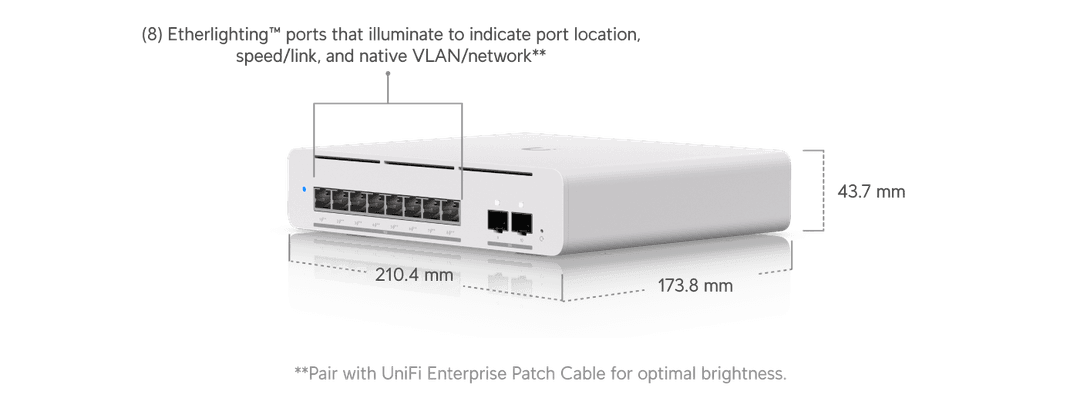

Etherlighting™	✓
Switching Capacity	200 Gbps
Total Non-Blocking Throughput	100 Gbps
Forwarding Rate	149 Mpps
Supported VLANs	1,000
MAC Address Table Size	32,000
ARP Entries	12,000
IPv4 Routes	12,000
IPv4 Static Routes	256
Packet Buffer Size	2 MB
IPv4	128
MAC	128
DHCP Server (Local Networks)	✓
DHCP Relay	✓
Inter-VLAN Routing (Local Networks)	✓
Static Routing (Local Networks)	✓
LACP Port Aggregation	✓
STP & RSTP	✓
QoS (DSCP)	✓
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)	✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)	✓
IGMP Snooping	✓
802.1X Control	✓
MAC-Based ACLs & Device Isolation	✓
DHCP Snooping & Guarding	✓
Egress Rate Limit	✓
Flow Control	✓
Storm Control	✓
Multicast & Broadcast Rate Limiting	✓
MAC Address Blocking	✓
IP-Based ACLs & Network Isolation	✓
MAC-Based Port Restriction	✓
Port Isolation	✓
Port Mirroring	✓
Jumbo Frames	✓
LLDP-MED	✓
Voice VLAN	✓
Loop Protection	✓
Virtual Network Override	✓
PoE Ports	8
PoE++	60W
PoE	15.4W
PoE+	30W
Max. Power Consumption	61W (Excluding PoE output) 210W (Including PoE output)
Power Method	AC/DC Adapter (included)
Power Input Method	DC input
Power Supply	AC/DC, external, 210W
Supported Voltage Range	50–57V DC
Management	Ethernet
Weight	1.6 kg (3.5 lb)
Enclosure Material	SGCC steel
Mount Material	Polycarbonate
ESD Protection	Air: ± 30kV, contact: ± 30kV
Ambient Operating Temperature	-5 to 45° C (23 to 113° F)
Ambient Operating Humidity	10 to 90% noncondensing
Ethernet	✓
SFP+	✓
System	✓
NDAA Compliant	✓
Certifications	CE, FCC, IC, Anatel: 04322-25-08356
Application Requirements	Version 9.0.114 and later
UniFi Network	Version 9.0.114 and later
