AF-24

Name: AF-24
Brand: Ubiquiti
SKU: AF24CA
Price: 1943.99 CAD
Availability: InStock

$1,943.99 $2,067.99

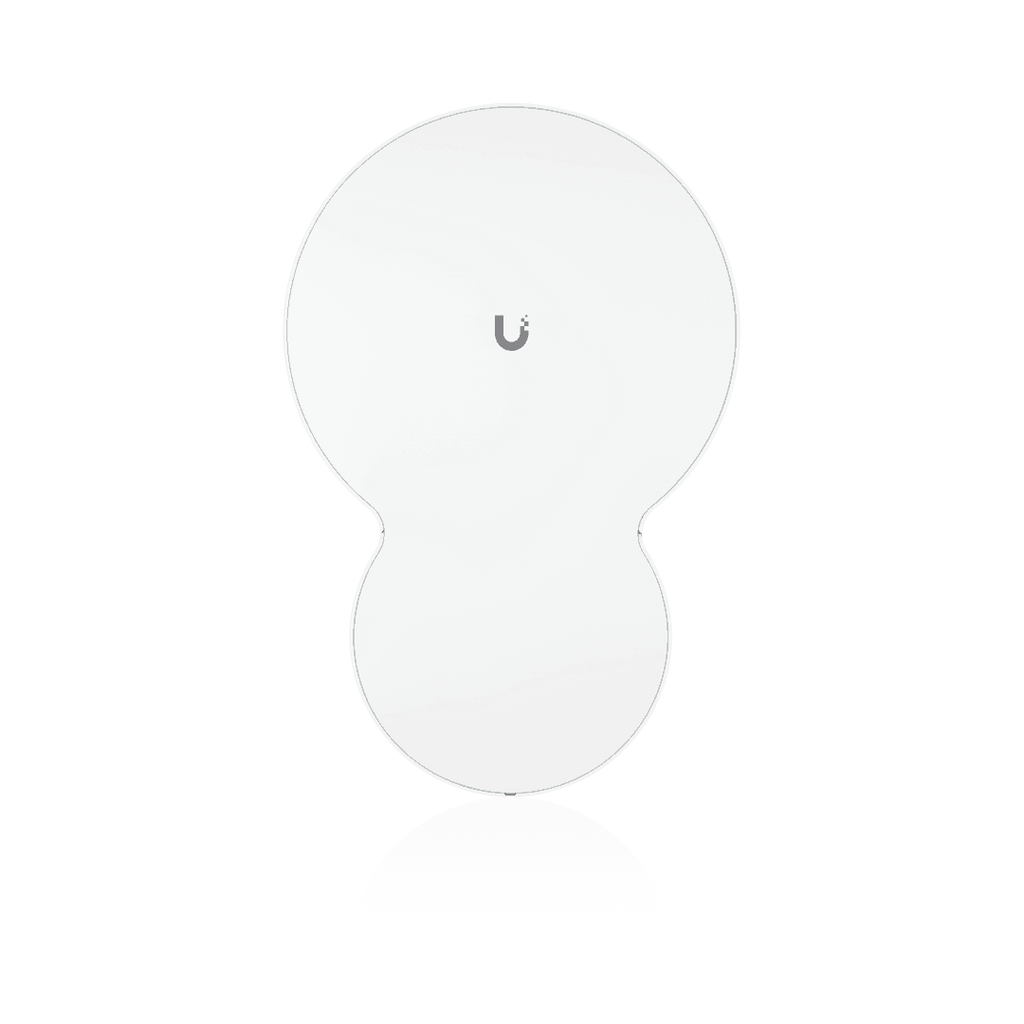

AirFiber 24 Wireless Platform

Ubiquiti AF24 airFiber AF-24 24GHz Radio 1.4+Gbps 13+km Worldwide License-Free. Revolutionary Wireless Technology[/b] Introducing air Fiber a truly revolutionary Point-to-Point wireless platform from Ubiquiti Networks. Housed in a compact highly efficient form factor air Fiber delivers amazing wireless gigabit+ performance low latency and long range. Air Fiber ushers in a new era in price-disruptive wireless technology ideal for carrier backhaul building-to-building enterprise use or public safety applications. Efficient by Design[/b] Every detail of air Fiber was designed and engineered by the Ubiquiti R&D Team.

1 $1,943.99/ea

2-4 $1,941.11/ea

5-9 $1,938.23/ea

10-19 $1,935.35/ea

20+ $1,932.47/ea

AirFiber 24 Wireless Platform

Fabricant	Ubiquiti
Modèle	AF-24
UPC	810354024801
Catégorie	Networking Wireless SingleBand — APs & Bridges
Poids	40 lbs
Dimensions (boîte)	28" × 20" × 16" (L×P×H)

TechnicalIn The BoxFAQ

General

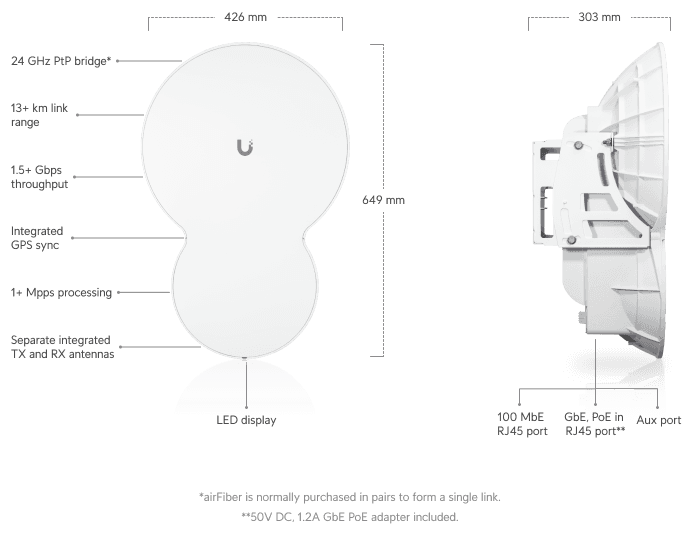

Dimensions	649 x 426 x 303 mm (25.6 x 16.8 x 11.9")
Weight	10.5 kg (23.2 lb)
Mounting	Pole mount kit (Included)
Wind loading	480 N @ 200 km/h (108 lbf @ 125 mph)
Wind survivability	200 km/h (125 mph)
Networking interface	(1) GbE RJ45 port(1) 10/100 MbE RJ45 port
Auxiliary port	(1) RJ-12, alignment tone port
Power method	Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)
Power supply	50V, 1.2A gigabit PoE adapter (Included)
Supported voltage range	42–58V DC
Max. power consumption	50W
Operating frequency	24.05 – 24.25 GHz
Ambient operating temperature	-40 to 55° C (-40 to 131° F)
Certifications	CE, FCC, IC
NDAA Compliant	Yes
Max. throughput	1.5+ Gbps
Ma. range	13+ km
Packets per second	1+ million
Encryption	128-bit AES
Uplink/Downlink ratio	Programmable in Half Duplex mode
GPS	GPS clock synchronization
EIRP	~33 dBm (FCC/IC)~20 dBm (CE)~40 dBm (Other Regions)
Frequency accuracy	±2.5 ppm without GPS synchronization±0.2 ppm with GPS synchronization
Channel bandwidth	100 MHz
Operating channels	24.1 GHz, 24.2 GHz
Modulation	64QAM MIMO16QAM MIMOQPSK MIMOQPSK SISO¼x QPSK SISO
GainTXRX	33 dBi38 dBi
Beamwidth	< 3.5°
Front-to-back ratio	70 dB
Polarization	Dual-slant
Cross-polarity Iiolation	> 28 dB
System	(8) Status LEDs:Data port speedData port link/activityConfiguration port speedConfiguration port link/activityGPS synchronizationModulation modeMaster/slaveRF status(1) Two-digit LED display calibrated in dBm
