AF-24HD

Name: AF-24HD
Brand: Ubiquiti
SKU: AF24HDCA
Price: 3893.99 CAD
Availability: InStock

$3,893.99 $4,141.99

AF24HD AirFiber 24HD 24GHz

Ubiquiti AF24HD, airFiber 24HD AF-24HD 24GHz 20km Wireless Backhaul, Wireless Access Points

1 $3,893.99/ea

2-4 $3,887.63/ea

5-9 $3,881.27/ea

10-19 $3,874.90/ea

20+ $3,868.54/ea

AF24HD AirFiber 24HD 24GHz

Fabricant	Ubiquiti
Modèle	AF-24HD
UPC	810354021930
Catégorie	Networking Wireless SingleBand — APs & Bridges
Poids	58.25 lbs
Dimensions (boîte)	27.3" × 30.8" × 19" (L×P×H)

TechnicalIn The BoxFAQ

General

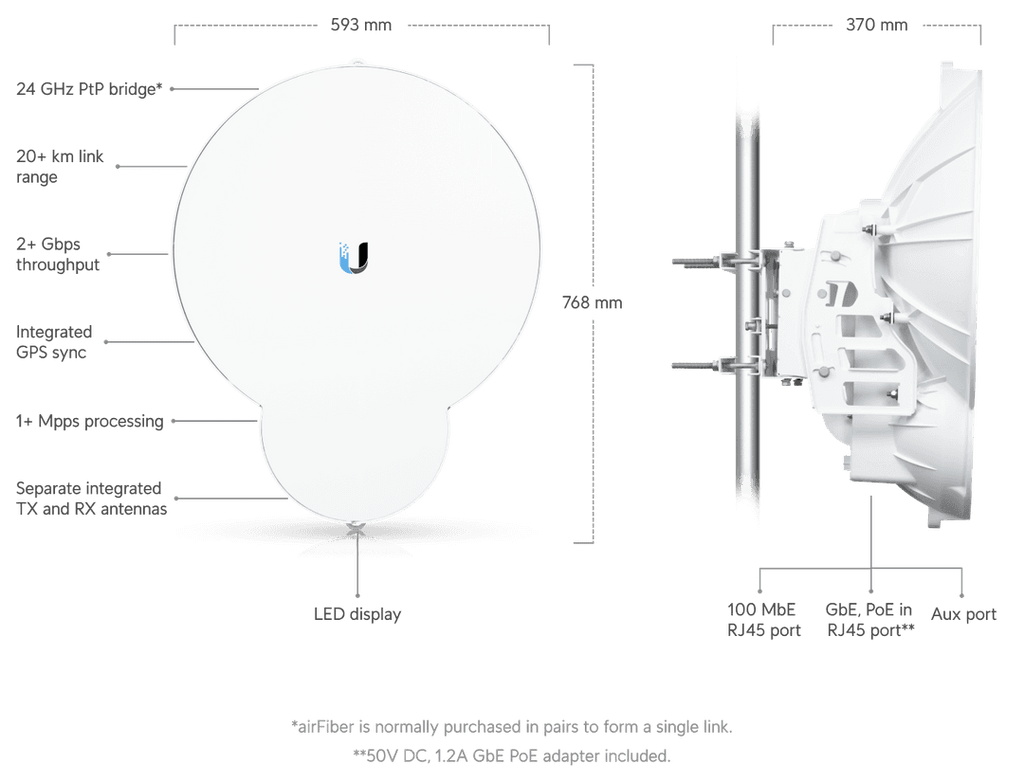

Dimensions	593 x 768 x 370 mm (23.4 x 30.2 x 14.6")
Weight	17.3 kg (38.1 lb)
Mounting	Pole mount kit (Included)
Wind loading	770 N @ 200 km/h (170 lbf @ 125 mph)
Wind survivability	200 km/h (125 mph)
Networking interface	(1) GbE RJ45 port(1) 10/100 MbE RJ45 port
Auxiliary port	(1) RJ-12, alignment tone port
Power method	Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)
Power supply	50V, 1.2A gigabit PoE adapter (Included)
Supported voltage range	42–58V DC
Max. power consumption	50W
Operating frequency	24.05 – 24.25 GHz
Ambient operating temperature	-40 to 55° C (-40 to 131° F)
Certifications	CE, FCC, IC
NDAA Compliant	Yes
Max. throughput	2 Gbps
Ma. range	20+ km
Packets per second	1+ million
Encryption	128-bit AES
Uplink/Downlink ratio	Programmable in Half Duplex mode
GPS	GPS clock synchronization
EIRP	~33 dBm (FCC/IC)~20 dBm (CE)~40 dBm (Other Regions)
Frequency accuracy	±2.5 ppm without GPS synchronization±0.2 ppm with GPS synchronization
Channel bandwidth	100 MHz
Operating channels	24.1 GHz, 24.2 GHz
Modulation	256QAM64QAM16QAMQPSK MIMOQPSK SISO¼x QPSK SISO
GainTXRX	33 dBi40 dBi
Beamwidth	< 3.5°
Front-to-back ratio	70 dB
Polarization	Dual-slant
Cross-polarity Iiolation	> 28 dB
System	(8) Status LEDs:Data port speedData port link/activityConfiguration port speedConfiguration port link/activityGPS synchronizationModulation modeMaster/slaveRF status(1) Two-digit LED display calibrated in dBm
