AirFiber AF5U Wireless Bridge

Fabricant	Ubiquiti
Modèle	AF-5U
UPC	810354024870
Catégorie	Networking Wireless SingleBand — APs & Bridges
Poids	58.4 lbs
Dimensions (boîte)	22.5" × 41.02" × 21" (L×P×H)

TechnicalIn The BoxFAQ

General

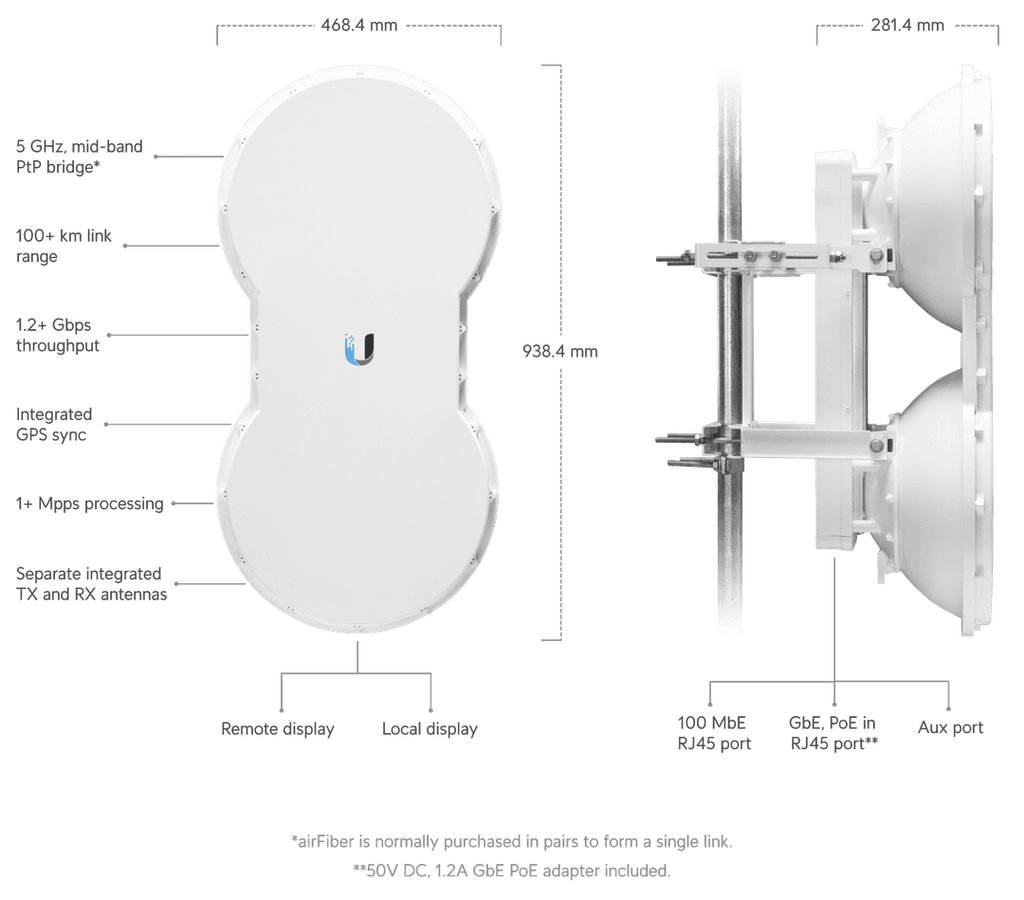

Dimensions	938.4 x 468.4 x 281.4 mm (36.9 x 18.4 x 11.1")
Weight	16 kg (35.3 lb)
Mounting	Pole mount kit (Included)
Wind loading	863 N @ 200 km/h (194 lbf @ 125 mph)
Wind survivability	200 km/h (125 mph)
Networking interface	(1) GbE RJ45 port(1) 10/100 MbE RJ45 port
Auxiliary port	(1) RJ-12, alignment tone port
Power method	Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)
Power supply	50V, 1.2A gigabit PoE adapter (Included)
Supported voltage range	42–58V DC
Max. power consumption	40W
Ambient operating temperature	-40 to 55°C (-40 to 131° F)
Certifications	CE, FCC, IC
NDAA Compliant	Yes
Max. throughput	1.2+ Gbps
Max. range*	100+ km*Dependent on regulatory region.
Packets per second	1+ million
Encryption	128-Bit AES
Uplink/downlink ratio	Programmable in Half Duplex mode
Radio frame synchronization	GPS
Operating frequency	5725 - 5850 MHz (FCC 15.247, IC RSS-210)5725 - 5875 MHz (ETSI EN 302 502)5725 - 6200 MHz (Other regions)
GPS	GPS clock synchronization
EIRP	~50 dBm*Dependent on regulatory region and frequency band.
Frequency accuracy	±2.5 ppm without GPS synchronization±0.2 ppm with GPS synchronization
Channel bandwidth	10/20/30/40/50 MHz
Modulation	1024QAM MIMO256QAM MIMO64QAM MIMO16QAM MIMOQPSK MIMO½ Rate QPSK xRT¼ Rate QPSK xRT
GainTXRX	23 dBi23 dBi
Beamwidth	6°
Front-to-back ratio	70 dB
Polarization	Dual-slant
Cross-polarity isolation	> 28 dB
System	(12) Status LEDs: Data port pink/activityData port speedManagement port link/activityManagement port speedGPS synchronizationMaster/slaveLink statusModulation mode 0.25x to 4x, 6x, 8x, 10x (unlabelled), overloadRemote and local displays (Calibrated signal strength)
