U6-ENTERPRISE-IW

Name: U6-ENTERPRISE-IW
Brand: Ubiquiti
SKU: U6ENTERPRISEIWC
Price: 426.99 CAD
Availability: InStock

$426.99

Access Point U6 In Wall

Sleek, wallmounted WiFi 6E access point with an integrated fourport switch designed for highdensity office networks.

1 $426.99/ea

2-4 $426.83/ea

5-9 $426.67/ea

10-19 $426.51/ea

20+ $426.35/ea

Access Point U6 In Wall

Fabricant	Ubiquiti
Modèle	U6-ENTERPRISE-IW
UPC	810010077653
Catégorie	Networking Wireless Dual Band — APs & Bridges
Poids	2.65 lbs
Dimensions (boîte)	7.5" × 7.6" × 2.1" (L×P×H)

TechnicalIn The BoxDocumentsFAQ

Overview

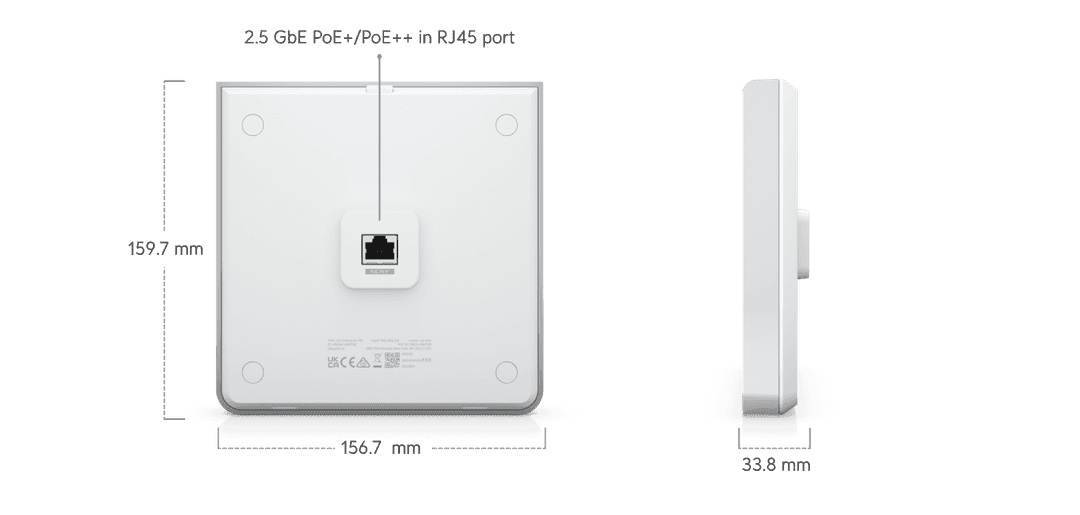

Dimensions	159.7 x 156.7 x 33.8 mm (6.3 x 6.2 x 1.3")
WiFi Standard	WiFi 6E
Spatial Streams	10
Coverage Area	115 m² (1,250 ft²)
Max. Client Count	600+
Uplink	2.5 GbE
Mounting	Wall (Mount Included)
Power Method	PoE+ PoE++ (Required for PoE output)
MIMO	4 x 4 (DL/UL MU-MIMO)
6 GHz	26 dBm
5 GHz	26 dBm
2.4 GHz	22 dBm
Max. BSSIDs	8 per Radio
802.11ax (WiFi 6/6E)	7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
802.11ac (WiFi 5)	6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11n	6.5 Mbps to 600 Mbps (MCS0 - MCS31 , HT 20/40)
Wireless Meshing	✓
Band Steering	✓
802.11v BSS Transition Management	✓
802.11r Fast Roaming	✓
802.11k Radio Resource Management (RRM)	✓
Advanced Radio Management	✓
Passpoint (Hotspot 2.0)	✓
Custom Branding Landing Page	✓
Voucher Authentication	✓
Payment-Based Authentication	✓
External Portal Server Support	✓
Password Authentication	✓
Guest Network Isolation	✓
Private Pre-Shared Key (PPSK)	✓
WiFi Speed Limiting	✓
Client Device Isolation	✓
WiFi Schedules	✓
RADIUS over TLS (RadSec)	✓
Dynamic RADIUS-assigned VLAN	✓
Max. Power Consumption	21W (Excluding PoE output)
Supported Voltage Range	44–57V DC
Networking Interface	(1) Data in: 1/2.5 GbE RJ45 port (4) Data out: GbE RJ45 ports
Weight	884 g (1.9 lb)
Management	Ethernet Bluetooth
Built-In Switch	(4) GbE ports with (1) PoE output
Enclosure Material	Polycarbonate, aluminum
Mount Material	Aluminum
System	White/Blue
Channel Bandwidth	HT 20/40, VHT 20/40/80/160, HE 20/40/80/160 (MHz)
NDAA Compliant	✓
Certifications	CE, FCC, IC, Anatel: 04643-24-08356
Operating Frequency	US/CA: 2400 - 2472 MHz U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz U-NII-5 to U-NII-8: 6100 - 7125 MHz Worldwide: 2400 - 2483.5 MHz 5150 - 5850 MHz 5925 - 7125 MHz
Ambient Operating Temperature	-30 to 60° C (-22 to 140° F)
Ambient Operating Humidity	5 to 95% noncondensing
Application Requirements	Version 6.0.45 and later
UniFi Network	Version 6.0.45 and later

Specs

Dimensions	159.7 x 156.7 x 33.8 mm (6.3 x 6.2 x 1.3")
WiFi Standard	WiFi 6E
Spatial Streams	10
Coverage Area	115 m² (1,250 ft²)
Max. Client Count	600+
Uplink	2.5 GbE
Mounting	Wall (Mount Included)
Power Method	PoE+ PoE++ (Required for PoE output)
6 GHz	26 dBm
5 GHz	26 dBm
2.4 GHz	22 dBm
Max. BSSIDs	8 per Radio
802.11ax (WiFi 6/6E)	7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
802.11ac (WiFi 5)	6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11n	6.5 Mbps to 600 Mbps (MCS0 - MCS31 , HT 20/40)
Wireless Meshing	✓
Band Steering	✓
802.11v BSS Transition Management	✓
802.11r Fast Roaming	✓
802.11k Radio Resource Management (RRM)	✓
Advanced Radio Management	✓
Passpoint (Hotspot 2.0)	✓
Custom Branding Landing Page	✓
Voucher Authentication	✓
Payment-Based Authentication	✓
External Portal Server Support	✓
Password Authentication	✓
Guest Network Isolation	✓
Private Pre-Shared Key (PPSK)	✓
WiFi Speed Limiting	✓
Client Device Isolation	✓
WiFi Schedules	✓
RADIUS over TLS (RadSec)	✓
Dynamic RADIUS-assigned VLAN	✓
Max. Power Consumption	21W (Excluding PoE output)
Supported Voltage Range	44–57V DC
Networking Interface	(1) Data in: 1/2.5 GbE RJ45 port (4) Data out: GbE RJ45 ports
Weight	884 g (1.9 lb)
Management	Ethernet Bluetooth
Built-In Switch	(4) GbE ports with (1) PoE output
Enclosure Material	Polycarbonate, aluminum
Mount Material	Aluminum
System	White/Blue
Channel Bandwidth	HT 20/40, VHT 20/40/80/160, HE 20/40/80/160 (MHz)
NDAA Compliant	✓
Certifications	CE, FCC, IC, Anatel: 04643-24-08356
Operating Frequency	US/CA: 2400 - 2472 MHz U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz U-NII-5 to U-NII-8: 6100 - 7125 MHz Worldwide: 2400 - 2483.5 MHz 5150 - 5850 MHz 5925 - 7125 MHz
Ambient Operating Temperature	-30 to 60° C (-22 to 140° F)
Ambient Operating Humidity	5 to 95% noncondensing
UniFi Network	Version 6.0.45 and later
