U6-Mesh-Pro

Name: U6-Mesh-Pro
Brand: Ubiquiti
SKU: U6MESHPROCA
Price: 269.99 CAD
Availability: OutOfStock

$269.99 $275.99

U6MeshPro

Indoor/outdoor WiFi 6 AP with 4 spatial streams, an integrated super antenna, and a gigabit passthrough port.

1 $269.99/ea

2-4 $269.72/ea

5-9 $269.45/ea

10-19 $269.18/ea

20+ $268.91/ea

U6MeshPro

Fabricant	Ubiquiti
Modèle	U6-Mesh-Pro
UPC	810084695258
Catégorie	Networking Wireless Dual Band — APs & Bridges
Poids	4.55 lbs
Dimensions (boîte)	9.6" × 15.5" × 4.5" (L×P×H)

TechnicalIn The BoxDocumentsFAQ

Overview

Dimensions	343.2 x 181.2 x 60.2 mm (13.5 x 7.1 x 2.4")
WiFi Standard	WiFi 6
Spatial Streams	4
Coverage Area	185 m² (2,000 ft²)
Max. Client Count	250+
Uplink	GbE
Mounting	Wall, Pole (Mounts Included)
Weatherproofing	IPX6
Power Method	PoE
MIMO	2 x 2 (DL/UL MU MIMO)
5 GHz	27 dBm
2.4 GHz	22 dBm
Max. BSSIDs	8 per Radio
802.11ax (WiFi 6)	7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5)	6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n	6.5 Mbps to 300 Mbps (MCS0 - MCS15 , HT 20/40)
Wireless Meshing	✓
Band Steering	✓
802.11v BSS Transition Management	✓
802.11r Fast Roaming	✓
802.11k Radio Resource Management (RRM)	✓
Advanced Radio Management	✓
Passpoint (Hotspot 2.0)	✓
Custom Branding Landing Page	✓
Voucher Authentication	✓
Payment-Based Authentication	✓
External Portal Server Support	✓
Password Authentication	✓
Guest Network Isolation	✓
Private Pre-Shared Key (PPSK)	✓
WiFi Speed Limiting	✓
Client Device Isolation	✓
WiFi Schedules	✓
RADIUS over TLS (RadSec)	✓
Dynamic RADIUS-assigned VLAN	✓
Max. Power Consumption	9W
Includes PoE Adapter	✓
Supported Voltage Range	42.5–57V DC

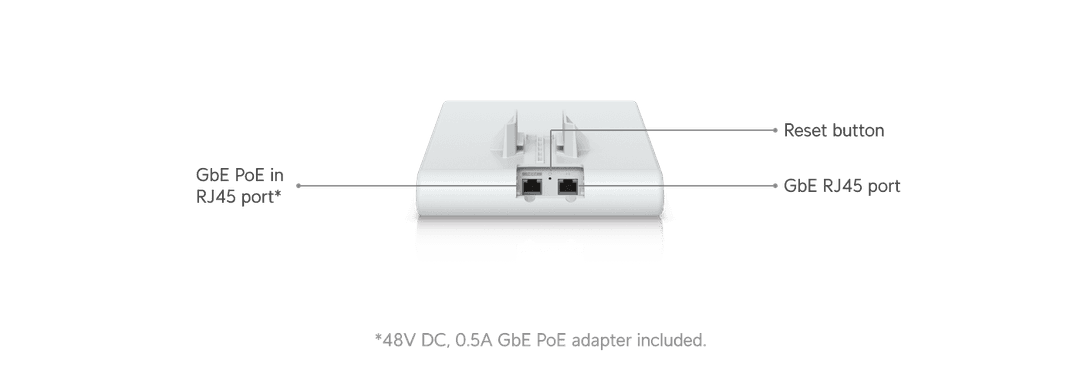

Networking Interface	(2) GbE RJ45 ports
Weight	819 g (1.8 lb)
Pole Mount Diameter	1–2.5" (25–63.5 mm)
Management	Ethernet WiFi
Enclosure Material	UV-stabilized polycarbonate
Mount Material	Aluminum alloy, steel
System	White/Blue
Channel Bandwidth	HT 20/40, VHT 20/40/80/160, HE 20/40/80/160 (MHz)
NDAA Compliant	✓
Certifications	CE, FCC, IC, Anatel: 06377-24-08356
Operating Frequency	US/CA: 2400 - 2472 MHz U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz Worldwide: 2400 - 2483.5 MHz 5150 - 5850 MHz
Ambient Operating Temperature	-30 to 60° C (-22 to 140° F)
Ambient Operating Humidity	5 to 95% noncondensing
Application Requirements	Version 8.1.127 and later
UniFi Network	Version 8.1.127 and later

Specs

Dimensions	343.2 x 181.2 x 60.2 mm (13.5 x 7.1 x 2.4")
WiFi Standard	WiFi 6
Spatial Streams	4
Coverage Area	185 m² (2,000 ft²)
Max. Client Count	250+
Uplink	GbE
Mounting	Wall, Pole (Mounts Included)
Weatherproofing	IPX6
Power Method	PoE
5 GHz	27 dBm
2.4 GHz	22 dBm
Max. BSSIDs	8 per Radio
802.11ax (WiFi 6)	7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5)	6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n	6.5 Mbps to 300 Mbps (MCS0 - MCS15 , HT 20/40)
Wireless Meshing	✓
Band Steering	✓
802.11v BSS Transition Management	✓
802.11r Fast Roaming	✓
802.11k Radio Resource Management (RRM)	✓
Advanced Radio Management	✓
Passpoint (Hotspot 2.0)	✓
Custom Branding Landing Page	✓
Voucher Authentication	✓
Payment-Based Authentication	✓
External Portal Server Support	✓
Password Authentication	✓
Guest Network Isolation	✓
Private Pre-Shared Key (PPSK)	✓
WiFi Speed Limiting	✓
Client Device Isolation	✓
WiFi Schedules	✓
RADIUS over TLS (RadSec)	✓
Dynamic RADIUS-assigned VLAN	✓
Max. Power Consumption	9W
Includes PoE Adapter	✓
Supported Voltage Range	42.5–57V DC
Networking Interface	(2) GbE RJ45 ports
Weight	819 g (1.8 lb)
Pole Mount Diameter	1–2.5" (25–63.5 mm)
Management	Ethernet WiFi
Enclosure Material	UV-stabilized polycarbonate
Mount Material	Aluminum alloy, steel
System	White/Blue
Channel Bandwidth	HT 20/40, VHT 20/40/80/160, HE 20/40/80/160 (MHz)
NDAA Compliant	✓
Certifications	CE, FCC, IC, Anatel: 06377-24-08356
Operating Frequency	US/CA: 2400 - 2472 MHz U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz Worldwide: 2400 - 2483.5 MHz 5150 - 5850 MHz
Ambient Operating Temperature	-30 to 60° C (-22 to 140° F)
Ambient Operating Humidity	5 to 95% noncondensing
UniFi Network	Version 8.1.127 and later
