UA-G2-SK-PRO

Name: UA-G2-SK-PRO
Brand: Ubiquiti
SKU: UAG2SKPROCA
Price: 780.99 CAD
Availability: InStock

$780.99 $827.99

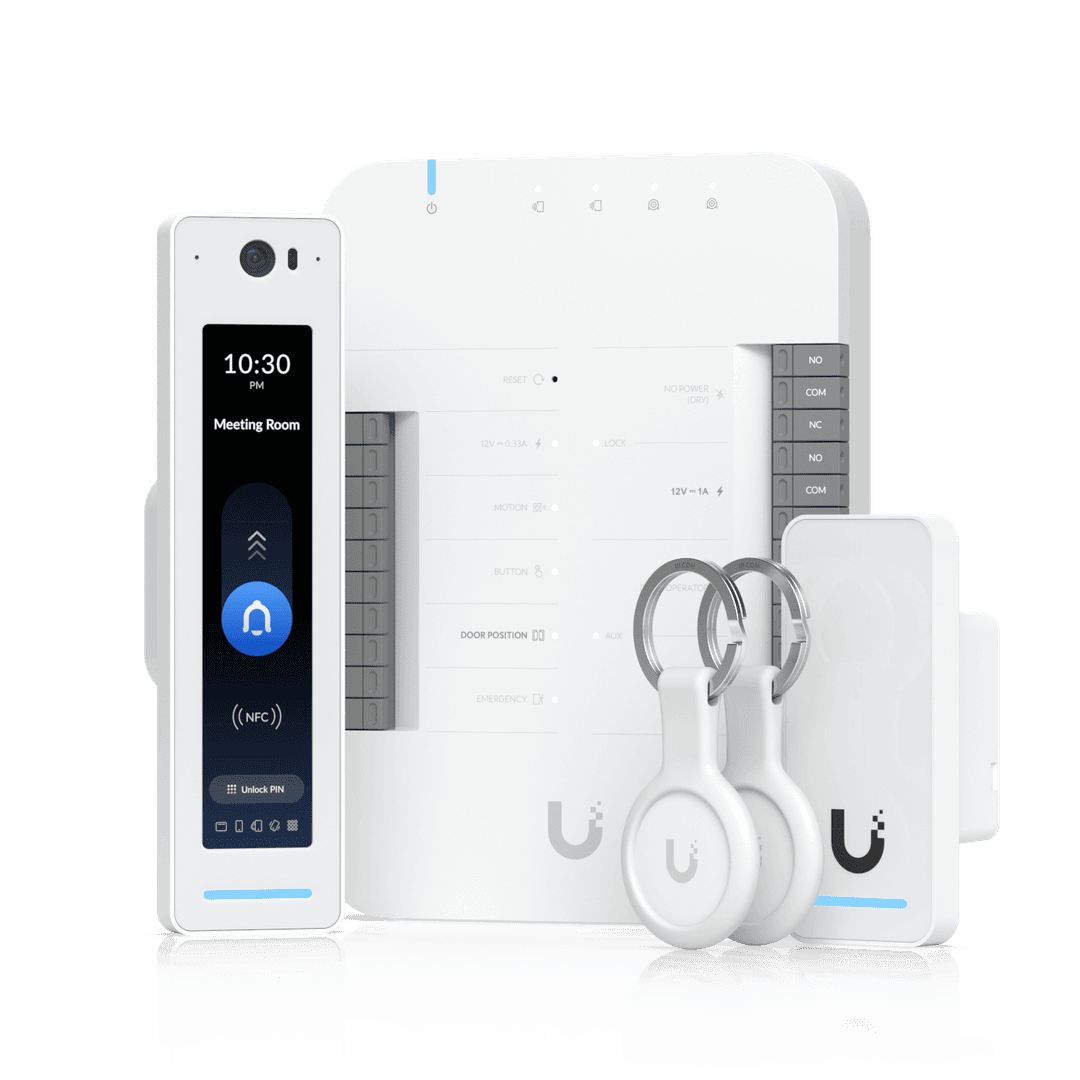

UniFi Access Starter Kit Pro

UniFi Access 2nd Generation Single Door Starter Kit Professional. A comprehensive 2ndgeneration singledoor access control system.

1 $780.99/ea

2-4 $779.50/ea

5-9 $778.01/ea

10-19 $776.52/ea

20+ $775.02/ea

UniFi Access Starter Kit Pro

Fabricant	Ubiquiti
Modèle	UA-G2-SK-PRO
UPC	810084691830
Catégorie	Surveillance & Security — Accessories
Poids	4.7 lbs
Dimensions (boîte)	3.3" × 14.1" × 8.4" (L×P×H)

TechnicalIn The BoxDocumentsFAQ

Overview

In the Box	(1) Door Hub (1) G2 Reader Pro (1) G2 Reader (2) Pocket Keyfobs
Dimensions	84 x 39 x 7.4 mm (3.3 x 1.5 x 0.29")
Supported Doors	1
Maximum User Count	6,000
Input Terminals	(2) Door exit request (1) Door position (1) Emergency
Power Method	PoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU
NDAA Compliant	✓
UL 294 Level	Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I
Weight	16 g (0.56 oz)
Enclosure Material	Polycarbonate, stainless steel, silicone rubber
Mount Material	Aluminum alloy
Mounting	In-wall, gang box (Included) Junction box (Optional)
Ambient Operating Temperature	-10 to 45° C (14 to 113° F)
Ambient Operating Humidity	10 to 90% noncondensing
Networking Interface	(1) 10/100 MbE RJ45 port
PoE Interface	(1) PoE++ input, 50V DC, 1A (4) PoE outputs, 50V DC, 30W per port (Max 45W aggregated)
Max. Power Consumption	5W
Digital Input	Request to exit, request to enter, remote release, door position sensor
Dry Output Relay	Lock: 30V DC, 1A Aux: 30V DC, 1A
Powered Output Relay	Lock: 12V DC, 1A Aux: 12V DC, 0.33A 12V DC, 0.33A
LEDs	R/G/B/W Learn More
Button	(1) Factory reset
UA-Lock-Electric (400mA)	24 AWG length: 25 m (82 ft) 22 AWG length: 42 m (138 ft) 20 AWG length: 66 m (217 ft) 18 UACC-Cable-DoorLockRelay length: 100 m (328 ft)
UA-Lock-Magnetic-540kg (500mA)	24 AWG length: 20 m (66 ft) 22 AWG length: 32 m (105 ft) 20 AWG length: 51 m (167 ft) 18 UACC-Cable-DoorLockRelay length: 80 m (262 ft)
UA-Lock-Magnetic-270kg (800mA)	24 AWG length: 12 m (29 ft) 22 AWG length: 20 m (98 ft) 20 AWG length: 30 m (167 ft) 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft)
Other locks (1A)	24 AWG length: 9 m (30 ft) 22 AWG length: 15 m (49 ft) 20 AWG length: 24 m (79 ft) 18 UACC-Cable-DoorLockRelay length: 36 m (118 ft)
PoE Cabling Requirements	Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
UL 294 Statement	Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 Grade	Grade assignment: I
Certifications	CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision level	UA-G2/UA-G2-Black, V02
Software Information	The software version can be checked at https://unifi.ui.com
Integrated Camera	✓
NFC Card & Keyfob Access	✓
PIN Access	✓
Mobile Unlock	✓
Face Unlock	✓
Two-Way Intercom & Doorbell Access	✓
Weatherproofing	IP54
Indoor and Outdoor Use	✓
Connectivity	BLE 4.1 NFC
Supported Voltage Range	48V DC
ESD/EMP Protection	Air: ± 15kV, contact: ± 8kV
Max. Frame Rate	30 FPS
Resolution	1280 x 286 px
Field of View	H: 98.6°, V: 125.7°, D: 157.8°
Sensors	Proximity sensor
Luminance	480 nits (Typical)
Screen Orientation	Portrait
Screen Technology	Capacitive touch
Size	120 mm (4.7") diagonal
Microphone	✓
Speaker	(1) Yes, 0.7W
NFC Read Range	< 30 mm (1.18'')
NFC Technology	ISO/IEC 14443 Type A MIFARE DESFire EV3 4K UniFi Access Proprietary Security Protocol
NFC Frequency	13.56 MHz
Handwave Request to Exit	✓
Certification	CE

Specs

In the Box	(1) Door Hub (1) G2 Reader Pro (1) G2 Reader (2) Pocket Keyfobs
Dimensions	84 x 39 x 7.4 mm (3.3 x 1.5 x 0.29")
Supported Doors	1
Maximum User Count	6,000
Input Terminals	(2) Door exit request (1) Door position (1) Emergency
Power Method	PoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU
NDAA Compliant	✓
UL 294 Level	Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I
Weight	16 g (0.56 oz)
Enclosure Material	Polycarbonate, stainless steel, silicone rubber
Mount Material	Aluminum alloy
Mounting	In-wall, gang box (Included) Junction box (Optional)
Ambient Operating Temperature	-10 to 45° C (14 to 113° F)
Ambient Operating Humidity	10 to 90% noncondensing
Networking Interface	(1) 10/100 MbE RJ45 port
PoE Interface	(1) PoE++ input, 50V DC, 1A (4) PoE outputs, 50V DC, 30W per port (Max 45W aggregated)
Max. Power Consumption	5W
Digital Input	Request to exit, request to enter, remote release, door position sensor
Dry Output Relay	Lock: 30V DC, 1A Aux: 30V DC, 1A
Powered Output Relay	Lock: 12V DC, 1A Aux: 12V DC, 0.33A 12V DC, 0.33A
LEDs	R/G/B/W Learn More
Button	(1) Factory reset
UA-Lock-Electric (400mA)	24 AWG length: 25 m (82 ft) 22 AWG length: 42 m (138 ft) 20 AWG length: 66 m (217 ft) 18 UACC-Cable-DoorLockRelay length: 100 m (328 ft)
UA-Lock-Magnetic-540kg (500mA)	24 AWG length: 20 m (66 ft) 22 AWG length: 32 m (105 ft) 20 AWG length: 51 m (167 ft) 18 UACC-Cable-DoorLockRelay length: 80 m (262 ft)
UA-Lock-Magnetic-270kg (800mA)	24 AWG length: 12 m (29 ft) 22 AWG length: 20 m (98 ft) 20 AWG length: 30 m (167 ft) 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft)
Other locks (1A)	24 AWG length: 9 m (30 ft) 22 AWG length: 15 m (49 ft) 20 AWG length: 24 m (79 ft) 18 UACC-Cable-DoorLockRelay length: 36 m (118 ft)
PoE Cabling Requirements	Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
UL 294 Statement	Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 Grade	Grade assignment: I
Certifications	CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision level	UA-G2/UA-G2-Black, V02
Software Information	The software version can be checked at https://unifi.ui.com
Integrated Camera	✓
NFC Card & Keyfob Access	✓
PIN Access	✓
Mobile Unlock	✓
Face Unlock	✓
Two-Way Intercom & Doorbell Access	✓
Weatherproofing	IP54
Indoor and Outdoor Use	✓
Connectivity	BLE 4.1 NFC
Supported Voltage Range	48V DC
ESD/EMP Protection	Air: ± 15kV, contact: ± 8kV
Max. Frame Rate	30 FPS
Resolution	1280 x 286 px
Field of View	H: 98.6°, V: 125.7°, D: 157.8°
Sensors	Proximity sensor
Luminance	480 nits (Typical)
Screen Orientation	Portrait
Screen Technology	Capacitive touch
Size	120 mm (4.7") diagonal
Microphone	✓
Speaker	(1) Yes, 0.7W
NFC Read Range	< 30 mm (1.18'')
NFC Technology	ISO/IEC 14443 Type A MIFARE DESFire EV3 4K UniFi Access Proprietary Security Protocol
NFC Frequency	13.56 MHz
Handwave Request to Exit	✓
Certification	CE

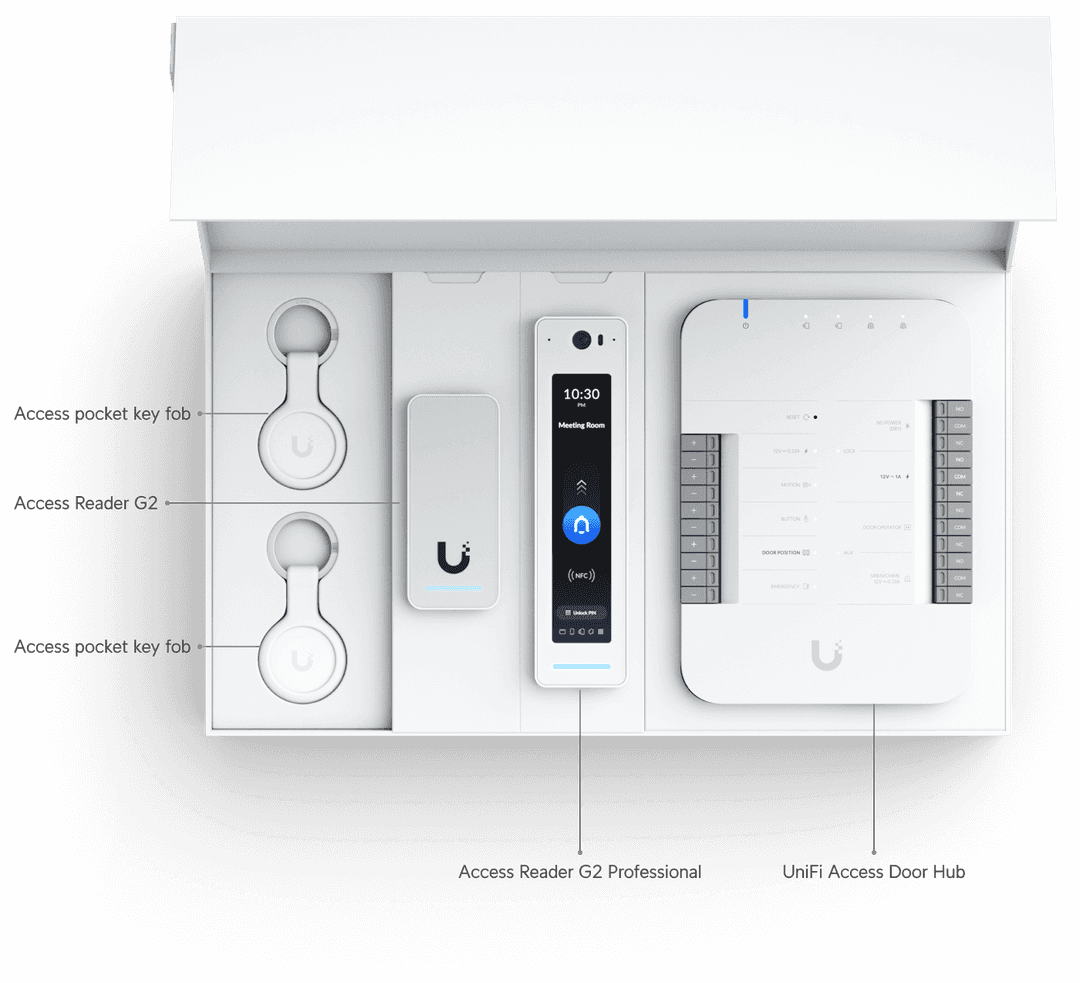

✓(1) Door Hub
✓(1) G2 Reader Pro
✓(1) G2 Reader
✓(2) Pocket Keyfobs

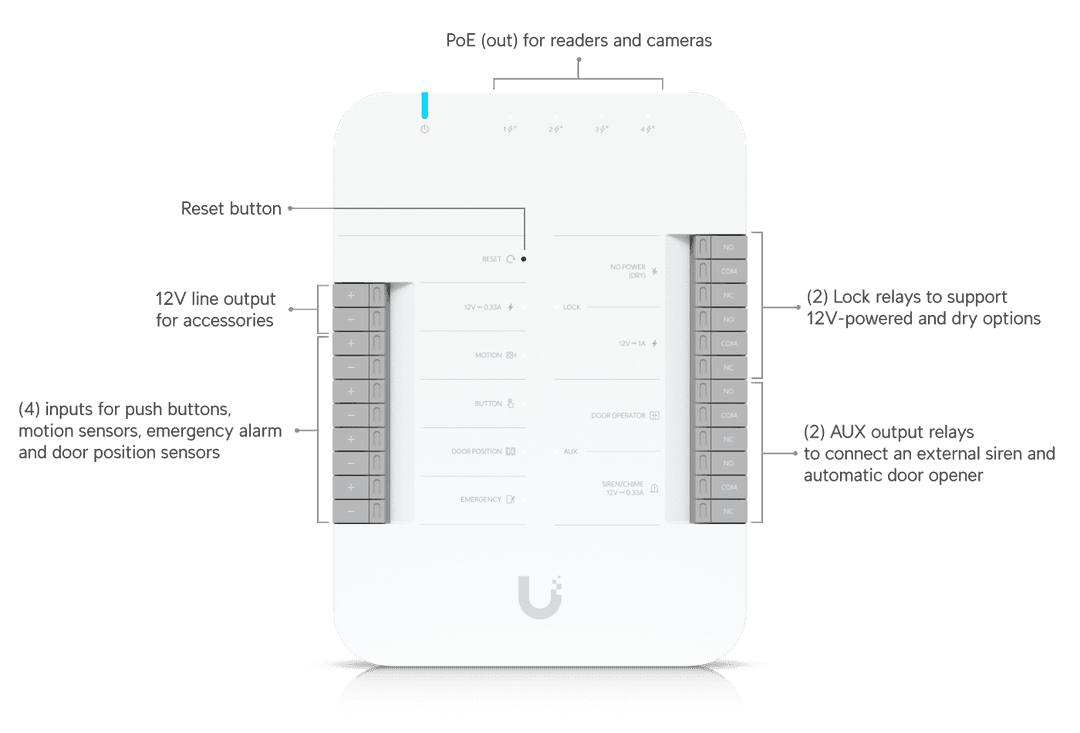

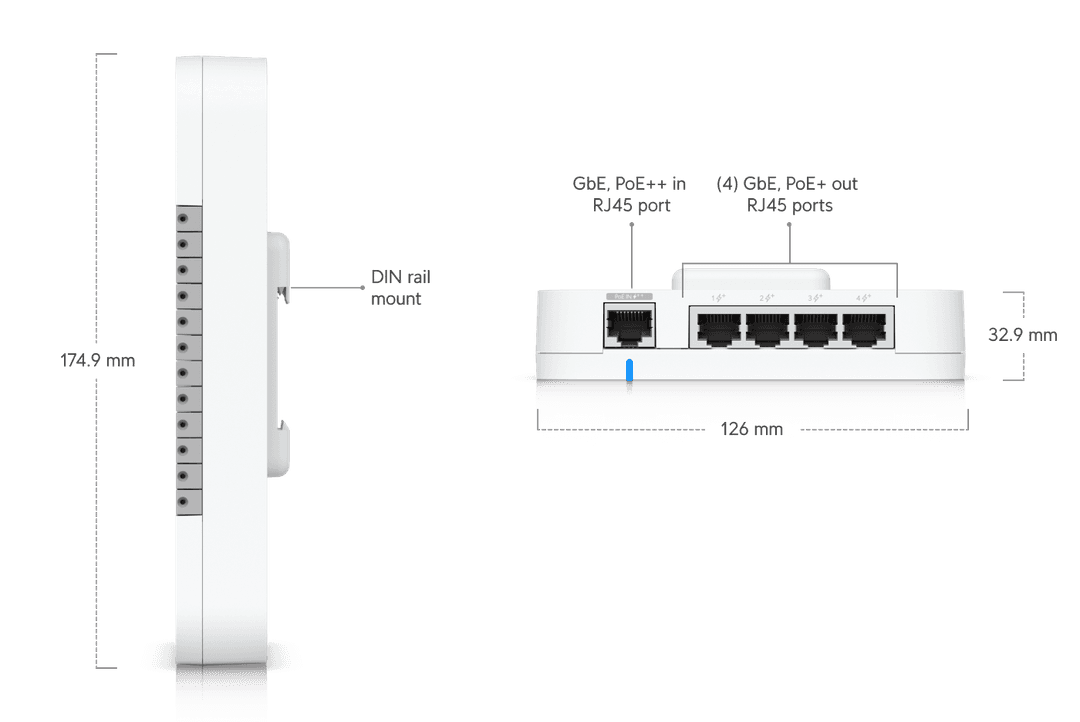

✓Door Hub
✓Dimensions
✓174.9 x 126 x 32.9 mm
✓(6.9 x 5 x 1.3")
✓Supported Doors
✓Maximum User Count
✓6,000
✓Input Terminals
✓(2) Door exit request
✓(1) Door position
✓(1) Emergency
✓Power Method
✓PoE++
✓UL 294 Power-limited Class 2 PSU
✓UL 60950-1/62368-1 LPS/PS2 PSU
✓NDAA Compliant
✓UL 294 Level
✓Destructive attack: Level I
✓Line security: Level I
✓Endurance: Level I
✓Standby power: Level I
✓Weight
✓363 g (12.8 oz)
✓Enclosure Material
✓Polycarbonate
✓Mount Material
✓Polycarbonate
✓Mounting
✓DIN-rail (Included)
✓Ambient Operating Temperature
✓0 to 40° C (32 to 104° F)
✓Ambient Operating Humidity
✓5 to 95% noncondensing
✓Networking Interface
✓(5) 10/100/1000 Base-T
✓PoE Interface
✓(1) PoE++ input, 50V DC, 1A
✓(4) PoE outputs, 50V DC, 30W per port
✓(Max 45W aggregated)
✓Max. Power Consumption
✓30W (Without PoE output)
✓50W (With PoE output)
✓Digital Input
✓Request to exit, request to enter, remote release, door position sensor
✓Dry Output Relay
✓Lock: 30V DC, 1A
✓Aux: 30V DC, 1A
✓Powered Output Relay
✓Lock: 12V DC, 1A
✓Aux: 12V DC, 0.33A
✓12V DC, 0.33A
✓LEDs
✓B/W Learn More
✓Button
✓(1) Factory reset
✓Recommend Max. Cable Length
✓UA-Lock-Electric
✓(400mA)
✓24 AWG length: 25 m (82 ft)
✓22 AWG length: 42 m (138 ft)
✓20 AWG length: 66 m (217 ft)
✓18 UACC-Cable-DoorLockRelay length: 100 m (328 ft)
✓UA-Lock-Magnetic-540kg (500mA)
✓24 AWG length: 20 m (66 ft)
✓22 AWG length: 32 m (105 ft)
✓20 AWG length: 51 m (167 ft)
✓18 UACC-Cable-DoorLockRelay length: 80 m (262 ft)
✓UA-Lock-Magnetic-270kg (800mA)
✓24 AWG length: 12 m (29 ft)
✓22 AWG length: 20 m (98 ft)
✓20 AWG length: 30 m (167 ft)
✓18 UACC-Cable-DoorLockRelay length: 46 m (151 ft)
✓Other locks
✓(1A)
✓24 AWG length: 9 m (30 ft)
✓22 AWG length: 15 m (49 ft)
✓20 AWG length: 24 m (79 ft)
✓18 UACC-Cable-DoorLockRelay length: 36 m (118 ft)
✓PoE Cabling Requirements
✓Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
✓The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
✓UL 294 Statement
✓Compliance with IEEE 802.3 (at or af) specifications was not verified as part of UL 294.
✓The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
✓CAN/ULC-60839-11-1 Grade
✓Grade assignment: 1
✓Certifications
✓CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
✓Document number, and issue date and/or revision level
✓UA-Hub-Door002, V01
✓Software Information
✓The software version can be checked at https://unifi.ui.com

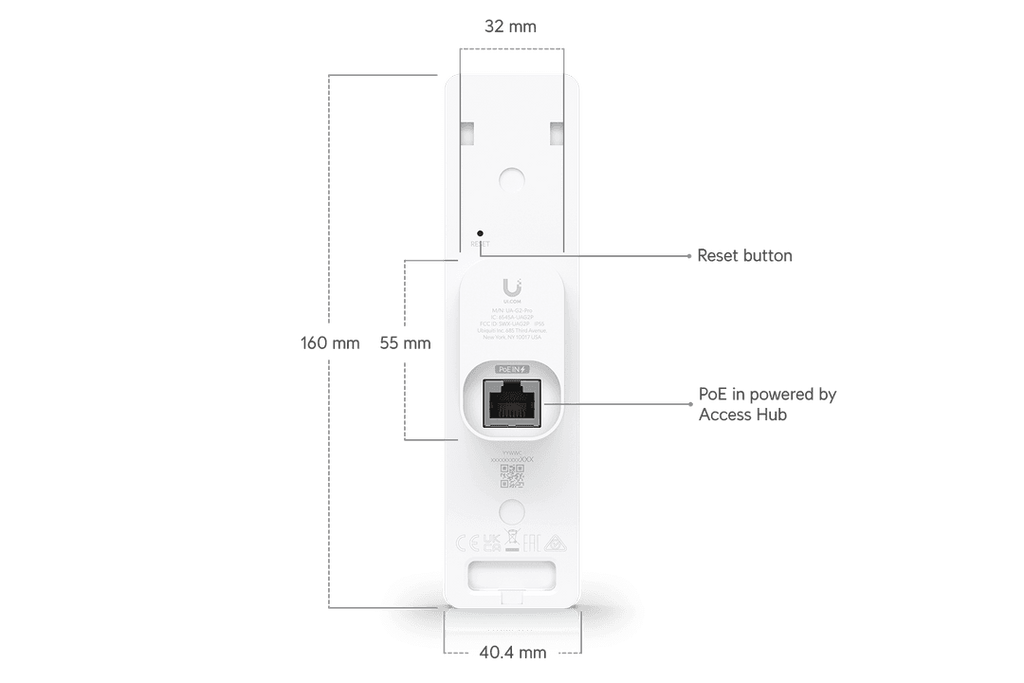

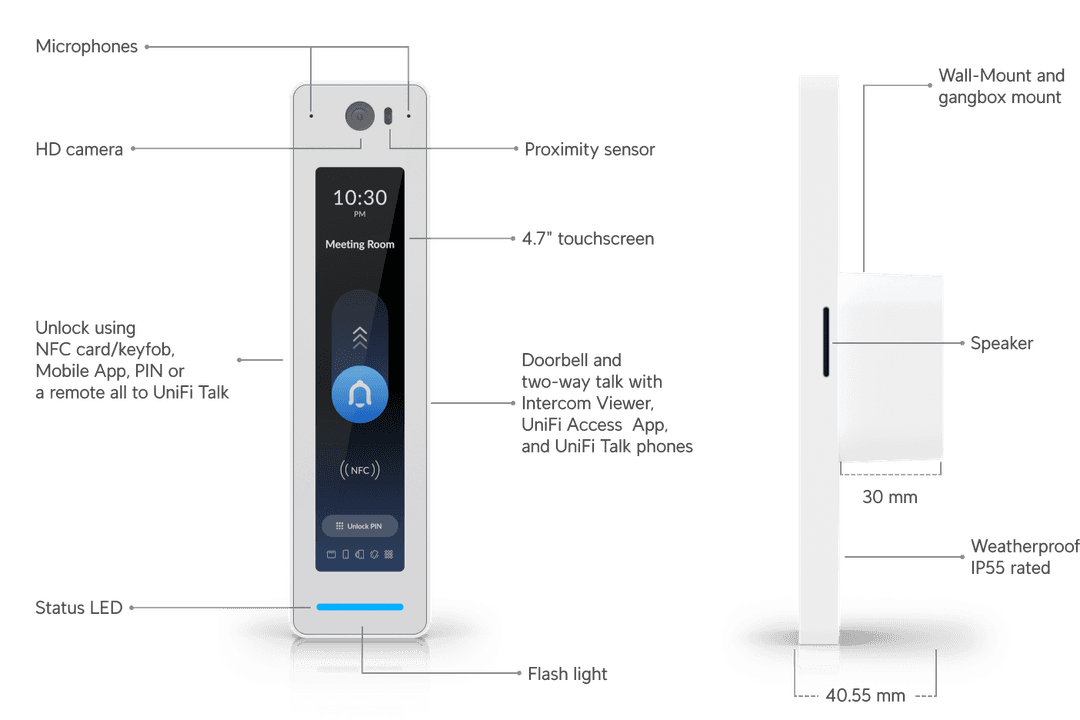

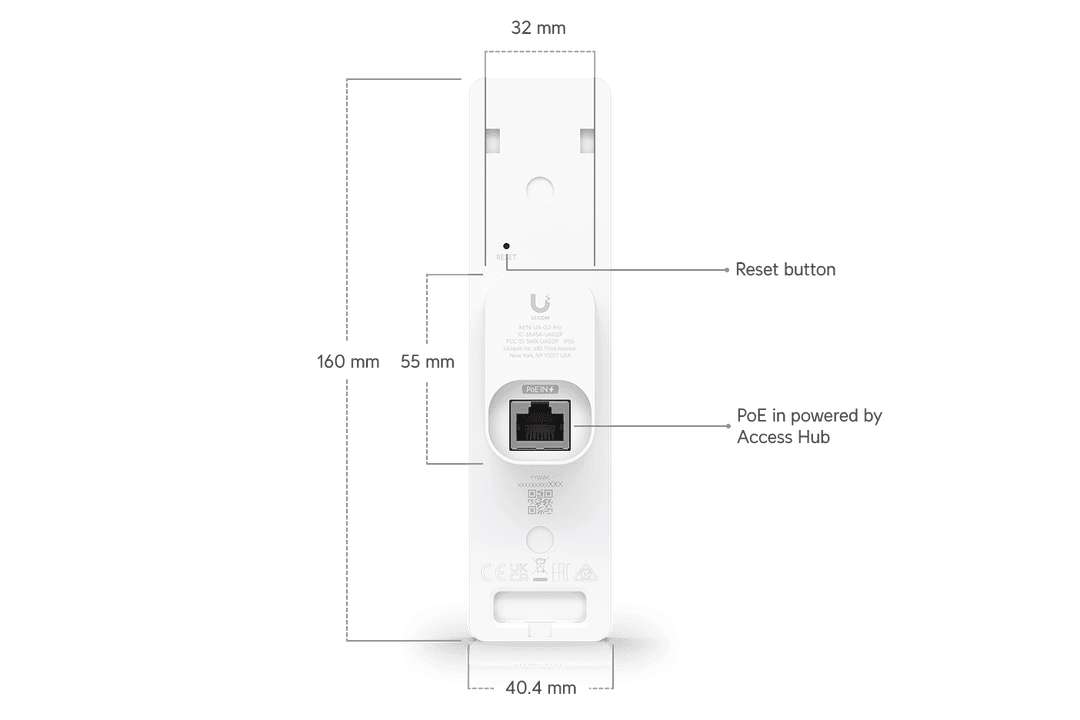

✓G2 Reader Pro
✓Dimensions
✓160 x 40.4 x 40.55 mm
✓(6.3 x 1.59 x 1.6")
✓Integrated Camera
✓NFC Card & Keyfob Access
✓PIN Access
✓Mobile Unlock
✓Face Unlock
✓Two-Way Intercom & Doorbell Access
✓Weatherproofing
✓IP55
✓NDAA Compliant
✓UL 294 Level
✓Destructive attack: Level I
✓Line security: Level I
✓Endurance: Level I
✓Standby power: Level I
✓Weight
✓136 g (4.8 oz)
✓Enclosure Material
✓Polycarbonate, glass
✓Mount Material
✓Aluminum alloy
✓Mounting
✓Wall, gang-box mount (Included)
✓Angle mount, junction box (Optional)
✓Indoor and Outdoor Use
✓Ambient Operating Temperature
✓Device: -30 to 45° C (-22 to 113° F)
✓Display: -10 to 45° C (14 to 113° F)
✓Ambient Operating Humidity
✓5 to 90% noncondensing
✓Networking Interface
✓(1) GbE RJ45 port
✓Connectivity
✓BLE 4.2
✓NFC
✓Power Method
✓PoE
✓UL 294 Power-limited Class 2 PSU
✓UL 60950-1/62368-1 LPS/PS2 PSU
✓Max. Power Consumption
✓6W
✓Supported Voltage Range
✓48V DC
✓ESD/EMP Protection
✓Air: ± 15kV, contact: ± 8kV
✓Video
✓Max. Frame Rate
✓30 FPS
✓Resolution
✓2MP 1200 x 1600 (3:4)
✓Optics
✓Resolution
✓12 MP (3072 × 4096)
✓Field of View
✓H: 98.6°, V: 125.7°, D: 157.8°
✓Sensors
✓Proximity sensor
✓Display
✓Luminance
✓480 nits (Typical)
✓Screen Orientation
✓Portrait
✓Resolution
✓1280 x 286 px
✓Screen Technology
✓Capacitive touch
✓Size
✓120 mm (4.7") diagonal
✓Microphone
✓Speaker
✓(1) Yes, 1.5W
✓LEDs
✓R/G/B/W/Amber Learn More
✓Button
✓(1) Factory reset
✓NFC Read Range
✓< 30 mm (1.18'')
✓NFC Technology
✓ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
✓MIFARE Classic / MIFARE DESFIRE
✓Sony FeliCa™ (ID only)
✓NFC Forum tags T1T, T2T, T3T, T4T and T5T
✓NFC Frequency
✓13.56 MHz
✓PoE Cabling Requirements
✓Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
✓The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
✓UL 294 Statement
✓Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
✓The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
✓CAN/ULC-60839-11-1 Grade
✓Grade assignment: I
✓Certifications
✓CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
✓Document number, and issue date and/or revision level
✓UA-G2-Pro/UA-G2-Pro-Black, V02
✓Software Information
✓The software version can be checked at https://unifi.ui.com

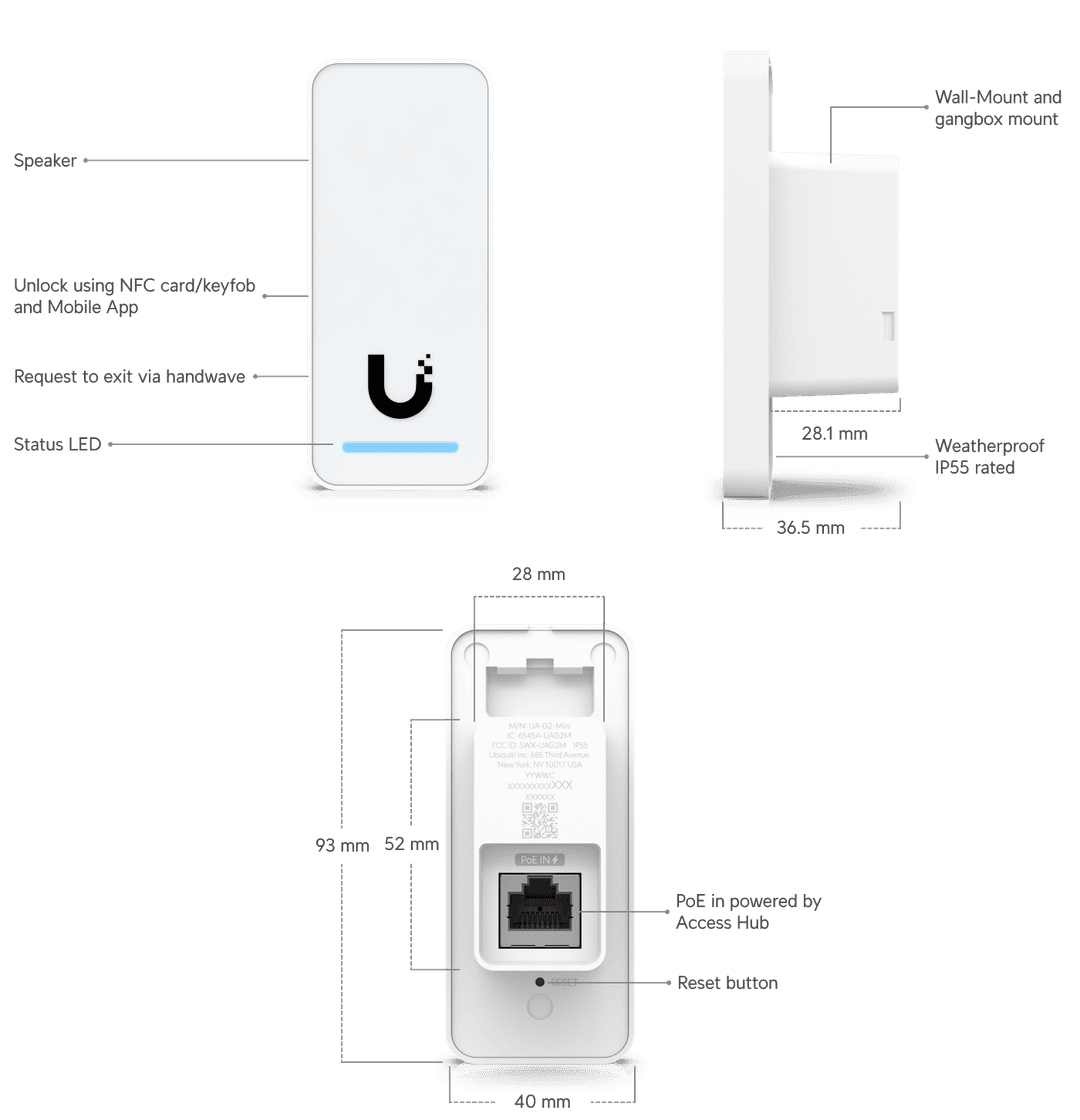

✓G2 Reader
✓Dimensions
✓93 x 40 x 36.5 mm
✓(3.7 x 1.6 x 1.4")
✓NFC Card & Keyfob Access
✓Mobile Unlock
✓Handwave Request to Exit
✓Weatherproofing
✓IP55
✓NDAA Compliant
✓UL 294 Level
✓Destructive attack: Level I
✓Line security: Level I
✓Endurance: Level I
✓Standby power: Level I
✓Weight
✓82 g (2.9 oz)
✓Enclosure Material
✓Polycarbonate, glass
✓Mount Material
✓Aluminum alloy
✓Mounting
✓In-wall, gang box (Included)
✓Junction box (Optional)
✓Indoor and Outdoor Use
✓Ambient Operating Temperature
✓-30 to 45° C (-22 to 113° F)
✓Ambient Operating Humidity
✓5 to 90% noncondensing
✓Networking Interface
✓(1) 10/100 MbE RJ45 port
✓Connectivity
✓BLE 4.1
✓NFC
✓Power Method
✓PoE
✓UL 294 Power-limited Class 2 PSU
✓UL 60950-1/62368-1 LPS/PS2 PSU
✓Max. Power Consumption
✓5W
✓Supported Voltage Range
✓48V DC
✓ESD/EMP Protection
✓Air: ± 15kV, contact: ± 8kV
✓Sensors
✓Proximity sensor
✓Speaker
✓(1) Yes, 0.7W
✓LEDs
✓R/G/B/W Learn More
✓Button
✓(1) Factory reset
✓NFC Read Range
✓< 30 mm (1.18'')
✓NFC Frequency
✓13.56 MHz
✓NFC Technology
✓ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
✓MIFARE Classic / MIFARE DESFIRE
✓Sony FeliCa™ (ID only)
✓NFC Forum tags T1T, T2T, T3T, T4T and T5T
✓PoE Cabling Requirements
✓Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
✓The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
✓UL 294 Statement
✓Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
✓The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
✓CAN/ULC-60839-11-1 Grade
✓Grade assignment: I
✓Certifications
✓CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
✓Document number, and issue date and/or revision level
✓UA-G2/UA-G2-Black, V02
✓Software Information
✓The software version can be checked at https://unifi.ui.com
✓Pocket Keyfob
✓Dimensions
✓84 x 39 x 7.4 mm
✓(3.3 x 1.5 x 0.29")
✓Weight
✓16 g (0.56 oz)
✓Enclosure Material
✓Polycarbonate, stainless steel, silicone rubber
✓Weatherproofing
✓IP54
✓NDAA Compliant
✓Ambient Operating Humidity
✓10 to 90% noncondensing
✓Ambient Operating Temperature
✓-10 to 45° C (14 to 113° F)
✓NFC Frequency
✓13.56 MHz
✓NFC Technology
✓ISO/IEC 14443 Type A
✓MIFARE DESFire EV3 4K
✓UniFi Access Proprietary Security Protocol
✓Certification
✓CE
