UA-Retrofit-Reader-W

Name: UA-Retrofit-Reader-W
Brand: Ubiquiti
SKU: UARETROFITREWCA
Price: 209.99 CAD
Availability: OutOfStock

$209.99

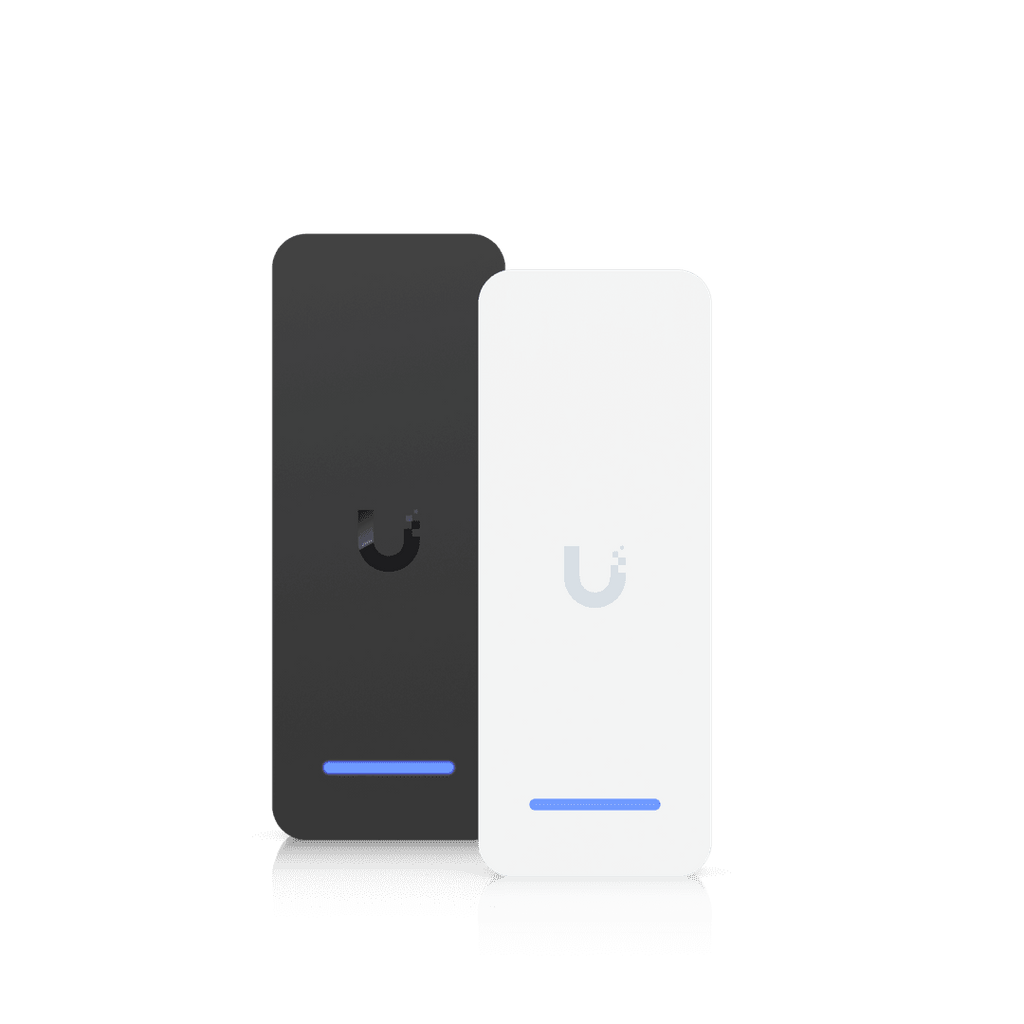

Indoor/outdoor OSDP reader

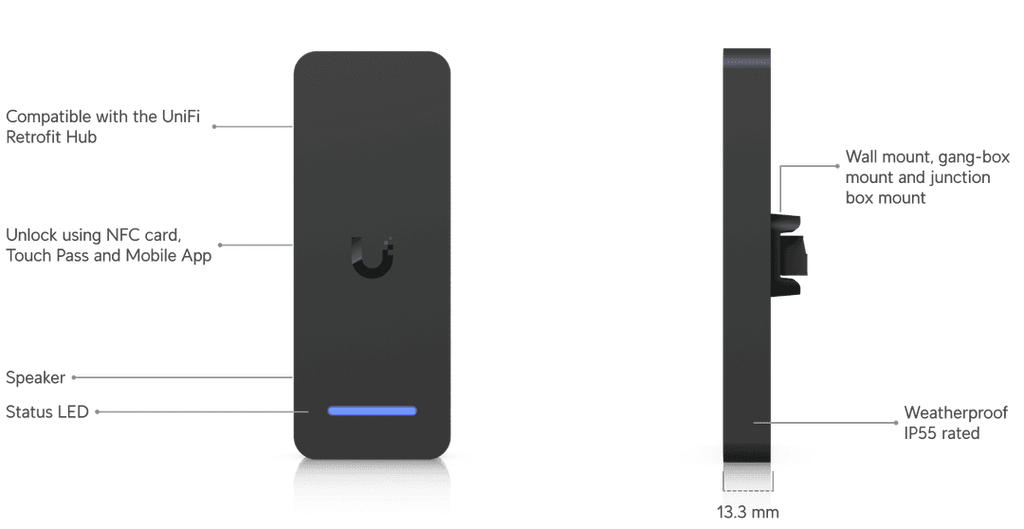

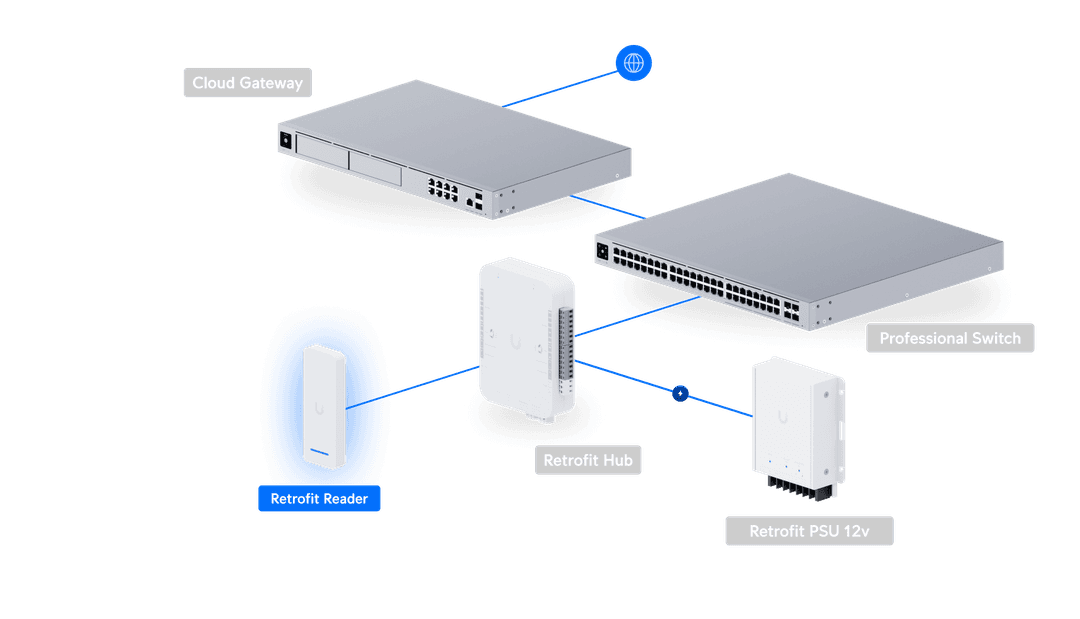

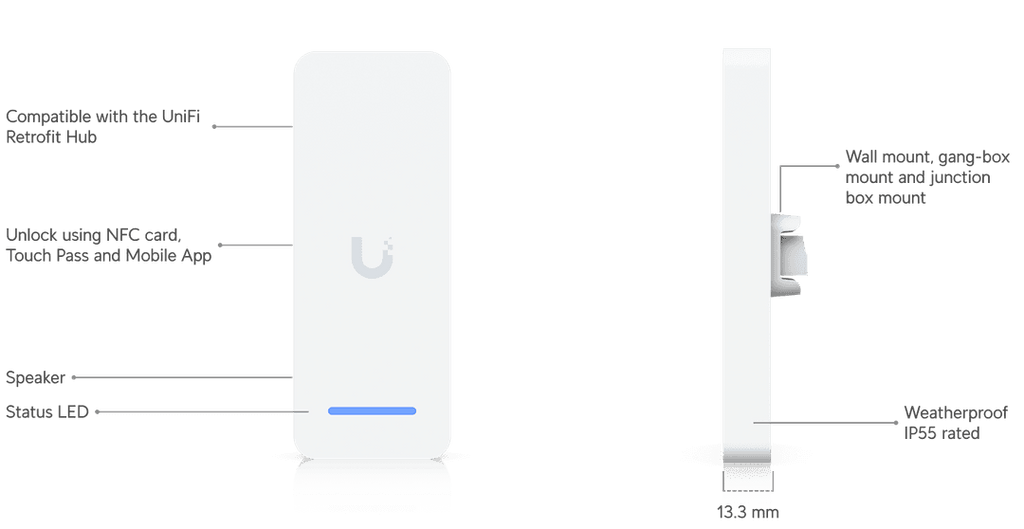

Indoor/outdoor OSDP reader with NFC Card and Touch Pass support, compatible with the UniFi Retrofit Hub using existing cabling.

1 $209.99/ea

2-4 $205.95/ea

5-9 $201.90/ea

10-19 $197.86/ea

20+ $193.82/ea

Indoor/outdoor OSDP reader

Indoor/outdoor OSDP reader with NFC Card and Touch Pass support, compatible with the UniFi Retrofit Hub using existing cabling.

Fabricant	Ubiquiti
Modèle	UA-Retrofit-Reader-W
UPC	810177161684
Catégorie	Video Specialty Products — Accessories
Poids	1 lbs
Dimensions (boîte)	1" × 1" × 1" (L×P×H)

TechnicalIn The BoxDocumentsFAQ

Overview

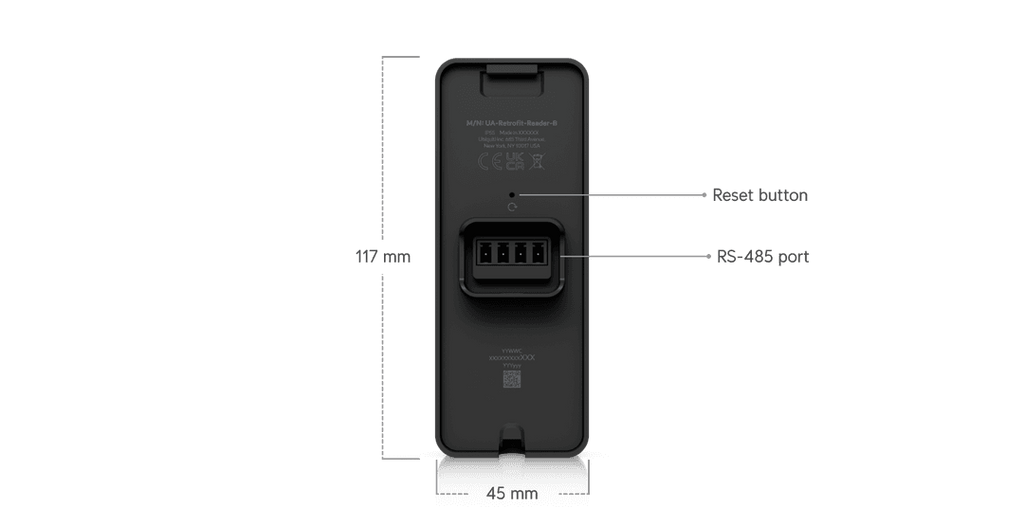

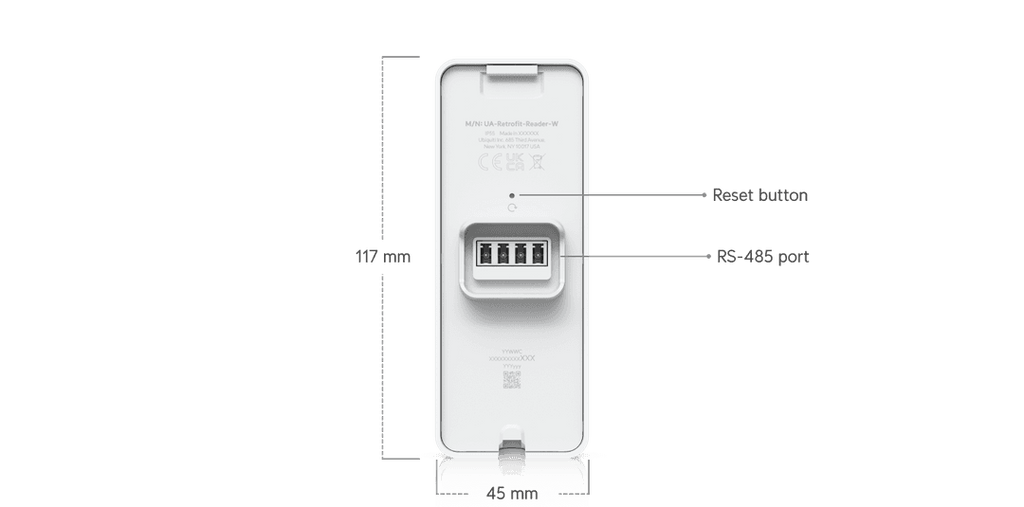

Dimensions	117 x 45 x 13.3 mm (4.6 x 1.8 x 0.5")
NFC Card & Keyfob Access	✓
Apple/Google Wallet	✓
Mobile Unlock	✓
Weatherproofing	IP55
NDAA Compliant	✓
Weight	82 g (2.9 oz)
Enclosure Material	Polycarbonate, aluminum alloy
Mount Material	Stainless steel
Mounting	Wall, gang-box mount (Included) Junction box (Optional)
Indoor and Outdoor Use	Yes
Connectivity	RS-485 BLE 4.1 NFC
Security	OSDP v2
Power Method	DC 12V
Max. Power Consumption	2.5W
Supported Voltage Range	12V DC
ESD/EMP Protection	Air: ± 15kV, contact: ± 8kV
Speaker	✓
LEDs	R/G/B/W Learn More
Button	(1) Factory reset
NFC Frequency	13.56 MHz
NFC Read Range	< 30 mm (1.18'')
NFC Technology	ISO 14443A, 14443B, 15693 NFC Tag 1,2,3,4,5 MIFARE Classic MIFARE Plus MIFARE Ultralight MIFARE DESFire
Certifications	CE, FCC, IC
Ambient Operating Temperature	-30 to 50° C (-22 to 122° F)
Ambient Operating Humidity	5 to 90% noncondensing
Management Application	Access
Software Information	The software version can be checked at https://unifi.ui.com

Specs

Dimensions	117 x 45 x 13.3 mm (4.6 x 1.8 x 0.5")
NFC Card & Keyfob Access	✓
Apple/Google Wallet	✓
Mobile Unlock	✓
Weatherproofing	IP55
NDAA Compliant	✓
Weight	82 g (2.9 oz)
Enclosure Material	Polycarbonate, aluminum alloy
Mount Material	Stainless steel
Mounting	Wall, gang-box mount (Included) Junction box (Optional)
Indoor and Outdoor Use	Yes
Connectivity	RS-485 BLE 4.1 NFC
Security	OSDP v2
Power Method	DC 12V
Max. Power Consumption	2.5W
Supported Voltage Range	12V DC
ESD/EMP Protection	Air: ± 15kV, contact: ± 8kV
Speaker	✓
LEDs	R/G/B/W Learn More
Button	(1) Factory reset
NFC Frequency	13.56 MHz
NFC Read Range	< 30 mm (1.18'')
NFC Technology	ISO 14443A, 14443B, 15693 NFC Tag 1,2,3,4,5 MIFARE Classic MIFARE Plus MIFARE Ultralight MIFARE DESFire
Certifications	CE, FCC, IC
Ambient Operating Temperature	-30 to 50° C (-22 to 122° F)
Ambient Operating Humidity	5 to 90% noncondensing
Management Application	Access
Software Information	The software version can be checked at https://unifi.ui.com
