UAP-AC-LR-5

Name: UAP-AC-LR-5
Brand: Ubiquiti
SKU: UAPACLR5CA
Price: 621.99 CAD
Availability: OutOfStock

$621.99 $689.99

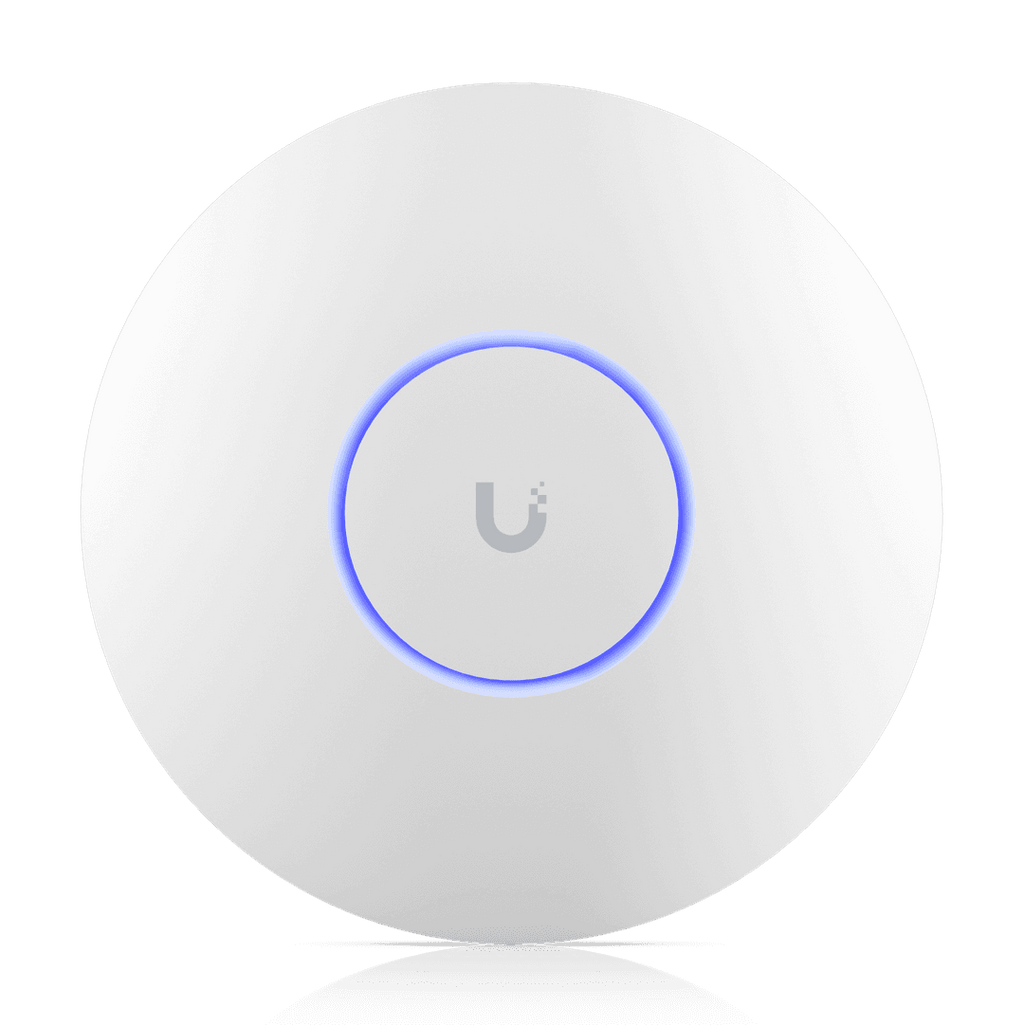

Unifi AP AC Long Range 5P

Unifi AP, AC Long Range, 5-pack, PoE not included

1 $621.99/ea

2-4 $620.27/ea

5-9 $618.56/ea

10-19 $615.13/ea

20+ $611.70/ea

Unifi AP AC Long Range 5P

Fabricant	Ubiquiti
Modèle	UAP-AC-LR-5
UPC	810354025457
Catégorie	Networking Wireless SingleBand — APs & Bridges
Poids	6.65 lbs
Dimensions (boîte)	8.3" × 10.4" × 8.3" (L×P×H)

TechnicalIn The BoxDocumentsFAQ

Overview

Dimensions	⌀175.7 x 43.2 mm (⌀6.9 x 1.7")
WiFi Standard	WiFi 5
Spatial Streams	5
Coverage Area	185 m² (2,000 ft²)
Max. Client Count	250+
Uplink	GbE
Mounting	Ceiling, Wall (Lite Mount Included)
Power Method	PoE
MIMO	2 x 2 (DL MU-MIMO)
5 GHz	22 dBm
2.4 GHz	24 dBm
Max. BSSIDs	8 per Radio
802.11ac (WiFi 5)	6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
802.11n	6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)
Wireless Meshing	✓
Band Steering	✓
802.11v BSS Transition Management	✓
802.11r Fast Roaming	✓
802.11k Radio Resource Management (RRM)	✓
Advanced Radio Management	✓
Passpoint (Hotspot 2.0)	✓
Custom Branding Landing Page	✓
Voucher Authentication	✓
Payment-Based Authentication	✓
External Portal Server Support	✓
Password Authentication	✓
Guest Network Isolation	✓
Private Pre-Shared Key (PPSK)	✓
WiFi Speed Limiting	✓
Client Device Isolation	✓
WiFi Schedules	✓
RADIUS over TLS (RadSec)	✓
Dynamic RADIUS-assigned VLAN	✓
Max. Power Consumption	6.5W
Includes PoE Adapter	✓

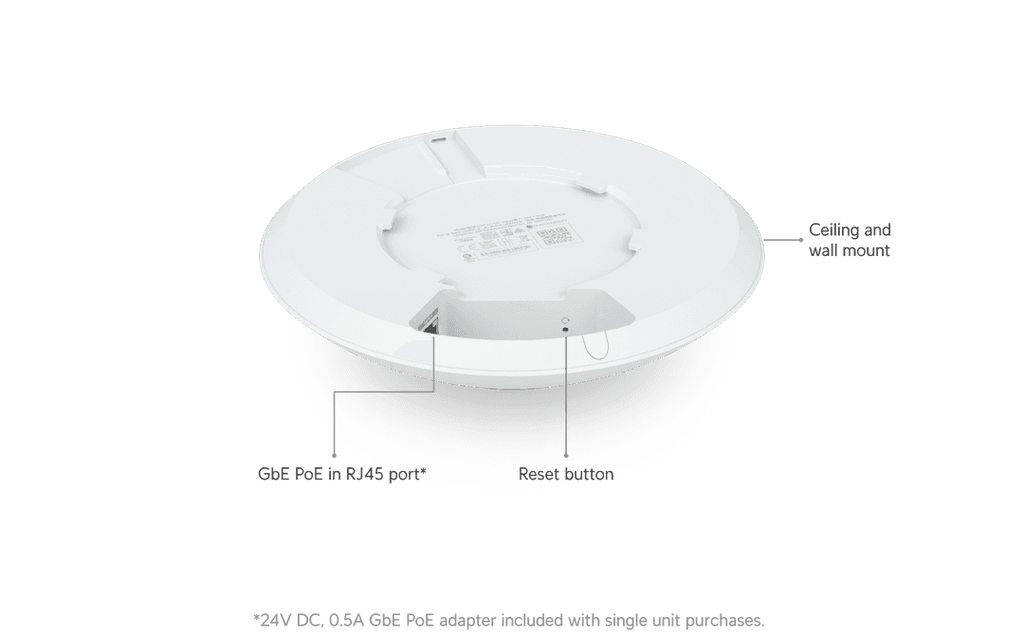

Networking Interface	(1) GbE RJ45 port
Weight	Device: 240 g (8.5 oz) With mount: 315 g (11.1 oz)
Management	Ethernet
Enclosure Material	Polycarbonate
System	Status
Channel Bandwidth	HT 20/40, VHT 20/40/80 (MHz)
NDAA Compliant	✓
Certifications	CE, FCC, IC, Anatel: 01409-16-08356
Operating Frequency	US/CA: 2400 - 2472 MHz U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz Worldwide: 2400 - 2483.5 MHz 5150 - 5850 MHz
Ambient Operating Temperature	-10 to 70° C (14 to 158° F)
Ambient Operating Humidity	5 to 95% noncondensing
Application Requirements	Version 6.0.45 and later
UniFi Network	Version 6.0.45 and later

Specs

Dimensions	⌀175.7 x 43.2 mm (⌀6.9 x 1.7")
WiFi Standard	WiFi 5
Spatial Streams	5
Coverage Area	185 m² (2,000 ft²)
Max. Client Count	250+
Uplink	GbE
Mounting	Ceiling, Wall (Lite Mount Included)
Power Method	PoE
5 GHz	22 dBm
2.4 GHz	24 dBm
Max. BSSIDs	8 per Radio
802.11ac (WiFi 5)	6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
802.11n	6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)
Wireless Meshing	✓
Band Steering	✓
802.11v BSS Transition Management	✓
802.11r Fast Roaming	✓
802.11k Radio Resource Management (RRM)	✓
Advanced Radio Management	✓
Passpoint (Hotspot 2.0)	✓
Custom Branding Landing Page	✓
Voucher Authentication	✓
Payment-Based Authentication	✓
External Portal Server Support	✓
Password Authentication	✓
Guest Network Isolation	✓
Private Pre-Shared Key (PPSK)	✓
WiFi Speed Limiting	✓
Client Device Isolation	✓
WiFi Schedules	✓
RADIUS over TLS (RadSec)	✓
Dynamic RADIUS-assigned VLAN	✓
Max. Power Consumption	6.5W
Includes PoE Adapter	✓
Networking Interface	(1) GbE RJ45 port
Weight	Device: 240 g (8.5 oz) With mount: 315 g (11.1 oz)
Management	Ethernet
Enclosure Material	Polycarbonate
System	Status
Channel Bandwidth	HT 20/40, VHT 20/40/80 (MHz)
NDAA Compliant	✓
Certifications	CE, FCC, IC, Anatel: 01409-16-08356
Operating Frequency	US/CA: 2400 - 2472 MHz U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz Worldwide: 2400 - 2483.5 MHz 5150 - 5850 MHz
Ambient Operating Temperature	-10 to 70° C (14 to 158° F)
Ambient Operating Humidity	5 to 95% noncondensing
UniFi Network	Version 6.0.45 and later
