UAP-AC-M-5

Name: UAP-AC-M-5
Brand: Ubiquiti
SKU: UAPACM5CA
Price: 605.99 CAD
Availability: OutOfStock

$605.99 $663.99

Indoor Outdoor DB AP

Ubiquiti Networks UAP-AC-M-5 UniFi AP, AC Mesh, 5-Pack, PoE Not Included

1 $605.99/ea

2-4 $605.77/ea

5-9 $605.55/ea

10-19 $605.33/ea

20+ $605.12/ea

Indoor Outdoor DB AP

Fabricant	Ubiquiti
Modèle	UAP-AC-M-5
UPC	817882020565
Catégorie	Networking Wireless Dual Band — APs & Bridges
Poids	3.5 lbs
Dimensions (boîte)	9" × 9.4" × 5.6" (L×P×H)

TechnicalIn The BoxDocumentsFAQ

Overview

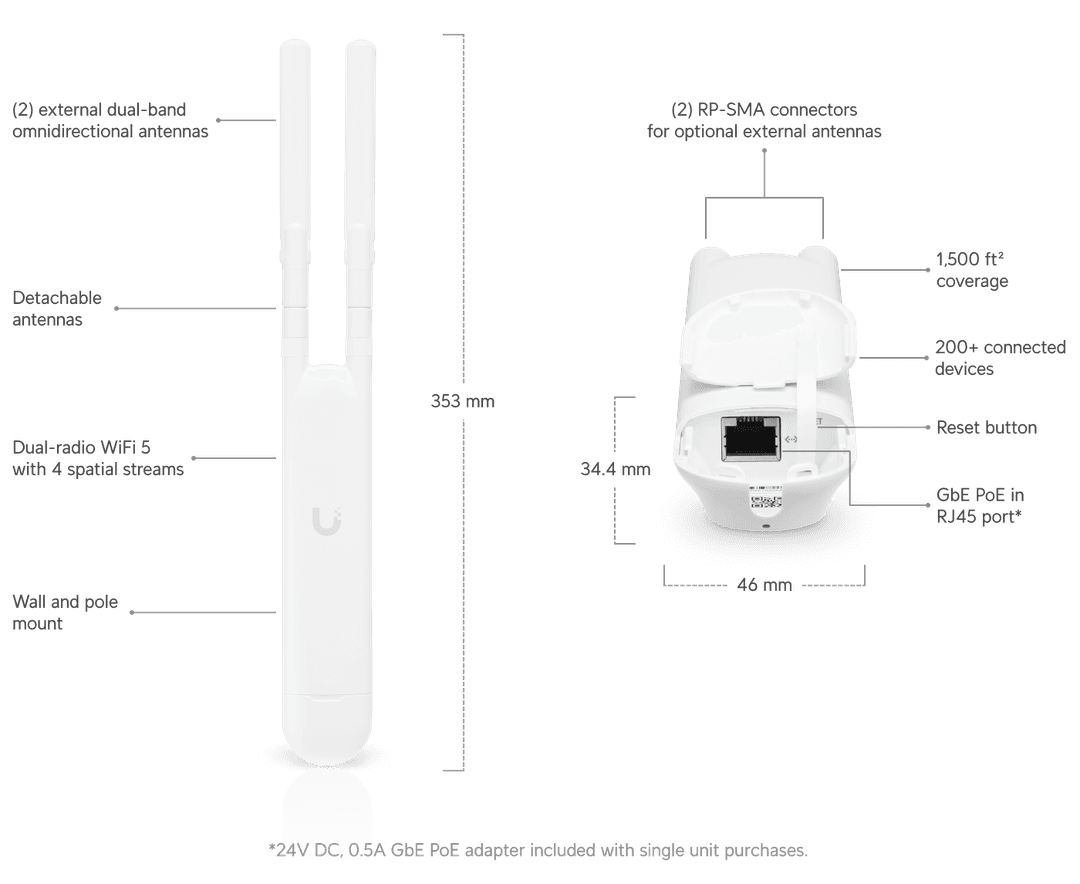

Dimensions	353 x 46 x 34.4 mm (13.9 x 1.8 x 1.4")
WiFi Standard	WiFi 5
Spatial Streams	4
Coverage Area	140 m² (1,500 ft²)
Max. Client Count	200+
Uplink	GbE
Mounting	Wall, Pole (Mounts Included)
Weatherproofing	IPX4
Power Method	PoE
MIMO	2 x 2 (DL MU-MIMO)
5 GHz	20 dBm
2.4 GHz	20 dBm
Max. BSSIDs	8 per Radio
802.11ac (WiFi 5)	6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
802.11n	6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
Wireless Meshing	✓
Band Steering	✓
802.11v BSS Transition Management	✓
802.11r Fast Roaming	✓
802.11k Radio Resource Management (RRM)	✓
Advanced Radio Management	✓
Passpoint (Hotspot 2.0)	✓
Custom Branding Landing Page	✓
Voucher Authentication	✓
Payment-Based Authentication	✓
External Portal Server Support	✓
Password Authentication	✓
Guest Network Isolation	✓
Private Pre-Shared Key (PPSK)	✓
WiFi Speed Limiting	✓
Client Device Isolation	✓
WiFi Schedules	✓
RADIUS over TLS (RadSec)	✓
Dynamic RADIUS-assigned VLAN	✓
Max. Power Consumption	8.5W
Includes PoE Adapter	✓
Supported Voltage Range	44–57V DC
Networking Interface	(1) GbE RJ45 port
Weight	152 g (5.4 oz)
Pole Mount Diameter	1–3" (25–76 mm)
Management	Ethernet Bluetooth
Enclosure Material	Polycarbonate
Channel Bandwidth	HT 20/40, VHT 20/40/80 (MHz)
NDAA Compliant	✓
Certifications	CE, FCC, IC, UKCA, Anatel: 01769-18-08356
Operating Frequency	US/CA: 2400 - 2472 MHz U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz Worldwide: 2400 - 2483.5 MHz 5150 - 5850 MHz
Ambient Operating Temperature	-30 to 70° C (-22 to 158° F)
Ambient Operating Humidity	5 to 95% noncondensing
Application Requirements	Version 6.0.45 and later
UniFi Network	Version 6.0.45 and later

Specs

Dimensions	353 x 46 x 34.4 mm (13.9 x 1.8 x 1.4")
WiFi Standard	WiFi 5
Spatial Streams	4
Coverage Area	140 m² (1,500 ft²)
Max. Client Count	200+
Uplink	GbE
Mounting	Wall, Pole (Mounts Included)
Weatherproofing	IPX4
Power Method	PoE
5 GHz	20 dBm
2.4 GHz	20 dBm
Max. BSSIDs	8 per Radio
802.11ac (WiFi 5)	6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
802.11n	6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
Wireless Meshing	✓
Band Steering	✓
802.11v BSS Transition Management	✓
802.11r Fast Roaming	✓
802.11k Radio Resource Management (RRM)	✓
Advanced Radio Management	✓
Passpoint (Hotspot 2.0)	✓
Custom Branding Landing Page	✓
Voucher Authentication	✓
Payment-Based Authentication	✓
External Portal Server Support	✓
Password Authentication	✓
Guest Network Isolation	✓
Private Pre-Shared Key (PPSK)	✓
WiFi Speed Limiting	✓
Client Device Isolation	✓
WiFi Schedules	✓
RADIUS over TLS (RadSec)	✓
Dynamic RADIUS-assigned VLAN	✓
Max. Power Consumption	8.5W
Includes PoE Adapter	✓
Supported Voltage Range	44–57V DC
Networking Interface	(1) GbE RJ45 port
Weight	152 g (5.4 oz)
Pole Mount Diameter	1–3" (25–76 mm)
Management	Ethernet Bluetooth
Enclosure Material	Polycarbonate
Channel Bandwidth	HT 20/40, VHT 20/40/80 (MHz)
NDAA Compliant	✓
Certifications	CE, FCC, IC, UKCA, Anatel: 01769-18-08356
Operating Frequency	US/CA: 2400 - 2472 MHz U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz Worldwide: 2400 - 2483.5 MHz 5150 - 5850 MHz
Ambient Operating Temperature	-30 to 70° C (-22 to 158° F)
Ambient Operating Humidity	5 to 95% noncondensing
UniFi Network	Version 6.0.45 and later
