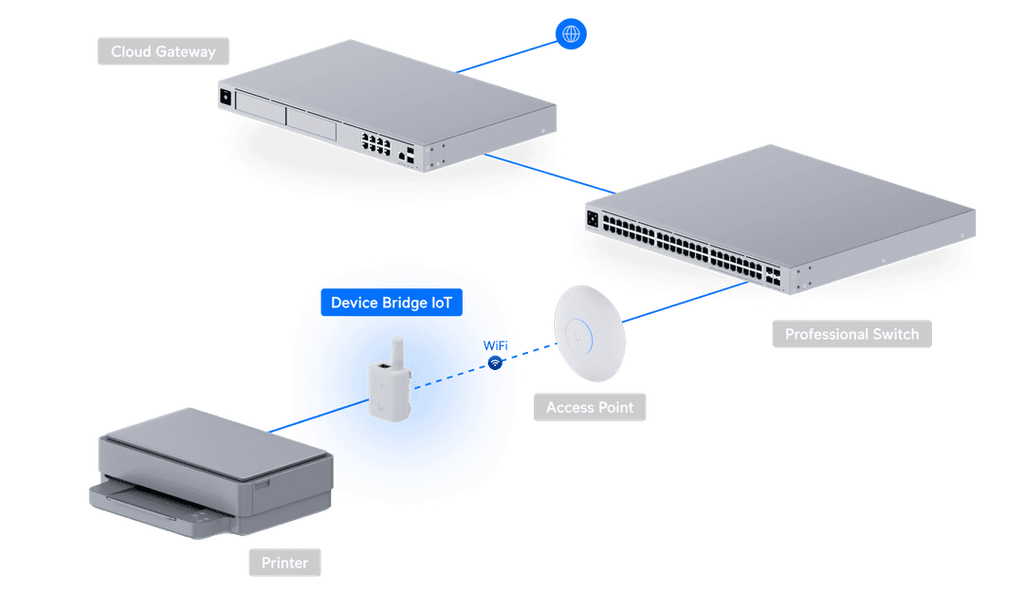

Ultracompact wireless bridge for IoT devices with integrated UniFi WiFi AutoLink, versatile mounting options, and powered by USB TypeC or 4pin DC socket.
Get notified when UDB-IoT is back in stock.
No spam. One single email when the product is available.
You're all set! You'll receive an email as soon as the product is back in stock.
Volume Discounts
1
$68.99/ea
2-4
$68.69/ea
5-9
$68.39/ea
10-19
$68.10/ea
20+
$67.80/ea
Votre prix :
Device Bridge IoT
Fabricant
Ubiquiti
Modèle
UDB-IoT
UPC
810177163626
Catégorie
Networking Wireless Dual Band — APs & Bridges
Poids
1 lbs
Dimensions (boîte)
1" × 1" × 1" (L×P×H)
Overview

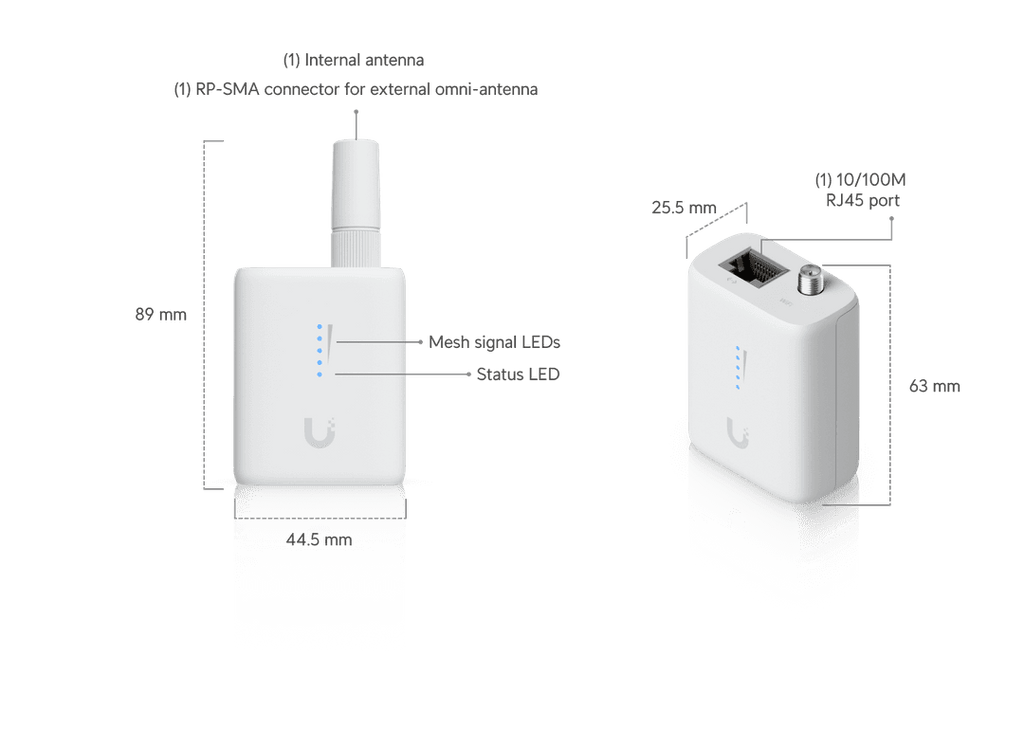

Dimensions
Device: 63 x 44.5 x 25.5 mm
(2.5 x 1.8 x 1")
With external antenna: 89 x 44.5 x 25.5 mm
(3.5 x 1.8 x 1")
WiFi Standard
WiFi 4
Spatial Streams
2
Mounting Locations
Wall, DIN rail
Mounting
Included mount

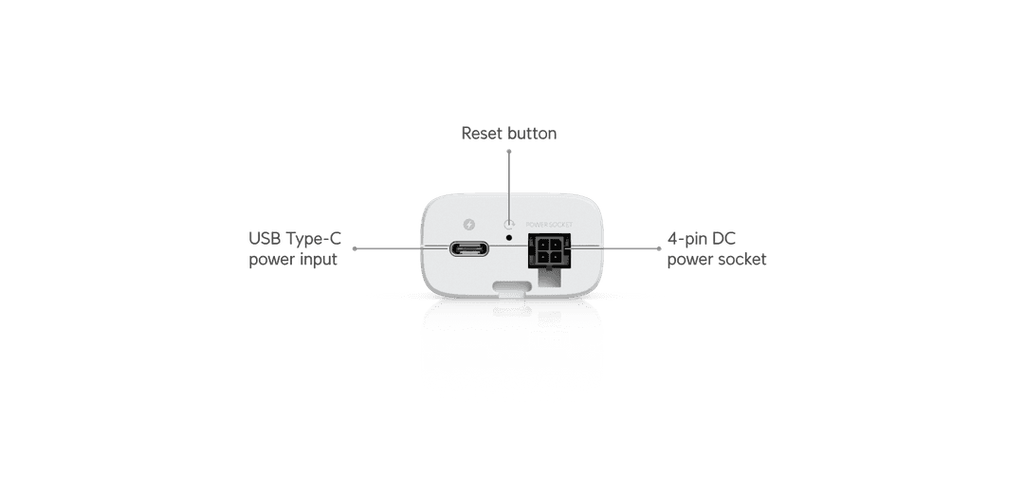

Power Method
USB Type-C (5V DC, 1A)
4-pin DC (9–30V DC)
MIMO
2 x 2
2.4 GHz
20 dBm
Max. Conducted TX Power
20 dBm (Combined)
802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
Wireless Security
WPA2 AES (Always On)
Max. Power Consumption
2.3W
Supported Voltage Range
USB-C: 5V DC
Socket: 9–30V DC
Networking Interface
(1) 10/100M RJ45 port
Antennas
(1) Internal antenna
(1) RP-SMA connector for external omni-antenna
Management
WiFi
Channel Bandwidth
20/40 MHz
Weight
Device: 45 g (1.6 oz)
With external antenna: 53 g (1.9 oz)
Enclosure Material
Polycarbonate
Mount Material
Polycarbonate
Button
(1) Factory reset
System
(4) Blue: signal
(1) White/blue: indicator
NDAA Compliant
✓
Certifications
CE, FCC, IC
Ambient Operating Temperature
-10 to 50° C (14 to 140° F)
Ambient Operating Humidity
5 to 95% noncondensing
Specs
Dimensions
Device: 63 x 44.5 x 25.5 mm
(2.5 x 1.8 x 1")
With external antenna: 89 x 44.5 x 25.5 mm
(3.5 x 1.8 x 1")
WiFi Standard
WiFi 4
Spatial Streams
2
Mounting Locations
Wall, DIN rail
Mounting
Included mount
Power Method
USB Type-C (5V DC, 1A)
4-pin DC (9–30V DC)
2.4 GHz
20 dBm
Max. Conducted TX Power
20 dBm (Combined)
802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
Wireless Security
WPA2 AES (Always On)
Max. Power Consumption
2.3W
Supported Voltage Range
USB-C: 5V DC
Socket: 9–30V DC
Networking Interface
(1) 10/100M RJ45 port
Antennas
(1) Internal antenna
(1) RP-SMA connector for external omni-antenna
Management
WiFi
Channel Bandwidth
20/40 MHz
Weight
Device: 45 g (1.6 oz)
With external antenna: 53 g (1.9 oz)
