UDB-PRO

Name: UDB-PRO
Brand: Ubiquiti
SKU: UDBPROCA
Price: 274.99 CAD
Availability: OutOfStock

$274.99

Device Bridge Pro

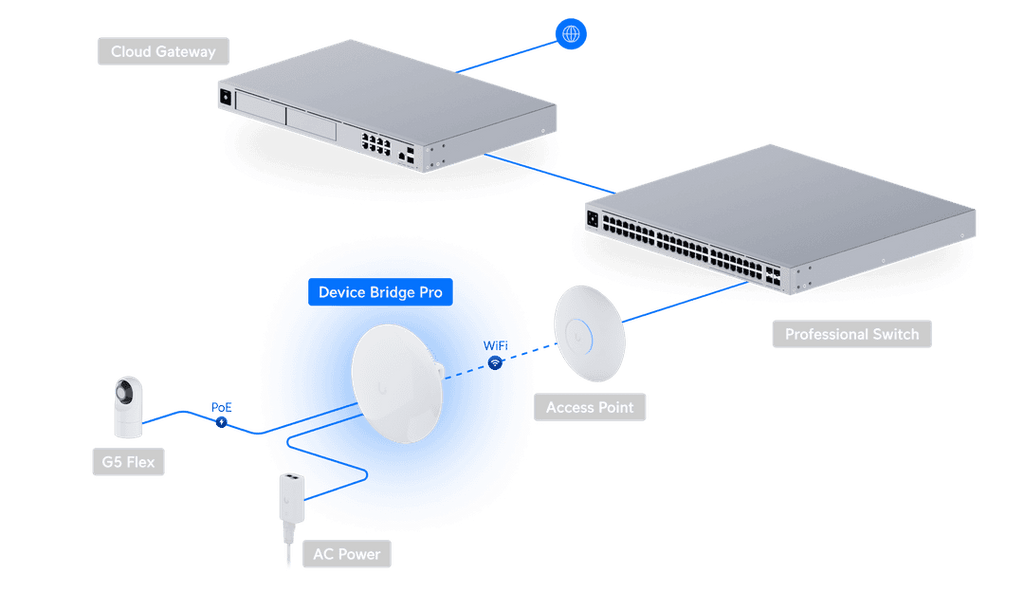

5 GHz wireless bridge with PoE output that uplinks to UniFi WiFi access point

1 $274.99/ea

2-4 $274.24/ea

5-9 $273.49/ea

10-19 $272.75/ea

20+ $272.00/ea

Device Bridge Pro

Fabricant	Ubiquiti
Modèle	UDB-PRO
UPC	810084698013
Catégorie	Networking Wireless Dual Band — APs & Bridges
Poids	2.3 lbs
Dimensions (boîte)	9" × 8.9" × 4.8" (L×P×H)

TechnicalIn The BoxDocumentsFAQ

Overview

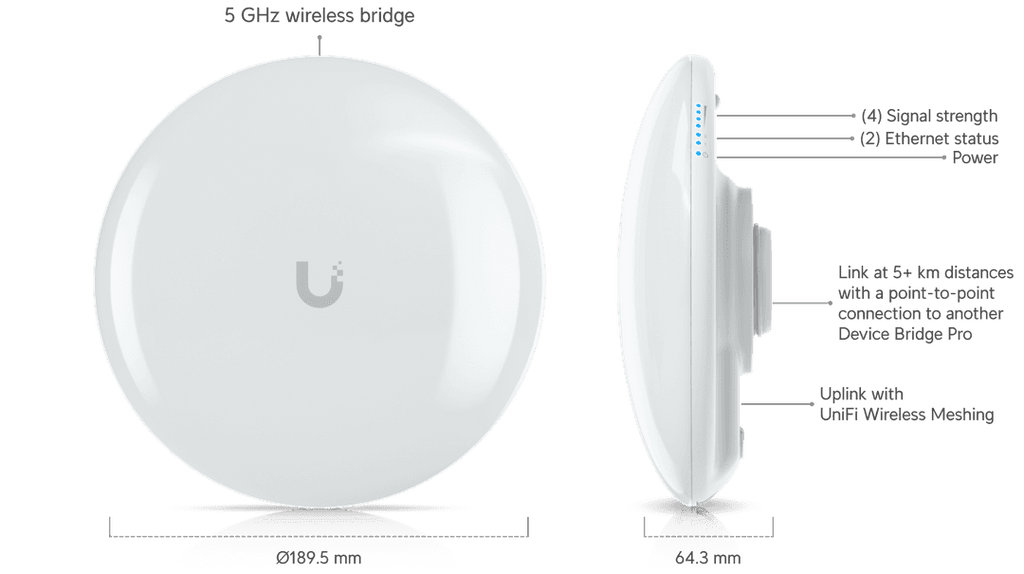

Dimensions	⌀189.5 x 64.3 mm (⌀7.4 x 2.5")
WiFi Standard	WiFi 5
Spatial Streams	2
Coverage Area	5 km (3.1 mi)
Mounting Locations	Wall, pole
Mounting	Pole (Included)
Weatherproofing	IPX6
Power Method	PoE PoE+ (Required for PoE output)
Power Supply	48V, 0.32A PoE adapter (Included)
MIMO	2 x 2
5 GHz	25 dBm
Max. Conducted TX Power	25 dBm (Combined)
802.11ac (WiFi 5)	6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
802.11n	6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11a	6, 9, 12, 18, 24, 36, 48, 54 Mbps
Wireless Security	WPA2 AES
Max. Power Consumption	9W
Supported Voltage Range	42.5–57V DC
Networking Interface	(2) GbE RJ45 ports
Antennas	Internal
Management	(1) PoE in (PoE output not used) (1) Passive PoE output
Channel Bandwidth	20/40/80 (MHz)
Wind Loading	69 N at 200 km/h (15.5 lbf at 125 mph)
Weight	Device: 431 g (0.95 lb) With mount: 515 g (1.1 lb)
Enclosure Material	UV-resistant polycarbonate
Mount Material	UV-stabilized polycarbonate, stainless steel
Pole Mount Diameter	0.8–2.1" (20–53.1 mm)
Button	(1) Factory reset
System	Power, (2) Ethernet status - main port/PoE out port, (4) signal strength
NDAA Compliant	✓
Certifications	CE, FCC, IC
Operating Frequency	US/CA: U-NII-1 5150 - 5250 MHz U-NII-2A 5250 - 5350 MHz U-NII-2C 5470 - 5725 MHz U-NII-3 5725 - 5850 MHz Worldwide: 5150 - 5875 MHz
Ambient Operating Temperature	-40 to 60° C (-40 to 140° F)
Ambient Operating Humidity	5 to 95% noncondensing

Specs

Dimensions	⌀189.5 x 64.3 mm (⌀7.4 x 2.5")
WiFi Standard	WiFi 5
Spatial Streams	2
Coverage Area	5 km (3.1 mi)
Mounting Locations	Wall, pole
Mounting	Pole (Included)
Weatherproofing	IPX6
Power Method	PoE PoE+ (Required for PoE output)
Power Supply	48V, 0.32A PoE adapter (Included)
5 GHz	25 dBm
Max. Conducted TX Power	25 dBm (Combined)
802.11ac (WiFi 5)	6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
802.11n	6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11a	6, 9, 12, 18, 24, 36, 48, 54 Mbps
Wireless Security	WPA2 AES
Max. Power Consumption	9W
Supported Voltage Range	42.5–57V DC
Networking Interface	(2) GbE RJ45 ports
Antennas	Internal
Management	(1) PoE in (PoE output not used) (1) Passive PoE output
Channel Bandwidth	20/40/80 (MHz)
Wind Loading	69 N at 200 km/h (15.5 lbf at 125 mph)
Weight	Device: 431 g (0.95 lb) With mount: 515 g (1.1 lb)
Enclosure Material	UV-resistant polycarbonate
Mount Material	UV-stabilized polycarbonate, stainless steel
Pole Mount Diameter	0.8–2.1" (20–53.1 mm)
Button	(1) Factory reset
System	Power, (2) Ethernet status - main port/PoE out port, (4) signal strength
NDAA Compliant	✓
Certifications	CE, FCC, IC
Operating Frequency	US/CA: U-NII-1 5150 - 5250 MHz U-NII-2A 5250 - 5350 MHz U-NII-2C 5470 - 5725 MHz U-NII-3 5725 - 5850 MHz Worldwide: 5150 - 5875 MHz
Ambient Operating Temperature	-40 to 60° C (-40 to 140° F)
Ambient Operating Humidity	5 to 95% noncondensing
