Dream Machine Pro Max

Professional-grade, rack-mount Cloud Gateway with 10 Gbps performance, multi-WAN load balancing, and two NVR drive bays designed for large-scale, multi-application UniFi sites.
Volume Discounts
1 $805.99/ea
2-4 $805.75/ea
5-9 $805.51/ea
10-19 $805.27/ea
20+ $805.03/ea

Dream Machine Pro Max

Fabricant Ubiquiti
Modèle UDM-PRO-MAX
UPC 810084693247
Catégorie Networking Wireless Dual Band — Controllers & Switches
Poids 13.05 lbs
Dimensions (boîte) 20.5" × 4.8" × 16.2" (L×P×H)
ProductProductProductProduct
Overview

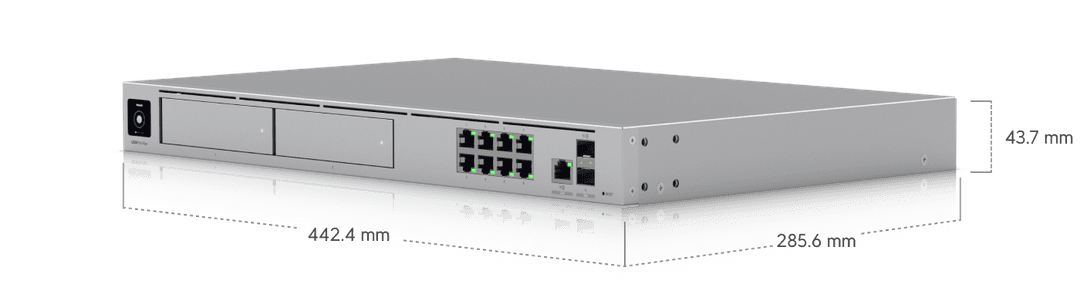

Dimensions 442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2")
Network ✓
Protect ✓
Access ✓
Talk ✓
Connect ✓
Managed UniFi Devices 200+
Managed Cameras (50) HD (25) 2K (15) 4K
Managed Access Hubs 150
Simultaneous Users Connected 2,000+
Max. WAN Port Count 8
Default WAN Ports (1) 10G SFP+ (1) 2.5 GbE RJ45
1 GbE RJ45 8 (1G/100M/10M)
2.5 GbE RJ45 1 (2.5G/1G/100M/10M)
10G SFP+ 2 (10G/1G)
IDS/IPS Throughput 5 Gbps
Form Factor Rack mount (1U)
Redundancy Shadow Mode (VRRP) Gateway Failover DC Power Backup
Stateful Firewall ✓
Application-Aware Layer 7 Firewall ✓
DPI & Traffic Identification ✓
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) ✓
Content Filtering ✓
Intrusion Prevention (IPS/IDS) ✓
Ad Blocking ✓
IDS/IPS Signatures 55,000+ with CyberSecure
VLAN/Subnet-based Traffic Segmentation ✓
License-Free SD-WAN ✓
Site Magic ✓
IPsec ✓
OpenVPN ✓
Identity Endpoint One-Click VPN ✓
Teleport Zero-Configuration VPN ✓
WireGuard ✓
L2TP ✓
Multi-WAN Load Balancing ✓
Shadow Mode (VRRP) High Availability ✓
LACP Port Aggregation ✓
OSPF ✓
BGP ✓
Advanced QoS ✓
Multicast DNS (mDNS) ✓
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) ✓
Integrated RADIUS Server ✓
RADIUS over TLS (RadSec) ✓
Additional Internet Failover with UniFi LTE Backup ✓
Internet Quality and Outage Reporting ✓
MAC Address Table Size 4,000
Policy-based WAN and VPN Routing ✓
Customizable DHCP Server ✓
IPv6 ISP Support ✓
IGMP Proxy ✓
Virtual Network Override ✓
All Traffic Flows ✓
NVR Storage (2) 3.5" NVR HDD bays Built-in 128 GB SSD for Faster Experience
Max. Power Consumption 60W
Power Method (1) Universal AC input, 100–240V AC, 2A Max., 50/60 Hz (1) USP-RPS DC input, 11.5V DC, 8.7A
Power Supply AC/DC, internal, 100W
Supported Voltage Range 100–240V AC
Heat Dissipation 205 BTU/hr
Processor Quad-core ARM® Cortex®-A57 at 2.0 GHz
System Memory 8 GB
On-board Storage 32 GB eMMC 128 GB SSD (Integrated)
Weight 4.7 kg (10.4 lb)
Enclosure Material Aluminium CNC, SGCC steel
Mount Material SGCC steel
LCM Display 1.3" touchscreen
Management Ethernet Bluetooth
Ethernet ✓
SFP+ ✓
RPS ✓
PSU ✓
HDD ✓
Button (1) Factory reset
ESD/EMP Protection Air: ± 15kV, contact: ± 8kV
Ambient Operating Temperature -10 to 40° C (14 to 104° F)
Ambient Operating Humidity 5 to 95% noncondensing
NDAA Compliant ✓
Certifications CE, FCC, IC, Anatel: 06369-24-08356, SRRC
Specs
Dimensions 442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2")
Network ✓
Protect ✓
Access ✓
Talk ✓
Connect ✓
Managed UniFi Devices 200+
Managed Cameras (50) HD (25) 2K (15) 4K
Managed Access Hubs 150
Simultaneous Users Connected 2,000+
Max. WAN Port Count 8
Default WAN Ports (1) 10G SFP+ (1) 2.5 GbE RJ45
1 GbE RJ45 8 (1G/100M/10M)
2.5 GbE RJ45 1 (2.5G/1G/100M/10M)
10G SFP+ 2 (10G/1G)
IDS/IPS Throughput 5 Gbps
Form Factor Rack mount (1U)
Redundancy Shadow Mode (VRRP) Gateway Failover DC Power Backup
Stateful Firewall ✓
Application-Aware Layer 7 Firewall ✓
DPI & Traffic Identification ✓
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) ✓
Content Filtering ✓
Intrusion Prevention (IPS/IDS) ✓
Ad Blocking ✓
IDS/IPS Signatures 55,000+ with CyberSecure
VLAN/Subnet-based Traffic Segmentation ✓
License-Free SD-WAN ✓
Site Magic ✓
IPsec ✓
OpenVPN ✓
Identity Endpoint One-Click VPN ✓
Teleport Zero-Configuration VPN ✓
WireGuard ✓
L2TP ✓
Multi-WAN Load Balancing ✓
Shadow Mode (VRRP) High Availability ✓
LACP Port Aggregation ✓
OSPF ✓
BGP ✓
Advanced QoS ✓
Multicast DNS (mDNS) ✓
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) ✓
Integrated RADIUS Server ✓
RADIUS over TLS (RadSec) ✓
Additional Internet Failover with UniFi LTE Backup ✓
Internet Quality and Outage Reporting ✓
MAC Address Table Size 4,000
Policy-based WAN and VPN Routing ✓
Customizable DHCP Server ✓
IPv6 ISP Support ✓
IGMP Proxy ✓
Virtual Network Override ✓
All Traffic Flows ✓
NVR Storage (2) 3.5" NVR HDD bays Built-in 128 GB SSD for Faster Experience
Max. Power Consumption 60W
Power Method (1) Universal AC input, 100–240V AC, 2A Max., 50/60 Hz (1) USP-RPS DC input, 11.5V DC, 8.7A
Power Supply AC/DC, internal, 100W
Supported Voltage Range 100–240V AC
Heat Dissipation 205 BTU/hr
Processor Quad-core ARM® Cortex®-A57 at 2.0 GHz
System Memory 8 GB
On-board Storage 32 GB eMMC 128 GB SSD (Integrated)
Weight 4.7 kg (10.4 lb)
Enclosure Material Aluminium CNC, SGCC steel
Mount Material SGCC steel
LCM Display 1.3" touchscreen
Management Ethernet Bluetooth
Ethernet ✓
SFP+ ✓
RPS ✓
PSU ✓
HDD ✓
Button (1) Factory reset
ESD/EMP Protection Air: ± 15kV, contact: ± 8kV
Ambient Operating Temperature -10 to 40° C (14 to 104° F)
Ambient Operating Humidity 5 to 95% noncondensing
NDAA Compliant ✓
Certifications CE, FCC, IC, Anatel: 06369-24-08356, SRRC

Contents not available.
