UMR-US

Name: UMR-US
Brand: Ubiquiti
SKU: UMRUSCA
Price: 295.99 CAD
Availability: OutOfStock

$295.99

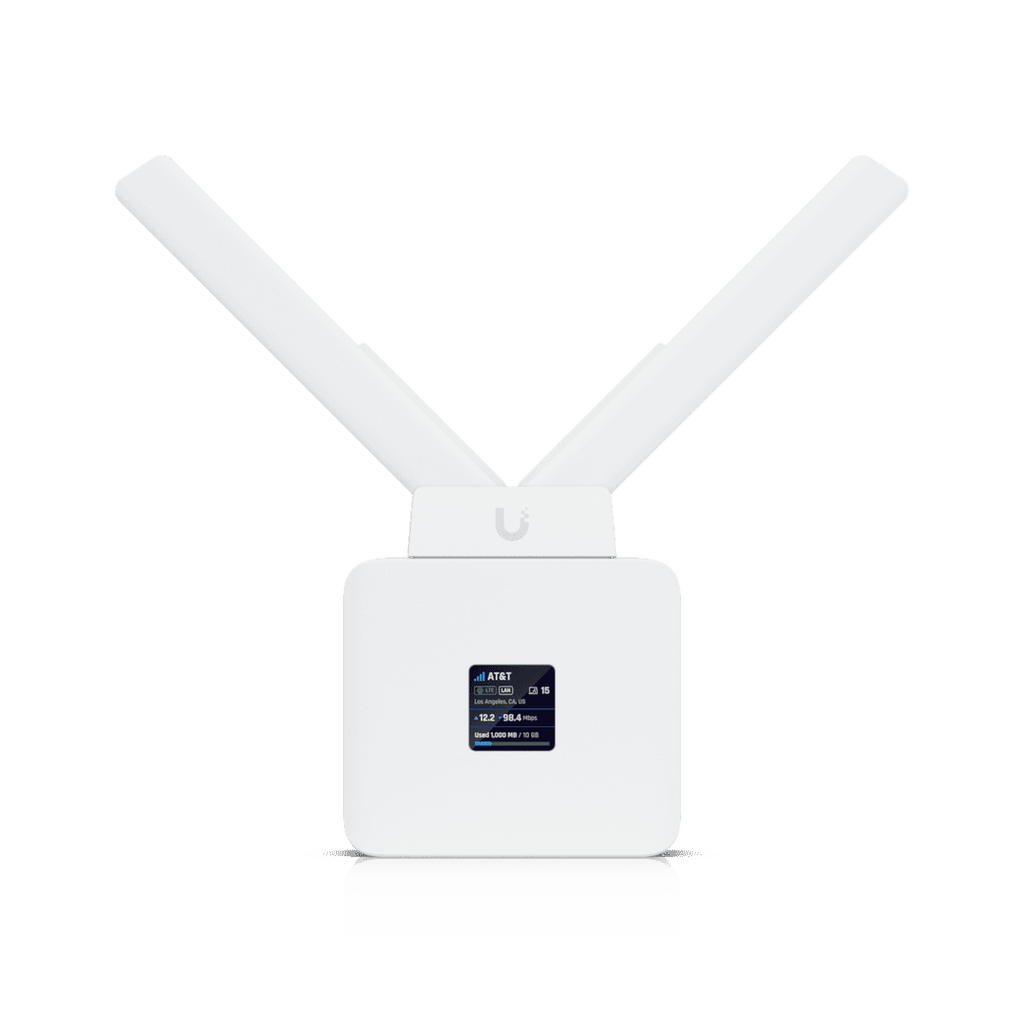

UniFi Mobile Router

UniFi Mobile Router. LTE Category 4, USBC, ATX, and PoE power options, 1 GbE PoE LAN port for a second device, Integrated GPS, Detachable longrange antenna. Note: Preinstalled ATT nano SIM locked with 100 MB free usage.

1 $295.99/ea

2-4 $294.75/ea

5-9 $293.51/ea

10-19 $291.02/ea

20+ $288.54/ea

UniFi Mobile Router

Fabricant	Ubiquiti
Modèle	UMR-US
UPC	810010076885
Catégorie	Networking Wireless Dual Band — Routers & Gateways
Poids	1.7 lbs
Dimensions (boîte)	4.8" × 7" × 3.4" (L×P×H)

TechnicalIn The BoxDocumentsFAQ

Overview

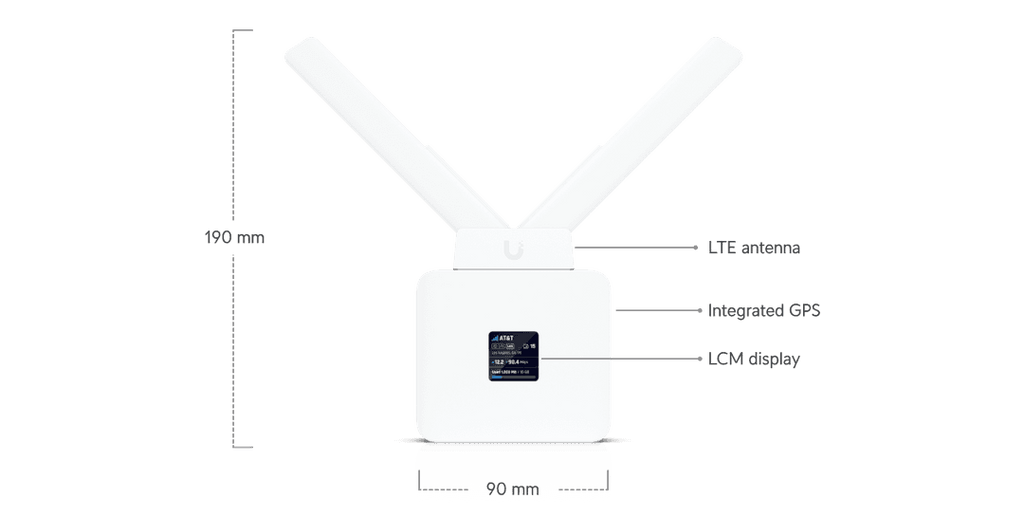

Dimensions	190 x 89.8 x 28.8 mm (7.4 x 3.5 x 1.1")
Networking Interface	(2) GbE RJ45 ports, LTE Cat 4 radio, WiFi 4
SIM	Pre-installed AT&T nano SIM
LTE Bands	B2, B4, B5, B12, B14, B66
PoE Interface	(1) PoE input (1) PoE output (Max. 10W, requires PoE+ switch)
Mounting	DIN rail, Wall (Mounts Included)
Weight	Without mount: 257 g (9.1 oz) With mount: 303 g (10.7 oz)
Enclosure Material	Polycarbonate, aluminum alloy
Mount Material	Polycarbonate
WAN	✓
Priority & Fallback	✓
Cellular	✓
Ethernet	✓
LTE Passthrough mode	✓
Ethernet Bridge Mode	✓
OpenVPN	✓
WireGuard	✓
IPsec	✓
WiFi Standard	WiFi 4
Port Forwarding	✓
Firewall	✓
Static Routes	✓
Supported Data Rates	6.5 Mbps to 150 Mbps (MCS0 - MCS7, HT 20/40)
802.11n	6.5 Mbps to 150 Mbps (MCS0 - MCS7, HT 20/40)
802.11g	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b	1, 2, 5.5, 11 Mbps
Management	Ethernet WiFi
LTE Throughput Speed	Download 150 Mbps / Upload 50 Mbps
GPS	✓
Ports	(1) External LTE antenna (TS9 male)
Type	(1) External LTE antenna (TS9 male) (1) Internal WiFi (1) Internal GPS
Max. TX Power	19 dBm
WiFi MIMO	1 x 1
Max. Power Consumption	9W
Power Method	PoE+ (48-54V DC) USB Type-C (5V DC, 3A) 4-pin ATX DC (9V DC, 1A)
Power Supply	USB Type-C, 5V DC, 3A (Adapter included)
Display	1.3" touchscreen
Buttons	(1) Factory reset
Ambient Operating Temperature	-20 to 45° C (-4 to 113° F)
Ambient Operating Humidity	5 to 95% noncondensing
NDAA Compliant	✓
Certifications	FCC, IC, PTCRB, AT&T

Specs

Dimensions	190 x 89.8 x 28.8 mm (7.4 x 3.5 x 1.1")
Networking Interface	(2) GbE RJ45 ports, LTE Cat 4 radio, WiFi 4
SIM	Pre-installed AT&T nano SIM
LTE Bands	B2, B4, B5, B12, B14, B66
PoE Interface	(1) PoE input (1) PoE output (Max. 10W, requires PoE+ switch)
Mounting	DIN rail, Wall (Mounts Included)
Weight	Without mount: 257 g (9.1 oz) With mount: 303 g (10.7 oz)
Enclosure Material	Polycarbonate, aluminum alloy
Mount Material	Polycarbonate
Priority & Fallback	✓
Cellular	✓
Ethernet	✓
LTE Passthrough mode	✓
Ethernet Bridge Mode	✓
OpenVPN	✓
WireGuard	✓
IPsec	✓
WiFi Standard	WiFi 4
Port Forwarding	✓
Firewall	✓
Static Routes	✓
802.11n	6.5 Mbps to 150 Mbps (MCS0 - MCS7, HT 20/40)
802.11g	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b	1, 2, 5.5, 11 Mbps
Management	Ethernet WiFi
LTE Throughput Speed	Download 150 Mbps / Upload 50 Mbps
GPS	✓
Ports	(1) External LTE antenna (TS9 male)
Type	(1) External LTE antenna (TS9 male) (1) Internal WiFi (1) Internal GPS
Max. TX Power	19 dBm
WiFi MIMO	1 x 1
Max. Power Consumption	9W
Power Method	PoE+ (48-54V DC) USB Type-C (5V DC, 3A) 4-pin ATX DC (9V DC, 1A)
Power Supply	USB Type-C, 5V DC, 3A (Adapter included)
Display	1.3" touchscreen
Buttons	(1) Factory reset
Ambient Operating Temperature	-20 to 45° C (-4 to 113° F)
Ambient Operating Humidity	5 to 95% noncondensing
NDAA Compliant	✓
Certifications	FCC, IC, PTCRB, AT&T
