UPL-Amp-B

Name: UPL-Amp-B
Brand: Ubiquiti
SKU: UPLAMPBCA
Price: 877.99 CAD
Availability: InStock

$877.99

PowerAmp

1 $877.99/ea

2-4 $874.39/ea

5-9 $870.78/ea

10-19 $863.58/ea

20+ $856.37/ea

PowerAmp

Fabricant	Ubiquiti
Modèle	UPL-Amp-B
UPC	000000000000
Catégorie	Distributed Audio & Video — Amplifiers
Poids	8 lbs
Dimensions (boîte)	10.6" × 10.9" × 4.95" (L×P×H)

TechnicalIn The BoxDocumentsFAQ

Mechanical

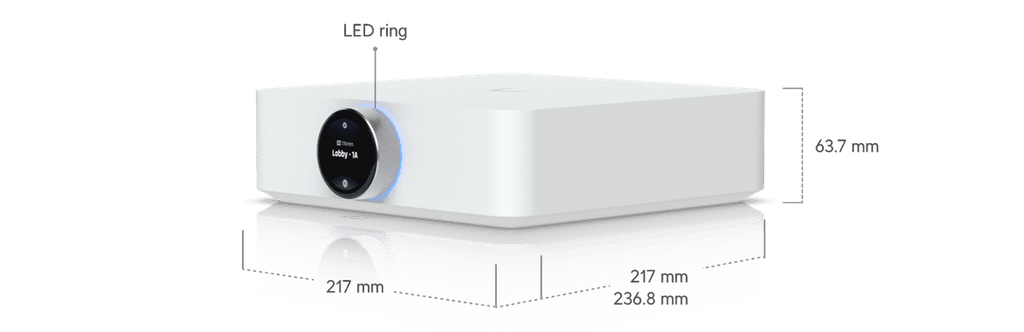

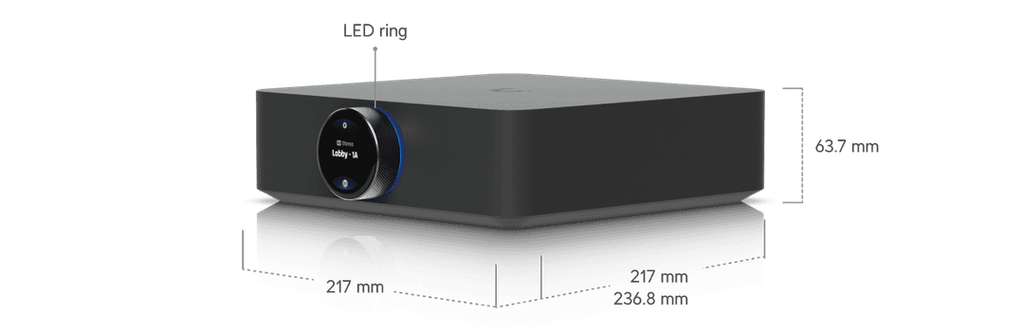

Dimensions	With knob: 217 x 236.8 x 63.7 mm (8.5 x 9.3 x 2.5") Without knob: 217 x 217 x 63.7 mm (8.5 x 8.5 x 2.5")
Weight	2.4 kg (5.3 lb)
Enclosure Material	Chassis: Polycarbonate Knob: Aluminum
Mounting	Compact Desktop
Available Colors	Black White
Per Channel Power (Continuous power)	130 W, 8 Ω, 1 kHz, < 0.05% THD+N, EIA (CEA-490-A) 260 W, 4 Ω, 1 kHz, < 0.09% THD+N, EIA (CEA-490-A)
Amplifier Class	Class D
Output	Mono / Stereo sound
Surround Format	Dolby Atmos, Dolby TrueHD, Dolby Atmos (True HD), Dolby Atmos (Dolby Digital Plus), Dolby Digital, Dolby Digital Plus, Stereo PCM, Multichannel PCM, Dolby Multichannel PCM

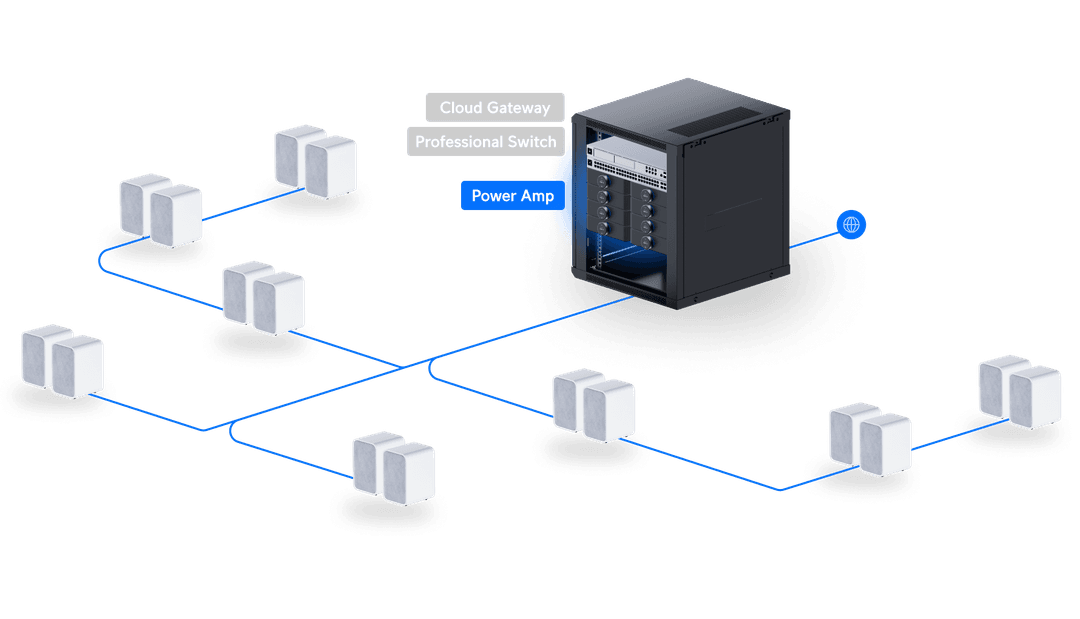

Zone	Up to 32 PowerAmps

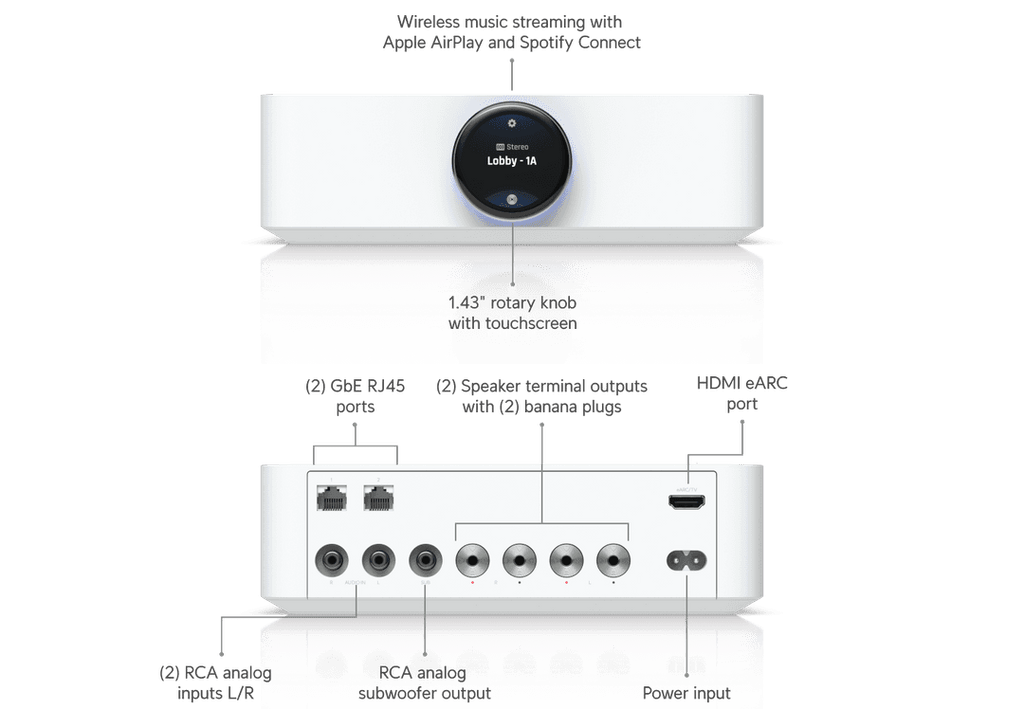

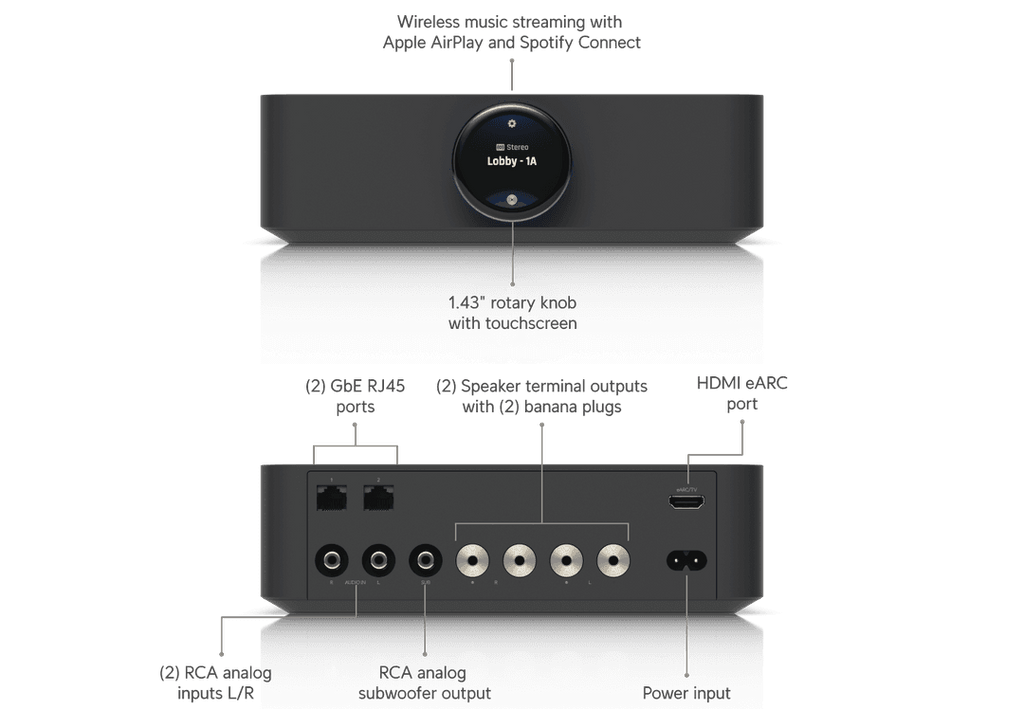

Audio Input	(1) HDMI eARC input (2) RCA analog inputs L/R
Audio Output	(1) RCA analog subwoofer output (2) Speaker terminal outputs with (2) banana plugs
Streaming	AirPlay, Spotify Connect, Soundtrack Your Brand
Networking Interface	(2) GbE RJ45 ports
WiFi Standards	802.11 a/b/g/n/ac
Connectivity	WiFi 5G, BW 20/40/80 MHz WiFi 2.4G, BW 20/40 MHz
Power Method	(1) Universal AC input, 100–240V AC, 2.5A Max., 50/60 Hz
Max. Power Consumption	17W
LCM Display	1.43" rotary knob with touchscreen
Button	(1) Factory reset
Ambient Operating Temperature	-5 to 40° C (23 to 104° F)
Ambient Operating Humidity	5 to 90% noncondensing
NDAA Compliant	✓
Certifications	FCC, IC, CE
Application Requirements	UniFi Play iOS™ and Android™: Version 1.0.0 and later

Specs

Dimensions	With knob: 217 x 236.8 x 63.7 mm (8.5 x 9.3 x 2.5") Without knob: 217 x 217 x 63.7 mm (8.5 x 8.5 x 2.5")
Weight	2.4 kg (5.3 lb)
Enclosure Material	Chassis: Polycarbonate Knob: Aluminum
Mounting	Compact Desktop
Available Colors	Black White
Per Channel Power (Continuous power)	130 W, 8 Ω, 1 kHz, < 0.05% THD+N, EIA (CEA-490-A) 260 W, 4 Ω, 1 kHz, < 0.09% THD+N, EIA (CEA-490-A)
Amplifier Class	Class D
Output	Mono / Stereo sound
Surround Format	Dolby Atmos, Dolby TrueHD, Dolby Atmos (True HD), Dolby Atmos (Dolby Digital Plus), Dolby Digital, Dolby Digital Plus, Stereo PCM, Multichannel PCM, Dolby Multichannel PCM
Zone	Up to 32 PowerAmps
Audio Input	(1) HDMI eARC input (2) RCA analog inputs L/R
Audio Output	(1) RCA analog subwoofer output (2) Speaker terminal outputs with (2) banana plugs
Streaming	AirPlay, Spotify Connect, Soundtrack Your Brand
Networking Interface	(2) GbE RJ45 ports
WiFi Standards	802.11 a/b/g/n/ac
Connectivity	WiFi 5G, BW 20/40/80 MHz WiFi 2.4G, BW 20/40 MHz
Power Method	(1) Universal AC input, 100–240V AC, 2.5A Max., 50/60 Hz
Max. Power Consumption	17W
LCM Display	1.43" rotary knob with touchscreen
Button	(1) Factory reset
Ambient Operating Temperature	-5 to 40° C (23 to 104° F)
Ambient Operating Humidity	5 to 90% noncondensing
NDAA Compliant	✓
Certifications	FCC, IC, CE
Application Requirements	UniFi Play iOS™ and Android™: Version 1.0.0 and later
