US-8-60W

Name: US-8-60W
Brand: Ubiquiti
SKU: US860WCA
Price: 151.99 CAD
Availability: OutOfStock

$151.99

UniFi Switch 8 Port 60W

1 $151.99/ea

2-4 $151.55/ea

5-9 $151.12/ea

10-19 $150.68/ea

20+ $150.25/ea

UniFi Switch 8 Port 60W

Fabricant	Ubiquiti
Modèle	US-8-60W
UPC	810354026164
Catégorie	Networking — Switches 4 to 10 Ports
Poids	1.65 lbs
Dimensions (boîte)	5.4" × 8.1" × 5.4" (L×P×H)

TechnicalIn The BoxFAQ

Overview

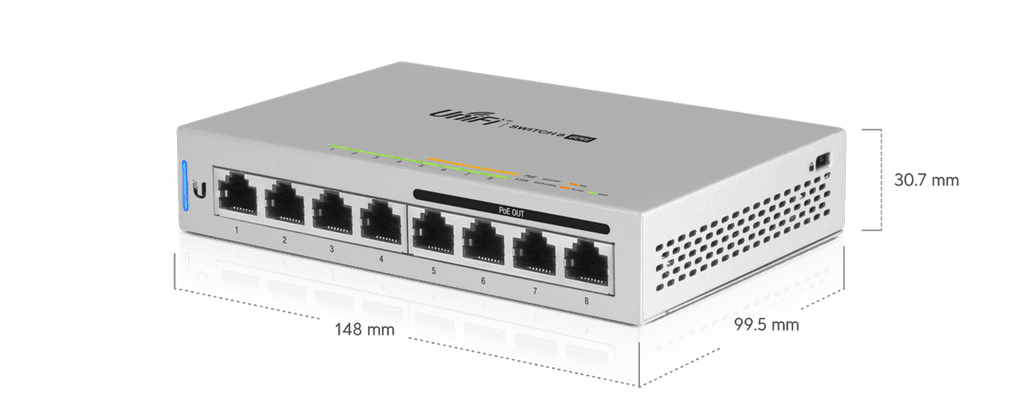

Dimensions	148 x 100 x 31 mm (5.8 x 3.9 x 1.2")
1 GbE RJ45	8 (4 PoE) (1G/100M/10M)
Max. PoE Output	Up to PoE
Total PoE Availability	48W
Form Factor	Compact desktop, wall
Switching Capacity	16 Gbps
Total Non-Blocking Throughput	8 Gbps
Forwarding Rate	12 Mpps
Supported VLANs	256
MAC Address Table Size	16,000
Packet Buffer Size	1.5 MB
IPv4	128
MAC	128
LACP Port Aggregation	✓
STP & RSTP	✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)	✓
IGMP Snooping	✓
802.1X Control	✓
MAC-Based ACLs & Device Isolation	✓
DHCP Snooping & Guarding	✓
Egress Rate Limit	✓
Flow Control	✓
Storm Control	✓
Multicast & Broadcast Rate Limiting	✓
MAC Address Blocking	✓
IP-Based ACLs & Network Isolation	✓
MAC-Based Port Restriction	✓
Port Isolation	✓
Port Mirroring	✓
Jumbo Frames	✓
LLDP-MED	✓
Voice VLAN	✓
Loop Protection	✓
Virtual Network Override	✓
PoE Ports	4
PoE	15.4W
Max. Power Consumption	12W (Excluding PoE output)
Power Method	(1) AC/DC adapter (Included)
Power Input Method	AC input
Supported Voltage Range	44–57V DC/PoE
Management	Ethernet
Weight	432 g (15.2 oz)
Enclosure Material	SGCC steel
Mount Material	SGCC steel
Ambient Operating Temperature	-5 to 45° C (23 to 113° F)
Ambient Operating Humidity	5 to 95% noncondensing
NDAA Compliant	✓
Certifications	CE, FCC, IC, Anatel: 04915-19-08356
Application Requirements	Version 6.3.51 and later
UniFi Network	Version 6.3.51 and later

Specs

Dimensions	148 x 100 x 31 mm (5.8 x 3.9 x 1.2")
1 GbE RJ45	8 (4 PoE) (1G/100M/10M)
Max. PoE Output	Up to PoE
Total PoE Availability	48W
Form Factor	Compact desktop, wall
Switching Capacity	16 Gbps
Total Non-Blocking Throughput	8 Gbps
Forwarding Rate	12 Mpps
Supported VLANs	256
MAC Address Table Size	16,000
Packet Buffer Size	1.5 MB
IPv4	128
MAC	128
LACP Port Aggregation	✓
STP & RSTP	✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)	✓
IGMP Snooping	✓
802.1X Control	✓
MAC-Based ACLs & Device Isolation	✓
DHCP Snooping & Guarding	✓
Egress Rate Limit	✓
Flow Control	✓
Storm Control	✓
Multicast & Broadcast Rate Limiting	✓
MAC Address Blocking	✓
IP-Based ACLs & Network Isolation	✓
MAC-Based Port Restriction	✓
Port Isolation	✓
Port Mirroring	✓
Jumbo Frames	✓
LLDP-MED	✓
Voice VLAN	✓
Loop Protection	✓
Virtual Network Override	✓
PoE	15.4W
Max. Power Consumption	12W (Excluding PoE output)
Power Method	(1) AC/DC adapter (Included)
Power Input Method	AC input
Supported Voltage Range	44–57V DC/PoE
Management	Ethernet
Weight	432 g (15.2 oz)
Enclosure Material	SGCC steel
Mount Material	SGCC steel
Ambient Operating Temperature	-5 to 45° C (23 to 113° F)
Ambient Operating Humidity	5 to 95% noncondensing
NDAA Compliant	✓
Certifications	CE, FCC, IC, Anatel: 04915-19-08356
UniFi Network	Version 6.3.51 and later
