USW-48-POE

Name: USW-48-POE
Brand: Ubiquiti
SKU: USW48POECA
Price: 800.99 CAD
Availability: InStock

$800.99 $813.99

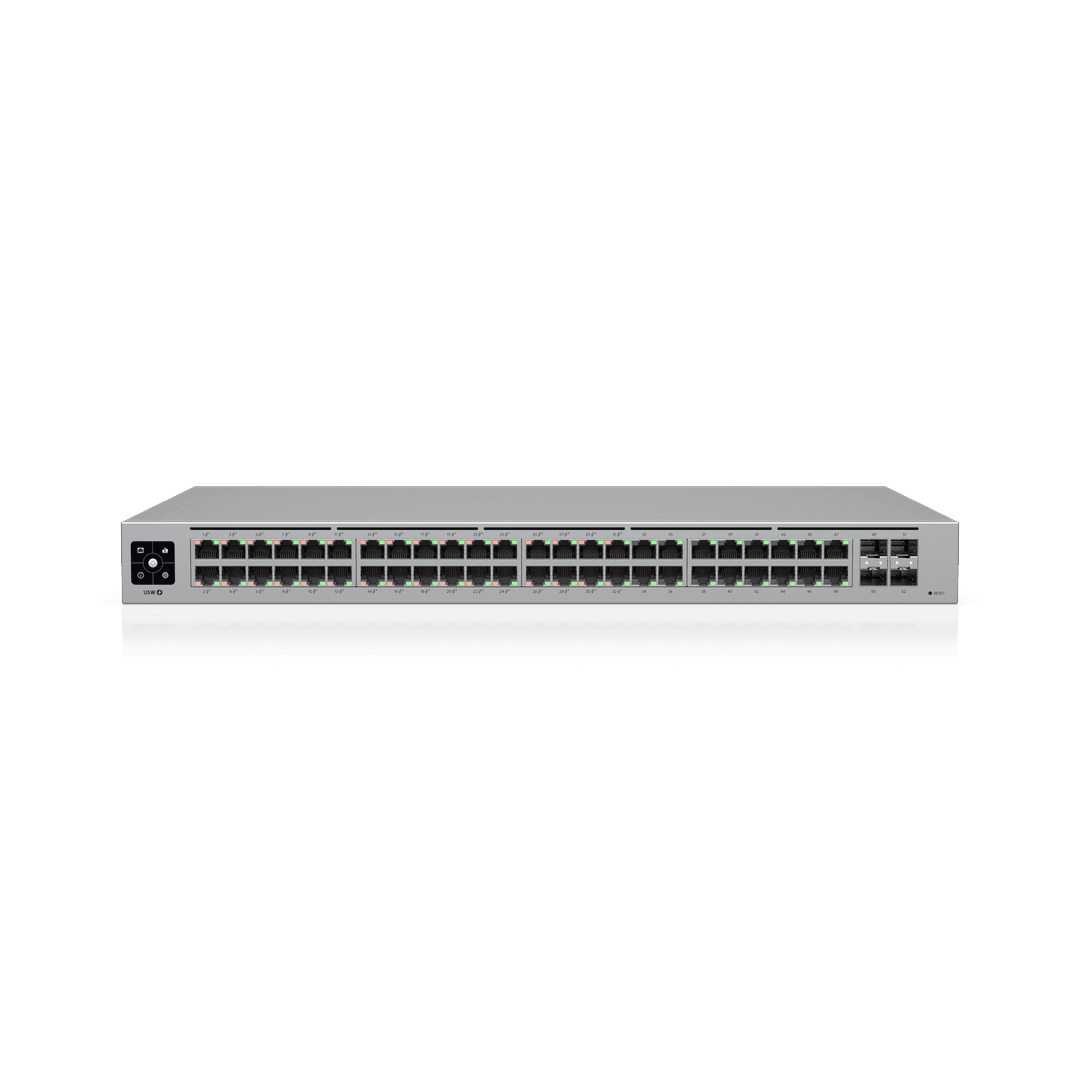

UniFi Switch 48 PoE

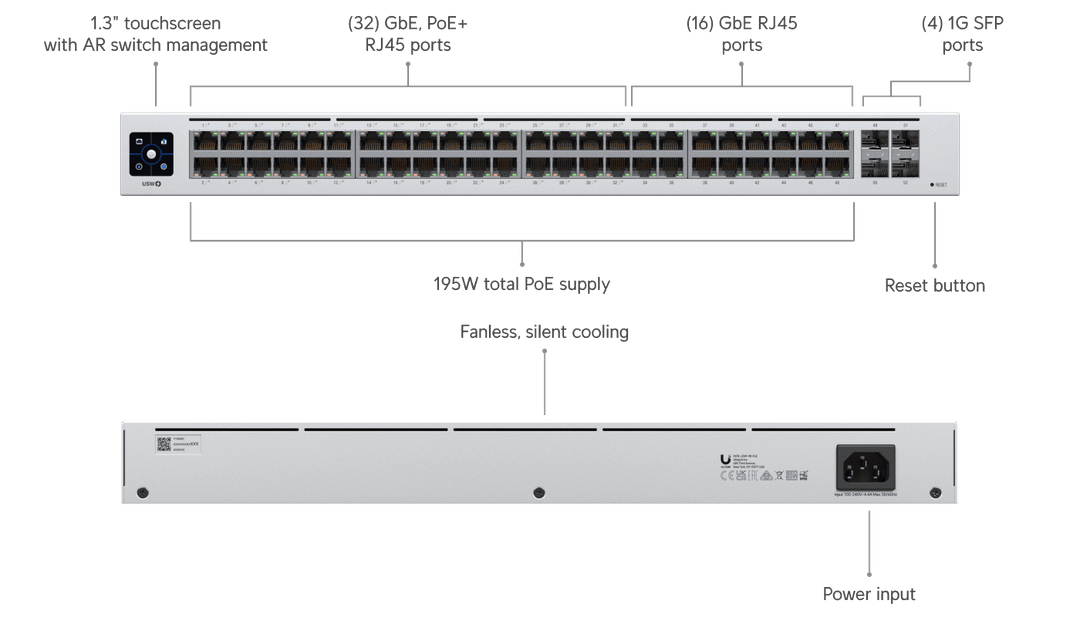

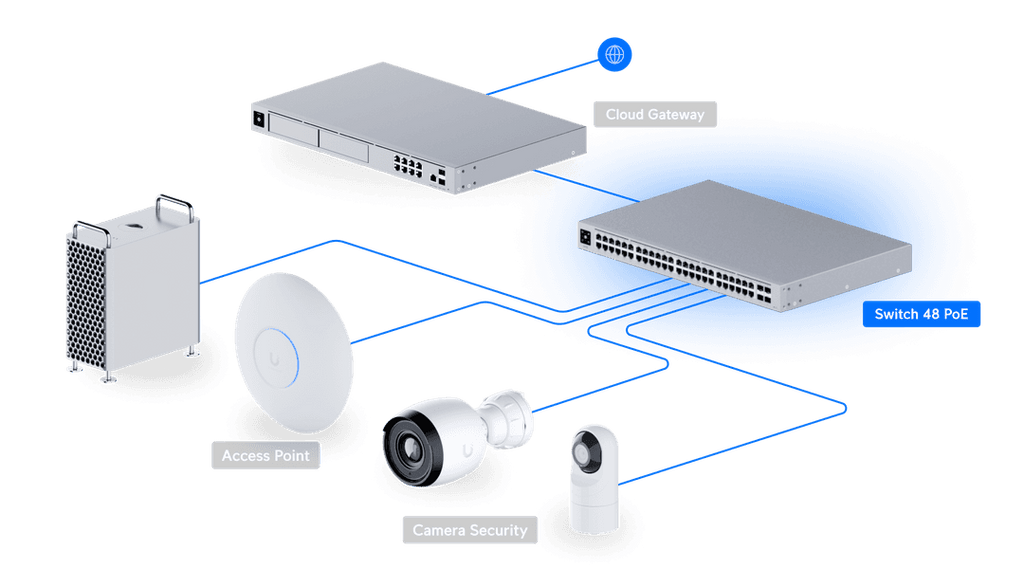

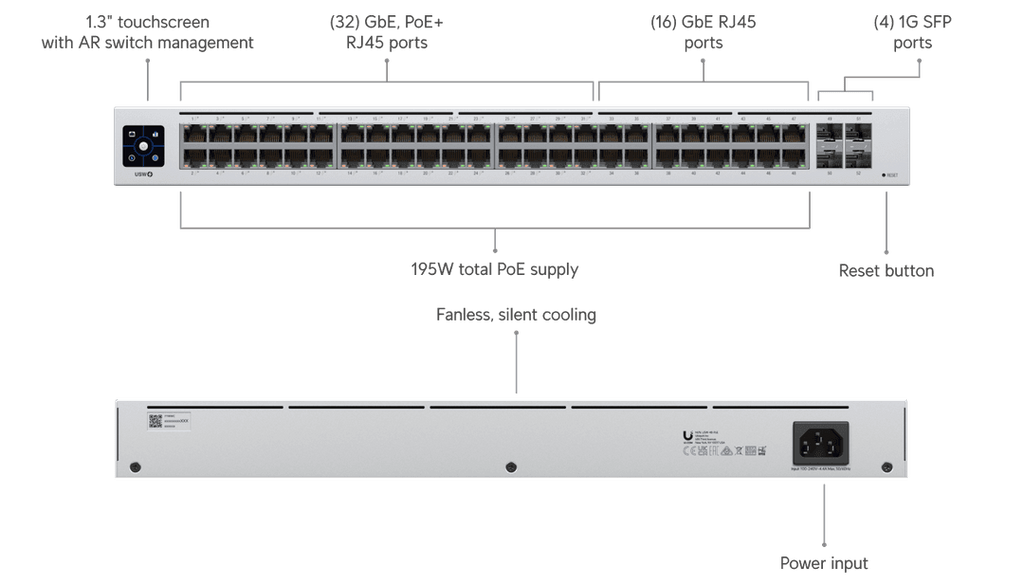

The USW-48-PoE is a configurable Gigabit Layer 2 switch with 48 Gigabit Ethernet ports including 32 auto-sensing 802.3at PoE+ ports, and 4 SFP ports. It provides Gigabit PoE links to your RJ45 Ethernet devices and Gigabit fiber uplink options to your enterprise network. The USW-48-PoE features a 1.3" touch LCM to provide status. Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-48-PoE offers an extensive suite of advanced Layer 2 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.

1 $800.99/ea

2-4 $800.70/ea

5-9 $800.42/ea

10-19 $800.13/ea

20+ $799.84/ea

UniFi Switch 48 PoE

Fabricant	Ubiquiti
Modèle	USW-48-POE
UPC	810010072139
Catégorie	Networking — Switches Over 24 Ports
Poids	12.6 lbs
Dimensions (boîte)	15.9" × 20.7" × 4.9" (L×P×H)

TechnicalIn The BoxDocumentsFAQ

Overview

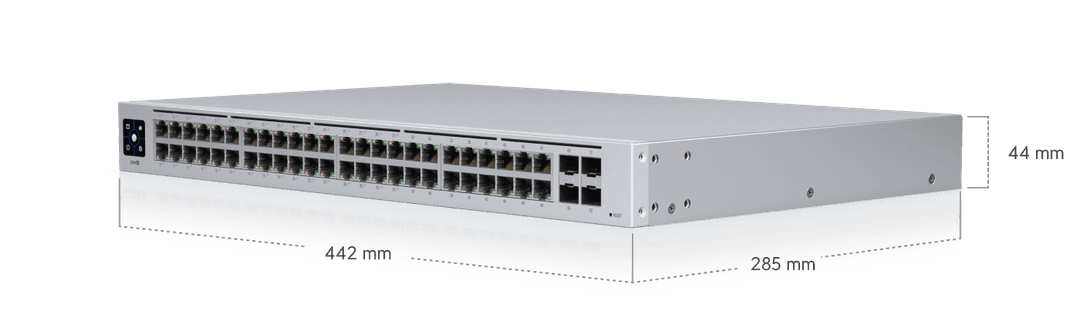

Dimensions	442 x 285 x 44 mm (17.4 x 11.2 x 1.7")
1 GbE RJ45	48 (32 PoE+) (1G/100M/10M)
1G SFP	4 (1G)
Max. PoE Output	Up to PoE+
Total PoE Availability	195W
Form Factor	Rack mount (1U)
Switching Capacity	104 Gbps
Total Non-Blocking Throughput	52 Gbps
Forwarding Rate	77 Mpps
Supported VLANs	1,000
MAC Address Table Size	16,000
Packet Buffer Size	1.5 MB
IPv4	128
MAC	128
LACP Port Aggregation	✓
STP & RSTP	✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)	✓
IGMP Snooping	✓
802.1X Control	✓
MAC-Based ACLs & Device Isolation	✓
DHCP Snooping & Guarding	✓
Egress Rate Limit	✓
Flow Control	✓
Storm Control	✓
Multicast & Broadcast Rate Limiting	✓
MAC Address Blocking	✓
IP-Based ACLs & Network Isolation	✓
MAC-Based Port Restriction	✓
Port Isolation	✓
Port Mirroring	✓
Jumbo Frames	✓
LLDP-MED	✓
Voice VLAN	✓
Loop Protection	✓
Virtual Network Override	✓
PoE Ports	32
PoE+	32W
PoE	15.4W
Max. Power Consumption	45W (Excluding PoE Output) 240W (Including PoE Output)
Power Method	Universal input, 100–240V AC, 50/60 Hz
Power Input Method	AC input
Power Supply	AC/DC, internal, 240W
Supported Voltage Range	100–240V AC
Management	Ethernet AR
Heat Dissipation	153.5 BTU/hr (Excluding PoE Output)
Weight	Without mounting brackets: 4.5 kg (10 lb) With mounting brackets: 4.6 kg (10.2 lb)
Enclosure Material	SGCC steel
Mount Material	SGCC steel
Supported Rack Depth	400~1200 mm (15.7-47.2")
LCM Display	1.3" touchscreen
ESD Protection	Air: ± 16kV, contact: ± 12kV
Ambient Operating Temperature	-5 to 40° C (23 to 104° F)
Ambient Operating Humidity	10 to 90% noncondensing
NDAA Compliant	✓
Certifications	CE, FCC, IC, Anatel: 00593-21-08356
Application Requirements	Version 7.2.94 and later
UniFi Network	Version 7.2.94 and later

Specs

Dimensions	442 x 285 x 44 mm (17.4 x 11.2 x 1.7")
1 GbE RJ45	48 (32 PoE+) (1G/100M/10M)
1G SFP	4 (1G)
Max. PoE Output	Up to PoE+
Total PoE Availability	195W
Form Factor	Rack mount (1U)
Switching Capacity	104 Gbps
Total Non-Blocking Throughput	52 Gbps
Forwarding Rate	77 Mpps
Supported VLANs	1,000
MAC Address Table Size	16,000
Packet Buffer Size	1.5 MB
IPv4	128
MAC	128
LACP Port Aggregation	✓
STP & RSTP	✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)	✓
IGMP Snooping	✓
802.1X Control	✓
MAC-Based ACLs & Device Isolation	✓
DHCP Snooping & Guarding	✓
Egress Rate Limit	✓
Flow Control	✓
Storm Control	✓
Multicast & Broadcast Rate Limiting	✓
MAC Address Blocking	✓
IP-Based ACLs & Network Isolation	✓
MAC-Based Port Restriction	✓
Port Isolation	✓
Port Mirroring	✓
Jumbo Frames	✓
LLDP-MED	✓
Voice VLAN	✓
Loop Protection	✓
Virtual Network Override	✓
PoE+	32W
PoE	15.4W
Max. Power Consumption	45W (Excluding PoE Output) 240W (Including PoE Output)
Power Method	Universal input, 100–240V AC, 50/60 Hz
Power Input Method	AC input
Power Supply	AC/DC, internal, 240W
Supported Voltage Range	100–240V AC
Management	Ethernet AR
Heat Dissipation	153.5 BTU/hr (Excluding PoE Output)
Weight	Without mounting brackets: 4.5 kg (10 lb) With mounting brackets: 4.6 kg (10.2 lb)
Enclosure Material	SGCC steel
Mount Material	SGCC steel
Supported Rack Depth	400~1200 mm (15.7-47.2")
LCM Display	1.3" touchscreen
ESD Protection	Air: ± 16kV, contact: ± 12kV
Ambient Operating Temperature	-5 to 40° C (23 to 104° F)
Ambient Operating Humidity	10 to 90% noncondensing
NDAA Compliant	✓
Certifications	CE, FCC, IC, Anatel: 00593-21-08356
UniFi Network	Version 7.2.94 and later
