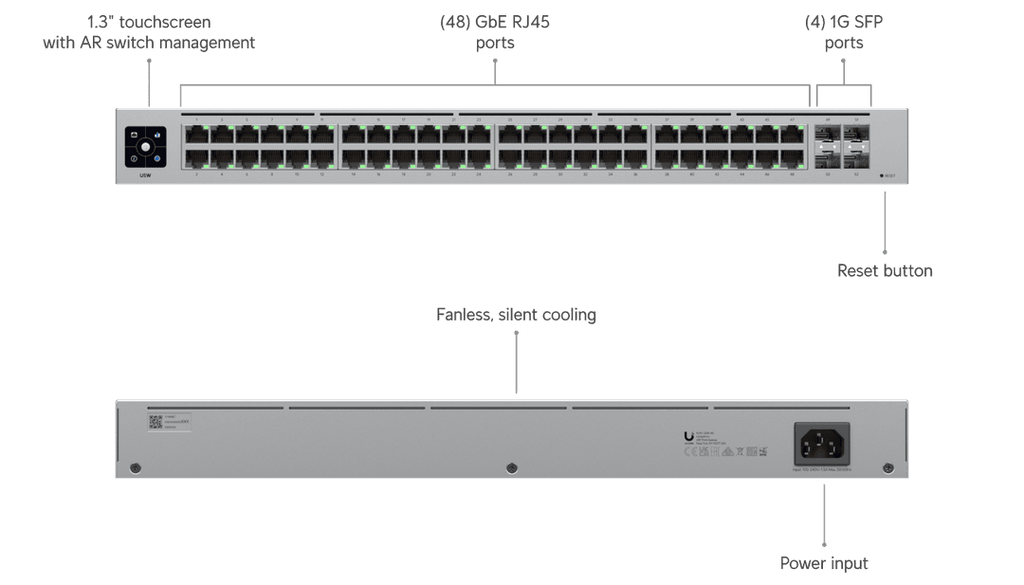

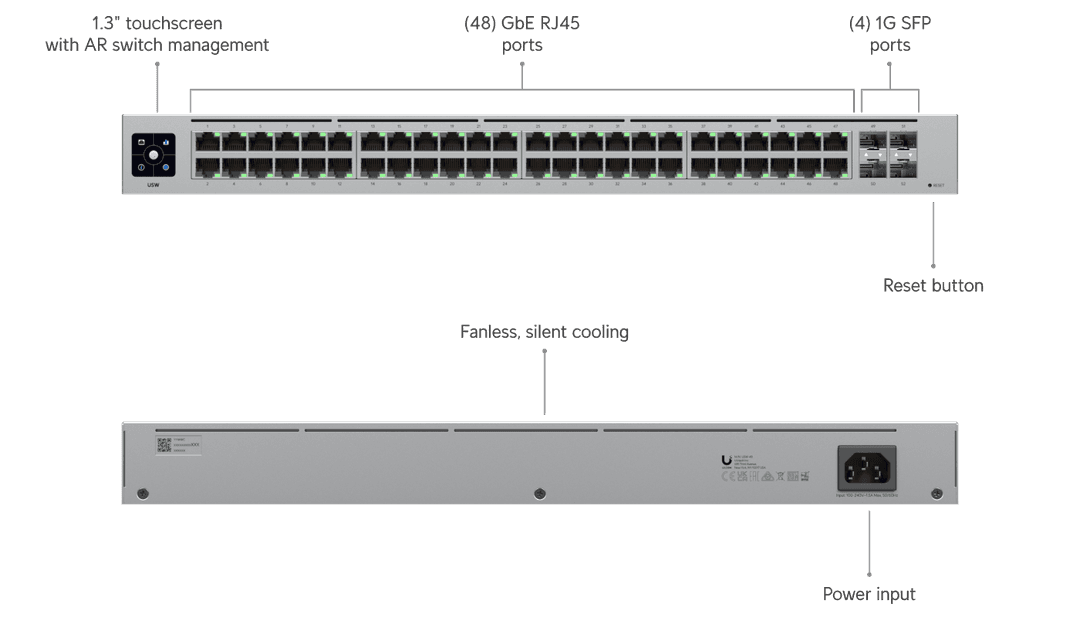

UniFi Switch 48 is a fully managed Layer 2 switch with (48) Gigabit Ethernet ports and (4) 1G SFP ports for fiber connectivity. The UniFi Switch 48 features a rich set of Layer 2 capabilities and fanless, silent cooling for use as an access layer switch. UniFi Network Controller and UniFi Network mobile app allow admins to configure and monitor virtually all of the switch features in an intuitive graphical user interface from anywhere.
Get notified when USW-48 is back in stock.
No spam. One single email when the product is available.
You're all set! You'll receive an email as soon as the product is back in stock.
Volume Discounts
1
$543.99/ea
2-4
$543.79/ea
5-9
$543.60/ea
10-19
$543.40/ea
20+
$543.20/ea
Votre prix :
UniFi Switch 48
Fabricant
Ubiquiti
Modèle
USW-48
UPC
810010072481
Catégorie
Networking — Switches Over 24 Ports
Poids
11.05 lbs
Dimensions (boîte)
15.9" × 20.5" × 4.8" (L×P×H)
Overview

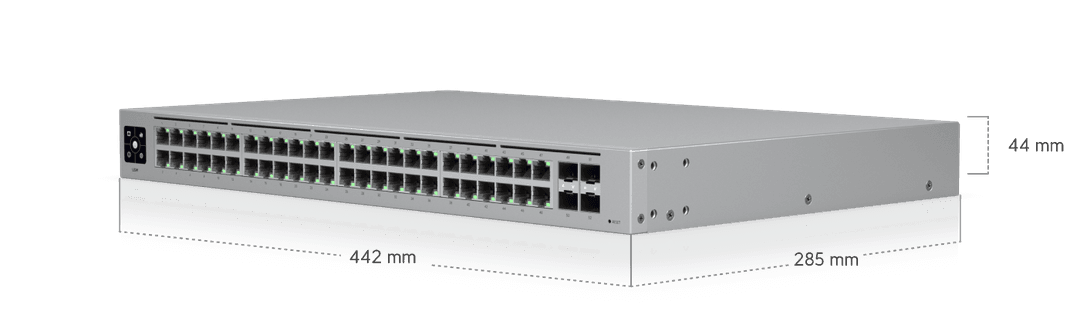

Dimensions
442 x 285 x 44 mm
(17.4 x 11.2 x 1.7")
1 GbE RJ45
48
(1G/100M/10M)
1G SFP
4
(1G)
Form Factor
Rack mount (1U)
Switching Capacity
104 Gbps
Total Non-Blocking Throughput
52 Gbps
Forwarding Rate
77 Mpps
Supported VLANs
1,000
MAC Address Table Size
16,000
Packet Buffer Size
1.5 MB
IPv4
128
MAC
128
LACP Port Aggregation
✓
STP & RSTP
✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
✓
IGMP Snooping
✓
802.1X Control
✓
MAC-Based ACLs & Device Isolation
✓
DHCP Snooping & Guarding
✓
Egress Rate Limit
✓
Flow Control
✓
Storm Control
✓
Multicast & Broadcast Rate Limiting
✓
MAC Address Blocking
✓
IP-Based ACLs & Network Isolation
✓
MAC-Based Port Restriction
✓
Port Isolation
✓
Port Mirroring
✓
Jumbo Frames
✓
LLDP-MED
✓
Voice VLAN
✓
Loop Protection
✓
Virtual Network Override
✓
Max. Power Consumption
40W
Power Method
Universal input, 100–240V AC, 50/60 Hz
Power Input Method
AC input
Power Supply
AC/DC, internal, 60W
Supported Voltage Range
100–240V AC
Management
Ethernet
AR
Heat Dissipation
136.5 BTU/hr
Weight
Without mounting brackets: 3.9 kg (8.6 lb)
With mounting brackets: 4 kg (8.8 lb)
Enclosure Material
SGCC steel
Mount Material
SGCC steel
Supported Rack Depth
400~1200 mm
(15.7-47.2")
LCM Display
1.3" touchscreen
Ambient Operating Temperature
-15 to 40° C (5 to 104° F)
Ambient Operating Humidity
10 to 90% noncondensing
NDAA Compliant
✓
Certifications
CE, FCC, IC, Anatel: 17193-20-08356
Application Requirements
Version 7.2.94 and later
UniFi Network
Version 7.2.94 and later
Specs
Dimensions
442 x 285 x 44 mm
(17.4 x 11.2 x 1.7")
1 GbE RJ45
48
(1G/100M/10M)
1G SFP
4
(1G)
Form Factor
Rack mount (1U)
Switching Capacity
104 Gbps
Total Non-Blocking Throughput
52 Gbps
Forwarding Rate
77 Mpps
Supported VLANs
1,000
MAC Address Table Size
16,000
Packet Buffer Size
1.5 MB
IPv4
128
MAC
128
LACP Port Aggregation
✓
STP & RSTP
✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
✓
IGMP Snooping
✓
802.1X Control
✓
MAC-Based ACLs & Device Isolation
✓
DHCP Snooping & Guarding
✓
Egress Rate Limit
✓
Flow Control
✓
Storm Control
✓
Multicast & Broadcast Rate Limiting
✓
MAC Address Blocking
✓
IP-Based ACLs & Network Isolation
✓
MAC-Based Port Restriction
✓
Port Isolation
✓
Port Mirroring
✓
Jumbo Frames
✓
LLDP-MED
✓
Voice VLAN
✓
Loop Protection
✓
Virtual Network Override
✓
Max. Power Consumption
40W
Power Method
Universal input, 100–240V AC, 50/60 Hz
Power Input Method
AC input
Power Supply
AC/DC, internal, 60W
Supported Voltage Range
100–240V AC
Management
Ethernet
AR
Heat Dissipation
136.5 BTU/hr
Weight
Without mounting brackets: 3.9 kg (8.6 lb)
With mounting brackets: 4 kg (8.8 lb)
