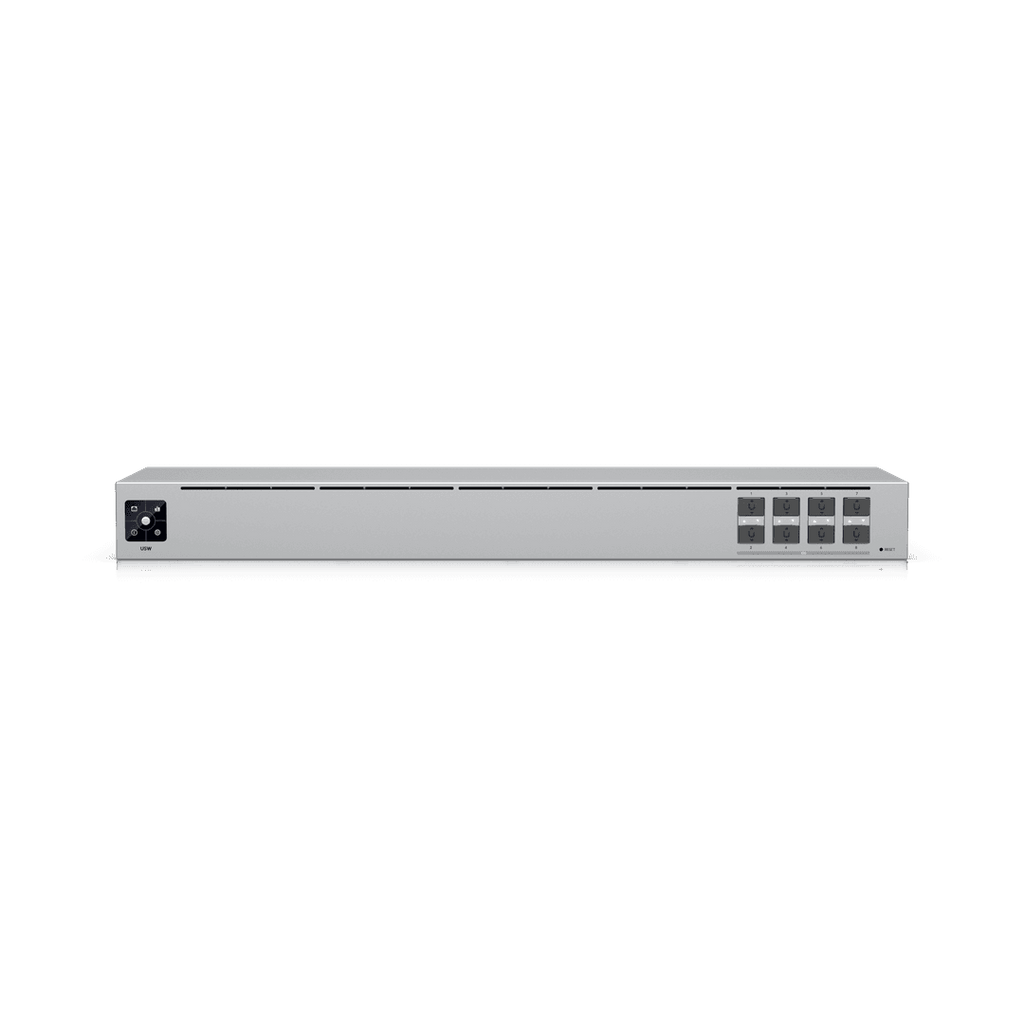

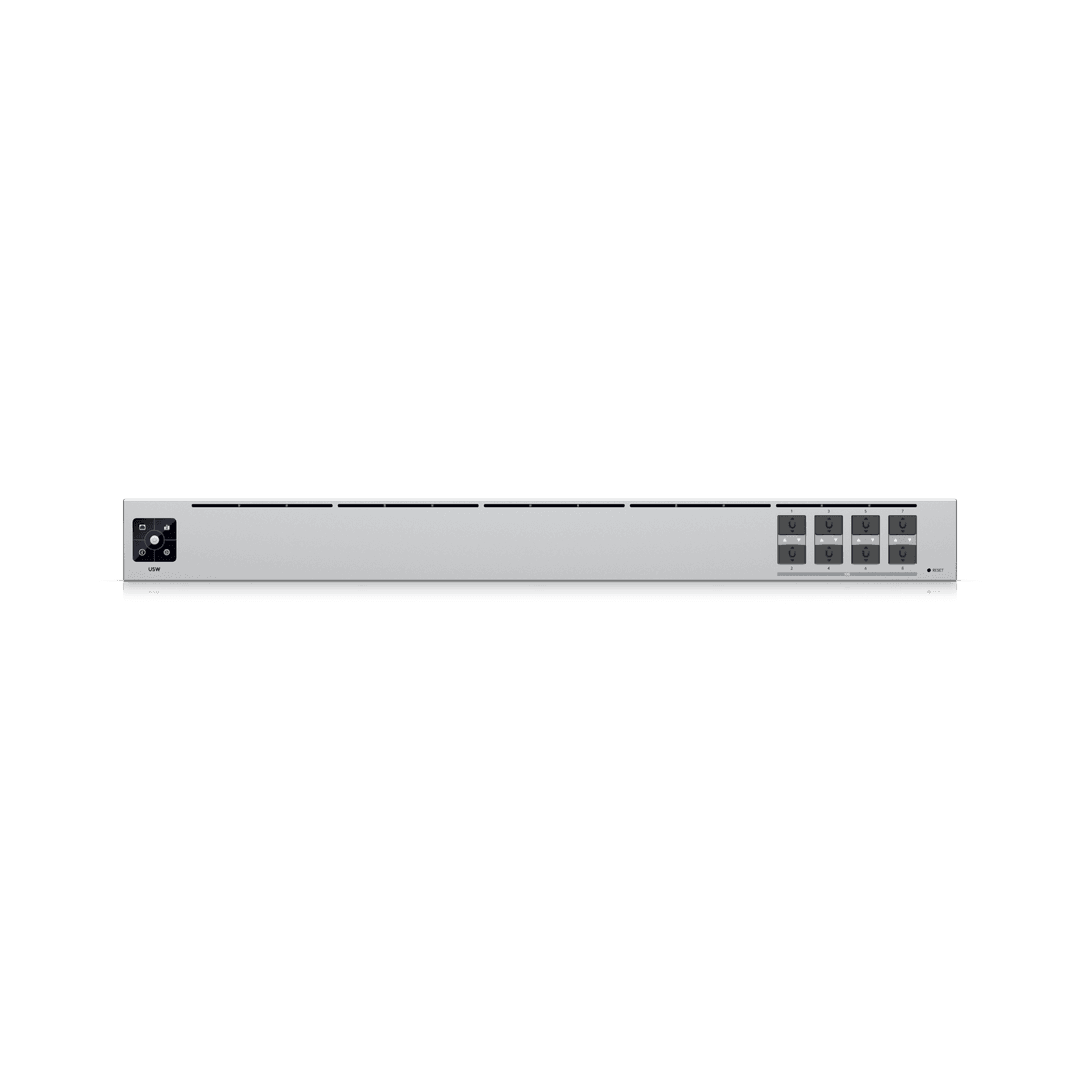

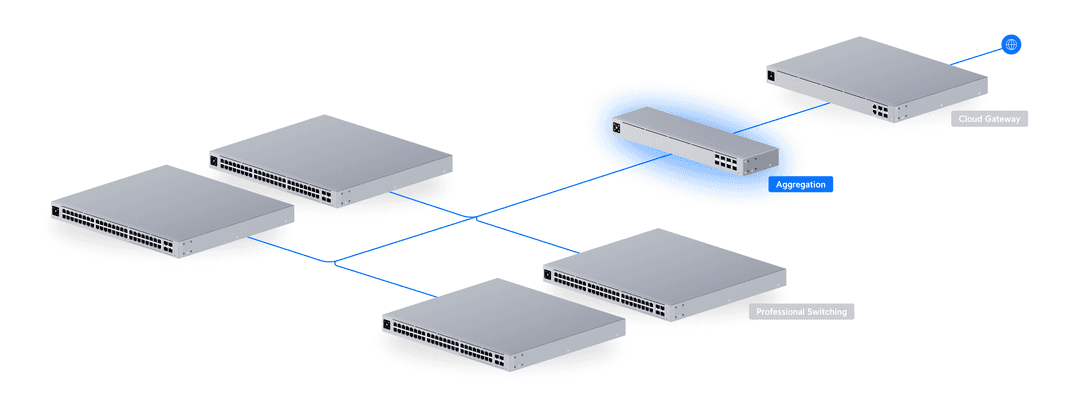

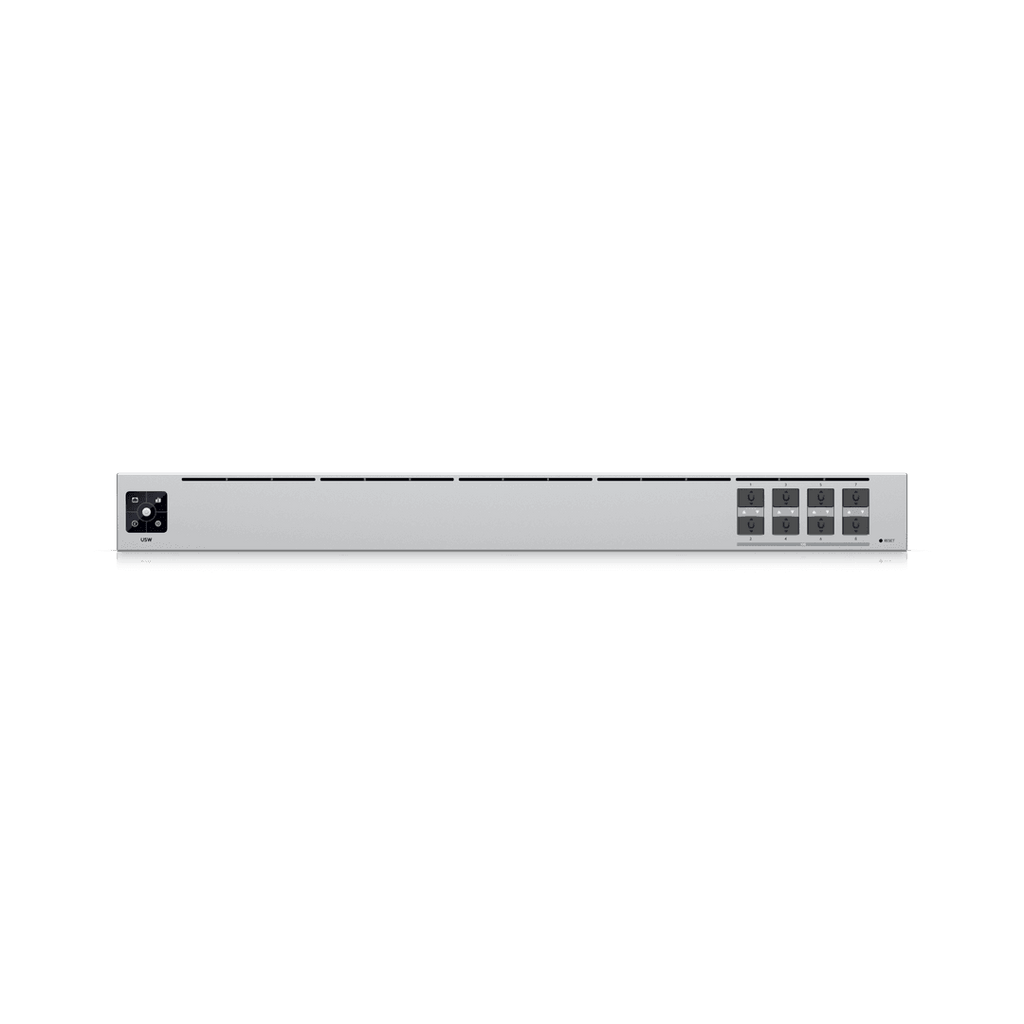

UniFi Aggregation Switch is a managed Layer 2 switch with eight 10G SFP+ ports. Featuring a compact 4.7" depth and fanless design, it supports high-bandwidth links to provide link aggregation for higher capacity and increased availability.
Get notified when USW-Aggregation is back in stock.
No spam. One single email when the product is available.
You're all set! You'll receive an email as soon as the product is back in stock.
Volume Discounts
1
$422.99/ea
2-4
$421.73/ea
5-9
$420.46/ea
10-19
$417.93/ea
20+
$415.40/ea
Votre prix :
UniFi Switch Aggregation
Fabricant
Ubiquiti
Modèle
USW-Aggregation
UPC
810010074157
Catégorie
Networking — Switches 4 to 10 Ports
Poids
7.45 lbs
Dimensions (boîte)
9.6" × 20.6" × 4.9" (L×P×H)
Overview

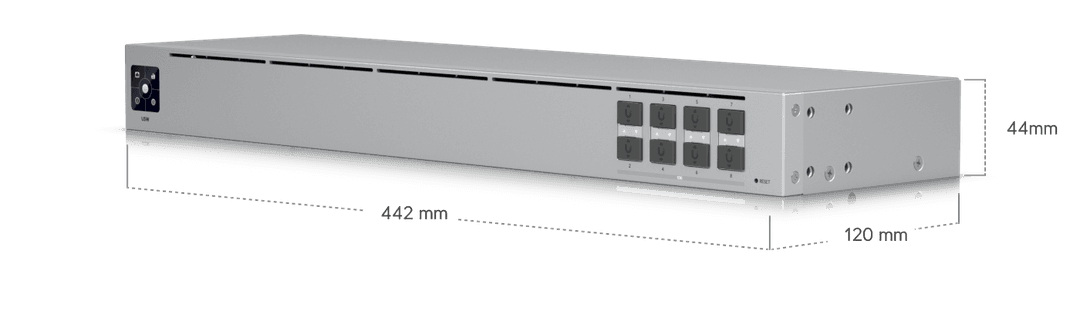

Dimensions
442 x 120 x 43.7 mm
(17.4 x 4.7 x 1.7")

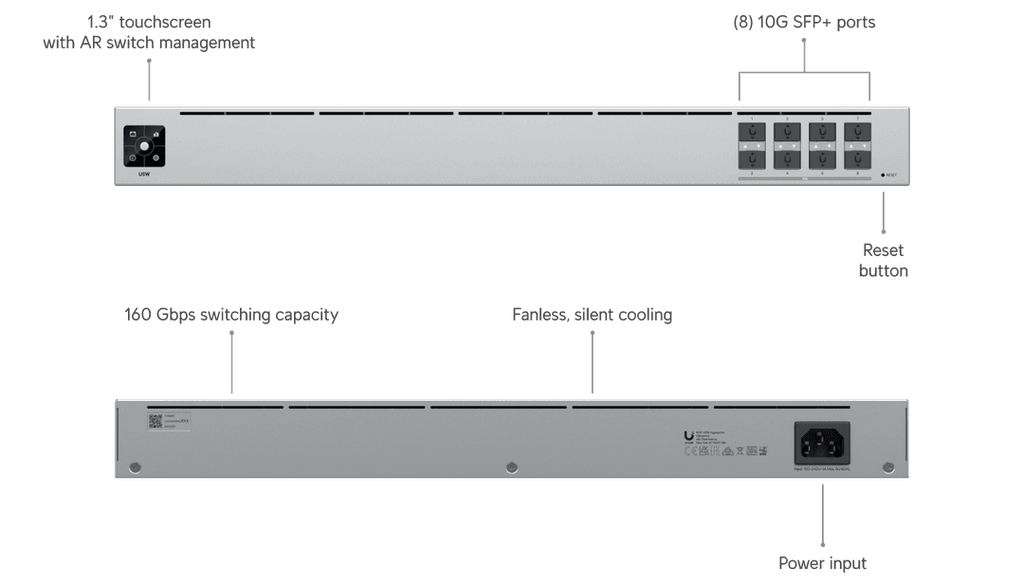

10G SFP+
8
(10G/1G)
Form Factor
Rack mount (1U)
Switching Capacity
160 Gbps
Total Non-Blocking Throughput
80 Gbps
Forwarding Rate
119 Mpps
Supported VLANs
1,000
MAC Address Table Size
16,000
Packet Buffer Size
1.5 MB
IPv4
128
MAC
128
LACP Port Aggregation
✓
STP & RSTP
✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
✓
IGMP Snooping
✓
802.1X Control
✓
MAC-Based ACLs & Device Isolation
✓
DHCP Snooping & Guarding
✓
Egress Rate Limit
✓
Flow Control
✓
Storm Control
✓
Multicast & Broadcast Rate Limiting
✓
MAC Address Blocking
✓
IP-Based ACLs & Network Isolation
✓
MAC-Based Port Restriction
✓
Port Isolation
✓
Port Mirroring
✓
Jumbo Frames
✓
LLDP-MED
✓
Voice VLAN
✓
Loop Protection
✓
Virtual Network Override
✓
Max. Power Consumption
36W (Including SFP modules)
Power Method
Universal input, 100–240V AC, 50/60 Hz
Power Input Method
AC input
Power Supply
AC/DC, internal, 36W
Supported Voltage Range
100–240V AC
Management
Ethernet
AR
Heat Dissipation
102 BTU/hr
Weight
Without mounting brackets: 2.6 kg (5.8 lb)
With mounting brackets: 2.7 kg (6 lb)
Enclosure Material
SGCC steel
Mount Material
SGCC steel
Supported Rack Depth
400~1200 mm
(15.7-47.2")
LCM Display
1.3" touchscreen
ESD Protection
Air: ± 16kV, contact: ± 12kV
Ambient Operating Temperature
-5 to 40° C (23 to 104° F)
Ambient Operating Humidity
10 to 90% noncondensing
NDAA Compliant
✓
Certifications
CE, FCC, IC, Anatel: 04456-21-08356
Application Requirements
Version 5.14.12 and later
UniFi Network
Version 5.14.12 and later
