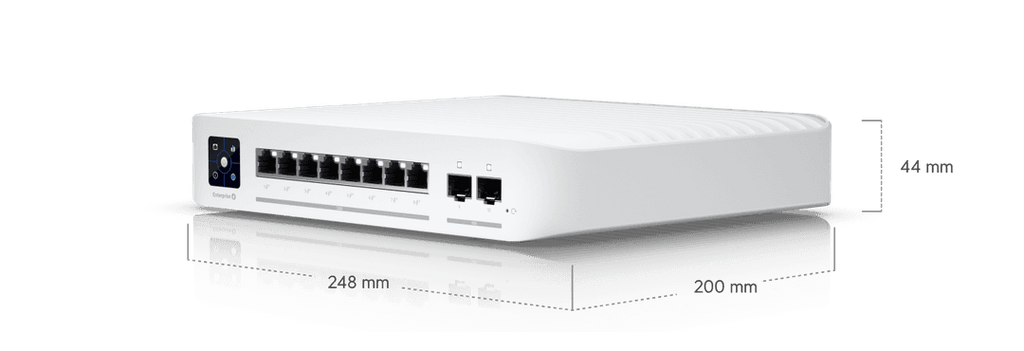

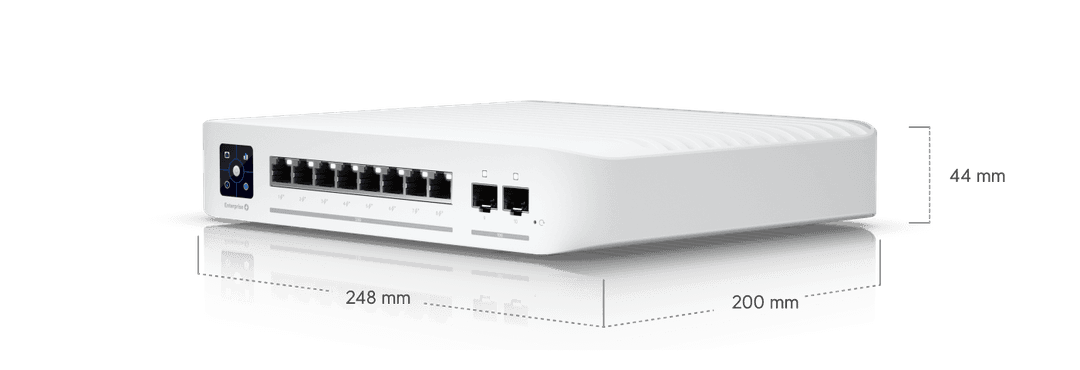

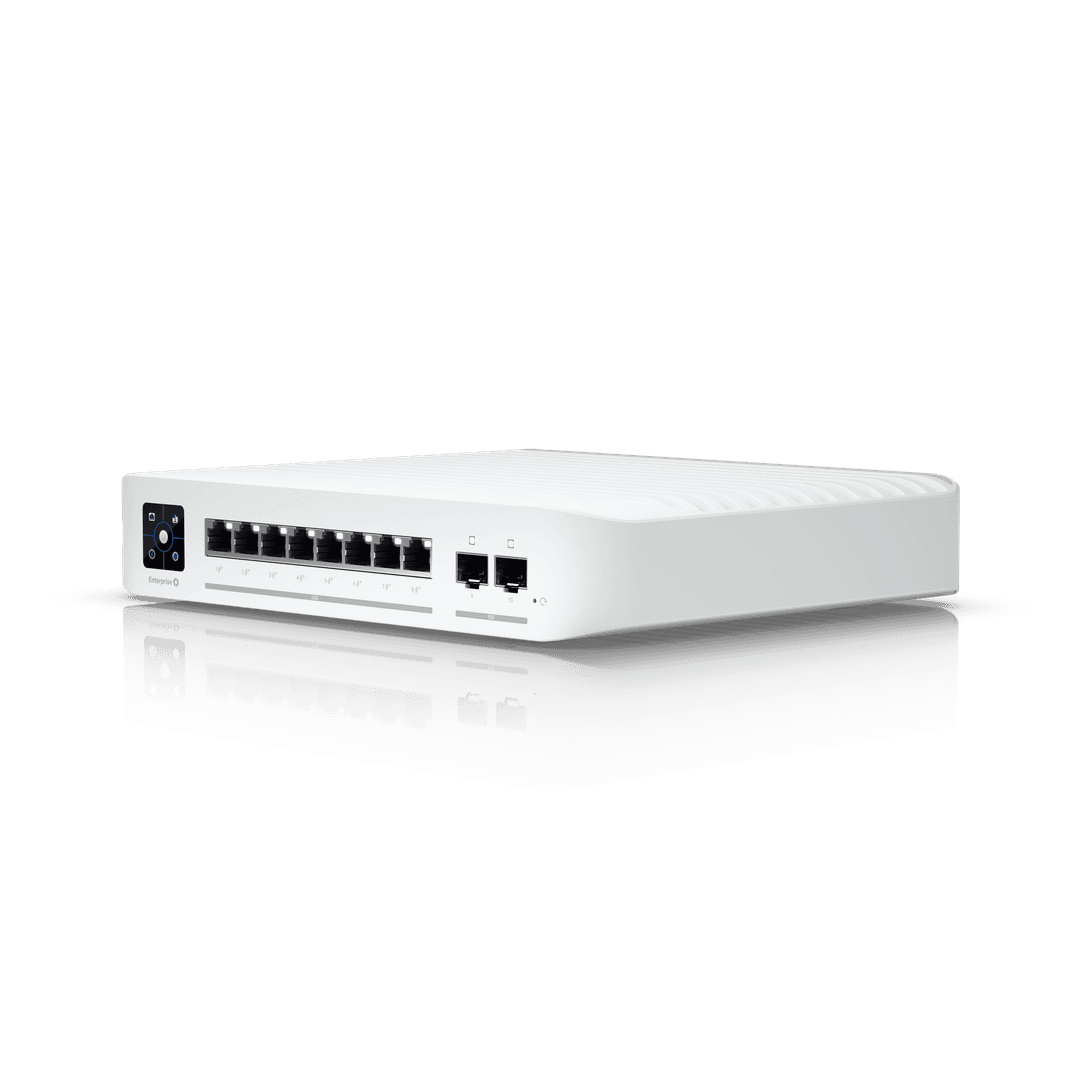

USW-Enterprise-8-PoE

Name: USW-Enterprise-8-PoE
Brand: Ubiquiti
SKU: USWENTRPRS8POCA
Price: 634.99 CAD
Availability: InStock

$634.99

Switch Enterprise 8 PoE

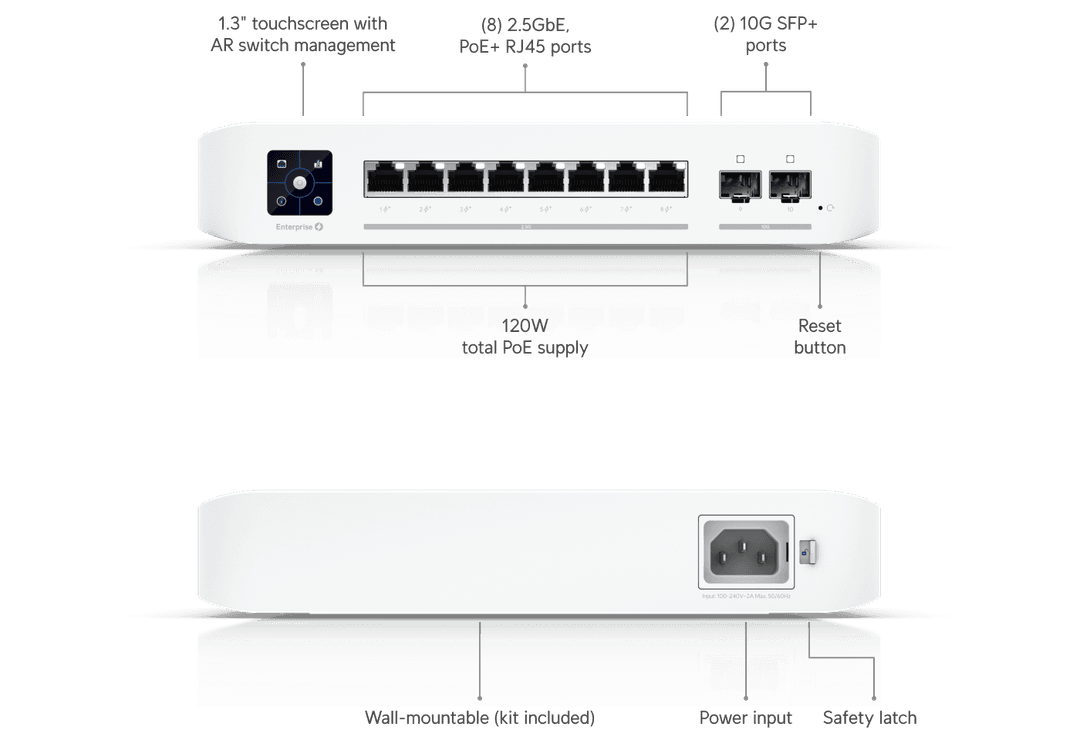

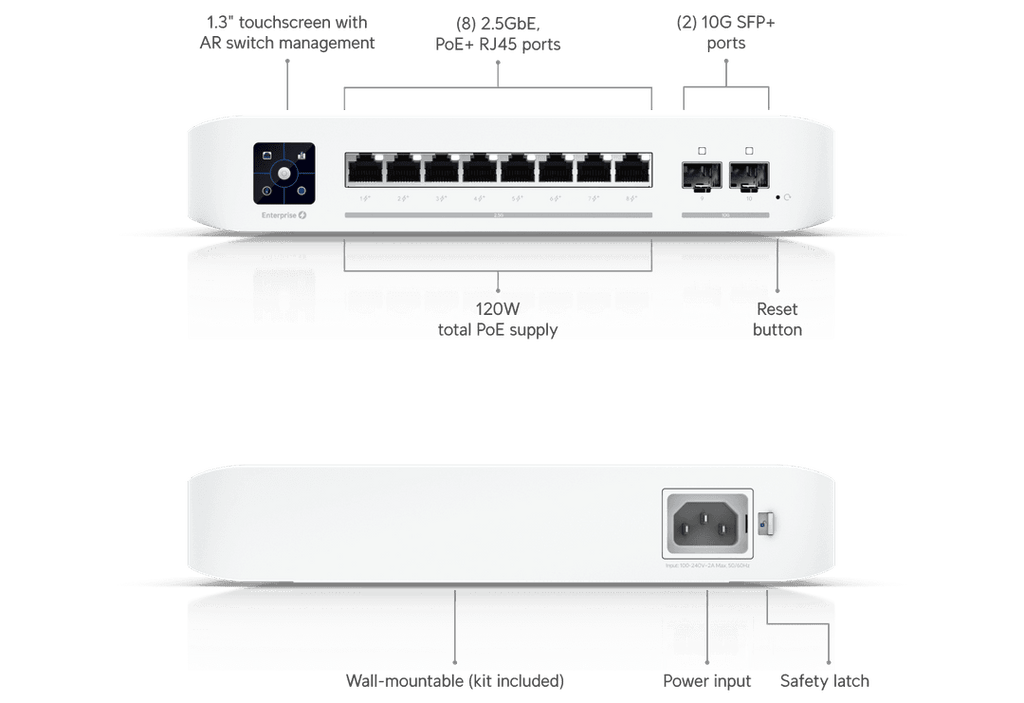

The Switch Enterprise 8 PoE (USW Enterprise 8 PoE) is a fully managed, Layer 3 switch with (8) 2.5GbE, 802.3at PoE+ RJ45 ports and (2) 10G SFP+ ports.The USW Enterprise 8 PoE also features a 1.3" LCM color touchscreen that concisely displays key system and connection insights. This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.

1 $634.99/ea

2-4 $634.76/ea

5-9 $634.52/ea

10-19 $634.29/ea

20+ $634.06/ea

Switch Enterprise 8 PoE

Fabricant	Ubiquiti
Modèle	USW-Enterprise-8-PoE
UPC	810010074744
Catégorie	Networking — Switches 4 to 10 Ports
Poids	6 lbs
Dimensions (boîte)	10.4" × 14.5" × 3.4" (L×P×H)

TechnicalIn The BoxDocumentsFAQ

Overview

Dimensions	200 x 248 x 44 mm (7.9 x 9.8 x 1.7")
2.5 GbE RJ45	8 (All PoE+) (2.5G/1G/100M)
10G SFP+	2 (10G/1G)
Max. PoE Output	Up to PoE+
Total PoE Availability	120W
Layer 3	✓
Form Factor	Compact desktop
Switching Capacity	80 Gbps
Total Non-Blocking Throughput	40 Gbps
Forwarding Rate	60 Mpps
Supported VLANs	1,000
MAC Address Table Size	16,000
ARP Entries	512
IPv4 Routes	512
IPv4 Static Routes	256
Packet Buffer Size	1.5 MB
IPv4	12
MAC	10
DHCP Server (Local Networks)	✓
Inter-VLAN Routing (Local Networks)	✓
Static Routing (Local Networks)	✓
LACP Port Aggregation	✓
STP & RSTP	✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)	✓
IGMP Snooping	✓
802.1X Control	✓
MAC-Based ACLs & Device Isolation	✓
DHCP Snooping & Guarding	✓
Egress Rate Limit	✓
Flow Control	✓
Storm Control	✓
Multicast & Broadcast Rate Limiting	✓
MAC Address Blocking	✓
IP-Based ACLs & Network Isolation	✓
MAC-Based Port Restriction	✓
Port Isolation	✓
Port Mirroring	✓
Jumbo Frames	✓
LLDP-MED	✓
Voice VLAN	✓
Loop Protection	✓
Virtual Network Override	✓
PoE Ports	8
PoE+	32W
Max. Power Consumption	30W (Excluding PoE Output) 150W (Including PoE Output)
Power Method	Universal input, 100–240V AC, 50/60 Hz
Power Input Method	AC input
Power Supply	AC/DC, internal, 150W
Supported Voltage Range	100–240V AC
Management	Ethernet AR
Heat Dissipation	102.4 BTU/hr (Excluding PoE Output)
Weight	2.4 kg (5.3 lb)
Enclosure Material	Polycarbonate
Mount Material	Polycarbonate
Supported Rack Depth	400~1200 mm (15.7-47.2")
LCM Display	1.3" touchscreen
ESD Protection	Air: ± 16kV, contact: ± 12kV
Ambient Operating Temperature	-5 to 45° C (23 to 113° F)
Ambient Operating Humidity	10 to 90% noncondensing
NDAA Compliant	✓
Certifications	CE, FCC, IC, Anatel: 06645-23-08356
Application Requirements	Version 6.3.51 and later
UniFi Network	Version 6.3.51 and later

Specs

Dimensions	200 x 248 x 44 mm (7.9 x 9.8 x 1.7")
2.5 GbE RJ45	8 (All PoE+) (2.5G/1G/100M)
10G SFP+	2 (10G/1G)
Max. PoE Output	Up to PoE+
Total PoE Availability	120W
Layer 3	✓
Form Factor	Compact desktop
Switching Capacity	80 Gbps
Total Non-Blocking Throughput	40 Gbps
Forwarding Rate	60 Mpps
Supported VLANs	1,000
MAC Address Table Size	16,000
ARP Entries	512
IPv4 Routes	512
IPv4 Static Routes	256
Packet Buffer Size	1.5 MB
IPv4	12
MAC	10
DHCP Server (Local Networks)	✓
Inter-VLAN Routing (Local Networks)	✓
Static Routing (Local Networks)	✓
LACP Port Aggregation	✓
STP & RSTP	✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)	✓
IGMP Snooping	✓
802.1X Control	✓
MAC-Based ACLs & Device Isolation	✓
DHCP Snooping & Guarding	✓
Egress Rate Limit	✓
Flow Control	✓
Storm Control	✓
Multicast & Broadcast Rate Limiting	✓
MAC Address Blocking	✓
IP-Based ACLs & Network Isolation	✓
MAC-Based Port Restriction	✓
Port Isolation	✓
Port Mirroring	✓
Jumbo Frames	✓
LLDP-MED	✓
Voice VLAN	✓
Loop Protection	✓
Virtual Network Override	✓
PoE+	32W
Max. Power Consumption	30W (Excluding PoE Output) 150W (Including PoE Output)
Power Method	Universal input, 100–240V AC, 50/60 Hz
Power Input Method	AC input
Power Supply	AC/DC, internal, 150W
Supported Voltage Range	100–240V AC
Management	Ethernet AR
Heat Dissipation	102.4 BTU/hr (Excluding PoE Output)
Weight	2.4 kg (5.3 lb)
Enclosure Material	Polycarbonate
Mount Material	Polycarbonate
Supported Rack Depth	400~1200 mm (15.7-47.2")
LCM Display	1.3" touchscreen
ESD Protection	Air: ± 16kV, contact: ± 12kV
Ambient Operating Temperature	-5 to 45° C (23 to 113° F)
Ambient Operating Humidity	10 to 90% noncondensing
NDAA Compliant	✓
Certifications	CE, FCC, IC, Anatel: 06645-23-08356
UniFi Network	Version 6.3.51 and later
