USW-Flex-2.5G-8-PoE

Name: USW-Flex-2.5G-8-PoE
Brand: Ubiquiti
SKU: FLEX25GPOECA
Price: 269.99 CAD
Availability: OutOfStock

$269.99 $275.99

Flex 2.5G PoE

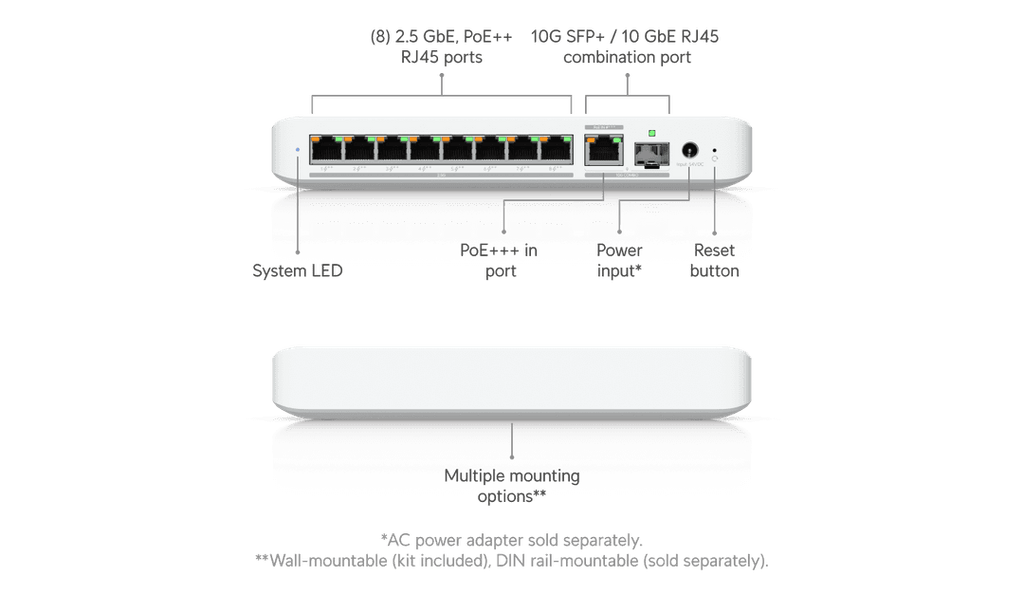

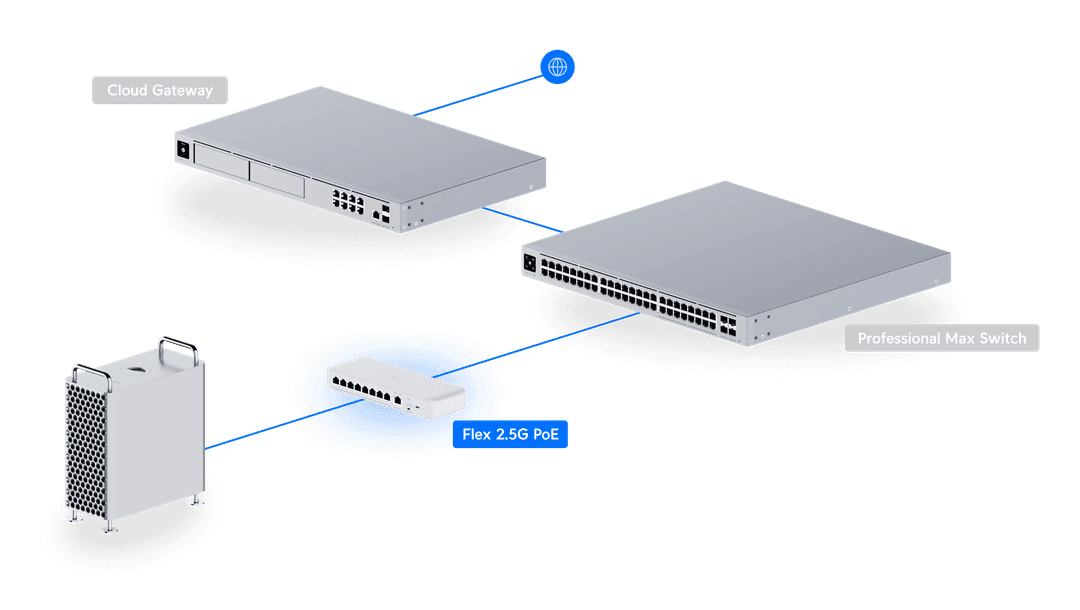

Flexible, 8port 2.5 GbE PoE++ switch with a 10 GbE RJ45/SFP+ combination uplink port that can be powered with PoE+++ or an AC power adapter.

1 $269.99/ea

2-4 $269.72/ea

5-9 $269.45/ea

10-19 $269.18/ea

20+ $268.91/ea

Flex 2.5G PoE

Fabricant	Ubiquiti
Modèle	USW-Flex-2.5G-8-PoE
UPC	810084695968
Catégorie	Networking Wireless Dual Band — APs & Bridges
Poids	1.7 lbs
Dimensions (boîte)	4.8" × 9.8" × 2.1" (L×P×H)

TechnicalIn The BoxDocumentsFAQ

Overview

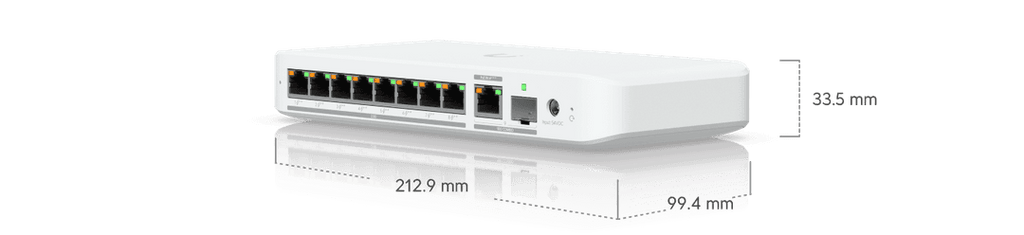

Dimensions	212.9 x 99.4 x 33.5 mm (8.4 x 3.9 x 1.3")

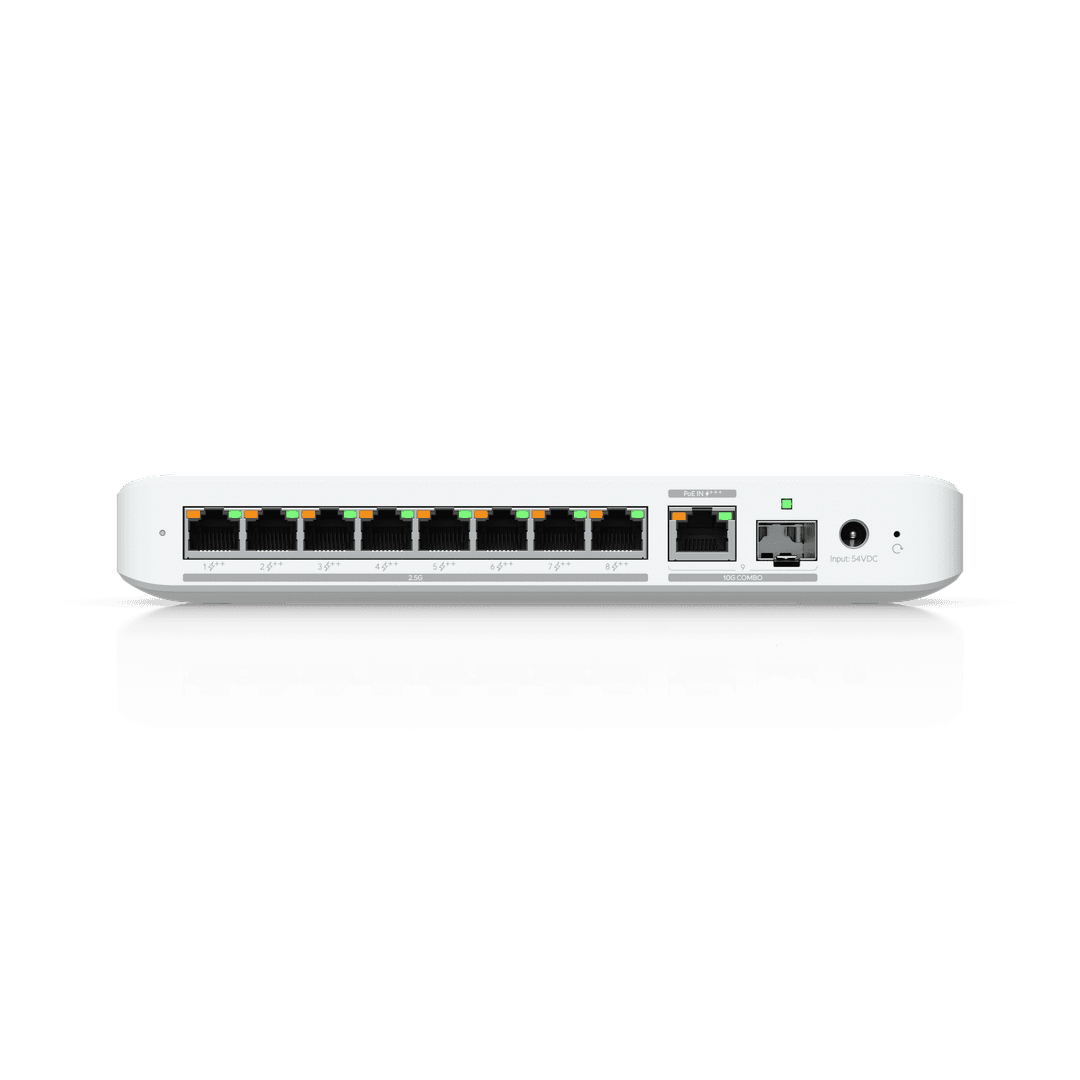

2.5 GbE RJ45	8 (All PoE++) (2.5G/1G/100M/10M)
10 GbE RJ45	1 (PoE+++) (10G/5G/2.5G/1G/100M)
10G SFP+	1 (10G/1G)
Max. PoE Output	Up to PoE++
Total PoE Availability	PoE+++ input: 76W PoE++ input: 46W PoE+ input: 16W 210W AC adapter input: 196W

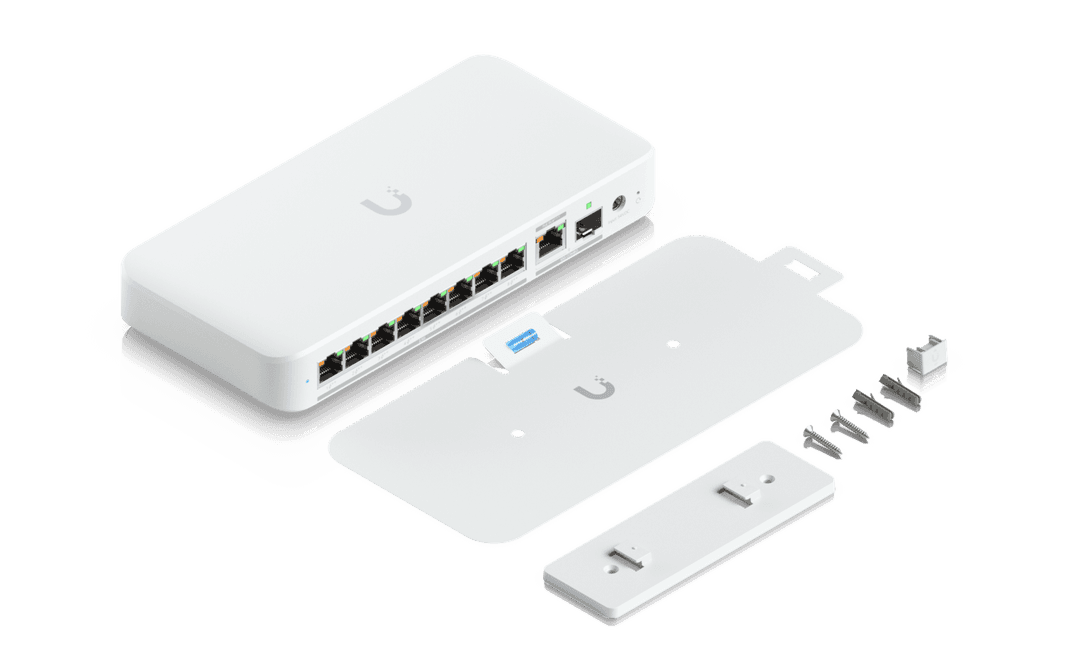

Form Factor	Compact Desktop, wall, DIN, magnetic
Switching Capacity	60 Gbps
Total Non-Blocking Throughput	30 Gbps
Forwarding Rate	45 Mpps
Supported VLANs	256
MAC Address Table Size	4,000
STP & RSTP	✓
Egress Rate Limit	✓
Flow Control	✓
Storm Control	✓
Multicast & Broadcast Rate Limiting	✓
Port Isolation	✓
Port Mirroring	✓
Jumbo Frames	✓
Loop Protection	✓
PoE Ports	8
PoE++	64W
PoE	15.4W
PoE+	32W
Max. Power Consumption	14W (Excluding PoE output) with PoE input 17W (Excluding PoE output) with AC adapter input 210W (Including PoE Output)
Power Method	(1) AC/DC adapter (Excluded) (1) PoE+++
Power Input Method	DC Input PoE
Supported Voltage Range	50–57V DC/PoE
Management	Ethernet
Weight	567 g (20 oz)
Enclosure Material	Polycarbonate
Mount Material	Polycarbonate
Ambient Operating Temperature	-20 to 45° C (-4 to 113° F)
Ambient Operating Humidity	10 to 90% noncondensing
NDAA Compliant	✓
Certifications	CE, FCC, IC
Application Requirements	Version 9.0.114 and later
UniFi Network	Version 9.0.114 and later

Specs

Dimensions	212.9 x 99.4 x 33.5 mm (8.4 x 3.9 x 1.3")
2.5 GbE RJ45	8 (All PoE++) (2.5G/1G/100M/10M)
10 GbE RJ45	1 (PoE+++) (10G/5G/2.5G/1G/100M)
10G SFP+	1 (10G/1G)
Max. PoE Output	Up to PoE++
Total PoE Availability	PoE+++ input: 76W PoE++ input: 46W PoE+ input: 16W 210W AC adapter input: 196W
Form Factor	Compact Desktop, wall, DIN, magnetic
Switching Capacity	60 Gbps
Total Non-Blocking Throughput	30 Gbps
Forwarding Rate	45 Mpps
Supported VLANs	256
MAC Address Table Size	4,000
STP & RSTP	✓
Egress Rate Limit	✓
Flow Control	✓
Storm Control	✓
Multicast & Broadcast Rate Limiting	✓
Port Isolation	✓
Port Mirroring	✓
Jumbo Frames	✓
Loop Protection	✓
PoE++	64W
PoE	15.4W
PoE+	32W
Max. Power Consumption	14W (Excluding PoE output) with PoE input 17W (Excluding PoE output) with AC adapter input 210W (Including PoE Output)
Power Method	(1) AC/DC adapter (Excluded) (1) PoE+++
Power Input Method	DC Input PoE
Supported Voltage Range	50–57V DC/PoE
Management	Ethernet
Weight	567 g (20 oz)
Enclosure Material	Polycarbonate
Mount Material	Polycarbonate
Ambient Operating Temperature	-20 to 45° C (-4 to 113° F)
Ambient Operating Humidity	10 to 90% noncondensing
NDAA Compliant	✓
Certifications	CE, FCC, IC
UniFi Network	Version 9.0.114 and later
