USW-Flex-XG

Name: USW-Flex-XG
Brand: Ubiquiti
SKU: USWFLEXXGCA
Price: 402.99 CAD
Availability: InStock

$402.99 $413.99

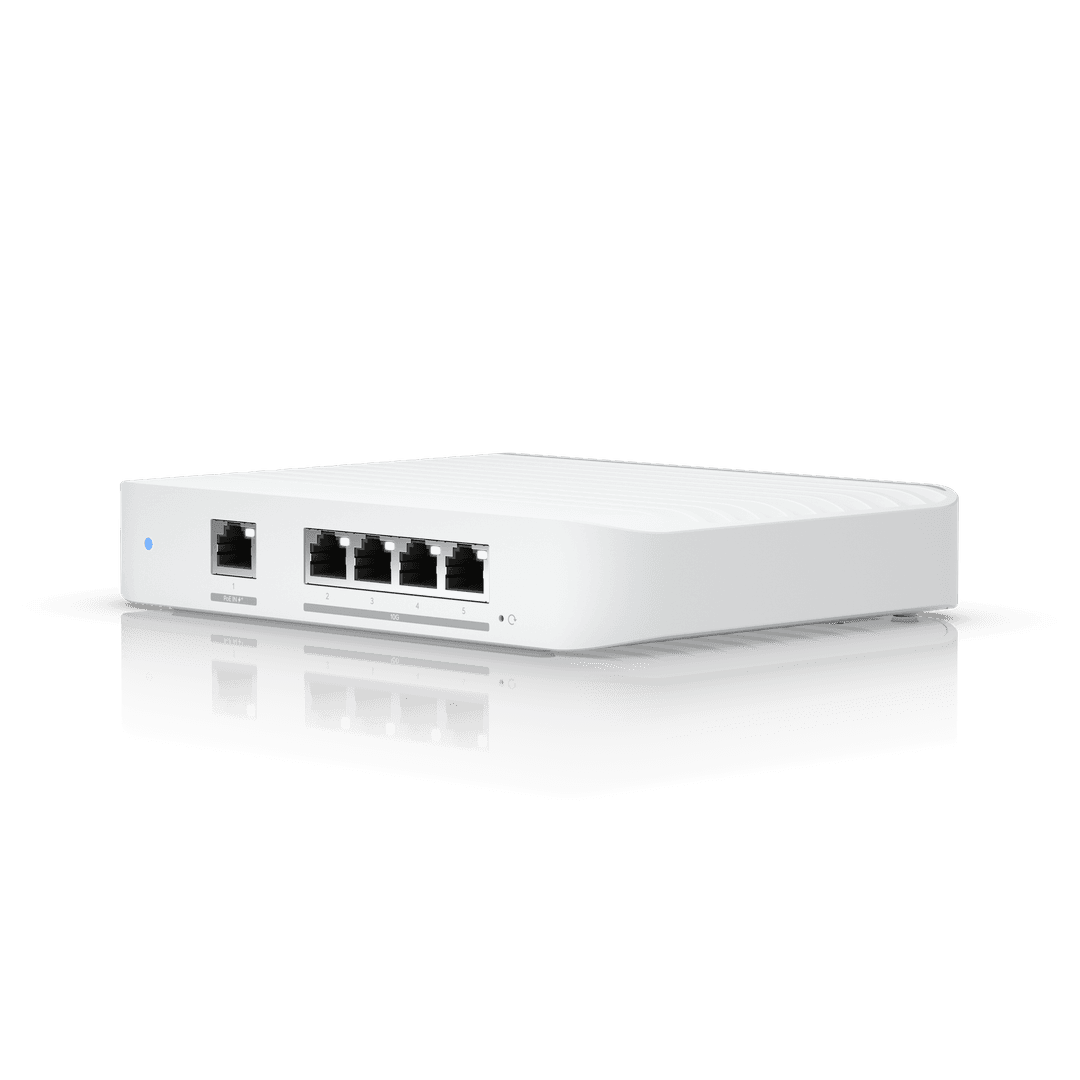

UniFi Switch Flex XG

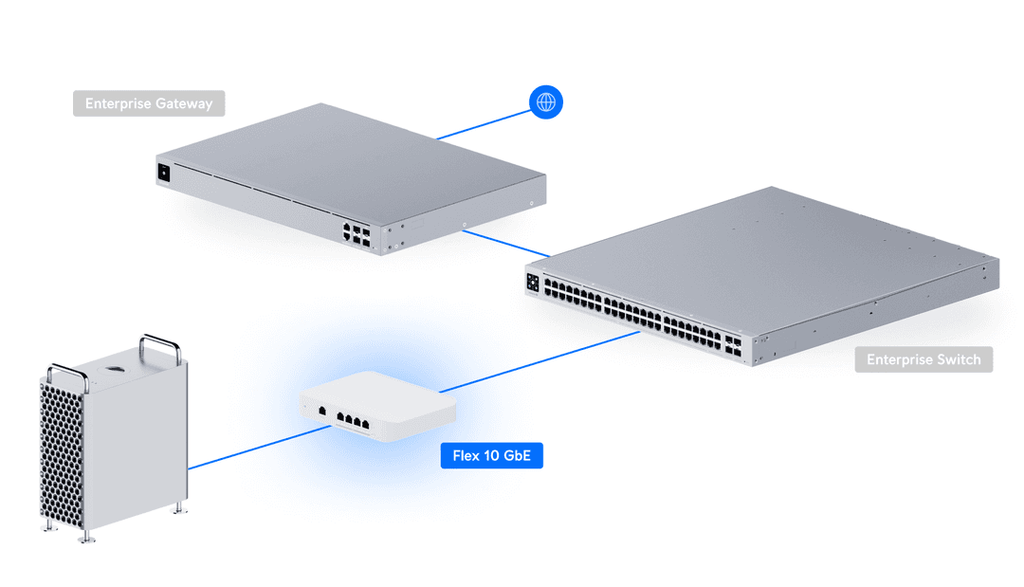

Ubiquiti USW-Flex-XG - High-performance, managed Layer 2 Multi-gigabit switch with (1) Gigabit PoE input and (4) 10GbE Ethernet ports. Easily expand your network with the UniFi Switch Flex XG (USW Flex XG), a highly configurable, managed, 10GbE Layer 2 switch with (5) RJ45 Gigabit Ethernet ports, including (1) PoE Gigabit input and (4) 10GbE RJ45 Ethernet ports. Sporting a compact, slim design, the USW Flex XG delivers high-performance switching in any environment and is centrally managed in the UniFi Network application.

1 $402.99/ea

2-4 $402.84/ea

5-9 $402.68/ea

10-19 $402.53/ea

20+ $402.37/ea

UniFi Switch Flex XG

Fabricant	Ubiquiti
Modèle	USW-Flex-XG
UPC	810010075857
Catégorie	Networking — Switches 4 to 10 Ports
Poids	3.45 lbs
Dimensions (boîte)	6.8" × 11.3" × 2.9" (L×P×H)

TechnicalIn The BoxDocumentsFAQ

Overview

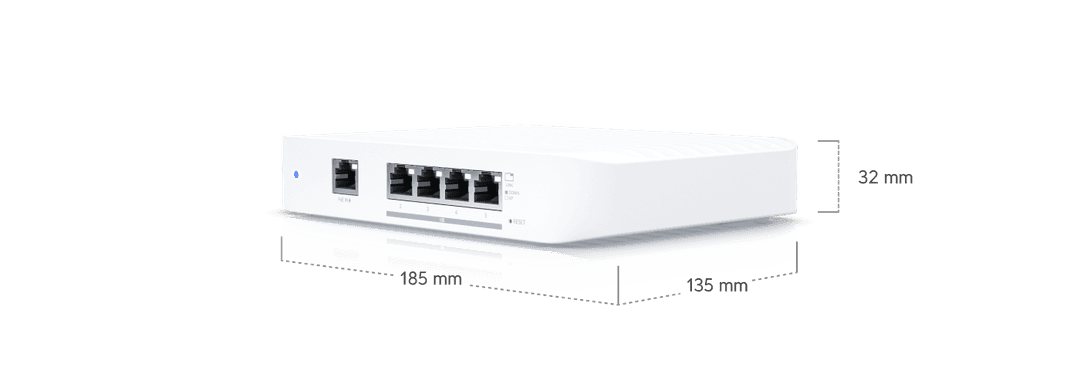

Dimensions	135 x 185 x 32 mm (5.3 x 7.3 x 1.3")
1 GbE RJ45	1 (1G/100M/10M)
10 GbE RJ45	4
Form Factor	Compact desktop, wall
Switching Capacity	82 Gbps
Total Non-Blocking Throughput	41 Gbps
Forwarding Rate	61 Mpps
Supported VLANs	1,000
MAC Address Table Size	16,000
Packet Buffer Size	1.5 MB
IPv4	12
MAC	10
LACP Port Aggregation	✓
STP & RSTP	✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)	✓
IGMP Snooping	✓
802.1X Control	✓
MAC-Based ACLs & Device Isolation	✓
DHCP Snooping & Guarding	✓
Egress Rate Limit	✓
Flow Control	✓
Storm Control	✓
Multicast & Broadcast Rate Limiting	✓
MAC Address Blocking	✓
IP-Based ACLs & Network Isolation	✓
MAC-Based Port Restriction	✓
Port Isolation	✓
Port Mirroring	✓
Jumbo Frames	✓
LLDP-MED	✓
Voice VLAN	✓
Loop Protection	✓
Virtual Network Override	✓
Max. Power Consumption	25W
Power Method	(1) PoE+ (1) USB Type-C, 5V DC, 5A
Power Input Method	USB Input PoE
Power Supply	AC/DC, external, 25W
Supported Voltage Range	4.8—5.2V DC/USB 44V—57V PoE
Management	Ethernet
Heat Dissipation	85.3 BTU/hr
Weight	1.2 kg (2.7 lb)
Enclosure Material	Polycarbonate
ESD Protection	Air: ± 16kV, contact: ± 12kV
Ambient Operating Temperature	-5 to 45° C (23 to 113° F)
Ambient Operating Humidity	10 to 90% noncondensing
NDAA Compliant	✓
Certifications	CE, FCC, IC, Anatel: 06606-25-08356
Application Requirements	Version 6.1.67 and later
UniFi Network	Version 6.1.67 and later

Specs

Dimensions	135 x 185 x 32 mm (5.3 x 7.3 x 1.3")
1 GbE RJ45	1 (1G/100M/10M)
10 GbE RJ45	4
Form Factor	Compact desktop, wall
Switching Capacity	82 Gbps
Total Non-Blocking Throughput	41 Gbps
Forwarding Rate	61 Mpps
Supported VLANs	1,000
MAC Address Table Size	16,000
Packet Buffer Size	1.5 MB
IPv4	12
MAC	10
LACP Port Aggregation	✓
STP & RSTP	✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)	✓
IGMP Snooping	✓
802.1X Control	✓
MAC-Based ACLs & Device Isolation	✓
DHCP Snooping & Guarding	✓
Egress Rate Limit	✓
Flow Control	✓
Storm Control	✓
Multicast & Broadcast Rate Limiting	✓
MAC Address Blocking	✓
IP-Based ACLs & Network Isolation	✓
MAC-Based Port Restriction	✓
Port Isolation	✓
Port Mirroring	✓
Jumbo Frames	✓
LLDP-MED	✓
Voice VLAN	✓
Loop Protection	✓
Virtual Network Override	✓
Max. Power Consumption	25W
Power Method	(1) PoE+ (1) USB Type-C, 5V DC, 5A
Power Input Method	USB Input PoE
Power Supply	AC/DC, external, 25W
Supported Voltage Range	4.8—5.2V DC/USB 44V—57V PoE
Management	Ethernet
Heat Dissipation	85.3 BTU/hr
Weight	1.2 kg (2.7 lb)
Enclosure Material	Polycarbonate
ESD Protection	Air: ± 16kV, contact: ± 12kV
Ambient Operating Temperature	-5 to 45° C (23 to 113° F)
Ambient Operating Humidity	10 to 90% noncondensing
NDAA Compliant	✓
Certifications	CE, FCC, IC, Anatel: 06606-25-08356
UniFi Network	Version 6.1.67 and later
