USW-Lite-8-POE

Name: USW-Lite-8-POE
Brand: Ubiquiti
SKU: USWLITE8POECA
Price: 176.99 CAD
Availability: OutOfStock

$176.99

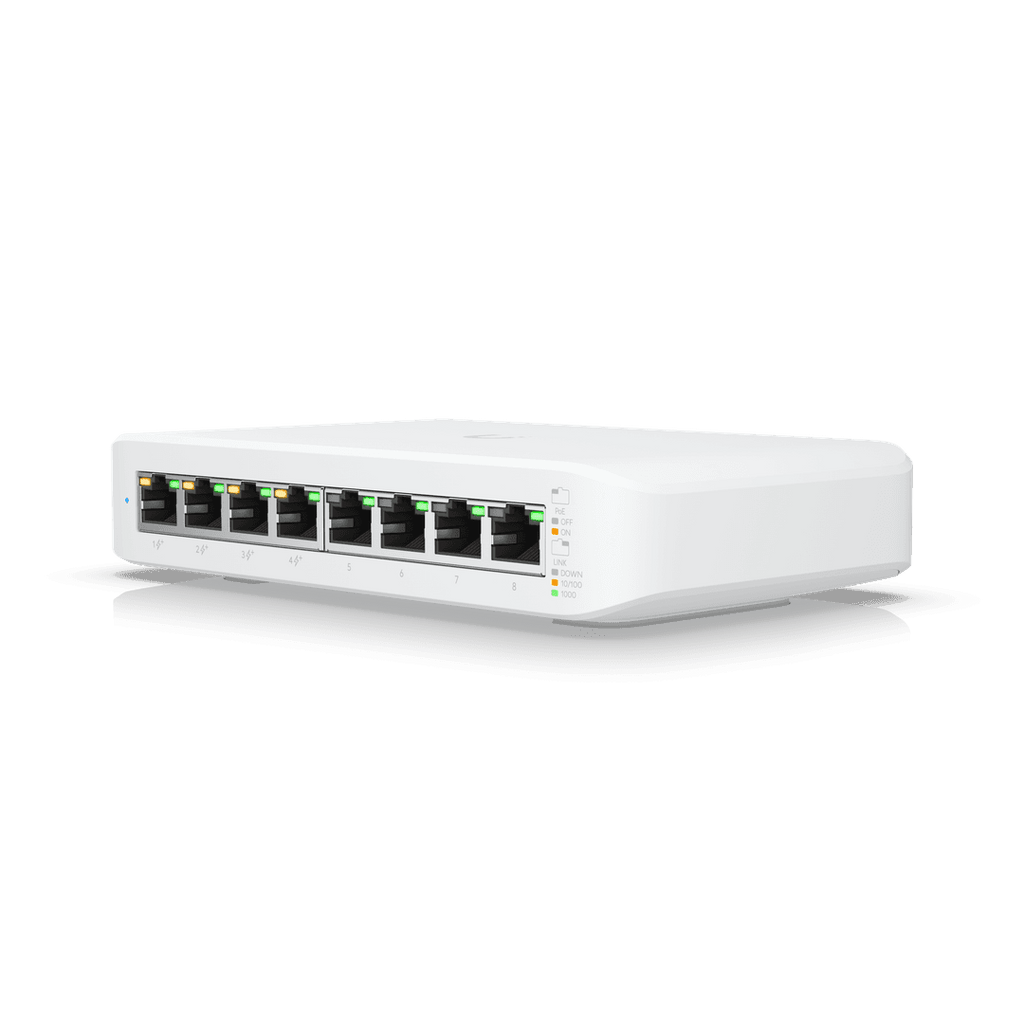

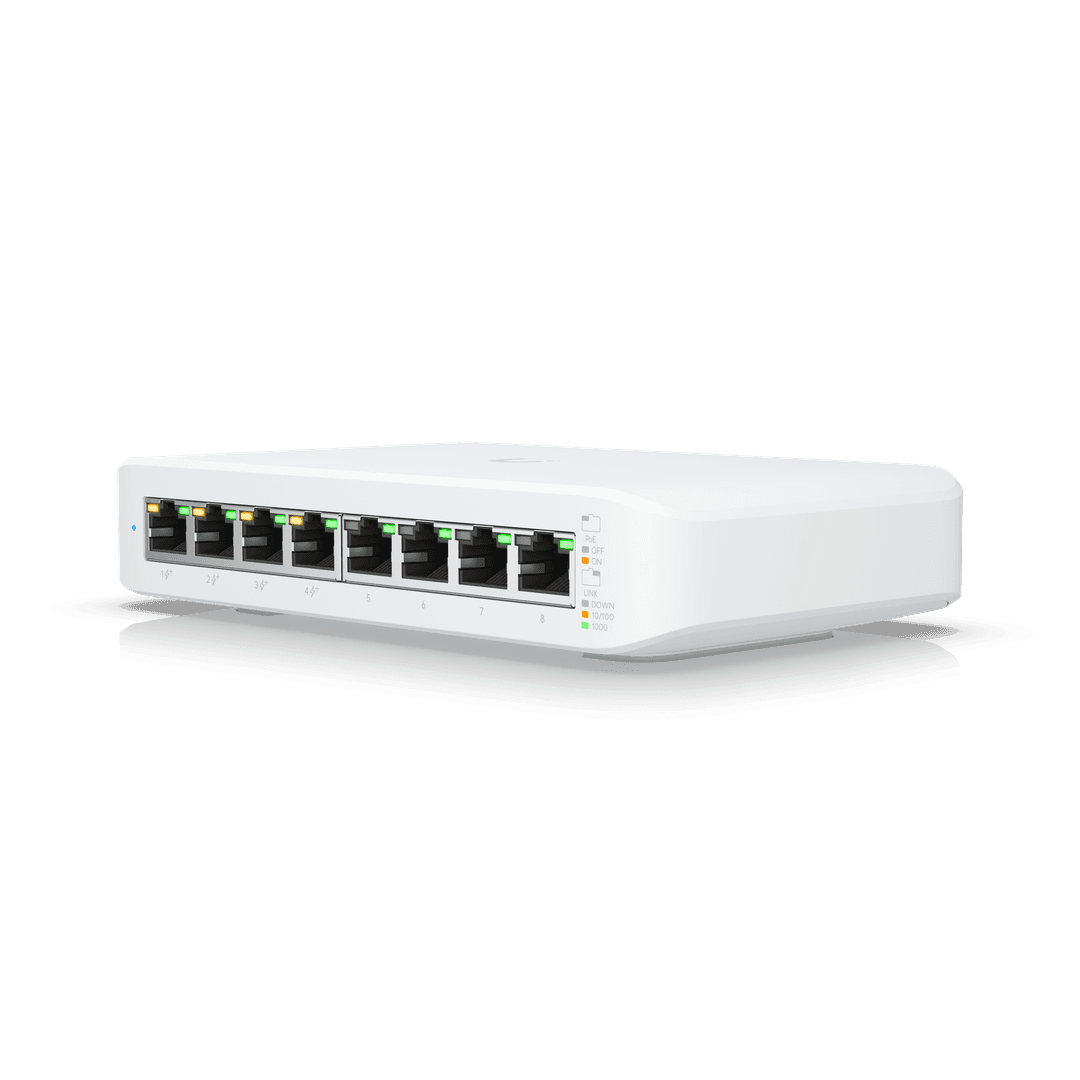

UniFi Switch Lite 8 Port PoE

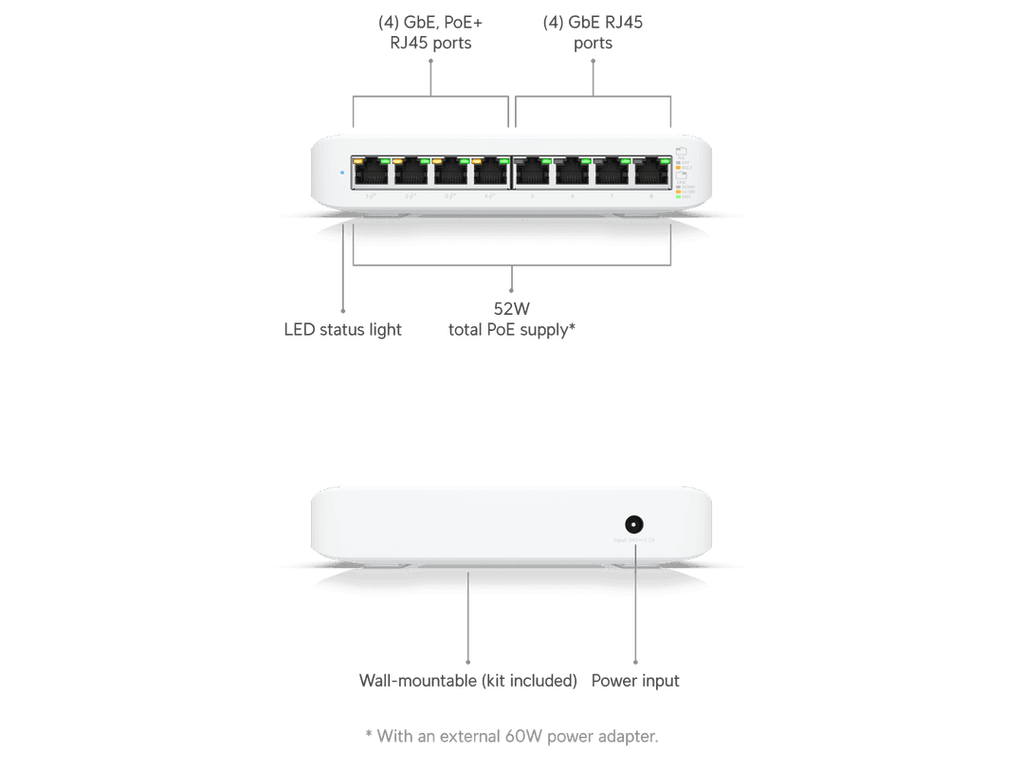

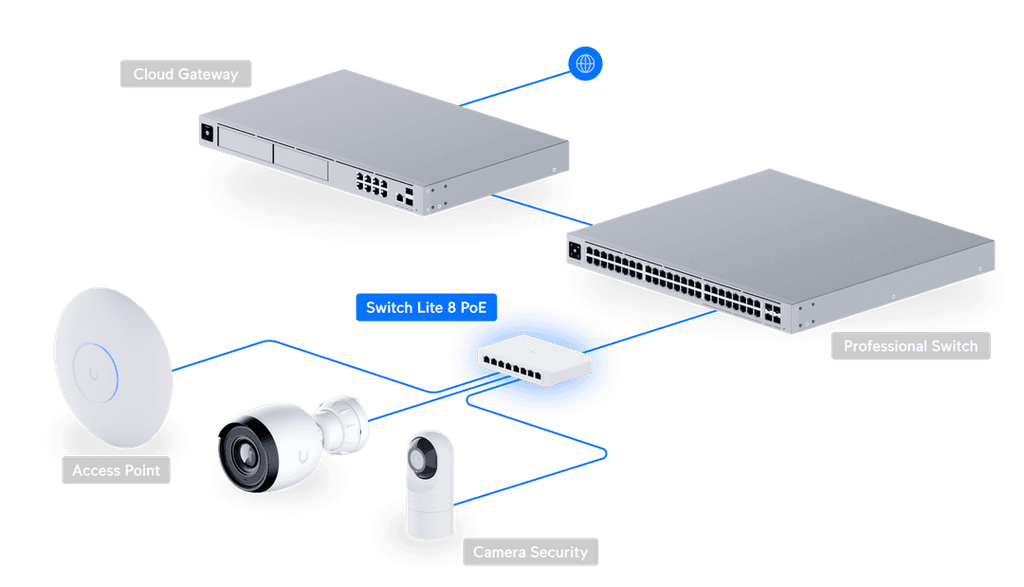

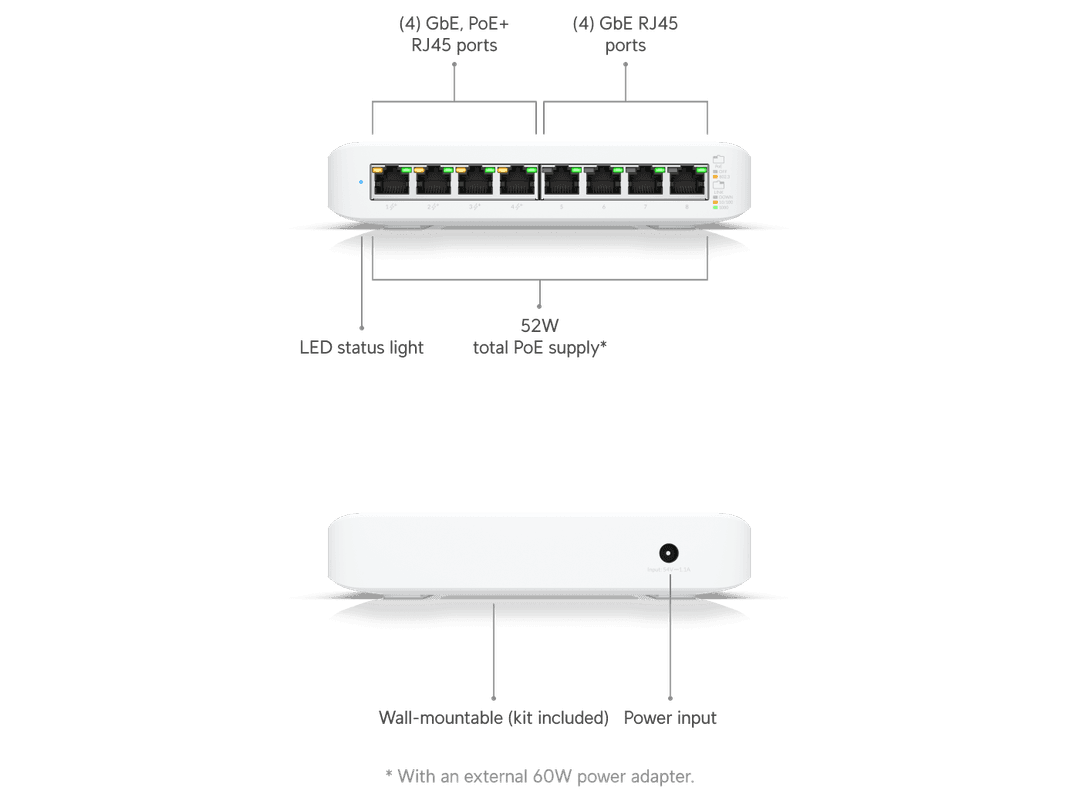

The USW-Lite-8-PoE is a fully managed Layer 2 switch with eight Gigabit Ethernet ports for your RJ45 Ethernet devices. Four ports also offer auto-sensing 802.3at PoE+ that provide up to a total PoE wattage of 52W for UniFi Access Points or other PoE devices. Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-Lite-8-PoE offers Layer 2 switching protocols and features. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.

1 $176.99/ea

2-4 $176.44/ea

5-9 $175.89/ea

10-19 $174.79/ea

20+ $173.69/ea

UniFi Switch Lite 8 Port PoE

Fabricant	Ubiquiti
Modèle	USW-Lite-8-POE
UPC	810010071101
Catégorie	Networking — Switches 12 to 16 Ports
Poids	1.65 lbs
Dimensions (boîte)	5.1" × 7.4" × 4.1" (L×P×H)

TechnicalIn The BoxDocumentsFAQ

Overview

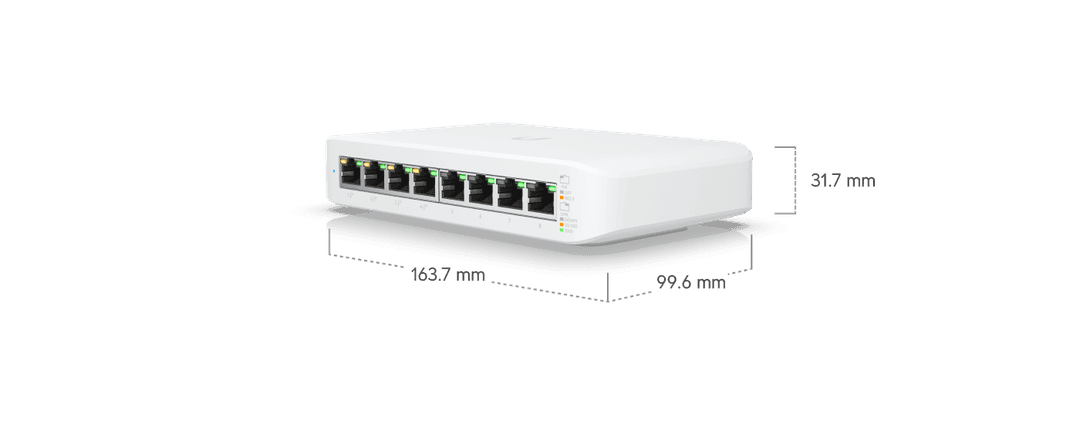

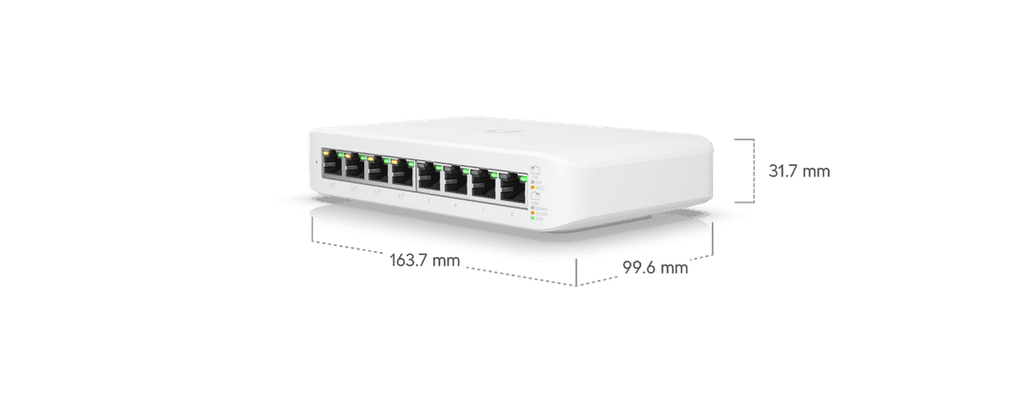

Dimensions	99.6 x 163.7 x 31.7 mm (4 x 6.4 x 1.3")
1 GbE RJ45	8 (4 PoE+) (1G/100M/10M)
Max. PoE Output	Up to PoE+
Total PoE Availability	52W
Form Factor	Compact desktop, wall
Switching Capacity	16 Gbps
Total Non-Blocking Throughput	8 Gbps
Forwarding Rate	12 Mpps
Supported VLANs	1,000
MAC Address Table Size	8,000
Packet Buffer Size	0.5 MB
IPv4	128
MAC	128
LACP Port Aggregation	✓
STP & RSTP	✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)	✓
IGMP Snooping	✓
802.1X Control	✓
MAC-Based ACLs & Device Isolation	✓
DHCP Snooping & Guarding	✓
Egress Rate Limit	✓
Flow Control	✓
Storm Control	✓
Multicast & Broadcast Rate Limiting	✓
MAC Address Blocking	✓
IP-Based ACLs & Network Isolation	✓
MAC-Based Port Restriction	✓
Port Isolation	✓
Port Mirroring	✓
Jumbo Frames	✓
LLDP-MED	✓
Voice VLAN	✓
Loop Protection	✓
Virtual Network Override	✓
PoE Ports	4
PoE+	30W
Max. Power Consumption	8W (Excluding PoE Output) 60W (Including PoE Output)
Power Method	AC/DC Adapter (included)
Power Input Method	DC input
Power Supply	AC/DC, external, 60W
Supported Voltage Range	50–57V DC
Management	Ethernet
Heat Dissipation	27.3 BTU/hr (Excluding PoE Output)
Weight	295 g (10.4 oz)
Enclosure Material	Polycarbonate
Mount Material	Polycarbonate
Ambient Operating Temperature	-15 to 40° C (5 to 104° F)
Ambient Operating Humidity	10 to 90% noncondensing
NDAA Compliant	✓
Certifications	CE, FCC, IC, Anatel: 04479-21-08356
Application Requirements	Version 7.2.94 and later
UniFi Network	Version 7.2.94 and later

Specs

Dimensions	99.6 x 163.7 x 31.7 mm (4 x 6.4 x 1.3")
1 GbE RJ45	8 (4 PoE+) (1G/100M/10M)
Max. PoE Output	Up to PoE+
Total PoE Availability	52W
Form Factor	Compact desktop, wall
Switching Capacity	16 Gbps
Total Non-Blocking Throughput	8 Gbps
Forwarding Rate	12 Mpps
Supported VLANs	1,000
MAC Address Table Size	8,000
Packet Buffer Size	0.5 MB
IPv4	128
MAC	128
LACP Port Aggregation	✓
STP & RSTP	✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)	✓
IGMP Snooping	✓
802.1X Control	✓
MAC-Based ACLs & Device Isolation	✓
DHCP Snooping & Guarding	✓
Egress Rate Limit	✓
Flow Control	✓
Storm Control	✓
Multicast & Broadcast Rate Limiting	✓
MAC Address Blocking	✓
IP-Based ACLs & Network Isolation	✓
MAC-Based Port Restriction	✓
Port Isolation	✓
Port Mirroring	✓
Jumbo Frames	✓
LLDP-MED	✓
Voice VLAN	✓
Loop Protection	✓
Virtual Network Override	✓
PoE+	30W
Max. Power Consumption	8W (Excluding PoE Output) 60W (Including PoE Output)
Power Method	AC/DC Adapter (included)
Power Input Method	DC input
Power Supply	AC/DC, external, 60W
Supported Voltage Range	50–57V DC
Management	Ethernet
Heat Dissipation	27.3 BTU/hr (Excluding PoE Output)
Weight	295 g (10.4 oz)
Enclosure Material	Polycarbonate
Mount Material	Polycarbonate
Ambient Operating Temperature	-15 to 40° C (5 to 104° F)
Ambient Operating Humidity	10 to 90% noncondensing
NDAA Compliant	✓
Certifications	CE, FCC, IC, Anatel: 04479-21-08356
UniFi Network	Version 7.2.94 and later
