USW-Pro-48-POE

Name: USW-Pro-48-POE
Brand: Ubiquiti
SKU: USWPRO48POECA
Price: 1476.99 CAD
Availability: InStock

$1,476.99 $1,517.99

UniFi 48 Port Gigabit PoE Swi

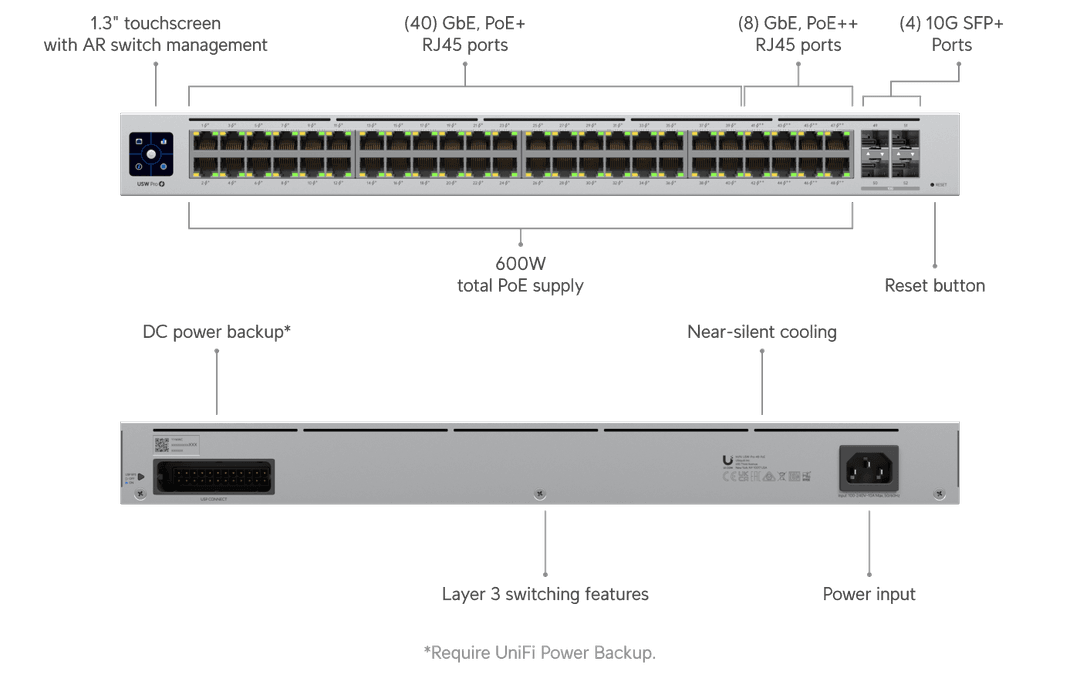

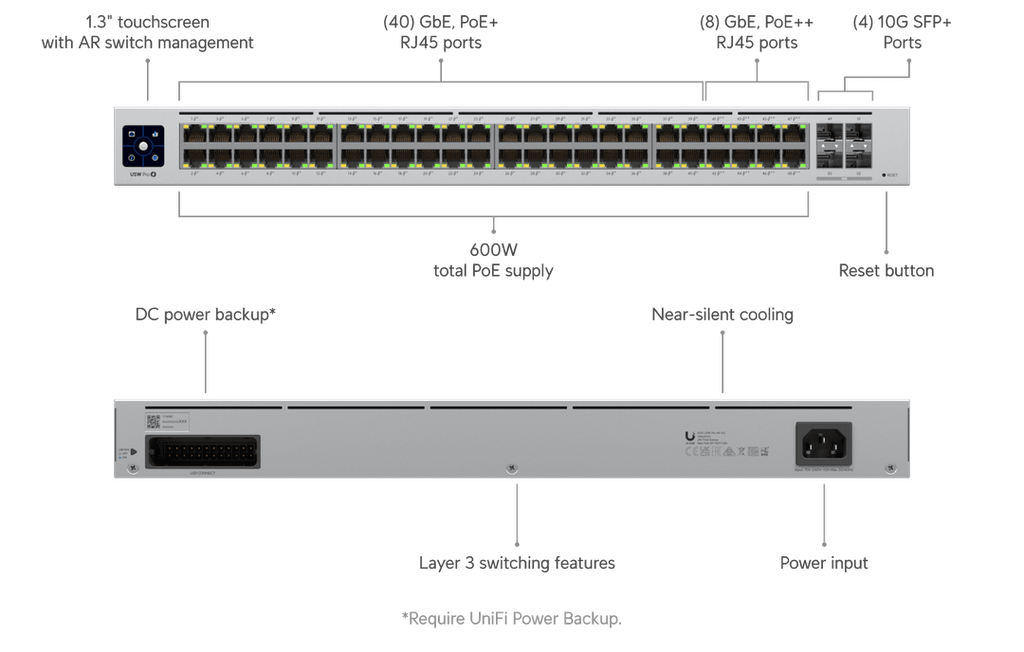

The USW-PRO-48-POE is a configurable Gigabit Layer2 and Layer3 switch with auto-sensing 802.3at PoE+ and 802.3bt PoE++. Forty PoE+ and eight PoE++ RJ45 Ethernet ports have total 600W PoE budget, and four SFP+ ports offer 10Gbps uplink options. Near-silent cooling and a 1.3" touch LCM.

1 $1,476.99/ea

2-4 $1,476.51/ea

5-9 $1,476.03/ea

10-19 $1,475.55/ea

20+ $1,475.08/ea

UniFi 48 Port Gigabit PoE Swi

Fabricant	Ubiquiti
Modèle	USW-Pro-48-POE
UPC	817882028356
Catégorie	Networking — Switches Over 24 Ports
Poids	16.4 lbs
Dimensions (boîte)	20.2" × 20.6" × 4.9" (L×P×H)

TechnicalIn The BoxDocumentsFAQ

Overview

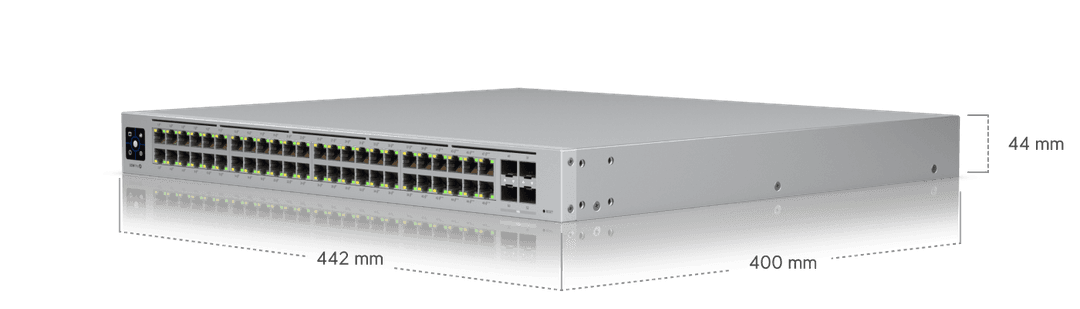

Dimensions	442 x 400 x 44 mm (17.4 x 15.7 x 1.7")
1 GbE RJ45	48 (40 PoE+; 8 PoE++) (1G/100M/10M)
10G SFP+	4 (10G/1G)
Max. PoE Output	Up to PoE++
Total PoE Availability	600W
Redundancy	DC Power Backup
Layer 3	✓
Form Factor	Rack mount (1U)
Switching Capacity	176 Gbps
Total Non-Blocking Throughput	88 Gbps
Forwarding Rate	131 Mpps
Supported VLANs	1,000
MAC Address Table Size	16,000
ARP Entries	4,000
IPv4 Routes	1,000
IPv4 Static Routes	256
Packet Buffer Size	4 MB
IPv4	128
MAC	128
DHCP Server (Local Networks)	✓
DHCP Relay	✓
Inter-VLAN Routing (Local Networks)	✓
Static Routing (Local Networks)	✓
LACP Port Aggregation	✓
STP & RSTP	✓
QoS (DSCP)	✓
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)	✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)	✓
IGMP Snooping	✓
802.1X Control	✓
MAC-Based ACLs & Device Isolation	✓
DHCP Snooping & Guarding	✓
Egress Rate Limit	✓
Flow Control	✓
Storm Control	✓
Multicast & Broadcast Rate Limiting	✓
MAC Address Blocking	✓
IP-Based ACLs & Network Isolation	✓
MAC-Based Port Restriction	✓
Port Isolation	✓
Port Mirroring	✓
Jumbo Frames	✓
LLDP-MED	✓
Voice VLAN	✓
Loop Protection	✓
Virtual Network Override	✓
PoE Ports	40
PoE+	32W
PoE++	64W
PoE	15.4W
Max. Power Consumption	60W (Excluding PoE Output) 660W (Including PoE Output)
Power Method	(1) Universal input, 100–240V AC, 50/60 Hz (1) USP RPS DC input
Power Input Method	AC input
Power Supply	AC/DC, internal, 660W
Supported Voltage Range	100–240V AC
Management	Ethernet AR
Heat Dissipation	204.7 BTU/hr (Excluding PoE Output)
Weight	Without mounting brackets: 6.2 kg (13.7 lb) With mounting brackets: 6.3 kg (13.9 lb)
Enclosure Material	SGCC steel
Mount Material	SGCC steel
Supported Rack Depth	400~1200 mm (15.7-47.2")
LCM Display	1.3" touchscreen
ESD Protection	Air: ± 16kV, contact: ± 12kV
Ambient Operating Temperature	-5 to 40° C (23 to 104° F)
Ambient Operating Humidity	10 to 90% noncondensing
NDAA Compliant	✓
Certifications	CE, FCC, IC, Anatel: 13790-20-08356
Application Requirements	Version 5.10.5 and later<
UniFi Network	Version 5.10.5 and later<

Specs

Dimensions	442 x 400 x 44 mm (17.4 x 15.7 x 1.7")
1 GbE RJ45	48 (40 PoE+; 8 PoE++) (1G/100M/10M)
10G SFP+	4 (10G/1G)
Max. PoE Output	Up to PoE++
Total PoE Availability	600W
Redundancy	DC Power Backup
Layer 3	✓
Form Factor	Rack mount (1U)
Switching Capacity	176 Gbps
Total Non-Blocking Throughput	88 Gbps
Forwarding Rate	131 Mpps
Supported VLANs	1,000
MAC Address Table Size	16,000
ARP Entries	4,000
IPv4 Routes	1,000
IPv4 Static Routes	256
Packet Buffer Size	4 MB
IPv4	128
MAC	128
DHCP Server (Local Networks)	✓
DHCP Relay	✓
Inter-VLAN Routing (Local Networks)	✓
Static Routing (Local Networks)	✓
LACP Port Aggregation	✓
STP & RSTP	✓
QoS (DSCP)	✓
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)	✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)	✓
IGMP Snooping	✓
802.1X Control	✓
MAC-Based ACLs & Device Isolation	✓
DHCP Snooping & Guarding	✓
Egress Rate Limit	✓
Flow Control	✓
Storm Control	✓
Multicast & Broadcast Rate Limiting	✓
MAC Address Blocking	✓
IP-Based ACLs & Network Isolation	✓
MAC-Based Port Restriction	✓
Port Isolation	✓
Port Mirroring	✓
Jumbo Frames	✓
LLDP-MED	✓
Voice VLAN	✓
Loop Protection	✓
Virtual Network Override	✓
PoE+	32W
PoE++	64W
PoE	15.4W
Max. Power Consumption	60W (Excluding PoE Output) 660W (Including PoE Output)
Power Method	(1) Universal input, 100–240V AC, 50/60 Hz (1) USP RPS DC input
Power Input Method	AC input
Power Supply	AC/DC, internal, 660W
Supported Voltage Range	100–240V AC
Management	Ethernet AR
Heat Dissipation	204.7 BTU/hr (Excluding PoE Output)
Weight	Without mounting brackets: 6.2 kg (13.7 lb) With mounting brackets: 6.3 kg (13.9 lb)
Enclosure Material	SGCC steel
Mount Material	SGCC steel
Supported Rack Depth	400~1200 mm (15.7-47.2")
LCM Display	1.3" touchscreen
ESD Protection	Air: ± 16kV, contact: ± 12kV
Ambient Operating Temperature	-5 to 40° C (23 to 104° F)
Ambient Operating Humidity	10 to 90% noncondensing
NDAA Compliant	✓
Certifications	CE, FCC, IC, Anatel: 13790-20-08356
UniFi Network	Version 5.10.5 and later<
