USW-Pro-8-PoE

Name: USW-Pro-8-PoE
Brand: Ubiquiti
SKU: USWPRO8POCA
Price: 405.99 CAD
Availability: InStock

$405.99 $413.99

Professional 8 PoE

Professional 8 PoE, an 8-port, Layer 3 switch with PoE+ and PoE++ output.

1 $405.99/ea

2-4 $405.86/ea

5-9 $405.73/ea

10-19 $405.60/ea

20+ $405.48/ea

Professional 8 PoE

Fabricant	Ubiquiti
Modèle	USW-Pro-8-PoE
UPC	810084692585
Catégorie	Networking — Switches 4 to 10 Ports
Poids	5.95 lbs
Dimensions (boîte)	10.2" × 14.4" × 3.3" (L×P×H)

TechnicalIn The BoxDocumentsFAQ

Overview

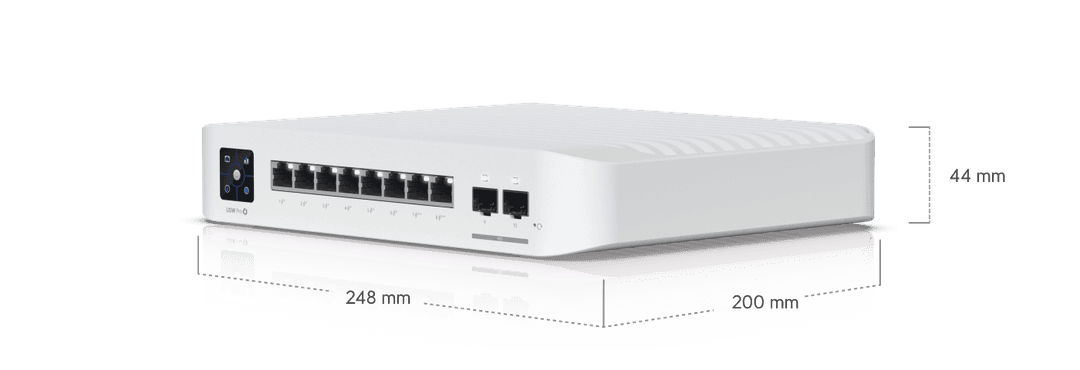

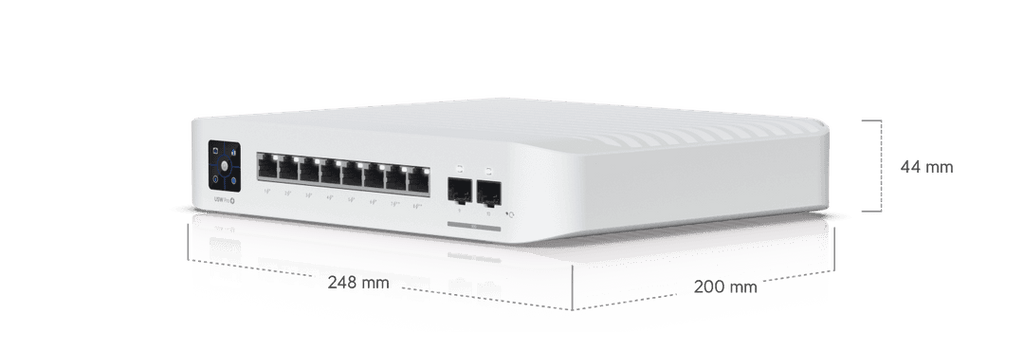

Dimensions	200 x 248 x 44 mm (7.9 x 9.8 x 1.7")

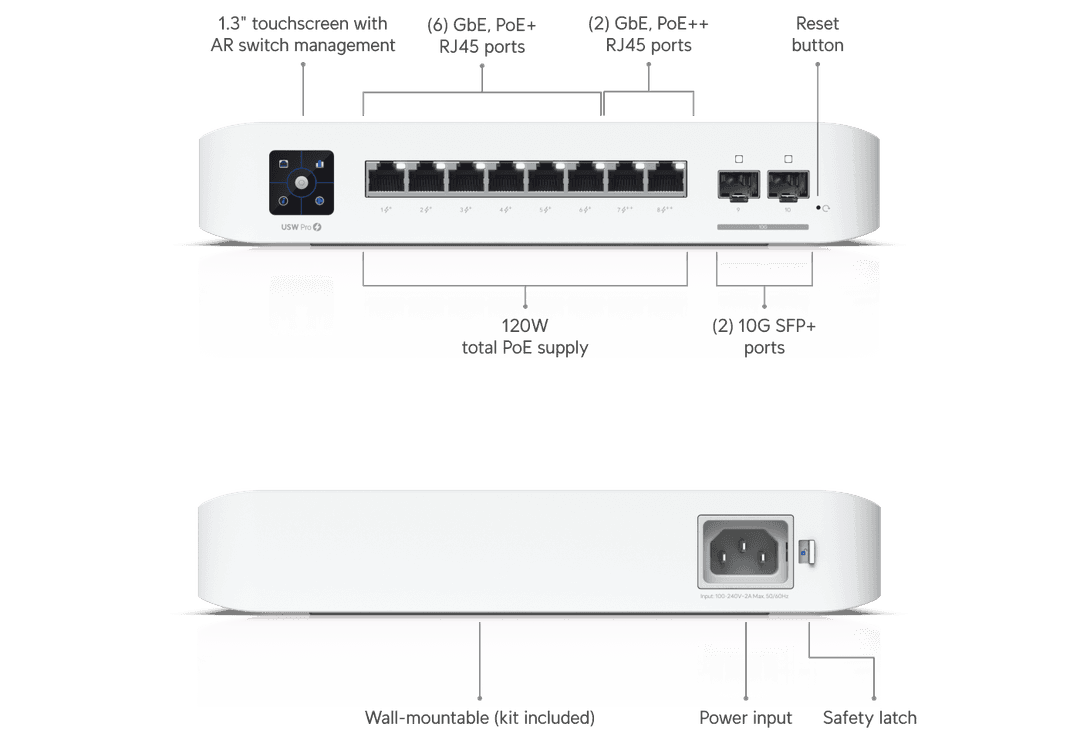

1 GbE RJ45	8 (6 PoE+; 2 PoE++) (1G/100M/10M)
10G SFP+	2 (10G/1G)
Max. PoE Output	Up to PoE++
Total PoE Availability	120W
Layer 3	✓
Form Factor	Compact desktop, wall
Switching Capacity	56 Gbps
Total Non-Blocking Throughput	28 Gbps
Forwarding Rate	42 Mpps
Supported VLANs	1,000
MAC Address Table Size	16,000
ARP Entries	6,000
IPv4 Routes	512
IPv4 Static Routes	256
Packet Buffer Size	1.5 MB
IPv4	128
MAC	128
DHCP Server (Local Networks)	✓
DHCP Relay	✓
Inter-VLAN Routing (Local Networks)	✓
Static Routing (Local Networks)	✓
LACP Port Aggregation	✓
STP & RSTP	✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)	✓
IGMP Snooping	✓
802.1X Control	✓
MAC-Based ACLs & Device Isolation	✓
DHCP Snooping & Guarding	✓
Egress Rate Limit	✓
Flow Control	✓
Storm Control	✓
Multicast & Broadcast Rate Limiting	✓
MAC Address Blocking	✓
IP-Based ACLs & Network Isolation	✓
MAC-Based Port Restriction	✓
Port Isolation	✓
Port Mirroring	✓
Jumbo Frames	✓
LLDP-MED	✓
Voice VLAN	✓
Loop Protection	✓
Virtual Network Override	✓
PoE Ports	6
PoE+	32W
PoE++	64W
PoE	15.4W
Max. Power Consumption	30W (Excluding PoE Output) 150W (Including PoE Output)
Power Method	Universal input, 100–240V AC, 50/60 Hz
Power Input Method	AC input
Power Supply	AC/DC, internal, 150W
Supported Voltage Range	100–240V AC
Management	Ethernet AR
Heat Dissipation	102.4 BTU/hr (Excluding PoE Output)
Weight	2.1 kg (4.6 lb)
Enclosure Material	Polycarbonate, metal
Mount Material	Polycarbonate
Supported Rack Depth	400~1200 mm (15.7-47.2")
LCM Display	1.3" touchscreen
Ambient Operating Temperature	-5 to 45° C (23 to 113° F)
Ambient Operating Humidity	10 to 90% noncondensing
NDAA Compliant	✓
Certifications	CE, FCC, IC, Anatel: 05214-24-08356
Application Requirements	Version 7.5.176 and later
UniFi Network	Version 7.5.176 and later
