USW-Pro-Aggregation

Name: USW-Pro-Aggregation
Brand: Ubiquiti
SKU: USWPROAGGREGACA
Price: 1179.99 CAD
Availability: OutOfStock

$1,179.99 $1,241.99

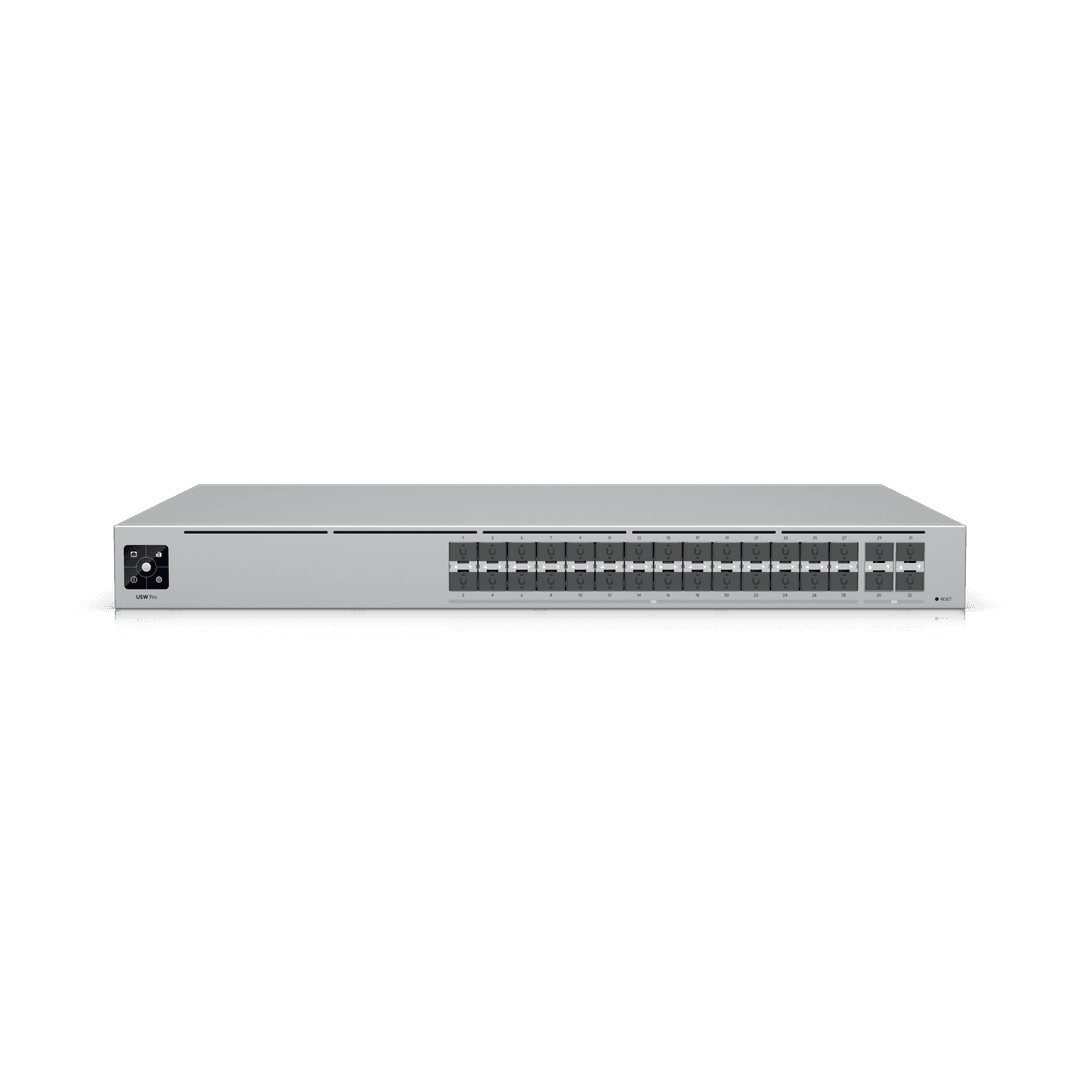

UniFi Switch Pro Aggregation

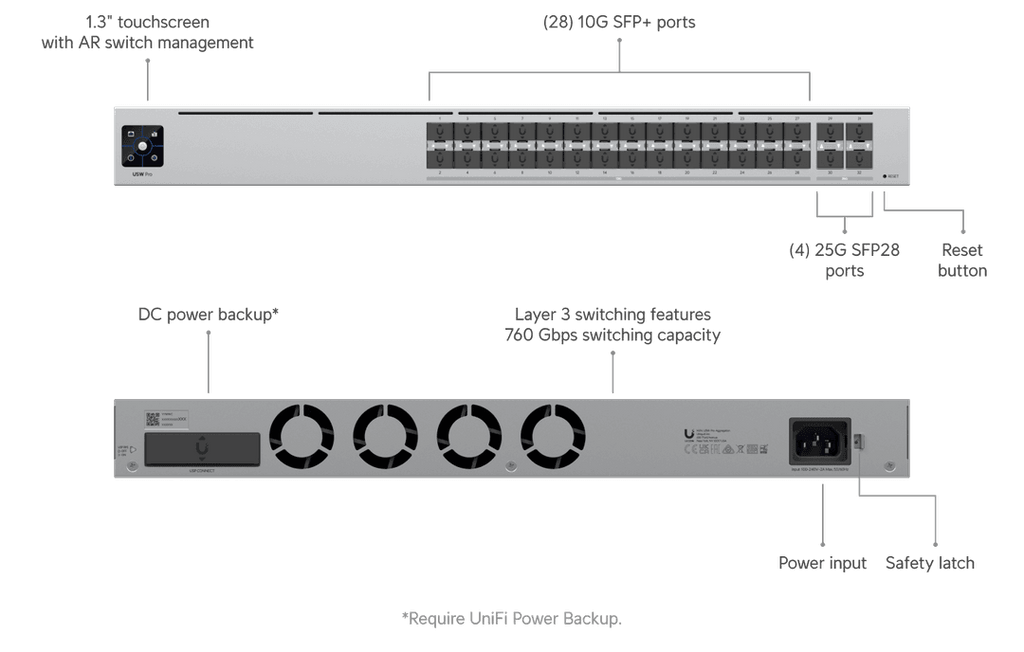

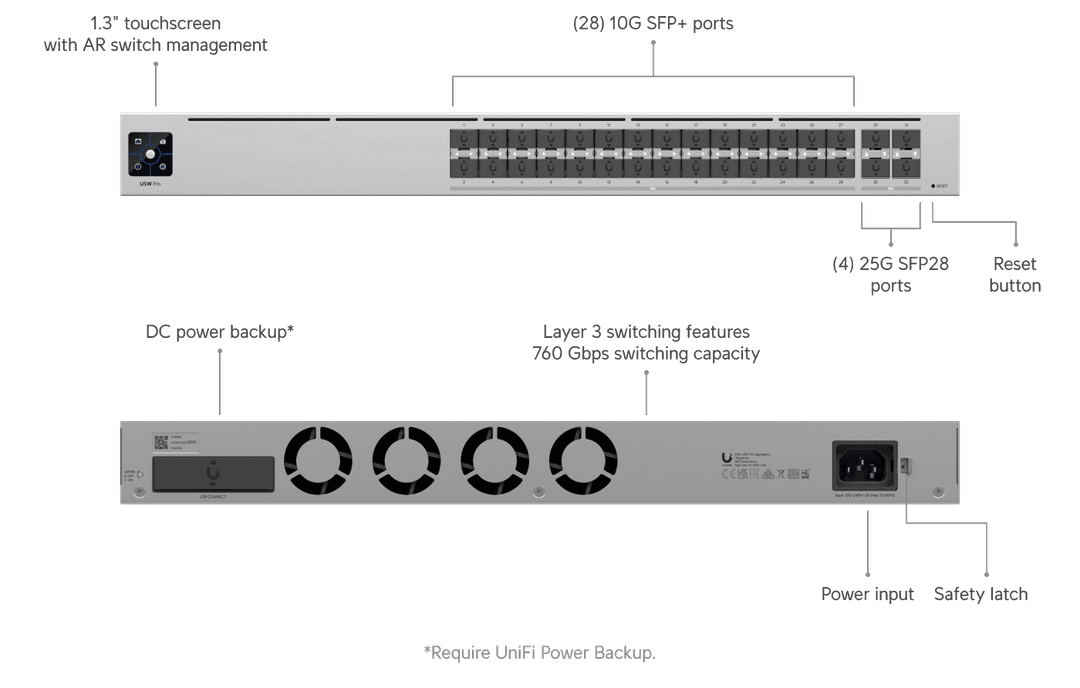

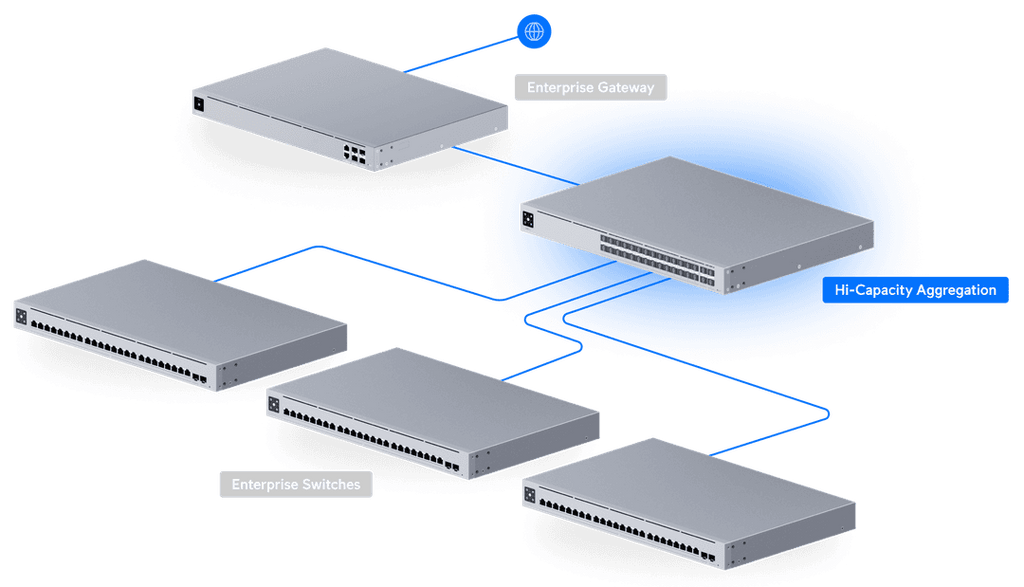

Ubiquitii USW-Pro-Aggregation is a Fully Managed Layer 3 Switch, with (4) 25G SFP28 Ports and (28) 10G SFP+ Ports. Featuring a 1.3" touchscreen, it supports high-bandwidth links to provide link aggregation for higher capacity and increased availability. The USW-Pro-Aggregation is managed through the UniFi controller and mobile App, allowing you to easily build, scale and monitor your enterprise networks.

1 $1,179.99/ea

2-4 $1,179.61/ea

5-9 $1,179.23/ea

10-19 $1,178.86/ea

20+ $1,178.48/ea

UniFi Switch Pro Aggregation

Fabricant	Ubiquiti
Modèle	USW-Pro-Aggregation
UPC	810010072597
Catégorie	Networking — Switches Over 24 Ports
Poids	13.3 lbs
Dimensions (boîte)	18.1" × 21.3" × 4.8" (L×P×H)

TechnicalIn The BoxDocumentsFAQ

Overview

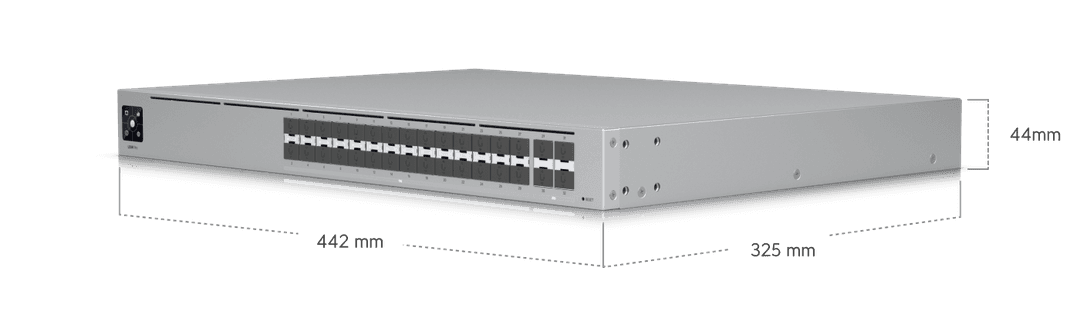

Dimensions	442 x 325 x 44 mm (17.4 x 12.8 x 1.7")
10G SFP+	28 (10G/1G)
25G SFP28	4 (25G/10G/1G)
Redundancy	DC Power Backup
Layer 3	✓
Form Factor	Rack mount (1U)
Switching Capacity	760 Gbps
Total Non-Blocking Throughput	380 Gbps
Forwarding Rate	565 Mpps
Supported VLANs	1,000
MAC Address Table Size	32,000
ARP Entries	16,000
IPv4 Routes	16,000
IPv4 Static Routes	256
Packet Buffer Size	4 MB
IPv4	128
MAC	128
DHCP Server (Local Networks)	✓
DHCP Relay	✓
Inter-VLAN Routing (Local Networks)	✓
Static Routing (Local Networks)	✓
LACP Port Aggregation	✓
STP & RSTP	✓
QoS (DSCP)	✓
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)	✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)	✓
IGMP Snooping	✓
802.1X Control	✓
MAC-Based ACLs & Device Isolation	✓
DHCP Snooping & Guarding	✓
Egress Rate Limit	✓
Flow Control	✓
Storm Control	✓
Multicast & Broadcast Rate Limiting	✓
MAC Address Blocking	✓
IP-Based ACLs & Network Isolation	✓
MAC-Based Port Restriction	✓
Port Isolation	✓
Port Mirroring	✓
Jumbo Frames	✓
LLDP-MED	✓
Voice VLAN	✓
Loop Protection	✓
Virtual Network Override	✓
Max. Power Consumption	100W
Power Method	(1) Universal input, 100–240V AC, 50/60 Hz (1) USP RPS DC input
Power Input Method	AC input
Power Supply	AC/DC, internal, 100W
Supported Voltage Range	100–240V AC
Management	Ethernet AR
Heat Dissipation	341 BTU/hr
Weight	Without mounting brackets: 4.6 kg (10.1 lb) With mounting brackets: 4.7 kg (10.4 lb)
Enclosure Material	SGCC steel
Mount Material	SGCC steel
Supported Rack Depth	400~1200 mm (15.7-47.2")
LCM Display	1.3" touchscreen
ESD Protection	Air: ± 16kV, contact: ± 12kV
Ambient Operating Temperature	-5 to 40° C (23 to 104° F)
Ambient Operating Humidity	10 to 90% noncondensing
NDAA Compliant	✓
Certifications	CE, FCC, IC, Anatel: 20756-22-08356
Application Requirements	Version 6.1.25 and later
UniFi Network	Version 6.1.25 and later

Specs

Dimensions	442 x 325 x 44 mm (17.4 x 12.8 x 1.7")
10G SFP+	28 (10G/1G)
25G SFP28	4 (25G/10G/1G)
Redundancy	DC Power Backup
Layer 3	✓
Form Factor	Rack mount (1U)
Switching Capacity	760 Gbps
Total Non-Blocking Throughput	380 Gbps
Forwarding Rate	565 Mpps
Supported VLANs	1,000
MAC Address Table Size	32,000
ARP Entries	16,000
IPv4 Routes	16,000
IPv4 Static Routes	256
Packet Buffer Size	4 MB
IPv4	128
MAC	128
DHCP Server (Local Networks)	✓
DHCP Relay	✓
Inter-VLAN Routing (Local Networks)	✓
Static Routing (Local Networks)	✓
LACP Port Aggregation	✓
STP & RSTP	✓
QoS (DSCP)	✓
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)	✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)	✓
IGMP Snooping	✓
802.1X Control	✓
MAC-Based ACLs & Device Isolation	✓
DHCP Snooping & Guarding	✓
Egress Rate Limit	✓
Flow Control	✓
Storm Control	✓
Multicast & Broadcast Rate Limiting	✓
MAC Address Blocking	✓
IP-Based ACLs & Network Isolation	✓
MAC-Based Port Restriction	✓
Port Isolation	✓
Port Mirroring	✓
Jumbo Frames	✓
LLDP-MED	✓
Voice VLAN	✓
Loop Protection	✓
Virtual Network Override	✓
Max. Power Consumption	100W
Power Method	(1) Universal input, 100–240V AC, 50/60 Hz (1) USP RPS DC input
Power Input Method	AC input
Power Supply	AC/DC, internal, 100W
Supported Voltage Range	100–240V AC
Management	Ethernet AR
Heat Dissipation	341 BTU/hr
Weight	Without mounting brackets: 4.6 kg (10.1 lb) With mounting brackets: 4.7 kg (10.4 lb)
Enclosure Material	SGCC steel
Mount Material	SGCC steel
Supported Rack Depth	400~1200 mm (15.7-47.2")
LCM Display	1.3" touchscreen
ESD Protection	Air: ± 16kV, contact: ± 12kV
Ambient Operating Temperature	-5 to 40° C (23 to 104° F)
Ambient Operating Humidity	10 to 90% noncondensing
NDAA Compliant	✓
Certifications	CE, FCC, IC, Anatel: 20756-22-08356
UniFi Network	Version 6.1.25 and later
