USW-Pro-HD-24-PoE

Name: USW-Pro-HD-24-PoE
Brand: Ubiquiti
SKU: USWPROHD24POECA
Price: 1343.99 CAD
Availability: InStock

$1,343.99 $1,379.99

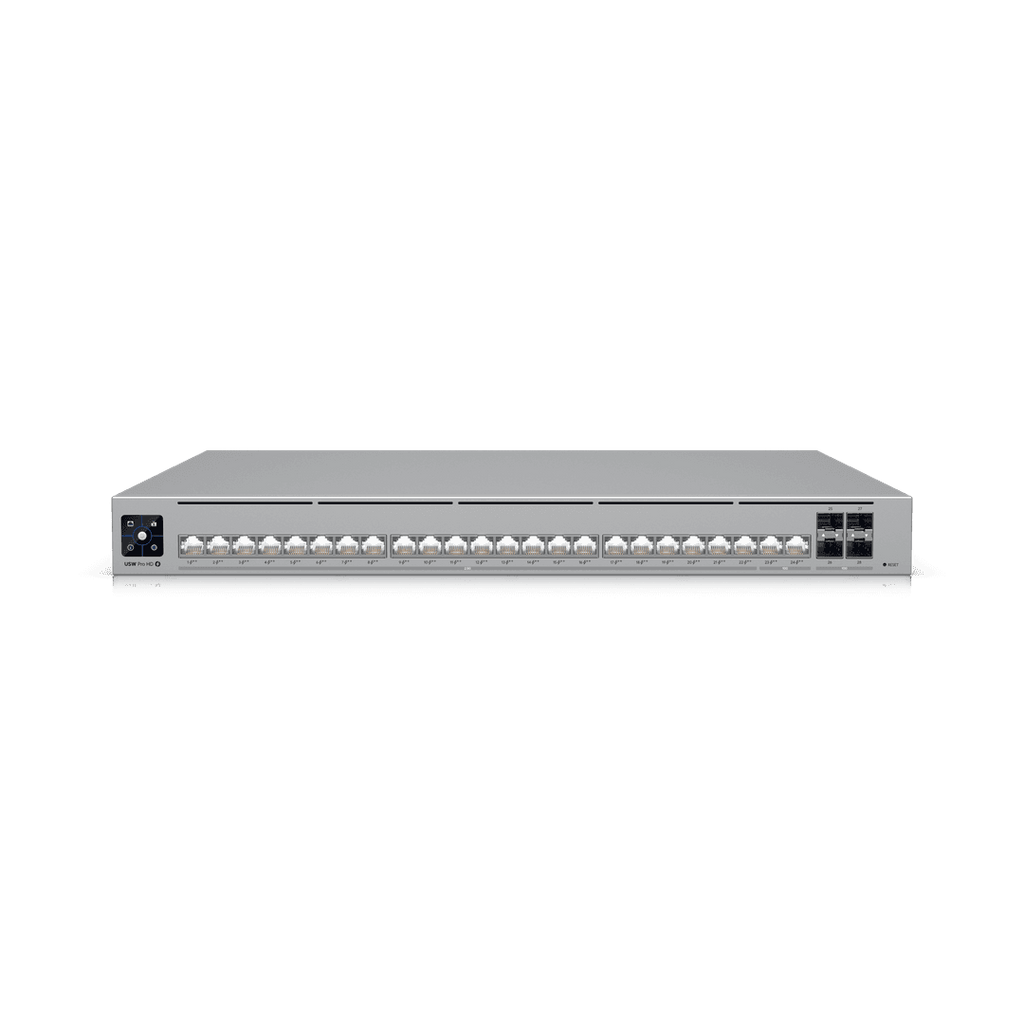

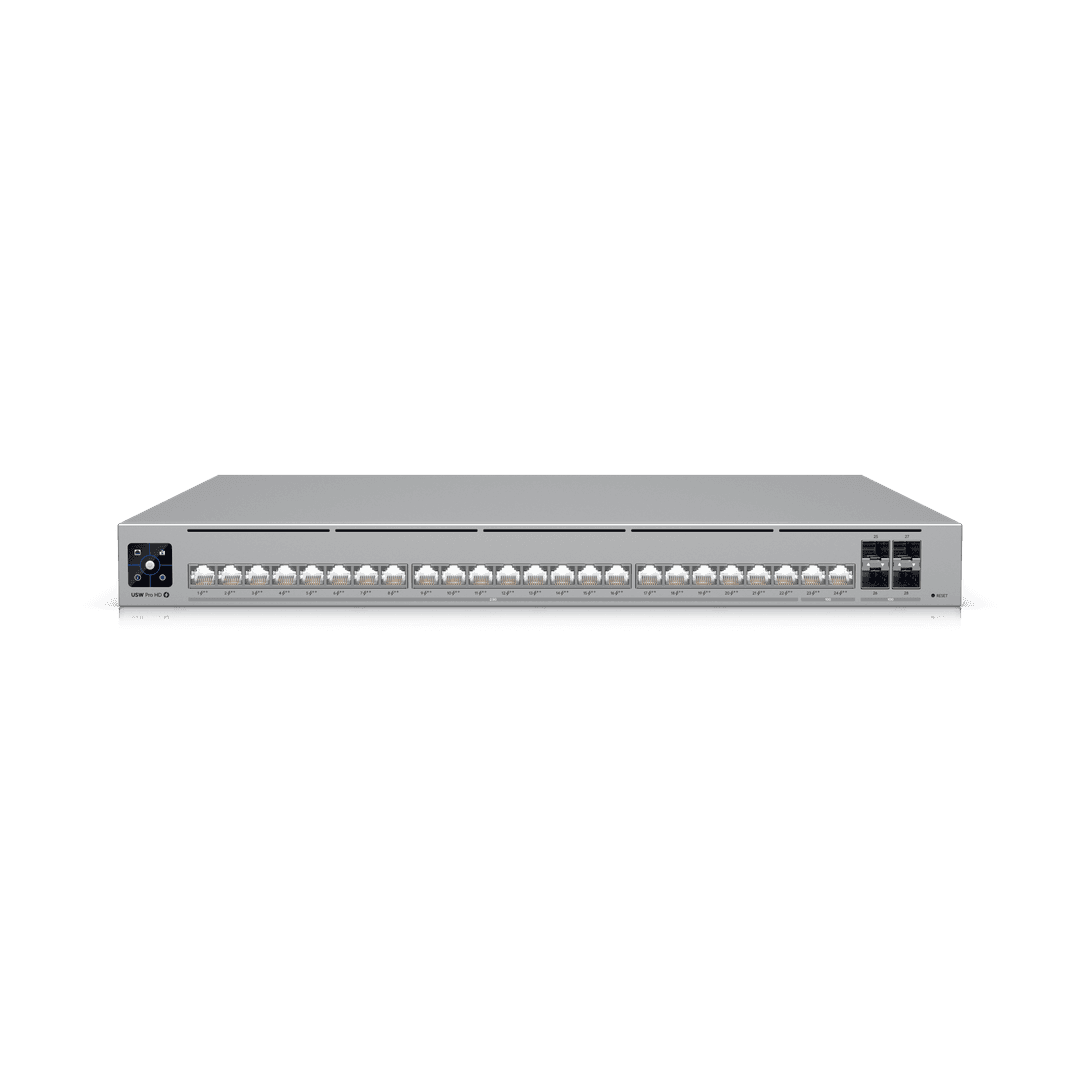

Pro HD 24 PoE

Professionalgrade, Layer 3 Etherlighting switch with 2 10 GbE PoE++, 22 2.5 GbE PoE++, and 4 10G SFP+ ports.

1 $1,343.99/ea

2-4 $1,343.55/ea

5-9 $1,343.12/ea

10-19 $1,342.68/ea

20+ $1,342.24/ea

Pro HD 24 PoE

Fabricant	Ubiquiti
Modèle	USW-Pro-HD-24-PoE
UPC	810084696521
Catégorie	Networking — Power over Ethernet
Poids	17.05 lbs
Dimensions (boîte)	20.3" × 21.3" × 4.8" (L×P×H)

TechnicalIn The BoxDocumentsFAQ

Overview

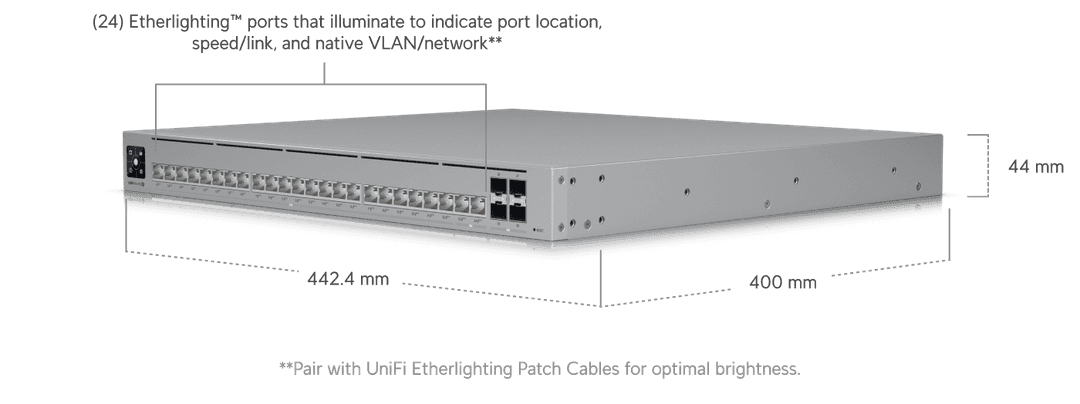

Dimensions	442 x 400 x 44 mm (17.4 x 15.7 x 1.7")

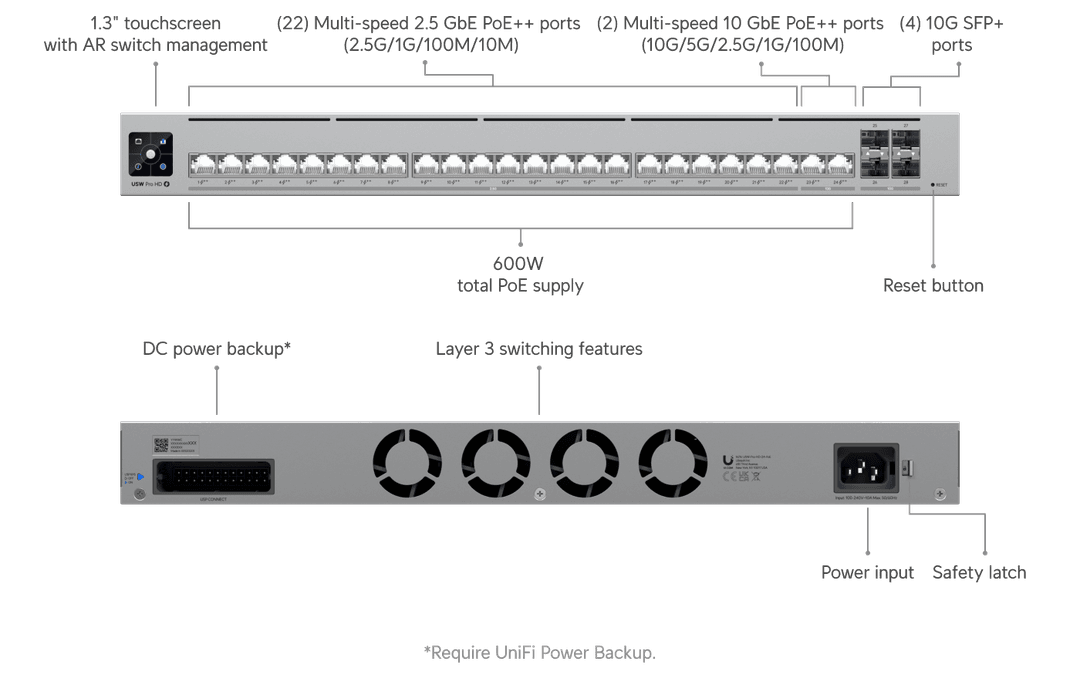

2.5 GbE RJ45	22 (All PoE++) (2.5G/1G/100M/10M)
10 GbE RJ45	2 (All PoE++) (10G/5G/2.5G/1G/100M)
10G SFP+	4 (10G/1G)
Max. PoE Output	Up to PoE++
Total PoE Availability	600W
Redundancy	DC Power Backup
Layer 3	✓
Form Factor	Rack mount (1U)
Etherlighting™	✓
Switching Capacity	230 Gbps
Total Non-Blocking Throughput	115 Gbps
Forwarding Rate	171 Mpps
Supported VLANs	1,000
MAC Address Table Size	32,000
ARP Entries	12,000
IPv4 Routes	12,000
IPv4 Static Routes	256
Packet Buffer Size	2 MB
IPv4	128
MAC	128
DHCP Server (Local Networks)	✓
DHCP Relay	✓
Inter-VLAN Routing (Local Networks)	✓
Static Routing (Local Networks)	✓
LACP Port Aggregation	✓
STP & RSTP	✓
QoS (DSCP)	✓
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)	✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)	✓
IGMP Snooping	✓
802.1X Control	✓
MAC-Based ACLs & Device Isolation	✓
DHCP Snooping & Guarding	✓
Egress Rate Limit	✓
Flow Control	✓
Storm Control	✓
Multicast & Broadcast Rate Limiting	✓
MAC Address Blocking	✓
IP-Based ACLs & Network Isolation	✓
MAC-Based Port Restriction	✓
Port Isolation	✓
Port Mirroring	✓
Jumbo Frames	✓
LLDP-MED	✓
Voice VLAN	✓
Loop Protection	✓
Virtual Network Override	✓
PoE Ports	24
PoE++	64W
PoE	15.4W
PoE+	30W
Max. Power Consumption	60W (Excluding PoE Output) 660W (Including PoE Output)
Power Method	(1) Universal input, 100–240V AC, 50/60 Hz (1) USP RPS DC input
Power Input Method	AC input
Power Supply	AC/DC, internal, 660W
Supported Voltage Range	100–240V AC
Management	Ethernet AR
Weight	Without mounting brackets: 6.2 kg (13.7 lb) With mounting brackets: 6.3 kg (13.9 lb)
Enclosure Material	SGCC steel
Mount Material	SGCC steel
Supported Rack Depth	600 - 1,200 mm (23.6- 47.2" )
LCM Display	1.3" touchscreen
Ambient Operating Temperature	-5 to 40° C (23 to 104° F)
Ambient Operating Humidity	10 to 90% noncondensing
Ethernet	✓
SFP+	✓
NDAA Compliant	✓
Certifications	CE, FCC, IC, Anatel: 03853-25-08356
Application Requirements	Version 9.0.114 and later
UniFi Network	Version 9.0.114 and later

Specs

Dimensions	442 x 400 x 44 mm (17.4 x 15.7 x 1.7")
2.5 GbE RJ45	22 (All PoE++) (2.5G/1G/100M/10M)
10 GbE RJ45	2 (All PoE++) (10G/5G/2.5G/1G/100M)
10G SFP+	4 (10G/1G)
Max. PoE Output	Up to PoE++
Total PoE Availability	600W
Redundancy	DC Power Backup
Layer 3	✓
Form Factor	Rack mount (1U)
Etherlighting™	✓
Switching Capacity	230 Gbps
Total Non-Blocking Throughput	115 Gbps
Forwarding Rate	171 Mpps
Supported VLANs	1,000
MAC Address Table Size	32,000
ARP Entries	12,000
IPv4 Routes	12,000
IPv4 Static Routes	256
Packet Buffer Size	2 MB
IPv4	128
MAC	128
DHCP Server (Local Networks)	✓
DHCP Relay	✓
Inter-VLAN Routing (Local Networks)	✓
Static Routing (Local Networks)	✓
LACP Port Aggregation	✓
STP & RSTP	✓
QoS (DSCP)	✓
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)	✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)	✓
IGMP Snooping	✓
802.1X Control	✓
MAC-Based ACLs & Device Isolation	✓
DHCP Snooping & Guarding	✓
Egress Rate Limit	✓
Flow Control	✓
Storm Control	✓
Multicast & Broadcast Rate Limiting	✓
MAC Address Blocking	✓
IP-Based ACLs & Network Isolation	✓
MAC-Based Port Restriction	✓
Port Isolation	✓
Port Mirroring	✓
Jumbo Frames	✓
LLDP-MED	✓
Voice VLAN	✓
Loop Protection	✓
Virtual Network Override	✓
PoE++	64W
PoE	15.4W
PoE+	30W
Max. Power Consumption	60W (Excluding PoE Output) 660W (Including PoE Output)
Power Method	(1) Universal input, 100–240V AC, 50/60 Hz (1) USP RPS DC input
Power Input Method	AC input
Power Supply	AC/DC, internal, 660W
Supported Voltage Range	100–240V AC
Management	Ethernet AR
Weight	Without mounting brackets: 6.2 kg (13.7 lb) With mounting brackets: 6.3 kg (13.9 lb)
Enclosure Material	SGCC steel
Mount Material	SGCC steel
Supported Rack Depth	600 - 1,200 mm (23.6- 47.2" )
LCM Display	1.3" touchscreen
Ambient Operating Temperature	-5 to 40° C (23 to 104° F)
Ambient Operating Humidity	10 to 90% noncondensing
Ethernet	✓
SFP+	✓
NDAA Compliant	✓
Certifications	CE, FCC, IC, Anatel: 03853-25-08356
UniFi Network	Version 9.0.114 and later
