USW-Pro-Max-24-PoE

Name: USW-Pro-Max-24-PoE
Brand: Ubiquiti
SKU: USWPROMAX24POEC
Price: 1047.99 CAD
Availability: InStock

$1,047.99

Pro Max 24 Port PoE Switch

UniFi 24 port multi-gigabit PoE++ switch, with layer3 features and etherlighting

1 $1,047.99/ea

2-4 $1,047.66/ea

5-9 $1,047.32/ea

10-19 $1,046.99/ea

20+ $1,046.66/ea

Pro Max 24 Port PoE Switch

Fabricant	Ubiquiti
Modèle	USW-Pro-Max-24-PoE
UPC	810084692608
Catégorie	Networking — Switches 18 to 24 Ports
Poids	13.35 lbs
Dimensions (boîte)	5" × 20.4" × 17.1" (L×P×H)

TechnicalIn The BoxDocumentsFAQ

Overview

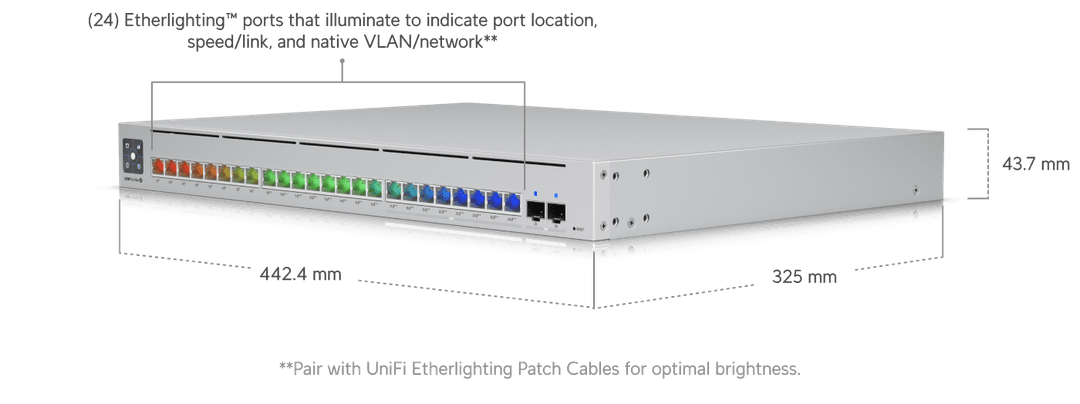

Dimensions	442 x 325 x 44 mm (17.4 x 12.8 x 1.7")

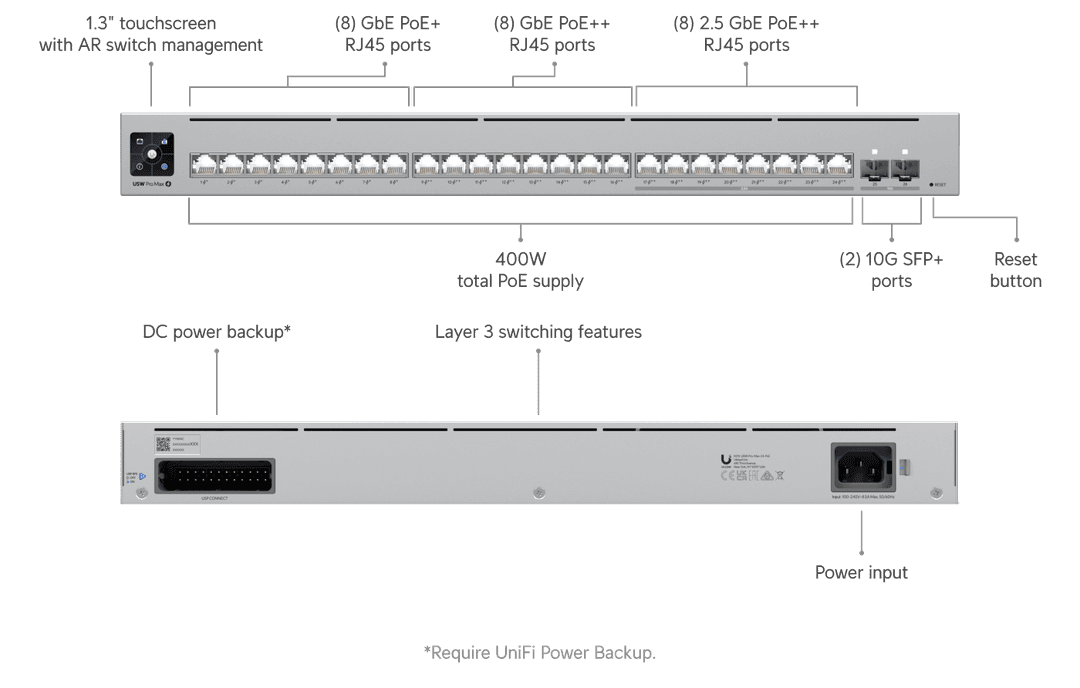

1 GbE RJ45	16 (8 PoE+; 8 PoE++) (1G/100M/10M)
2.5 GbE RJ45	8 (All PoE++) (2.5G/1G/100M/10M)
10G SFP+	2 (10G/1G)
Max. PoE Output	Up to PoE++
Total PoE Availability	400W
Redundancy	DC Power Backup
Layer 3	✓
Form Factor	Rack mount (1U)
Etherlighting™	✓
Switching Capacity	112 Gbps
Total Non-Blocking Throughput	56 Gbps
Forwarding Rate	83 Mpps
Supported VLANs	1,000
MAC Address Table Size	16,000
ARP Entries	6,000
IPv4 Static Routes	256
Packet Buffer Size	1.5 MB
IPv4	128
MAC	128
DHCP Server (Local Networks)	✓
DHCP Relay	✓
Inter-VLAN Routing (Local Networks)	✓
Static Routing (Local Networks)	✓
LACP Port Aggregation	✓
STP & RSTP	✓
QoS (DSCP)	✓
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)	✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)	✓
IGMP Snooping	✓
802.1X Control	✓
MAC-Based ACLs & Device Isolation	✓
DHCP Snooping & Guarding	✓
Egress Rate Limit	✓
Flow Control	✓
Storm Control	✓
Multicast & Broadcast Rate Limiting	✓
MAC Address Blocking	✓
IP-Based ACLs & Network Isolation	✓
MAC-Based Port Restriction	✓
Port Isolation	✓
Port Mirroring	✓
Jumbo Frames	✓
LLDP-MED	✓
Voice VLAN	✓
Loop Protection	✓
Virtual Network Override	✓
PoE Ports	8
PoE+	32W
PoE++	64W
PoE	15.4W
Max. Power Consumption	50W (Excluding PoE Output) 450W (Including PoE Output)
Power Method	(1) Universal input, 100–240V AC, 50/60 Hz (1) USP RPS DC input
Power Input Method	AC input
Power Supply	AC/DC, internal, 550W
Supported Voltage Range	100–240V AC
Management	Ethernet AR
Heat Dissipation	119 BTU/hr (Excluding PoE Output)
Weight	Without mounting brackets: 5.1 kg (11.3 lb) With mounting brackets: 5.2 kg (11.5 lb)
Enclosure Material	SGCC steel
Mount Material	SGCC steel
Supported Rack Depth	400~1200 mm (15.7-47.2")
LCM Display	1.3" touchscreen
Ambient Operating Temperature	-5 to 40° C (23 to 104° F)
Ambient Operating Humidity	10 to 90% noncondensing
Ethernet	✓
SFP+	✓
NDAA Compliant	✓
Certifications	CE, FCC, IC, Anatel: 06374-24-08356
Application Requirements	Version 8.0.24 and later
UniFi Network	Version 8.0.24 and later

Specs

Dimensions	442 x 325 x 44 mm (17.4 x 12.8 x 1.7")
1 GbE RJ45	16 (8 PoE+; 8 PoE++) (1G/100M/10M)
2.5 GbE RJ45	8 (All PoE++) (2.5G/1G/100M/10M)
10G SFP+	2 (10G/1G)
Max. PoE Output	Up to PoE++
Total PoE Availability	400W
Redundancy	DC Power Backup
Layer 3	✓
Form Factor	Rack mount (1U)
Etherlighting™	✓
Switching Capacity	112 Gbps
Total Non-Blocking Throughput	56 Gbps
Forwarding Rate	83 Mpps
Supported VLANs	1,000
MAC Address Table Size	16,000
ARP Entries	6,000
IPv4 Static Routes	256
Packet Buffer Size	1.5 MB
IPv4	128
MAC	128
DHCP Server (Local Networks)	✓
DHCP Relay	✓
Inter-VLAN Routing (Local Networks)	✓
Static Routing (Local Networks)	✓
LACP Port Aggregation	✓
STP & RSTP	✓
QoS (DSCP)	✓
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)	✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)	✓
IGMP Snooping	✓
802.1X Control	✓
MAC-Based ACLs & Device Isolation	✓
DHCP Snooping & Guarding	✓
Egress Rate Limit	✓
Flow Control	✓
Storm Control	✓
Multicast & Broadcast Rate Limiting	✓
MAC Address Blocking	✓
IP-Based ACLs & Network Isolation	✓
MAC-Based Port Restriction	✓
Port Isolation	✓
Port Mirroring	✓
Jumbo Frames	✓
LLDP-MED	✓
Voice VLAN	✓
Loop Protection	✓
Virtual Network Override	✓
PoE+	32W
PoE++	64W
PoE	15.4W
Max. Power Consumption	50W (Excluding PoE Output) 450W (Including PoE Output)
Power Method	(1) Universal input, 100–240V AC, 50/60 Hz (1) USP RPS DC input
Power Input Method	AC input
Power Supply	AC/DC, internal, 550W
Supported Voltage Range	100–240V AC
Management	Ethernet AR
Heat Dissipation	119 BTU/hr (Excluding PoE Output)
Weight	Without mounting brackets: 5.1 kg (11.3 lb) With mounting brackets: 5.2 kg (11.5 lb)
Enclosure Material	SGCC steel
Mount Material	SGCC steel
Supported Rack Depth	400~1200 mm (15.7-47.2")
LCM Display	1.3" touchscreen
Ambient Operating Temperature	-5 to 40° C (23 to 104° F)
Ambient Operating Humidity	10 to 90% noncondensing
Ethernet	✓
SFP+	✓
NDAA Compliant	✓
Certifications	CE, FCC, IC, Anatel: 06374-24-08356
UniFi Network	Version 8.0.24 and later
