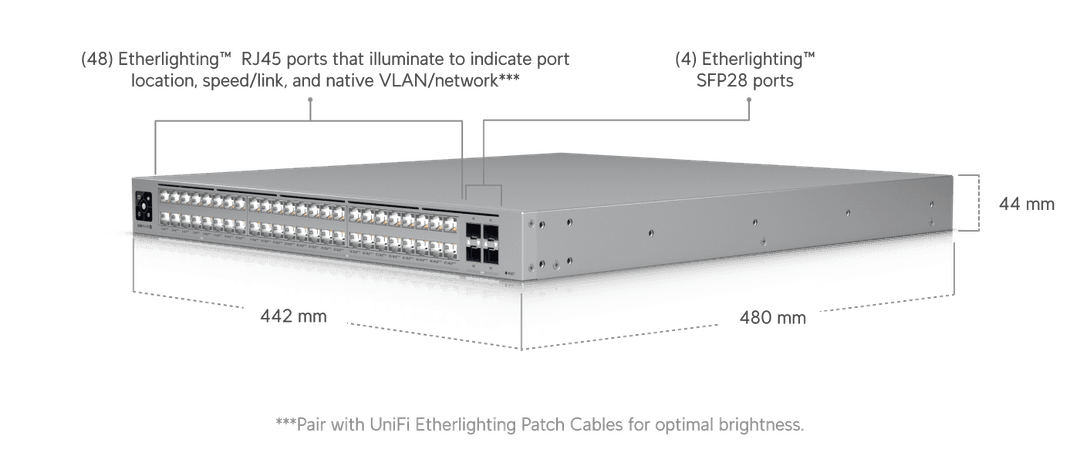

| Dimensions |
442 x 480 x 44 mm
(17.4 x 18.9 x 1.7") |

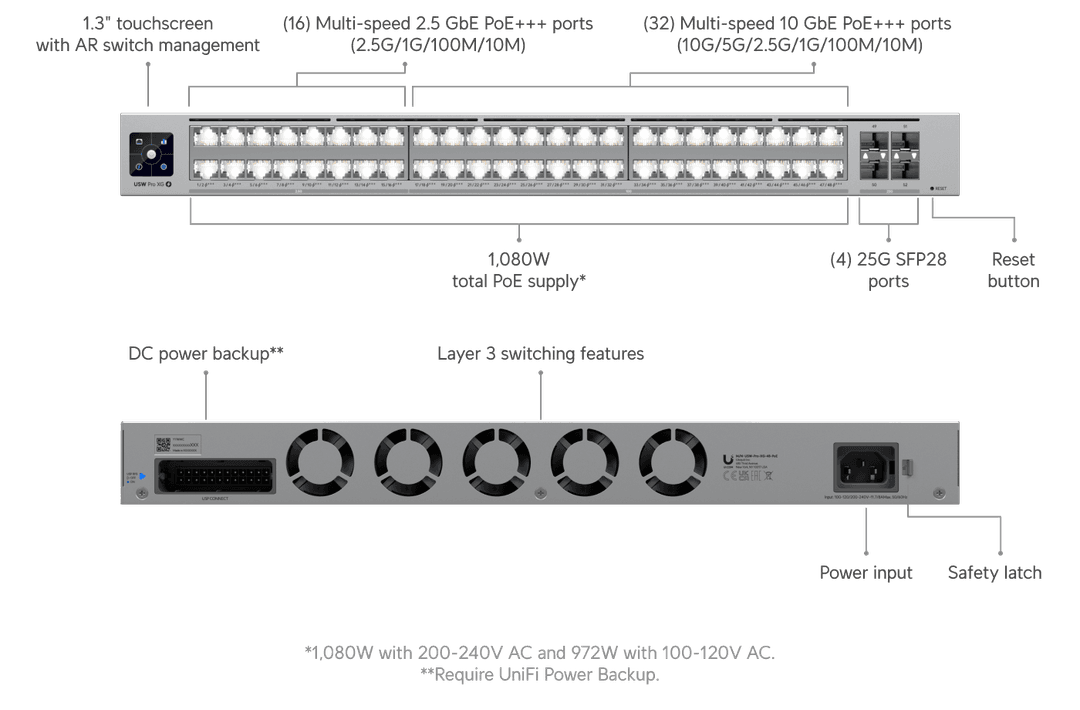

| 2.5 GbE RJ45 |
16 (All PoE+++)
(2.5G/1G/100M/10M) |
| 10 GbE RJ45 |
32 (All PoE+++)
(10G/5G/2.5G/1G/100M/10M) |
| 25G SFP28 |
4
(25G/10G/1G) |
| Max. PoE Output |
Up to PoE+++ |
| Total PoE Availability |
200-240V AC: 1080W
100-120V AC: 972W |
| Redundancy |
DC Power Backup |
| Layer 3 |
✓ |
| Form Factor |
Rack mount (1U) |
| Etherlighting™ |
✓ |
| Switching Capacity |
920 Gbps |
| Total Non-Blocking Throughput |
460 Gbps |
| Forwarding Rate |
684 Mpps |
| Supported VLANs |
1,000 |
| MAC Address Table Size |
128,000 |
| ARP Entries |
128,000 |
| IPv4 Routes |
256,000 |
| IPv4 Static Routes |
512 |
| Packet Buffer Size |
8 MB |
| IPv4 |
256 |
| MAC |
256 |
| DHCP Server (Local Networks) |
✓ |
| DHCP Relay |
✓ |
| Inter-VLAN Routing (Local Networks) |
✓ |
| Static Routing (Local Networks) |
✓ |
| LACP Port Aggregation |
✓ |
| STP & RSTP |
✓ |
| QoS (DSCP) |
✓ |
| Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) |
✓ |
| Advanced IGMP Configuration (Querier, Fast Leave, Router Port) |
✓ |
| IGMP Snooping |
✓ |
| 802.1X Control |
✓ |
| MAC-Based ACLs & Device Isolation |
✓ |
| DHCP Snooping & Guarding |
✓ |
| Egress Rate Limit |
✓ |
| Flow Control |
✓ |
| Storm Control |
✓ |
| Multicast & Broadcast Rate Limiting |
✓ |
| MAC Address Blocking |
✓ |
| IP-Based ACLs & Network Isolation |
✓ |
| MAC-Based Port Restriction |
✓ |
| Port Isolation |
✓ |
| Port Mirroring |
✓ |
| Jumbo Frames |
✓ |
| LLDP-MED |
✓ |
| Voice VLAN |
✓ |
| Loop Protection |
✓ |
| Virtual Network Override |
✓ |
| PoE Ports |
48 |
| PoE+++ |
90W |
| PoE |
15.4W |
| PoE+ |
30W |
| PoE++ |
60W |
| Max. Power Consumption |
200W (Excluding PoE Output)
200-240V: 1,280W /
100-120V AC: 1,172W (Including PoE Output) |
| Power Method |
(1) Universal input, 100–240V AC, 50/60 Hz
(1) USP RPS DC input |
| Power Input Method |
AC input |
| Power Supply |
AC/DC, internal, 1,350W |
| Supported Voltage Range |
100–240V AC |
| Management |
Ethernet
AR |
| Weight |
Without mounting brackets: 8.7 kg (15.4 lb)
With mounting brackets: 8.8 kg (15.7 lb) |
| Enclosure Material |
SGCC steel |
| Mount Material |
SGCC steel |
| Supported Rack Depth |
482.6 mm (19") four-post racks
Posts depths ranging from 600 to 1,066 mm (23.6-42”) |
| LCM Display |
1.3" touchscreen |
| ESD Protection |
Air: ± 30kV, contact: ± 20kV |
| Ambient Operating Temperature |
-5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity |
10 to 90% noncondensing |
| Ethernet |
✓ |
| SFP28 |
✓ |
| RPS |
✓ |
| NDAA Compliant |
✓ |
| Certifications |
CE, FCC, IC, Anatel: 04322-25-08356 |
| Application Requirements |
Version 9.1.120 and later |
| UniFi Network |
Version 9.1.120 and later |
