USW-Ultra

USW-Ultra

Sale price  $135.99 Regular price  $137.99
Skip to product information
USW-Ultra
Out of stock

USW-Ultra

Sale price  $135.99 Regular price  $137.99

Switch Ultra

A compact, Layer 2, 8port GbE PoE switch with versatile mounting options.

Volume Discounts
1 $135.99/ea
2-4 $135.92/ea
5-9 $135.84/ea
10-19 $135.77/ea
20+ $135.70/ea

Switch Ultra

Fabricant Ubiquiti
Modèle USW-Ultra
UPC 810084693698
Catégorie Networking Wireless Dual Band — APs & Bridges
Poids 1 lbs
Dimensions (boîte) 3.8" × 9.4" × 2.2" (L×P×H)
ProductProductProductProduct
Overview

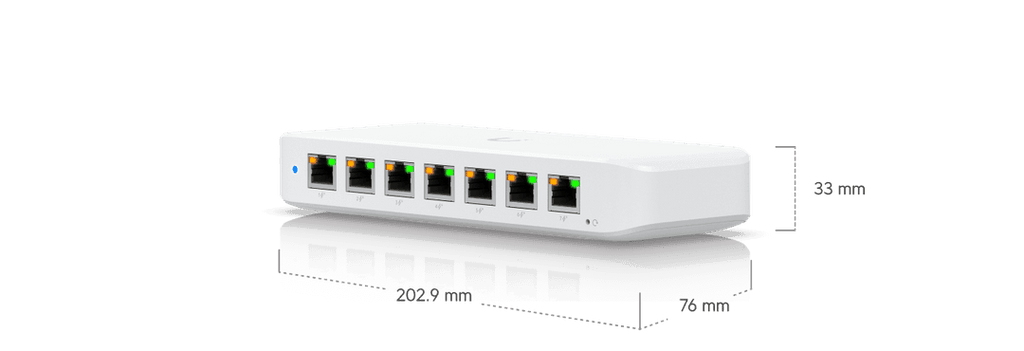

Dimensions 203 x 76 x 33 mm (8 x 3 x 1.3")

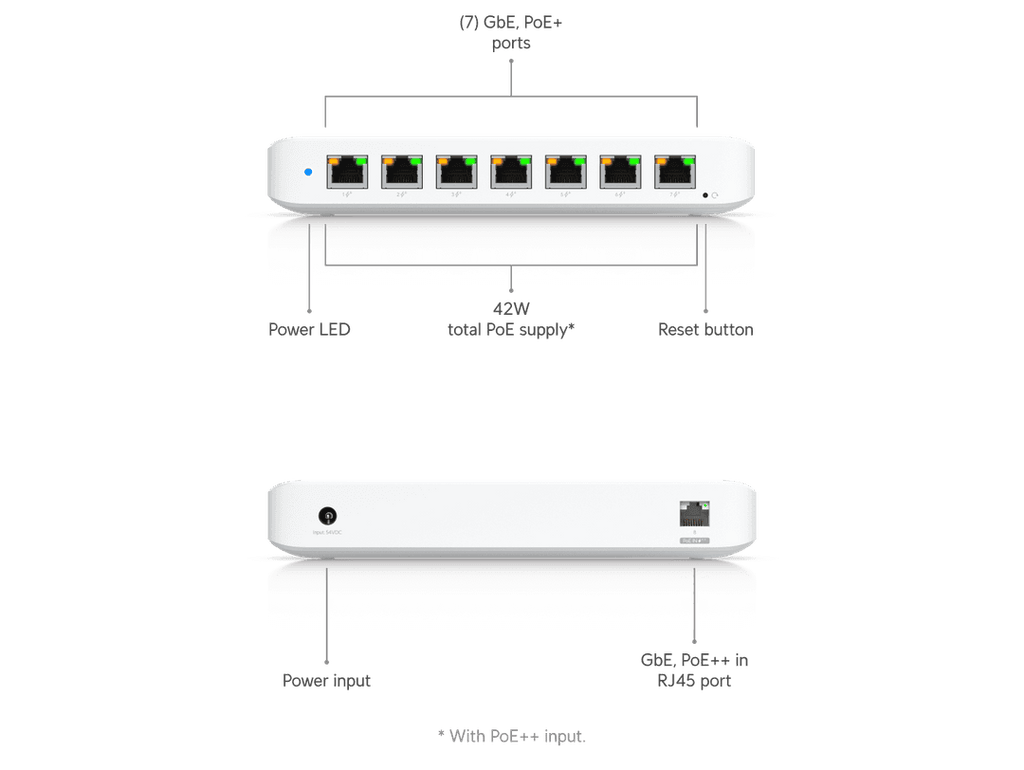

1 GbE RJ45 8 (7 PoE+; 1 PoE++ input) (1G/100M/10M)
Max. PoE Output Up to PoE+
Total PoE Availability PoE++ input: 42W PoE+ input: 16W 60W PoE adapter input: 42W 60W AC adapter input: 52W 210W AC adapter input: 202W
Form Factor Compact desktop, wall, magnetic
Switching Capacity 16 Gbps
Total Non-Blocking Throughput 8 Gbps
Forwarding Rate 12 Mpps
Supported VLANs 256
MAC Address Table Size 4,000
STP & RSTP
Egress Rate Limit
Flow Control
Storm Control
Multicast & Broadcast Rate Limiting
Port Isolation
Port Mirroring
Jumbo Frames
Loop Protection
PoE Ports 7
PoE+ 30W
PoE++ 1
Max. Power Consumption 9W (Excluding PoE Output) with PoE input 8W (Excluding PoE Output) with adapter input 210W (Including PoE Output) with 210W AC adapter input
Power Method (1) AC/DC adapter (Excluded) (1) PoE++
Power Input Method DC Input PoE
Supported Voltage Range 50–57V DC/PoE
Management Ethernet
Heat Dissipation 15 BTU/hr (Excluding PoE Output)
Weight Device: 320 g (11.3 oz) Wall mount: 45 g (1.6 oz)
Enclosure Material Polycarbonate
Mount Material Polycarbonate
Ambient Operating Temperature PoE++ input: -30 to 60° C (-22 to 140° F) 60W AC adapter input: -20 to 45° C (-4 to 113° F) 210W AC adapter input: -20 to 60° C (-4 to 140° F)
Ambient Operating Humidity 10 to 90% noncondensing
NDAA Compliant
Certifications CE, FCC, IC, Anatel: 06367-24-08356
Application Requirements Version 8.0.28 and later
UniFi Network Version 8.0.28 and later
Specs
Dimensions 203 x 76 x 33 mm (8 x 3 x 1.3")
1 GbE RJ45 8 (7 PoE+; 1 PoE++ input) (1G/100M/10M)
Max. PoE Output Up to PoE+
Total PoE Availability PoE++ input: 42W PoE+ input: 16W 60W PoE adapter input: 42W 60W AC adapter input: 52W 210W AC adapter input: 202W
Form Factor Compact desktop, wall, magnetic
Switching Capacity 16 Gbps
Total Non-Blocking Throughput 8 Gbps
Forwarding Rate 12 Mpps
Supported VLANs 256
MAC Address Table Size 4,000
STP & RSTP
Egress Rate Limit
Flow Control
Storm Control
Multicast & Broadcast Rate Limiting
Port Isolation
Port Mirroring
Jumbo Frames
Loop Protection
PoE+ 30W
PoE++ 1
Max. Power Consumption 9W (Excluding PoE Output) with PoE input 8W (Excluding PoE Output) with adapter input 210W (Including PoE Output) with 210W AC adapter input
Power Method (1) AC/DC adapter (Excluded) (1) PoE++
Power Input Method DC Input PoE
Supported Voltage Range 50–57V DC/PoE
Management Ethernet
Heat Dissipation 15 BTU/hr (Excluding PoE Output)
Weight Device: 320 g (11.3 oz) Wall mount: 45 g (1.6 oz)
Enclosure Material Polycarbonate
Mount Material Polycarbonate
Ambient Operating Temperature PoE++ input: -30 to 60° C (-22 to 140° F) 60W AC adapter input: -20 to 45° C (-4 to 113° F) 210W AC adapter input: -20 to 60° C (-4 to 140° F)
Ambient Operating Humidity 10 to 90% noncondensing
NDAA Compliant
Certifications CE, FCC, IC, Anatel: 06367-24-08356
UniFi Network Version 8.0.28 and later
