USW-WAN-RJ45

Name: USW-WAN-RJ45
Brand: Ubiquiti
SKU: USWWANRJ45CA
Price: 341.99 CAD
Availability: InStock

$341.99 $344.99

WAN Switch RJ45

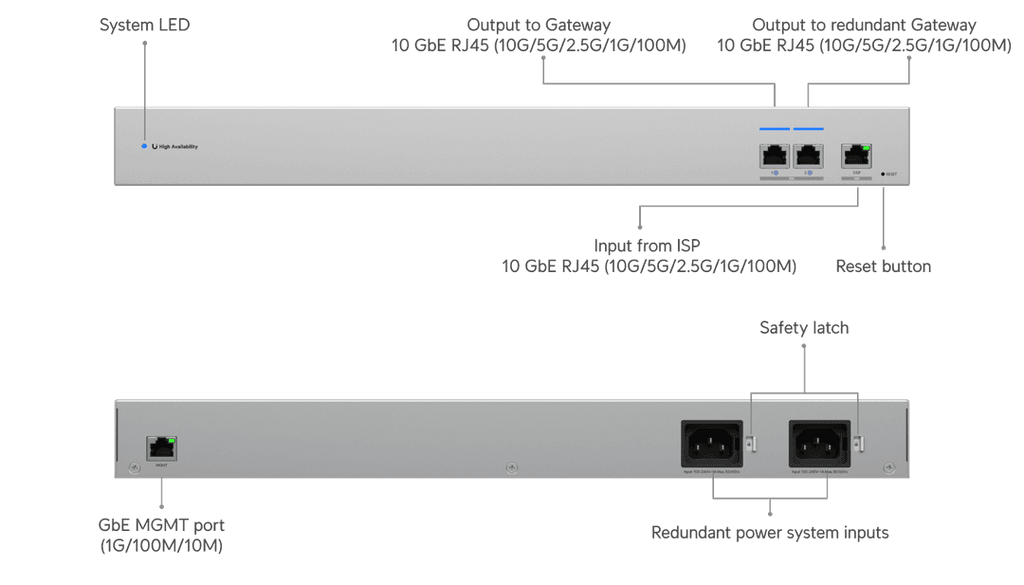

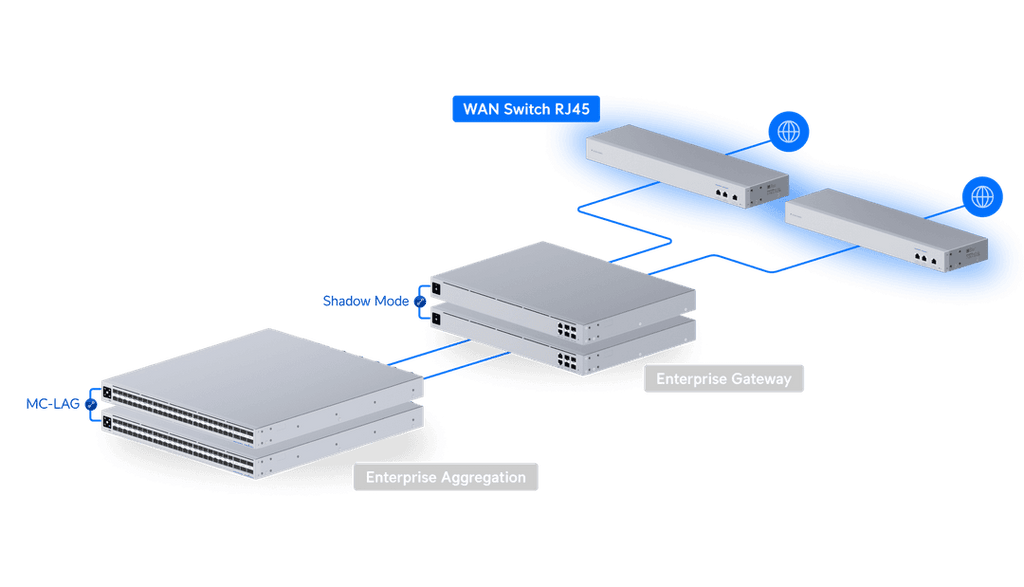

10 GbE WAN Switch linking two Shadow Mode High Availability UniFi Gateways to a single ISP

1 $341.99/ea

2-4 $341.87/ea

5-9 $341.74/ea

10-19 $341.62/ea

20+ $341.50/ea

WAN Switch RJ45

Fabricant	Ubiquiti
Modèle	USW-WAN-RJ45
UPC	810084699935
Catégorie	Networking — Switches 4 to 10 Ports
Poids	7.2 lbs
Dimensions (boîte)	9.7" × 21.1" × 4.4" (L×P×H)

TechnicalIn The BoxDocumentsFAQ

Overview

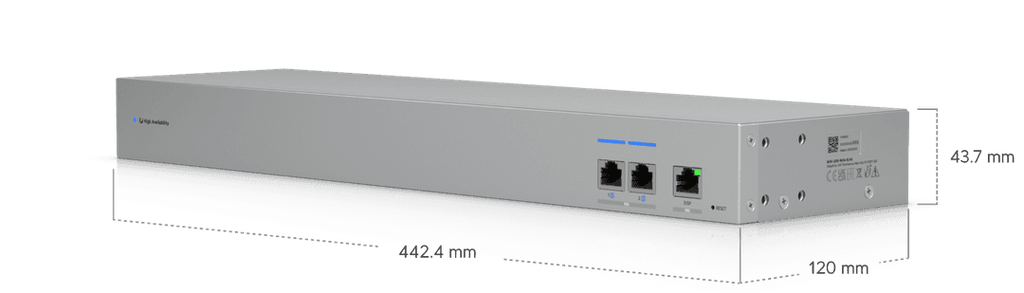

Dimensions	442.4 x 120 x 43.7 mm (17.4 x 4.72 x 1.7")
1 GbE RJ45	1 (1G/100M/10M)
10 GbE RJ45	3 (10G/5G/2.5G/1G/100M)
Redundancy	(2) AC inputs
Form Factor	Rack mount (1U)
Switching Capacity	20 Gbps
Total Non-Blocking Throughput	10 Gbps
Forwarding Rate	15 Mpps
Max. Power Consumption	18W
Power Method	(2) Universal input, 100–240V AC, 50/60 Hz
Power Input Method	AC input
Power Supply	(2) AC/DC, internal, 36W
Supported Voltage Range	100–240V AC
Management	Ethernet
Weight	Without mounting brackets: 2.3 kg (5.1 lb) With mounting brackets: 2.4 kg (5.3 lb)
Enclosure Material	SGCC steel
Mount Material	SGCC steel
ESD Protection	Air: ± 16kV, contact: ± 10kV
Ambient Operating Temperature	-5 to 40° C (23 to 104° F)
Ambient Operating Humidity	10 to 90% noncondensing
Ethernet	✓
System	✓
Certifications	CE, FCC, IC, Anatel: 04273-25-08356
NDAA Compliant	✓
Application Requirements	Version 9.1.120 and later
UniFi Network	Version 9.1.120 and later

Specs

Dimensions	442.4 x 120 x 43.7 mm (17.4 x 4.72 x 1.7")
1 GbE RJ45	1 (1G/100M/10M)
10 GbE RJ45	3 (10G/5G/2.5G/1G/100M)
Redundancy	(2) AC inputs
Form Factor	Rack mount (1U)
Switching Capacity	20 Gbps
Total Non-Blocking Throughput	10 Gbps
Forwarding Rate	15 Mpps
Max. Power Consumption	18W
Power Method	(2) Universal input, 100–240V AC, 50/60 Hz
Power Input Method	AC input
Power Supply	(2) AC/DC, internal, 36W
Supported Voltage Range	100–240V AC
Management	Ethernet
Weight	Without mounting brackets: 2.3 kg (5.1 lb) With mounting brackets: 2.4 kg (5.3 lb)
Enclosure Material	SGCC steel
Mount Material	SGCC steel
ESD Protection	Air: ± 16kV, contact: ± 10kV
Ambient Operating Temperature	-5 to 40° C (23 to 104° F)
Ambient Operating Humidity	10 to 90% noncondensing
Ethernet	✓
System	✓
Certifications	CE, FCC, IC, Anatel: 04273-25-08356
NDAA Compliant	✓
UniFi Network	Version 9.1.120 and later
